Plan 72768DA

Garage With Apartment And Vaulted Spaces

Heated S.F.
896
Beds
1
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 72768DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72768DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 72768DA: Garage With Apartment And Vaulted Spaces - Floor Plan - Main Level - Carriage, Mountain, Rustic, Vacation

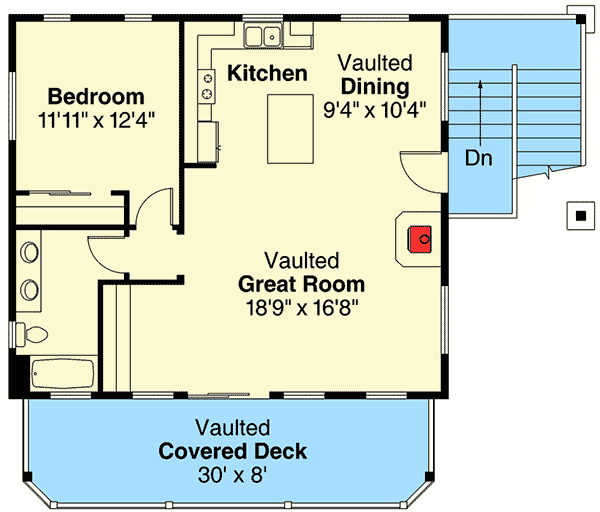

2nd Floor

Plan 72768DA: Garage With Apartment And Vaulted Spaces - Floor Plan - 2nd Floor - Carriage, Mountain, Rustic, Vacation

Plan Details

  • Large exposed beams and rugged styling greet you to this 3 car garage plan.
  • The larger two car garage door is 16' wide and 8' tall and the smaller door is 9' wide and 8' tall.
  • The U-shaped staircase is sheltered from and leads to living space on the upper floor.
  • Apartment amenities include vaulted living and dining spaces, a wood stove and full kitchen with island.
  • The covered deck is 8' deep, giving you room to place furniture and enjoy the views.
  • The bedroom has direct access to a full bath.
  • The roof is a truss design with 8 on 12 pitch.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

896 sq. ft.

1st Floor

896 sq. ft.

Deck

240 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

34' 0"

Max Ridge Height

30' 10"

Garage

Type

Drive Under

Area

896 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Architectural Style

Carriage

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

896 sq. ft.

1st Floor

896 sq. ft.

Deck

240 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

34' 0"

Max Ridge Height

30' 10"

Garage

Type

Drive Under

Area

896 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Architectural Style

Carriage

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Master Suite - Upstairs
