Plan 62502DJ Garage With Loft

720 0 0.5 1-2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Garage With Loft

Plan 62502DJ

  • 720

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This garage plan has doors on the front and the side giving you great flexibility and easy of access on your lot.
  • A loft above is accessed by a full set of stairs and can be put to many uses.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

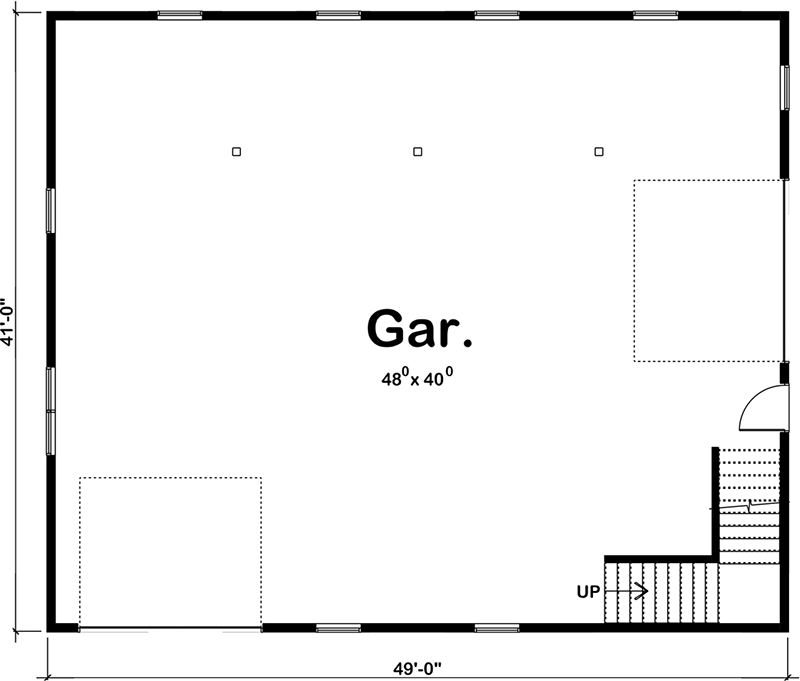

Garage With Loft - 62502DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

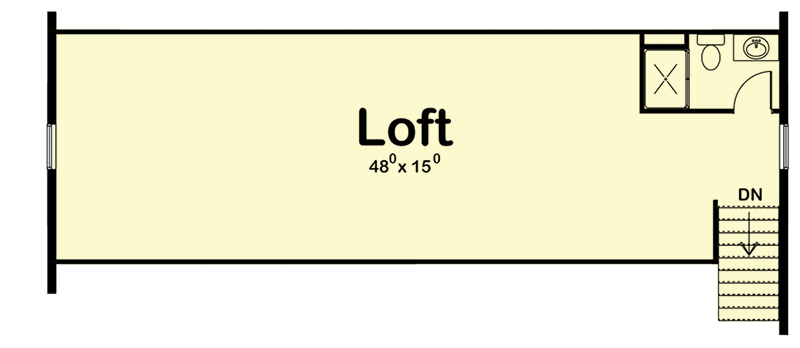

Garage With Loft - 62502DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 720 sq. ft.
  • 2nd Floor: 720 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 41' 0"
  • Max ridge height: 27' 3"

Garage

  • Type: Detached, RV Garage
  • Area: 2009 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 11' 1" Second Floor / 8' 1"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Special features

Garage With Loft

  • 720

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $800
  • 5 Sets + PDF $1,050
  • CAD + PDF - Single-Build $1,050
  • PDF - Unlimited Build $1,300
  • CAD - Unlimited Build $1,550
  • View all purchase option online

About This Plan

  • This garage plan has doors on the front and the side giving you great flexibility and easy of access on your lot.
  • A loft above is accessed by a full set of stairs and can be put to many uses.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 720 sq. ft.
  • 2nd Floor: 720 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 41' 0"
  • Max ridge height: 27' 3"

Garage

  • Type: Detached, RV Garage
  • Area: 2009 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 11' 1" Second Floor / 8' 1"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
Plan 62502DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62502DJ
|
