Garage with Storage & Free Materials List

Plan 21202DR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1-2

    Stories

  • 3

    Cars

  • This garage plan has 251 s.f. of storage.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

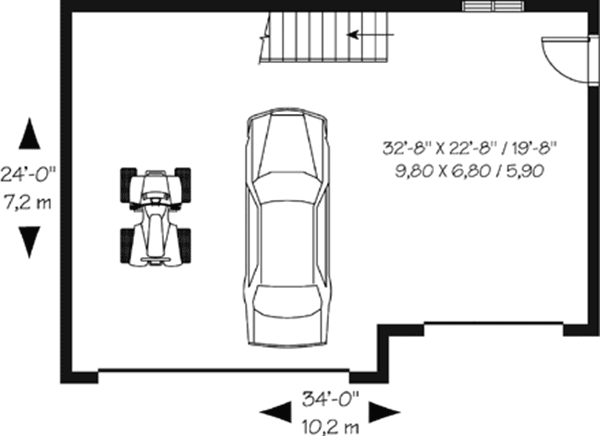

Garage with Storage & Free Materials List - 21202DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

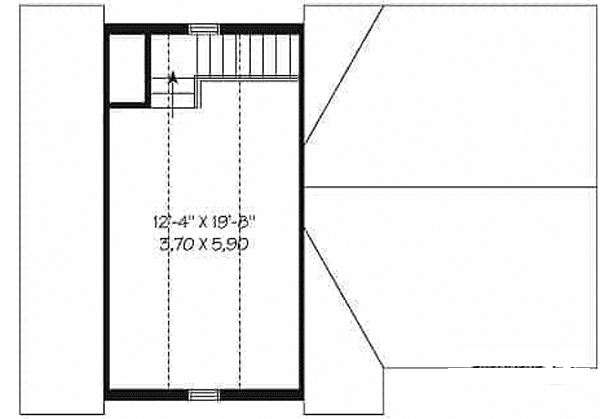

Garage with Storage & Free Materials List - 21202DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Bonus: 251 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 34' 0"
  • Depth: 24' 0"
  • Max ridge height: 22' 6"

Garage

  • Type: Detached
  • Area: 776 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Special features

Plan Collections

Garage with Storage & Free Materials List

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 24' 0"
  • Max ridge height: 22' 6"

Beds/Baths

  • Bedrooms: 0

Garage

  • Type: Detached
  • Area: 776 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
