Gorgeous 4-Bed Acadian House Plan with Bonus Room Above Garage

Plan 510067WDY

  • 2,688

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • Once past the threshold of this gorgeous, Acadian house plan, discover a formal dining room to the right, which opens to a spacious living room. A cozy fireplace warms the space, and a back door leads to a covered porch with an outdoor kitchen.
  • The open kitchen boasts a multi-purpose island, and the adjoining keeping room allows family and friends to keep the cook company.
  • The master bedroom, located on the left side of the home, provides a serene space to relax, and features a 5-fixture bathroom and a sizable walk-in closet. Bedrooms 2 and 3 rest towards the front of the home and share a Jack-and-Jill bath.
  • A fourth bedroom near the garage entrance is a perfect space for guests, and a pocket door leads to a full bath.
  • The side-entry, 3-car garage creates a parking courtyard, and a bonus room above increases living space and includes a full bath.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

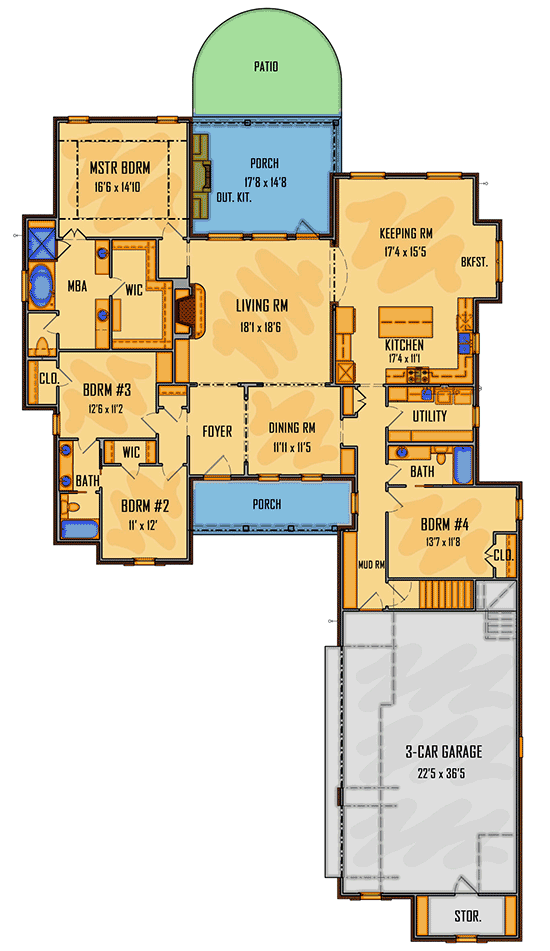

Gorgeous 4-Bed Acadian House Plan with Bonus Room Above Garage - 510067WDY floor plan - Main Level

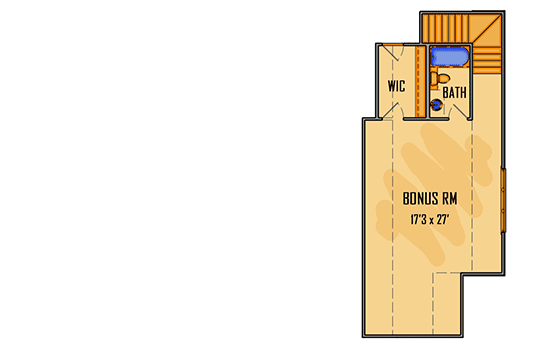

Bonus Above Garage

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Gorgeous 4-Bed Acadian House Plan with Bonus Room Above Garage - 510067WDY floor plan - Bonus Above Garage
