Plan 36590TX
Gorgeous Two-Story Home Plan with Two Master Suites
Heated S.F.
4,298
Beds
4
Baths
4.5
Stories
2
Cars
2
What's Included
Plan Details
  • Bay windows topped by a turret-style roof add depth to the front elevation of this gorgeous, two-story home plan. Inside, high ceilings in the foyer, combined with a custom curved staircase, creates a grand first impression.
  • A generously-sized family room features a corner fireplace, and the open kitchen offers tons of workspace. Enjoy grilling season on the outdoor lounge, or cozy up next to the fireplace during colder months.
  • The adjacent bar and wine cellar is ideal for entertaining, and leads to the formal dining room.
  • Homeowners will delight in the main-floor, master suite, complete with a fireplace and sitting area that opens to a private patio. The spa-like en suite features dual closets and vanities, along with a separate tub and shower.
  • A second master can be found upstairs, as well as a mini-master bath. Down the hall, two family bedrooms share a Jack-and-Jill bath, and a large game room rounds out the second level.
What's Included
  • Cover sheet
  • Foundation Plan

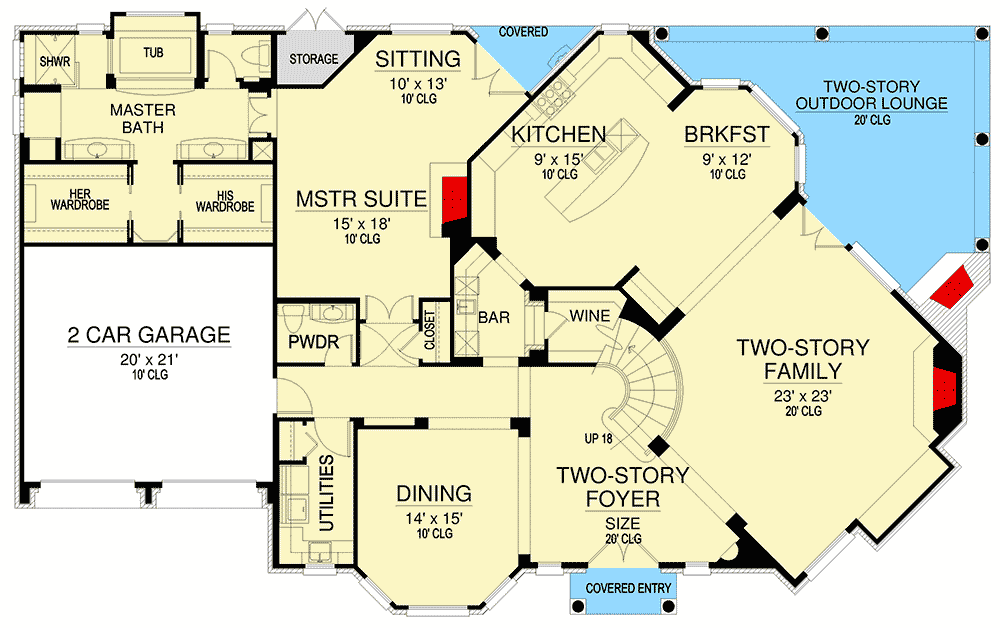

  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

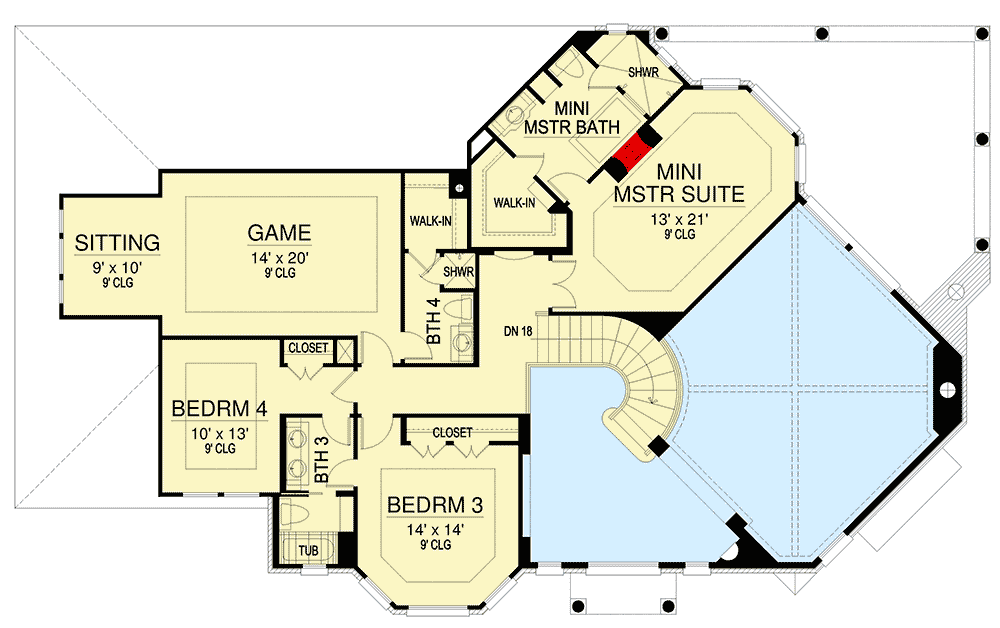

  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

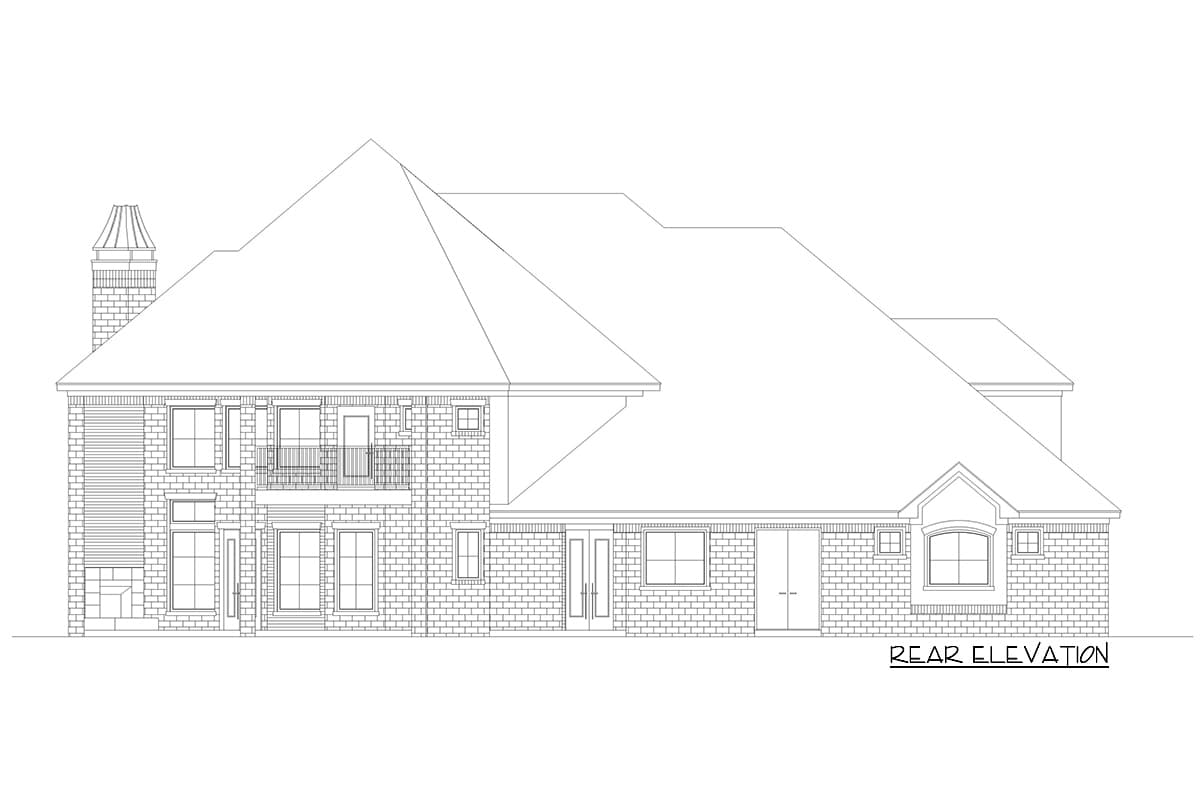

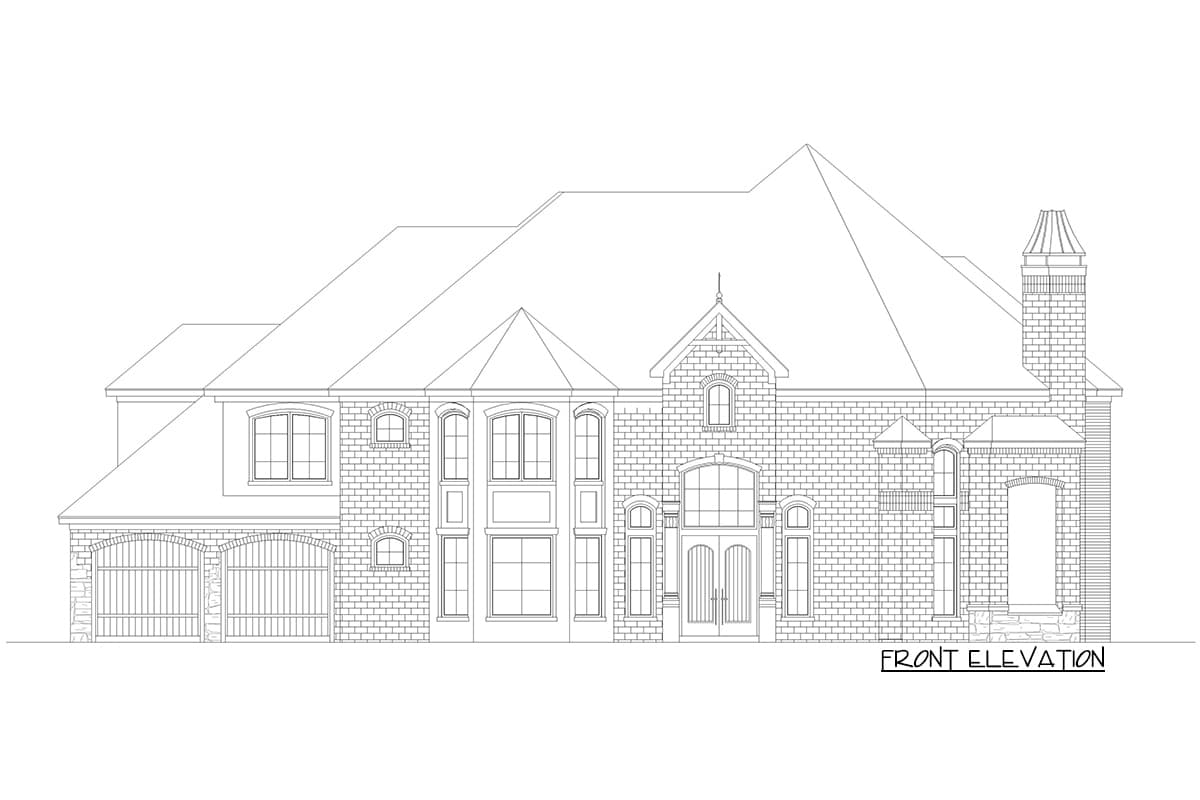

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

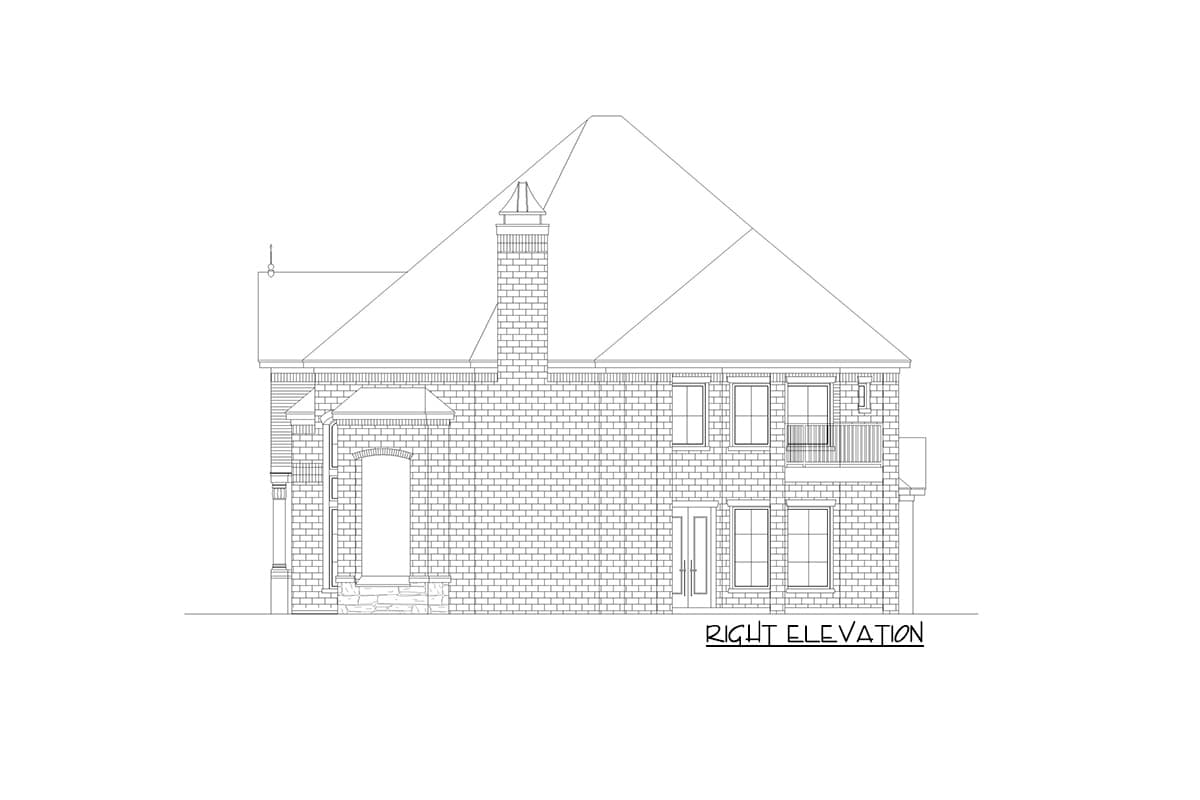

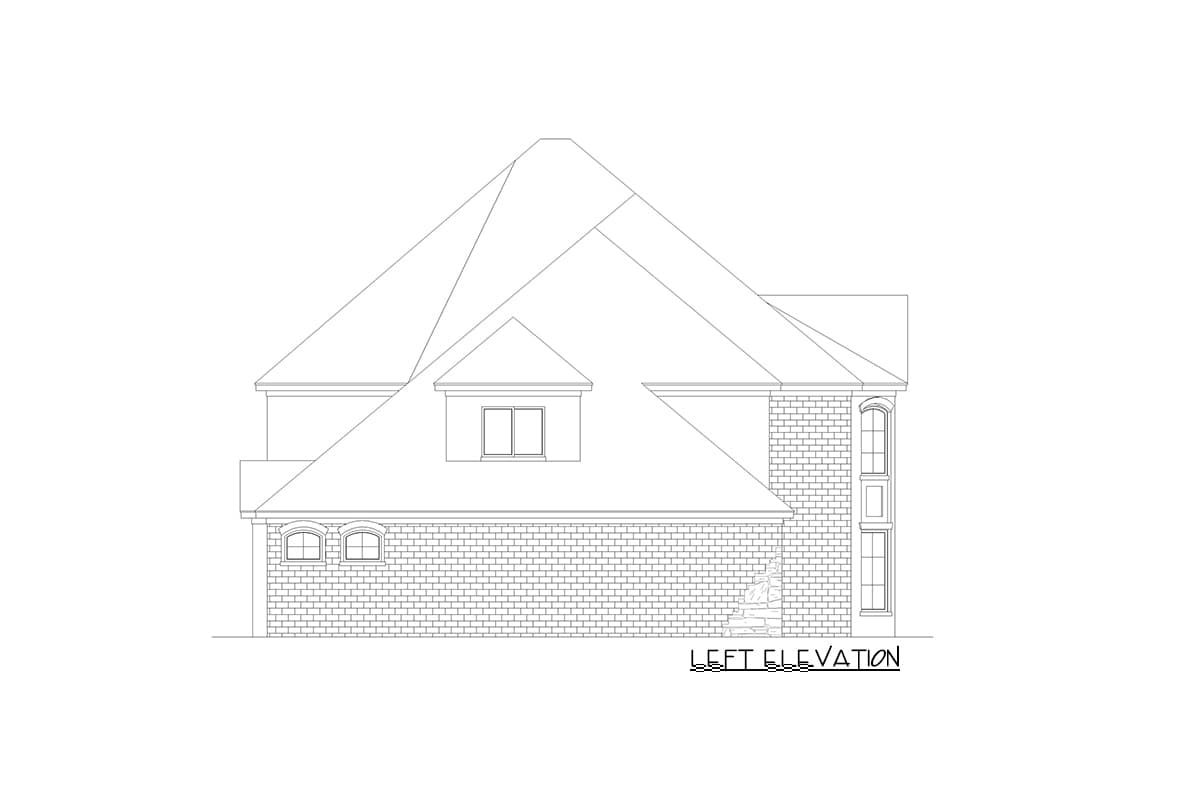

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Gorgeous Two-Story Home Plan with Two Master Suites

  • 4,298

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,298 sq. ft.
  • 1st Floor: 2,723 sq. ft.
  • 2nd Floor: 1,575 sq. ft.

Dimensions

  • Width: 83' 0"
  • Depth: 51' 0"
  • Max ridge height: 40' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 504 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
