Gothic-Inspired Modern Farmhouse with Upstairs Game Room

Plan 56507SM

  • 2,705

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Enjoy outdoor living on the spacious front and rear porches provided with this Gothic-Inspired Modern Farmhouse design.
  • Double doors bring you into an open and inviting great room that merges with the dining area.  Exposed wood beams help to define the adjacent kitchen, where an oversized island includes seating for five and barn doors reveal a dreamy walk-in pantry.
  • The left wing is where you'll find the laundry room and master suite, topped by a vaulted ceiling and including a charming window seat. The ensuite boasts a freestanding tub, toilet room, and a dresser island in the walk-in closet.
  • A second bedroom on the opposite side of the home is just inside from the 3-car garage and next door to a full bath.
  • A large game room greets you at the top of the stairs, and leads to bedrooms 3 and 4.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

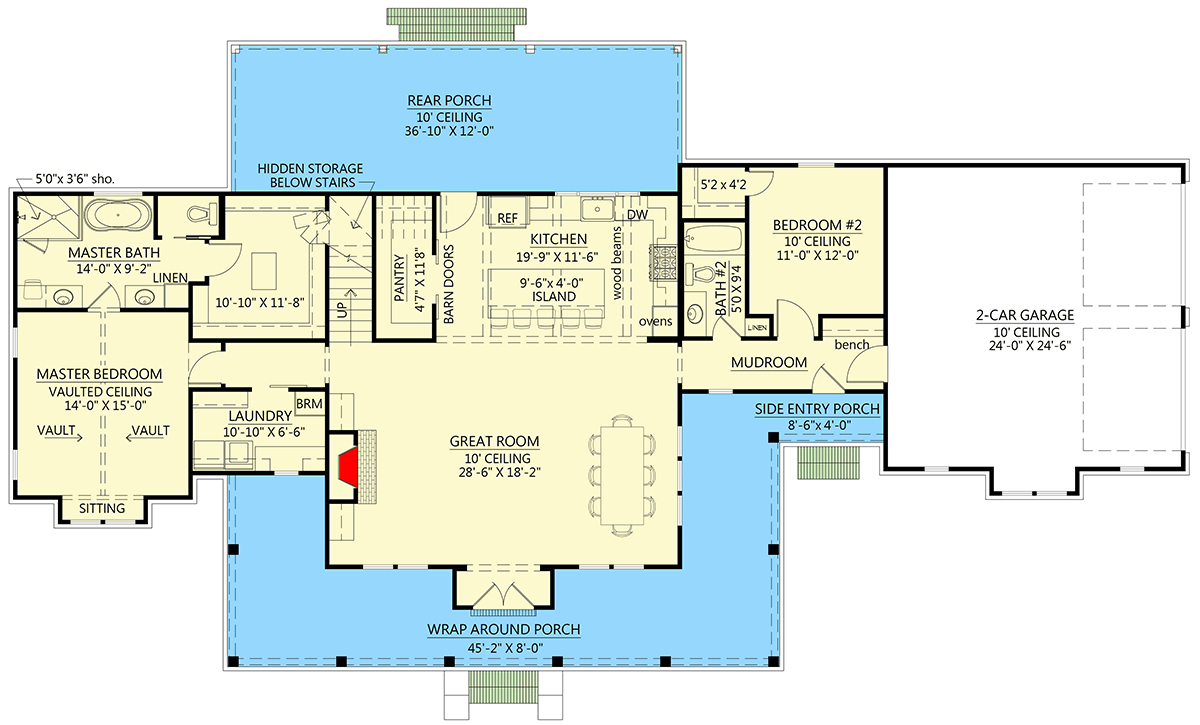

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Gothic-Inspired Modern Farmhouse with Upstairs Game Room - 56507SM floor plan - Main Level

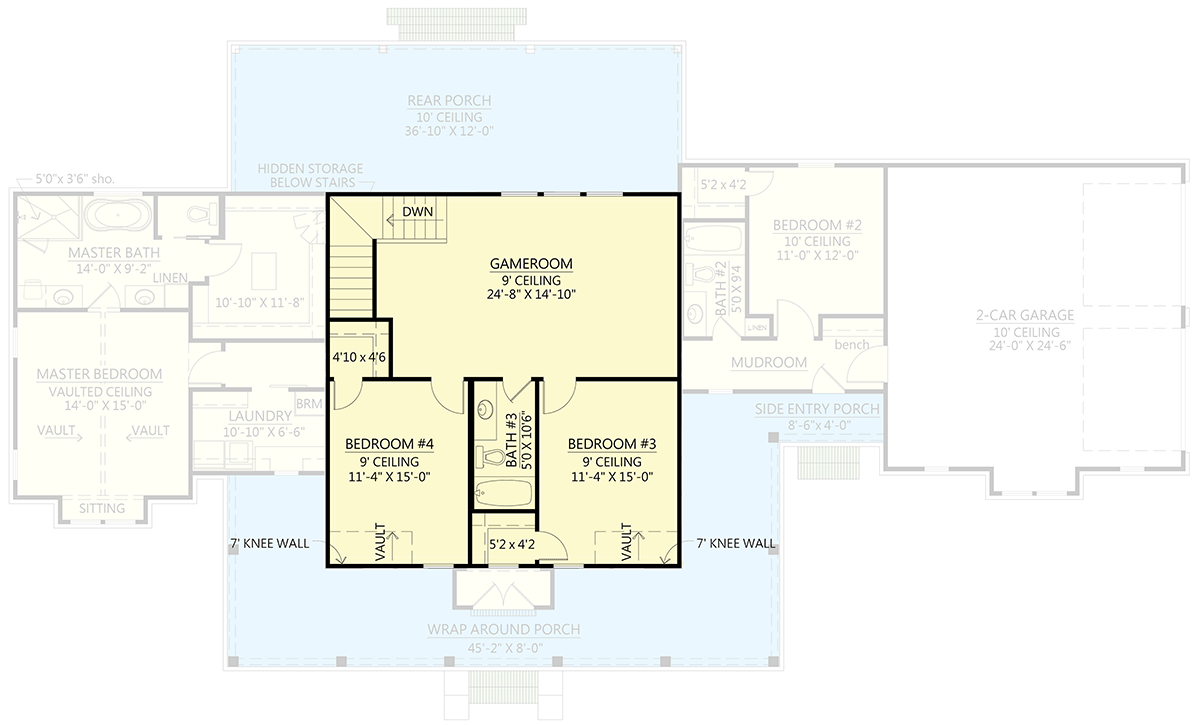

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Gothic-Inspired Modern Farmhouse with Upstairs Game Room - 56507SM floor plan - 2nd Floor

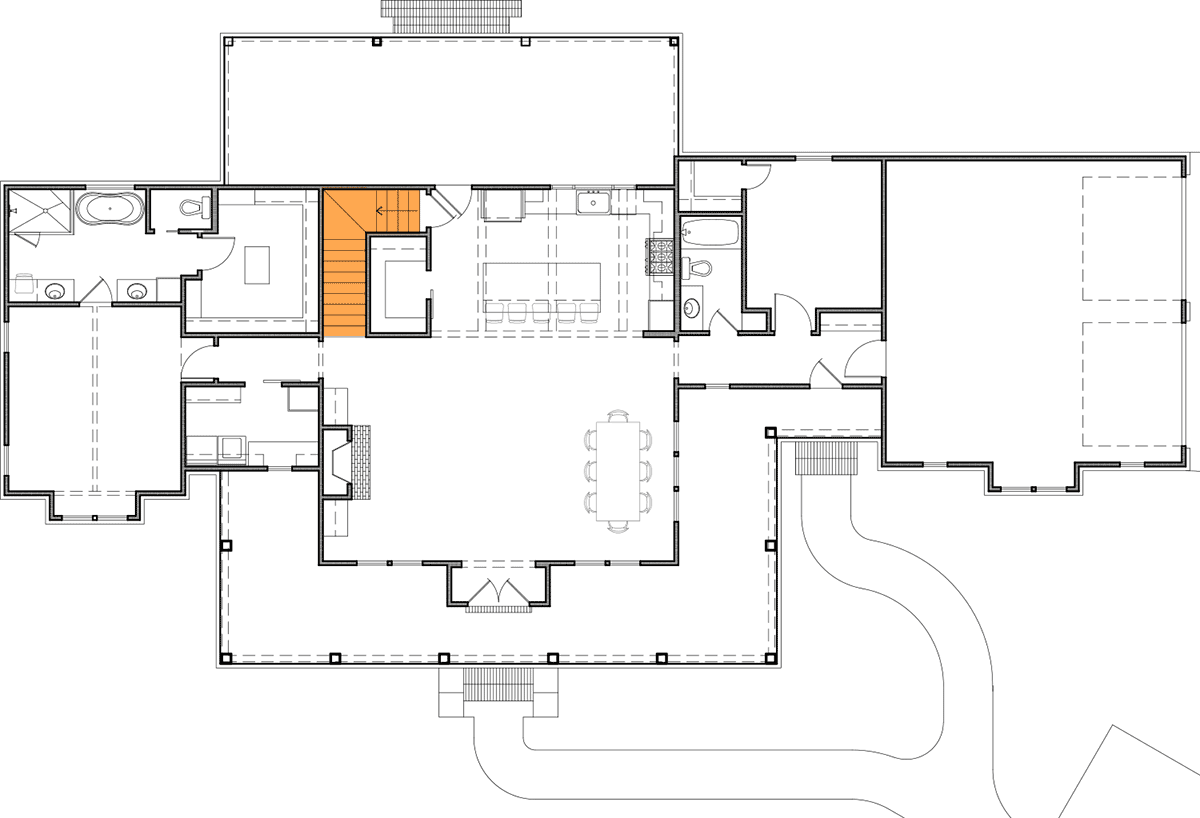

Basement Option - Main Floor Stairs
