Plan 89763AH
Graceful Arches
Heated S.F.
4,457
Beds
4
Baths
3.5
Stories
1
Cars
4
What's Included
Plan Details
  • A unique blend of stone and stucco siding, columns and graceful arches creates a design that's sure to stand out in any neighborhood.
  • An incredible view of the back yard through two-story windows awaits you as you enter.
  • The kitchen, hearth room and nook were carefully crafted to create a casual living area that is functional and comfortable.

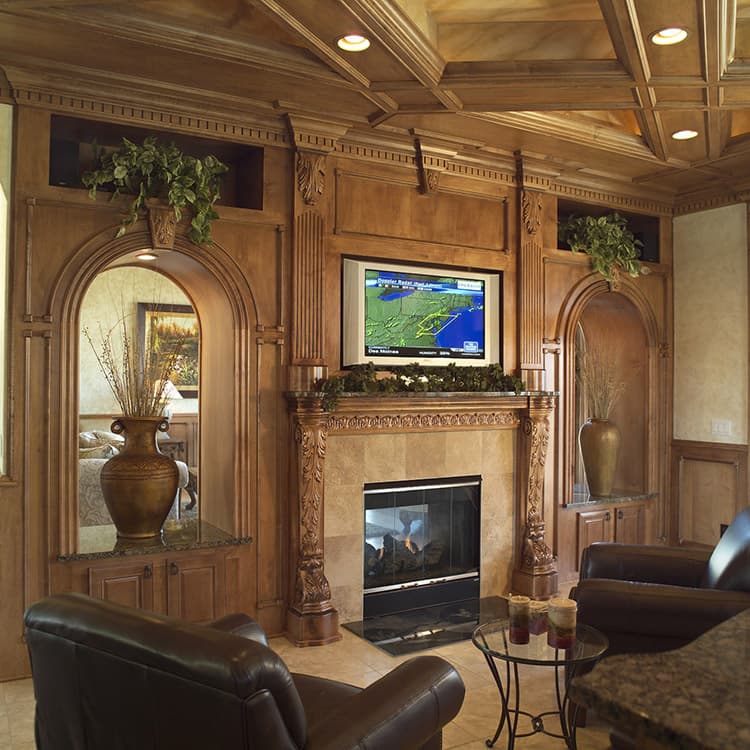

  • The great room features a fire place that's see-through to the hearth room, built-in cabinets and beamed ceilings.
  • The master suite pampers with a corner jucuzzi tub, spacious walk-in closet and trayed ceiling.

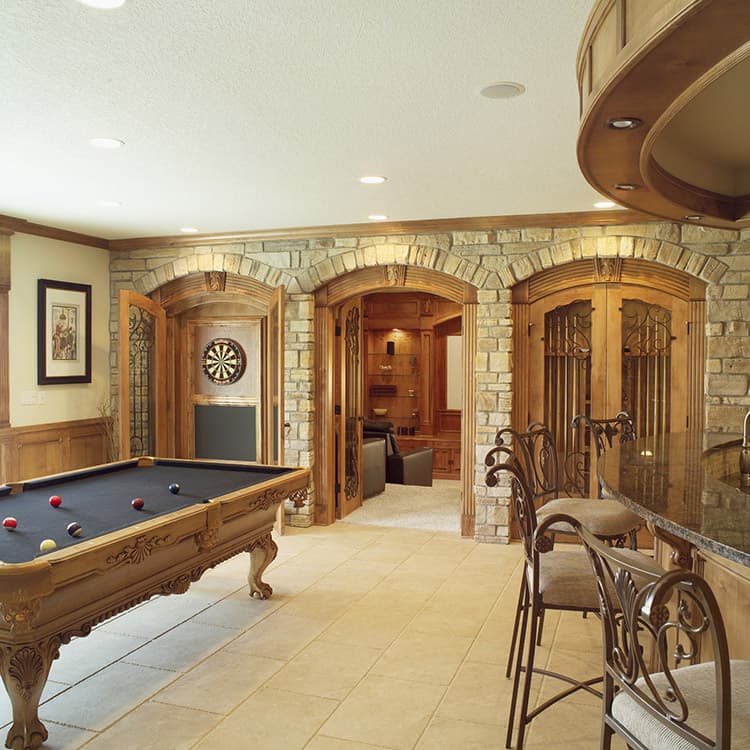

  • Downstairs you'll find enough space to finish three bedrooms, a large recreation room, wine cellar, and media room.
  • Finally, four garage stalls are split into pairs found on each side of the home.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Graceful Arches

  • 4,457

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

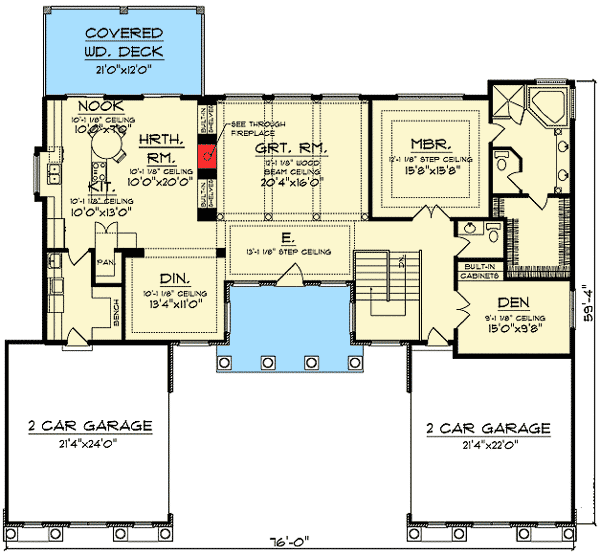

  • Main Level

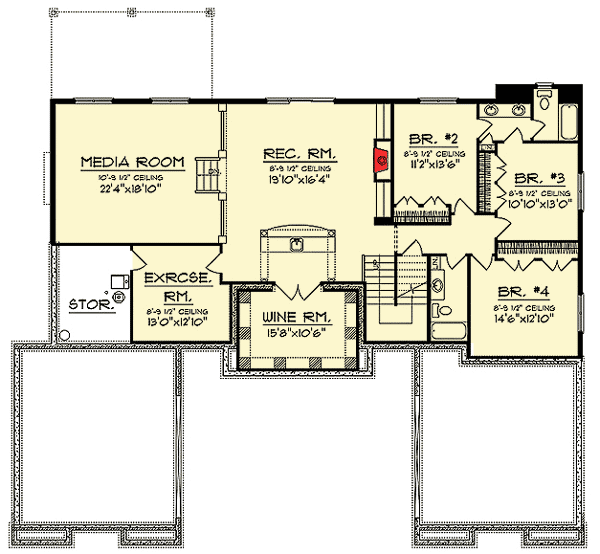

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 4,457 sq. ft.
  • Lower Level: 2,195 sq. ft.
  • 1st Floor: 2,262 sq. ft.

Dimensions

  • Width: 76' 0"
  • Depth: 59' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 938 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 9"
