Plan 530007UKD

Graceful Craftsman Cottage

Heated S.F.
1,189
Beds
2
Baths
2
Stories
1

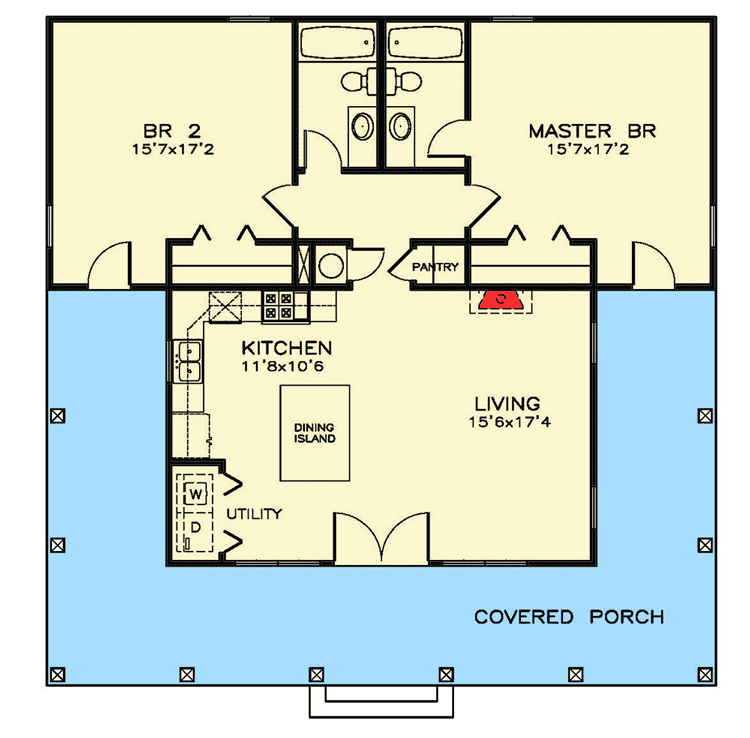

Floor Plan

Plan 530007UKD

Main Level
Main Level

Plan 530007UKD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 530007UKD: Graceful Craftsman Cottage - Floor Plan - Main Level - Coastal, Craftsman, Northwest, Rustic, Vacation

Plan Details

  • With a gorgeous wrap-around porch that's almost as big as the house itself, this graceful Craftsman Cottage will give you indoor and outdoor living.
  • The main living area inside has a huge open layout that makes the home feel bigger.
  • Windows on all sides open up with views of the covered porch.
  • The huge covered porch ensures you'll be spending lots of time enjoying the fresh air.
  • Each of the two bedrooms has a door to the porch and the master suite has a private bathroom.
  • Related Plans: See other versions of this plan with 530008UKD, 530009UKD and 530010UKD.

What's Included

Whats Included:
  • Title Sheet -  Isometric of Front Elevation
  • Foundation Plan ‐ shows the foundation plan and details.  ¼” = 1’-0
  • Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.  ¼” = 1’-0 scale

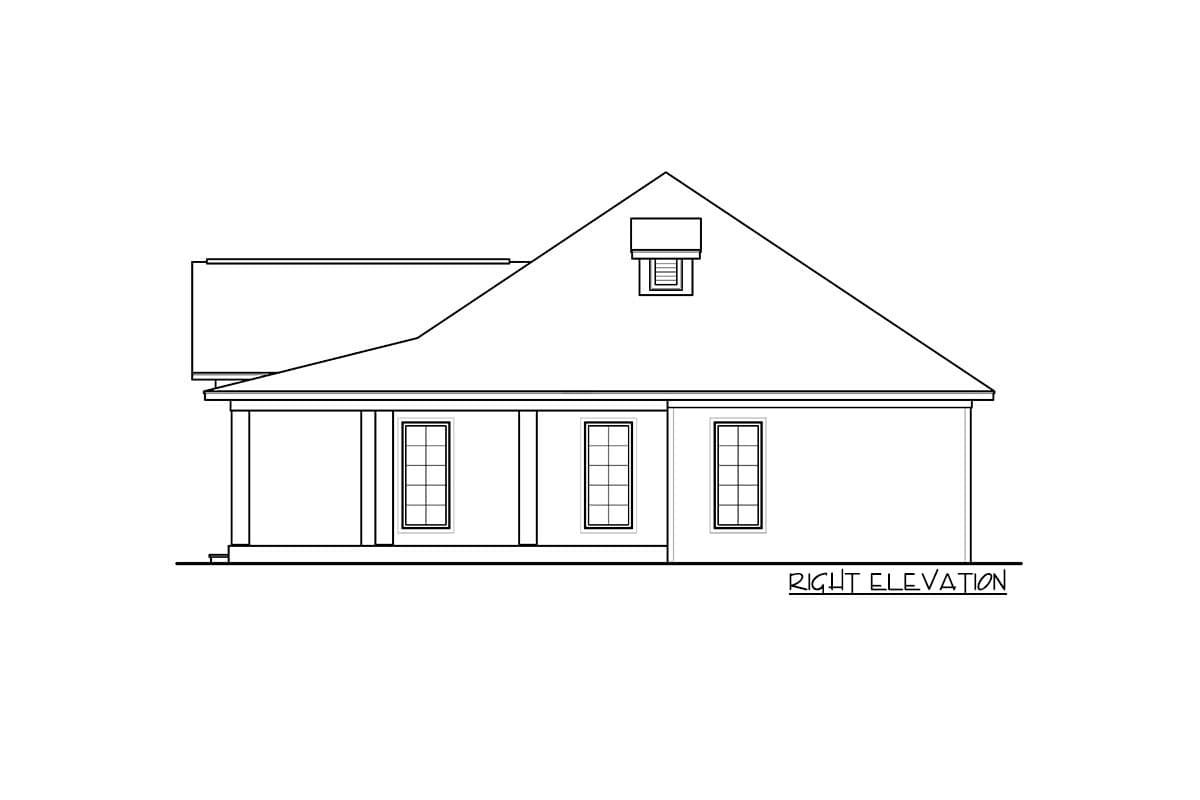

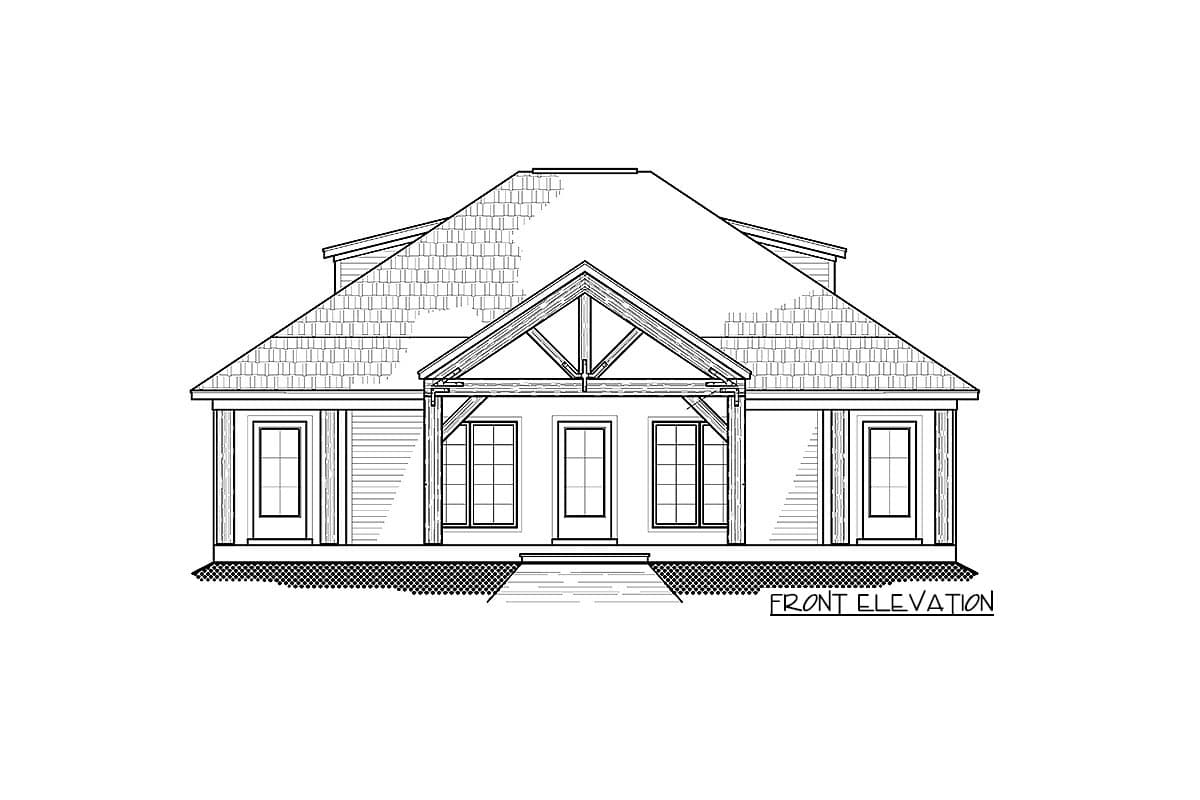

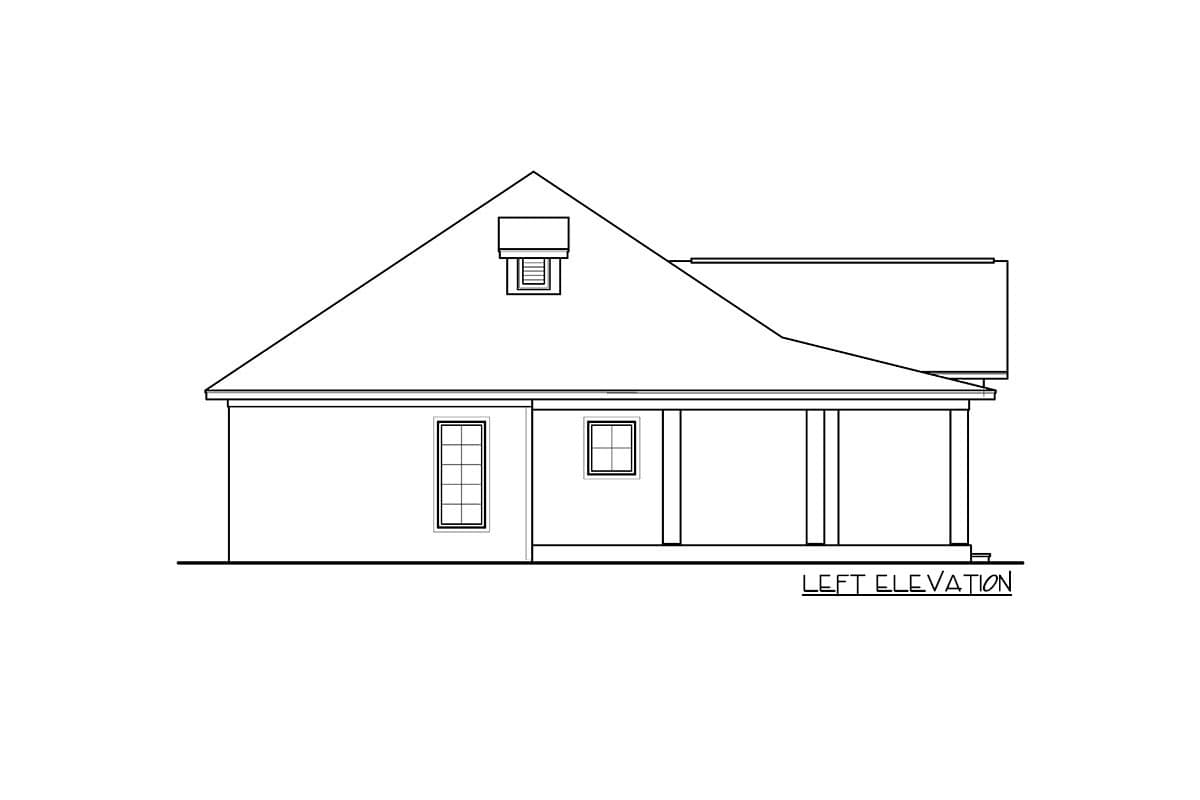

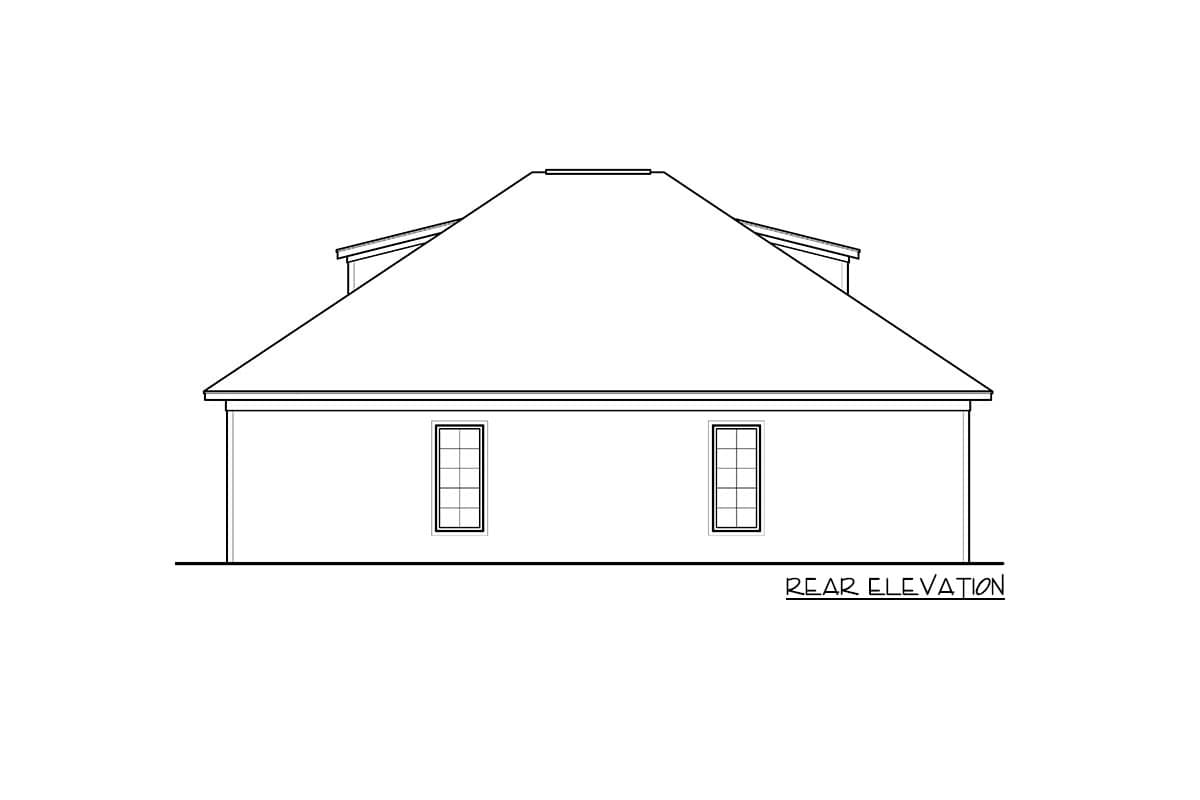

  • Exterior Elevations ‐ show the front, rear and sides of the house, including exterior materials, details and roof pitches.  ¼” = 1’-0
  • Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.
  • Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.
  • Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers.
  • Roof Framing Plan - provides guideline for rafters, ridges, hip framing
  • Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.
  • Notes & Details ‐ per IRC 2015

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,189 sq. ft.

1st Floor

1,189 sq. ft.

Porch, Combined

575 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

42' 0"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

3 on 12

Architectural Style

Coastal

Craftsman

Northwest

Rustic

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Wraparound Porch

Square Footage Breakdown

Total Heated Area

1,189 sq. ft.

1st Floor

1,189 sq. ft.

Porch, Combined

575 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

42' 0"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

3 on 12

Architectural Style

Coastal

Craftsman

Northwest

Rustic

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Wraparound Porch
