Graceful One-Story Acadian House Plan

Plan 860004MCD

  • 1,803

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • With its stylish Acadian exterior, open floor plan and split bedroom layout, this Southern house place is sure to appeal.
  • From the kitchen sink, you have clear sight lines into the eating and living areas of the home.
  • You can even see out onto the large covered rear porch.
  • Two family bedrooms lie on the right side of the home while the master suite is all the way across the house.
  • The over-sized garage has extra space for bicycles and lawn equipment.

This set of working drawings contains the following components
  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

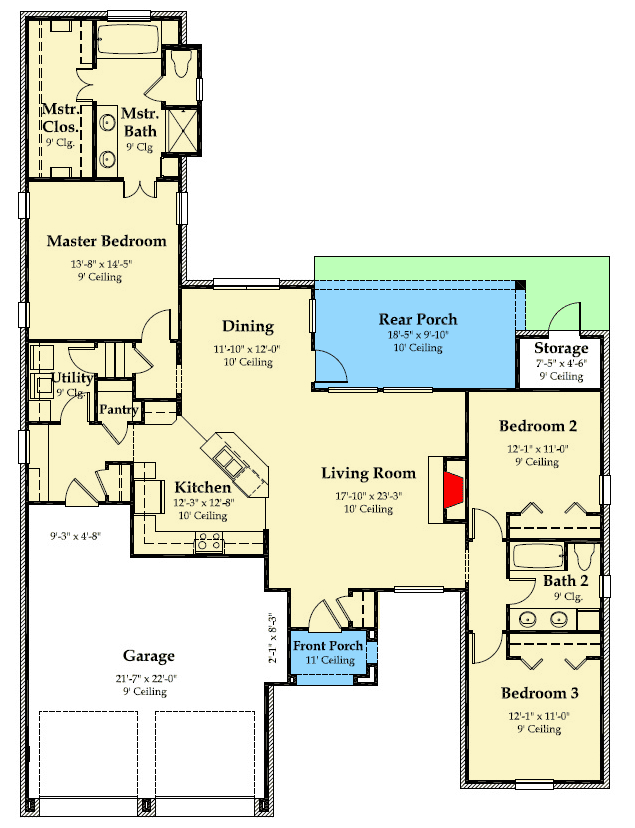

Graceful One-Story Acadian House Plan - 860004MCD floor plan - Main Level
