Gracious 4-Bed Southern House Plan for a Rear Sloping Lot

Pageloader

Gracious 4-Bed Southern House Plan for a Rear Sloping Lot

Plan 55202BR

  • 2,754

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 4-bed southern beauty has front and rear porches designed to capture cool breezes. Its compact footprint makes it ideal for smaller lots and especially for ones that slope to the back.
  • The kitchen is open to the living room and includes an eating bar and a butlers pantry.  The living room opens onto the rear veranda for summer living but there is also a gas log fireplace for winter living.
  • The isolated master suite that is conveniently located near the kitchen. The master bath has a walk-in closet, twin vanities, private toilet and a giant shower. Two secondary bed rooms share a bath and both feature large walk-in closets.
  • Basement stairs are located for convenience and privacy. A fourth bed room in the basement makes for a great guest room or a place for live in parents.  An enormous game room is large enough for a regulation-size pool table and is flanked by a room complete with a kitchenette. A large storage room is a nice touch. A great porch is located off the game room and it makes a great outdoor entertaining.
  • A 2-car garage and a storage room complete the basement level amenities.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

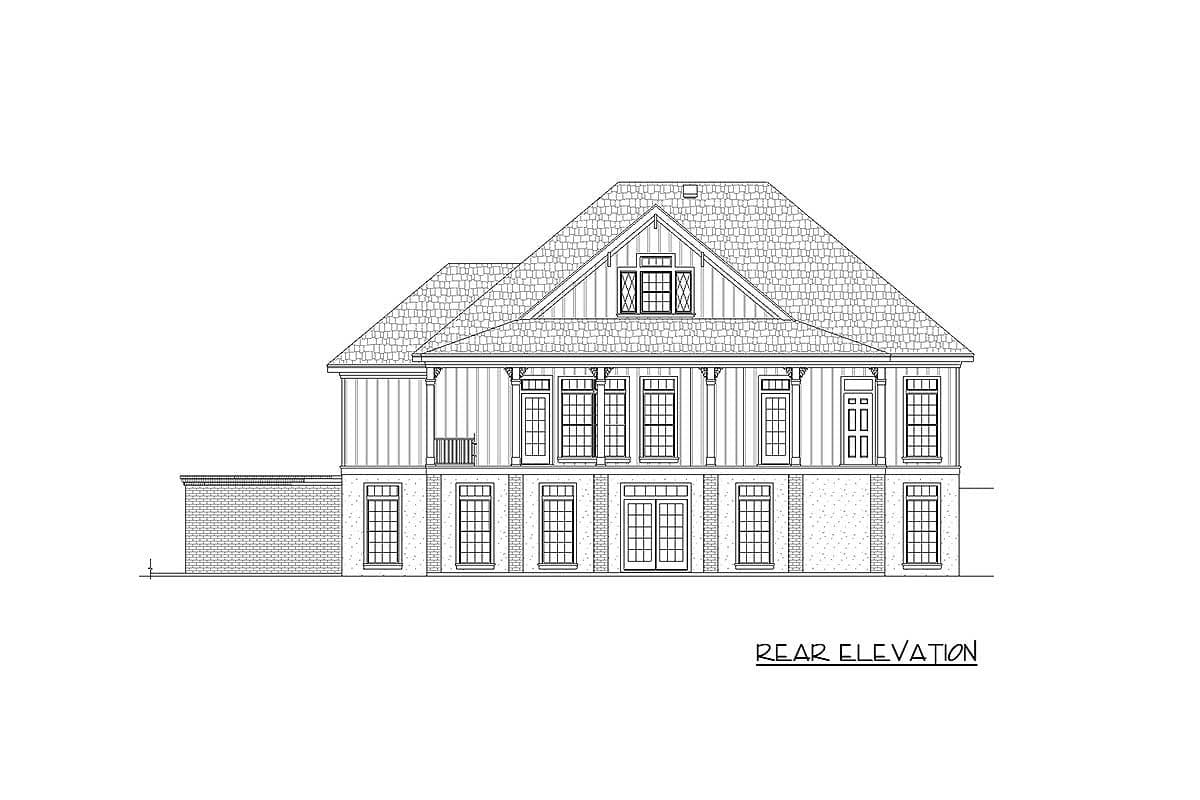

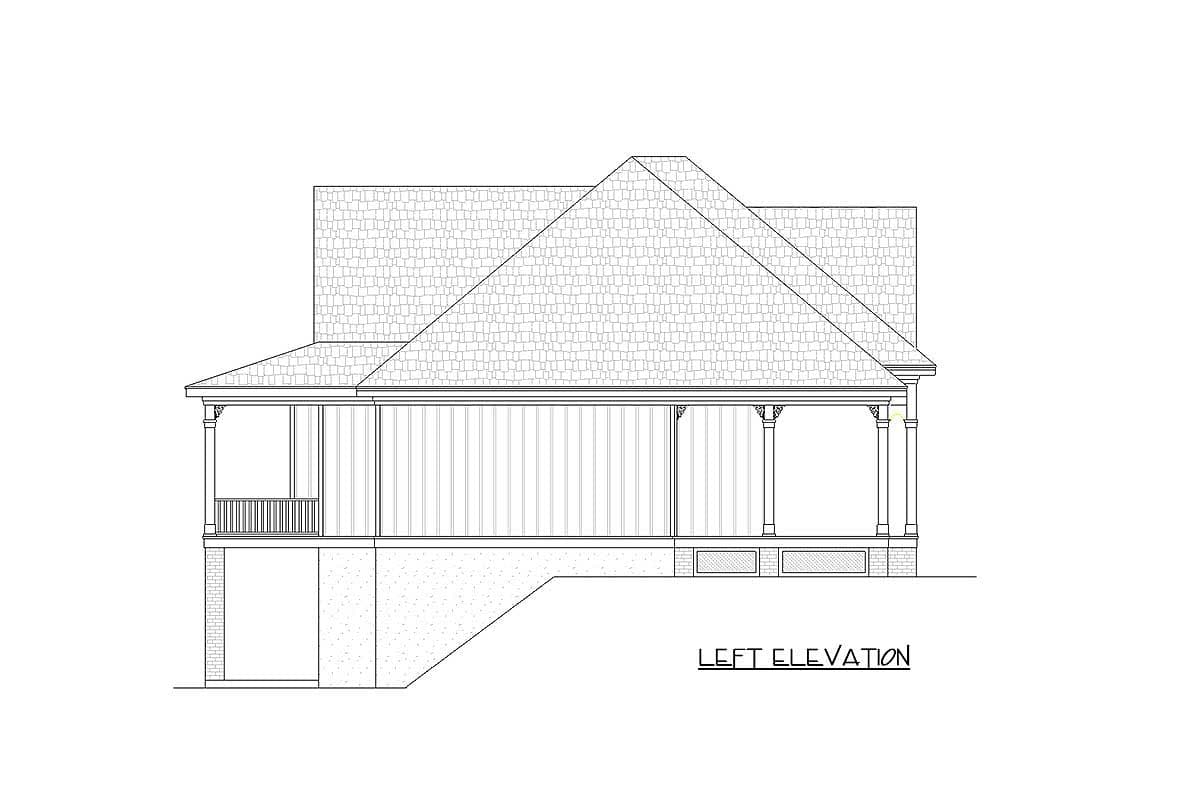

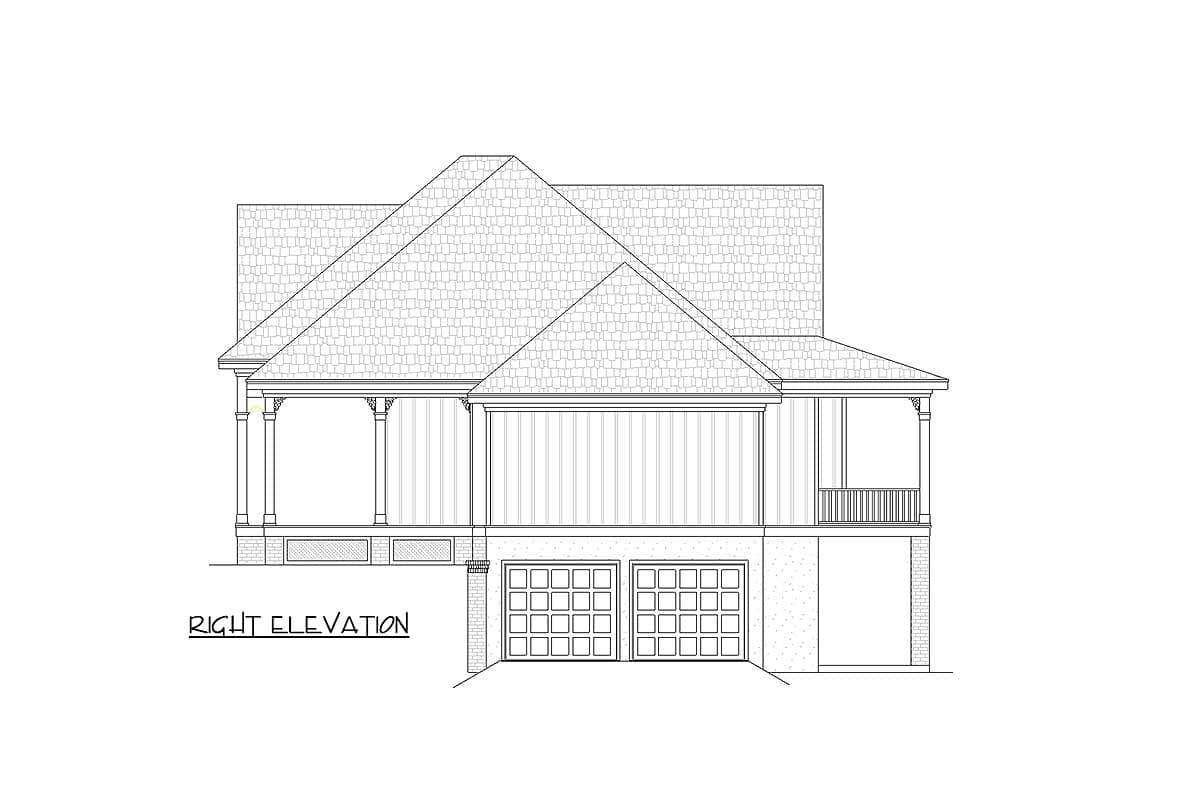

  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule





Floor Plan

Plan details



Gracious 4-Bed Southern House Plan for a Rear Sloping Lot

  • 2,754

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,050
  • 5 Sets $1,130
  • 8 Sets $1,190
  • Reproducible Set $1,210
  • CAD $2,100
  • View all purchase option online

About This Plan

  • This 4-bed southern beauty has front and rear porches designed to capture cool breezes. Its compact footprint makes it ideal for smaller lots and especially for ones that slope to the back.
  • The kitchen is open to the living room and includes an eating bar and a butlers pantry.  The living room opens onto the rear veranda for summer living but there is also a gas log fireplace for winter living.
  • The isolated master suite that is conveniently located near the kitchen. The master bath has a walk-in closet, twin vanities, private toilet and a giant shower. Two secondary bed rooms share a bath and both feature large walk-in closets.
  • Basement stairs are located for convenience and privacy. A fourth bed room in the basement makes for a great guest room or a place for live in parents.  An enormous game room is large enough for a regulation-size pool table and is flanked by a room complete with a kitchenette. A large storage room is a nice touch. A great porch is located off the game room and it makes a great outdoor entertaining.
  • A 2-car garage and a storage room complete the basement level amenities.

Floor Plans

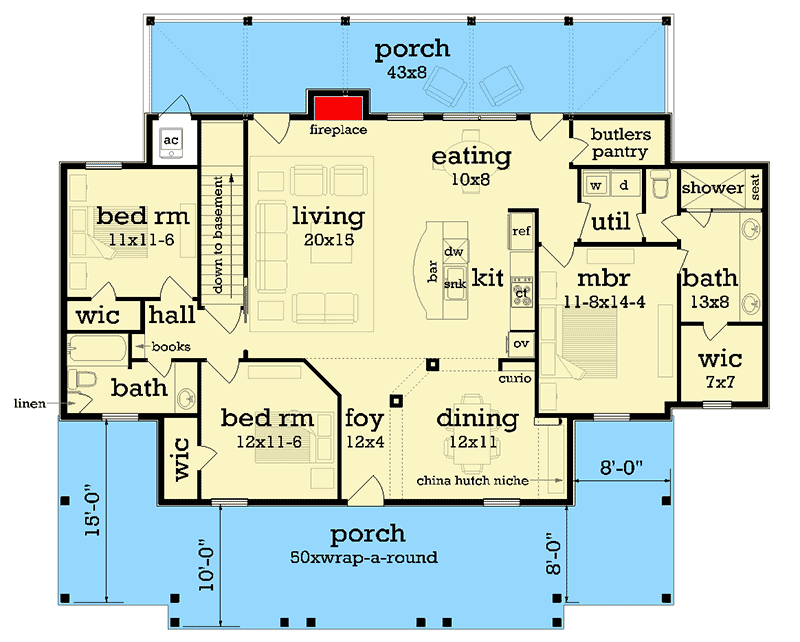

  • Main Level

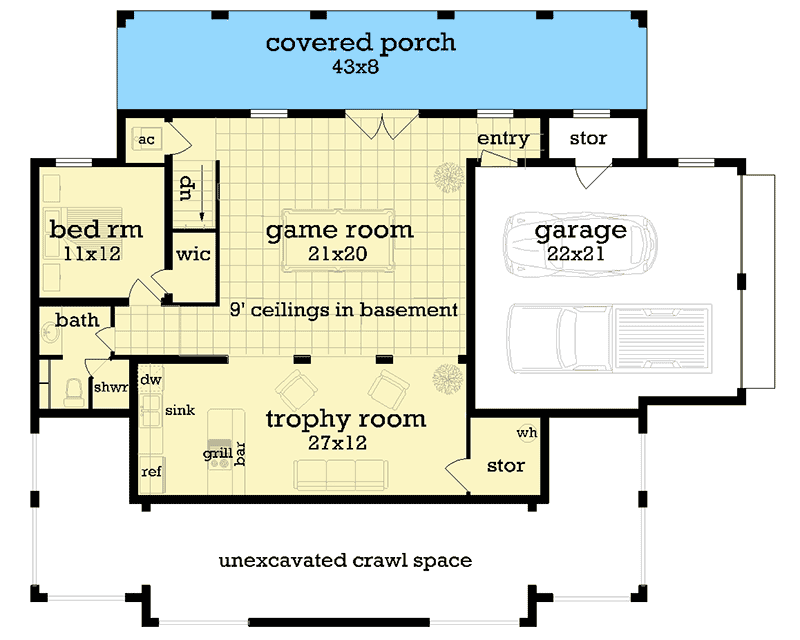

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,754 sq. ft.
  • Lower Level: 1,134 sq. ft.
  • 1st Floor: 1,620 sq. ft.
  • Storage: 32 sq. ft.
  • Porch, Combined: 1,264 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 50' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 454 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Framing Type: Stick
