Plan 62144V

Gracious Southern House Plan

Heated S.F.
2,046
Beds
4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 62144V

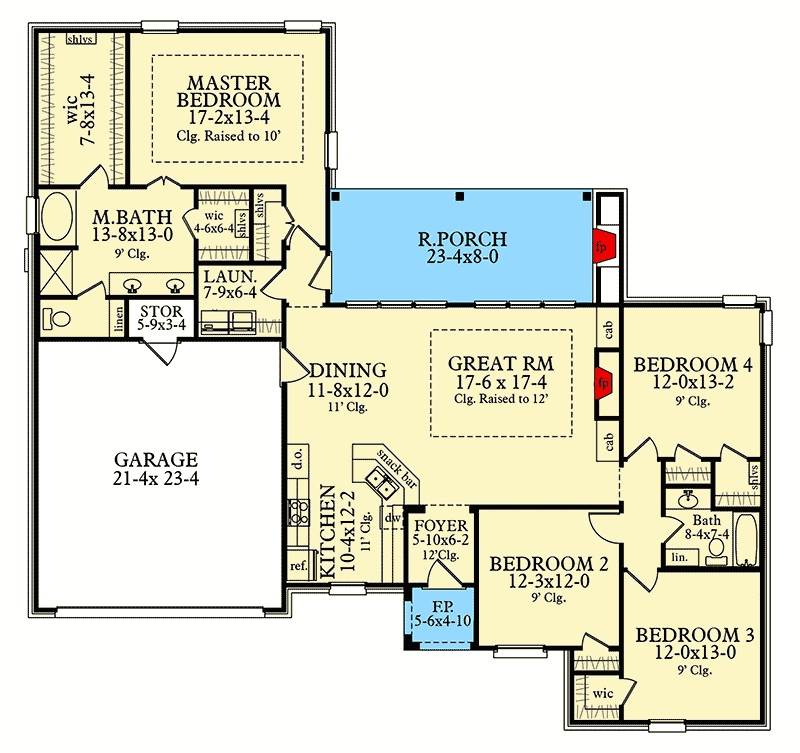

Main Level
Main Level

Plan 62144V

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 62144V: Gracious Southern House Plan - Floor Plan - Main Level - Acadian, French Country, Louisiana-Style, Southern

Plan Details

  • With its Acadian good looks and one floor living, this Southern house plan gives you a gracious home.
  • The standard ceiling height is 9' but many rooms rise up higher starting at the 12' high foyer.
  • With it's open floor plan you can see from the kitchen sink into the dining area and great room.

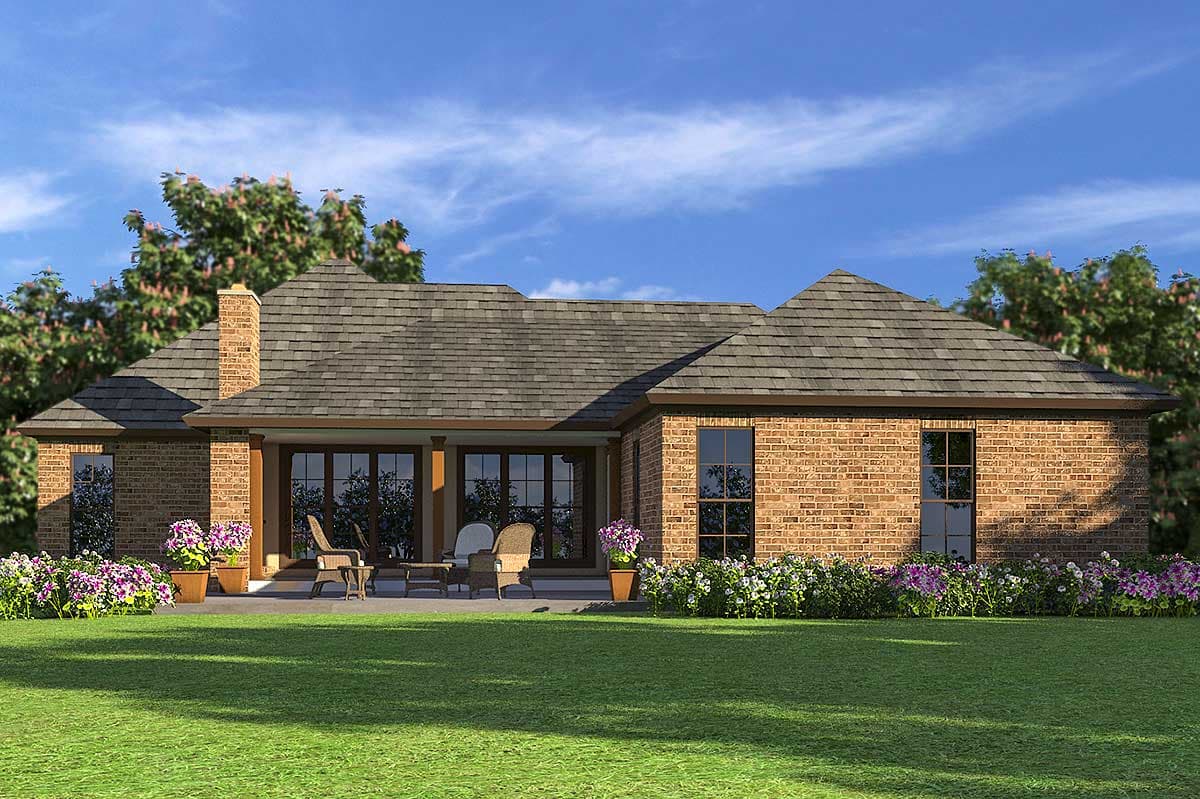

  • The rear covered porch shelters you from sun and rain and has a delightful outdoor fireplace.
  • A key design feature is the gorgeous, large master suite set in a secluded location at the back of the house.
  • With a tray ceiling, three walk-in closets and a large private bathroom, homeowners will feel pampered.

What's Included

  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,046 sq. ft.

1st Floor

2,046 sq. ft.

Porch, Combined

294 sq. ft.

Storage

21 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 10"

Depth

61' 10"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

537 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Outdoor Fireplace

Square Footage Breakdown

Total Heated Area

2,046 sq. ft.

1st Floor

2,046 sq. ft.

Porch, Combined

294 sq. ft.

Storage

21 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 10"

Depth

61' 10"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

537 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Outdoor Fireplace
