Grand Coastal Duplex House Plan with 8 Suites, Rooftop Decks

Heated S.F.
3,219
Units
2
Width
Depth
Tour

Floor Plan

Plan 820011WSF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 820011WSF

M-F 9am-5pm EST |

1-203-761-8500

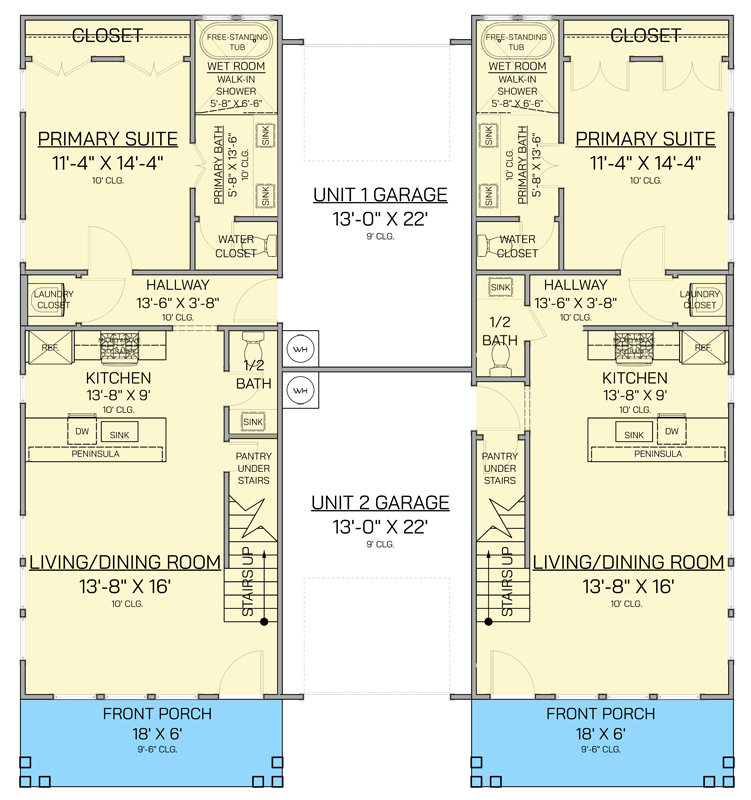

Main Level

Plan 820011WSF: Grand Coastal Duplex House Plan with 8 Suites, Rooftop Decks - Floor Plan - Main Level - Beach, Coastal, Farmhouse, Florida-Style

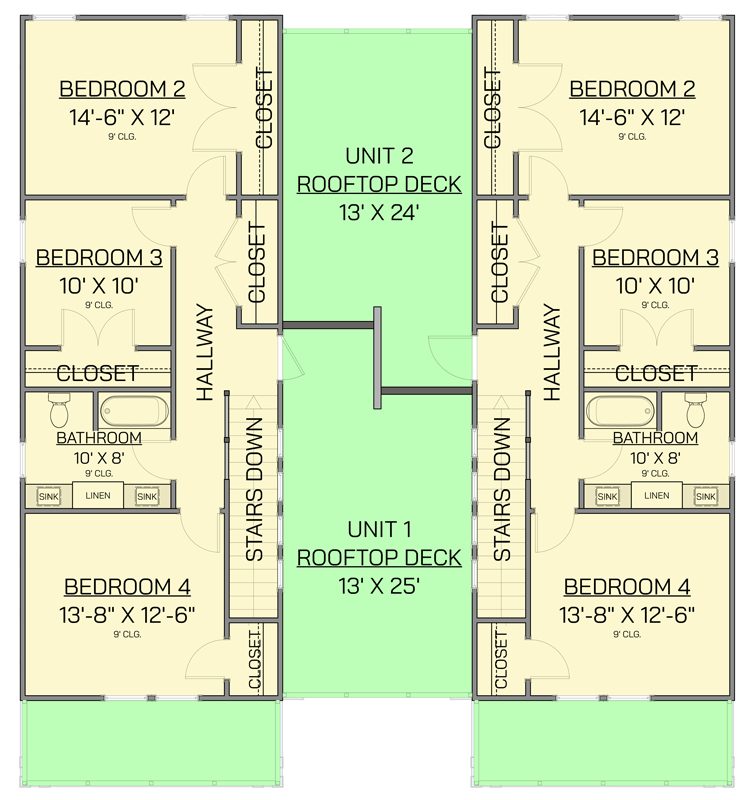

2nd Floor

Plan 820011WSF: Grand Coastal Duplex House Plan with 8 Suites, Rooftop Decks - Floor Plan - 2nd Floor - Beach, Coastal, Farmhouse, Florida-Style

Plan Details

  • This expansive 3,219 sq. ft. Coastal-style duplex house plan offers a total of 8 bedrooms, 4 full bathrooms, 2 half bathrooms, and a shared 2-car garage spanning 598 sq. ft., presenting two mirror-image residences perfect for multi-generational living or rental income.
  • Each unit welcomes residents into an open-concept living and dining area, featuring soaring 10-foot ceilings that enhance the sense of space and light, creating an immediate feeling of openness and modern comfort.
  • The main level of each unit flows seamlessly from the living area into a contemporary kitchen, thoughtfully designed with a peninsula for casual dining and a convenient walk-in pantry, ensuring both functionality and style for daily living and entertaining.
  • Each first floor hosts a private primary suite, boasting a generous bedroom with a 10-foot ceiling and an en-suite bathroom featuring a wet room shower, while the second floor accommodates three additional bedrooms and a shared full bathroom, providing ample space and privacy for all residents.
  • Enjoy tranquil mornings on the inviting 216 sq. ft. front porches, or ascend to the expansive second-floor balconies and exclusive rooftop decks, totaling 600 sq. ft. for both units, offering serene outdoor living spaces perfect for enjoying the coastal breeze and sunset views.
Unit A & B
Heated Area
1,641Sq. Ft.
1692 Sq. Ft. 1st
795 Sq. Ft. 2nd
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
299 Sq. Ft.
Dimensions
24' 6"width
53'depth
27' 3"height
Unfinished Areas
108 Sq. Ft. Porch, Front
299 Sq. Ft. Garage

What's Included

  • Cover Sheet
  • Foundation Plan: Complete with dimensions, reference details and general notes.
  • Floor Plan(s): Complete with dimensions, window and door rough openings and notes.
  • Exterior Elevations: Four completed elevations with dimensions and notes.
  • Roof Plan: Complete with roof pitches overhangs and notes.
  • Electrical Layout: Shows suggested location of electrical outlets, lighting fixtures, switches, smoke and carbon monoxide detectors and ceiling fans with legend.
  • Building Sections: Contains cross-sectional views, typical wall details and interior cabinet elevations.

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,219 sq. ft.

1st Floor

1,692 sq. ft.

2nd Floor

1,590 sq. ft.

Porch, Front

108 sq. ft.

Balcony / Veranda

600 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

49' 0"

Depth

53' 0"

Max Ridge Height

27' 3"

Garage

Type

Standard, Attached

Area

299 sq. ft.

Count

2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Bedroom 1

Flat

10' 0''

Bedroom 2

Flat

9' 0''

Bedroom 3

Flat

9' 0''

Bedroom 3

Flat

9' 0''

Kitchen

Flat

10' 0''

Living Room

Flat

10' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Beach

Coastal

Farmhouse

Florida-Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,219 sq. ft.

1st Floor

1,692 sq. ft.

2nd Floor

1,590 sq. ft.

Porch, Front

108 sq. ft.

Balcony / Veranda

600 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

49' 0"

Depth

53' 0"

Max Ridge Height

27' 3"

Garage

Type

Standard, Attached

Area

299 sq. ft.

Count

2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Bedroom 1

Flat

10' 0''

Bedroom 2

Flat

9' 0''

Bedroom 3

Flat

9' 0''

Bedroom 3

Flat

9' 0''

Kitchen

Flat

10' 0''

Living Room

Flat

10' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Beach

Coastal

Farmhouse

Florida-Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
