Plan 82074KA Grand Colonial House Plan

5,303 4 4.5 2 3
Print
Compare
...

Grand Colonial House Plan

Plan 82074KA

  • 5,303

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A gorgeous front portico gives you a sheltered entry into this Colonial house plan.
  • The floor plan is wide open from the moment you walk into the foyer, giving you amazing sightlines.

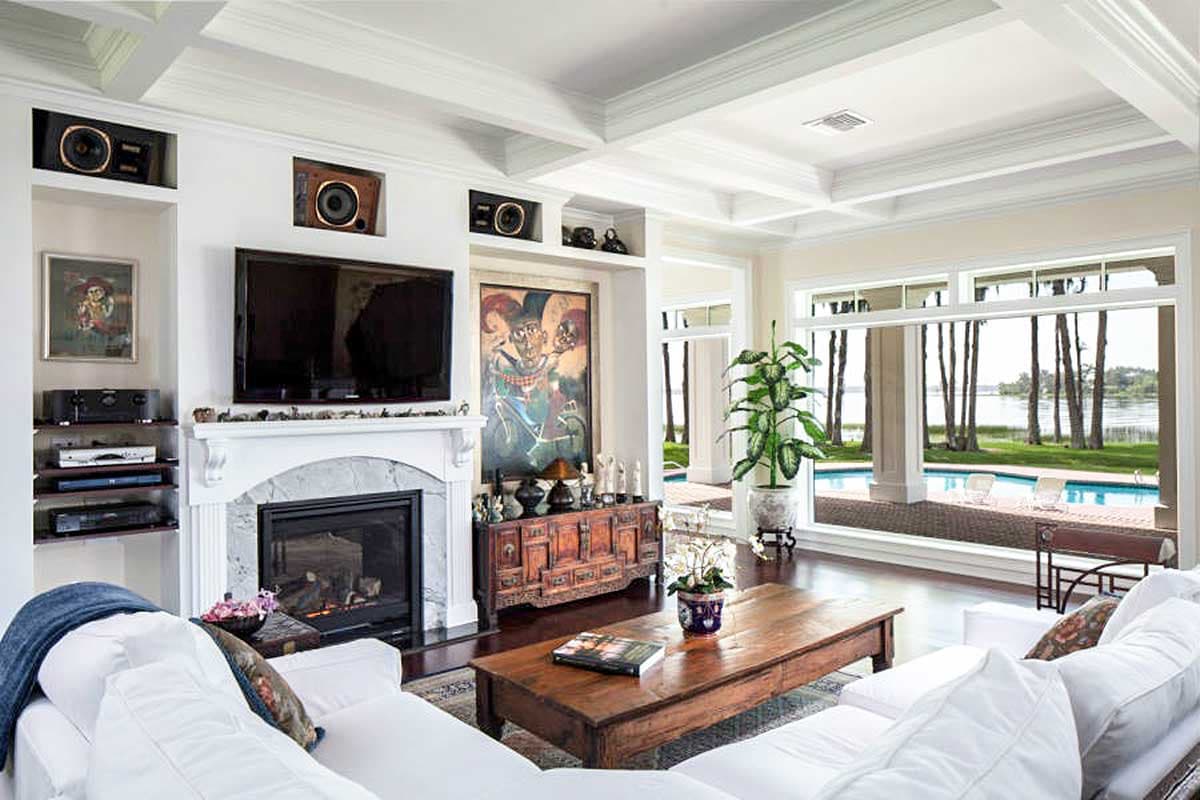

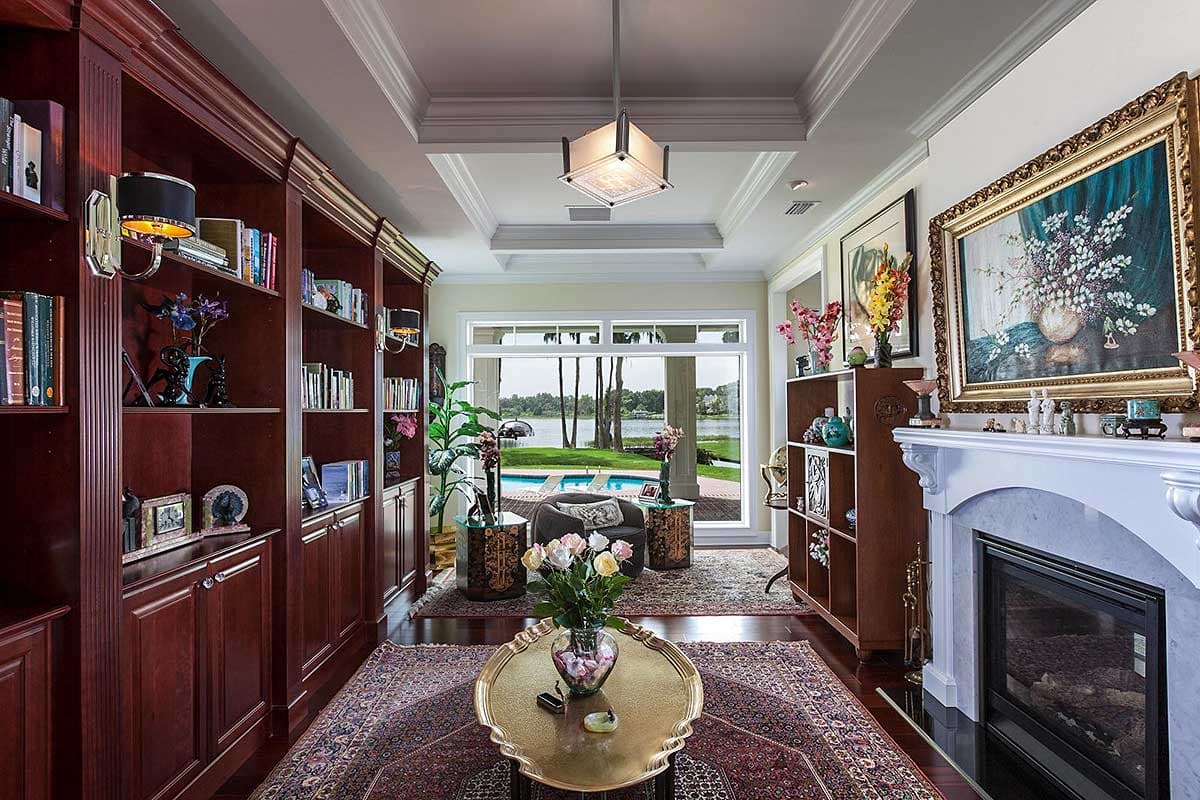

  • Back to back fireplaces warm both the enormous den and the 24' deep study.

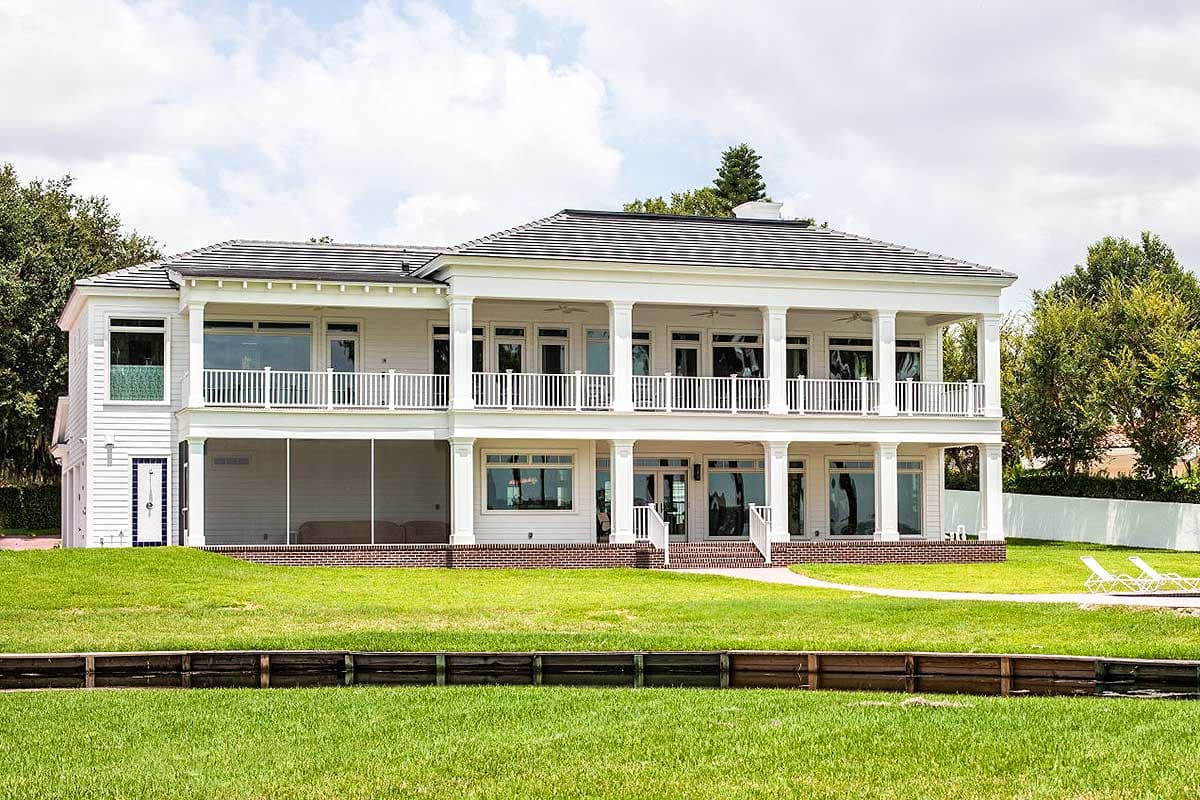

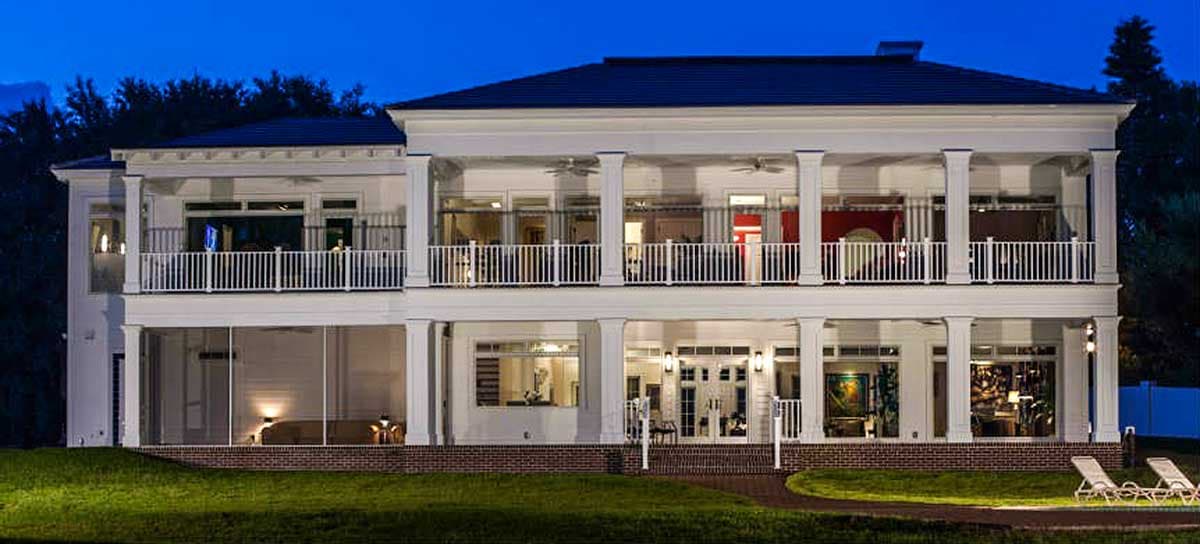

  • A covered balcony runs the full width of the back of the house.

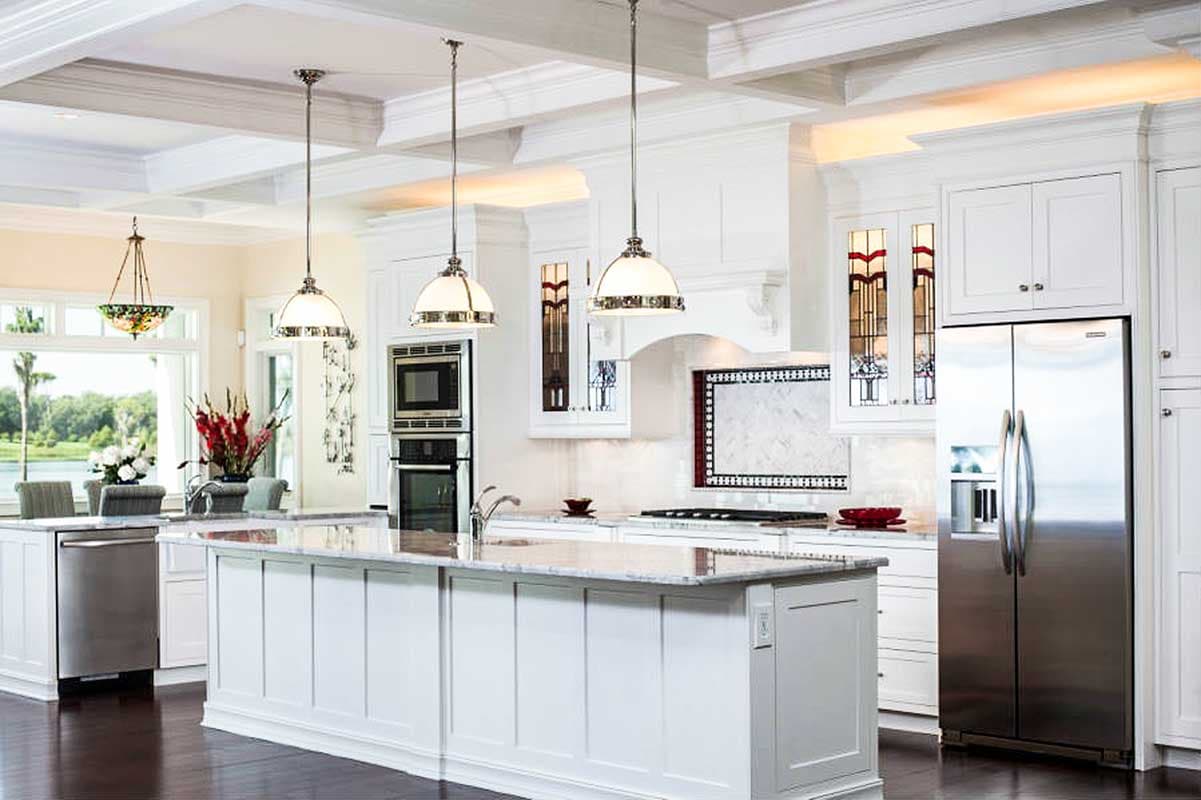

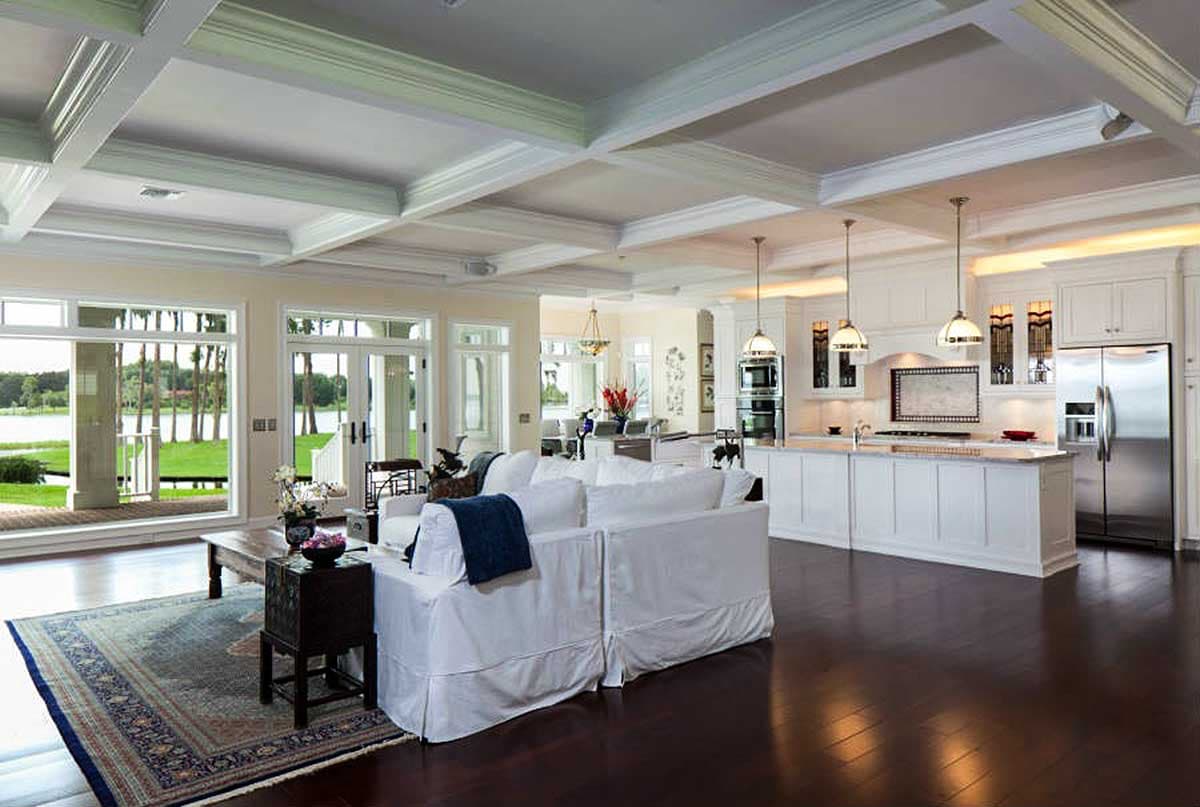

  • You'll never run out of counter space in the giant kitchen that has a large island facing the fireplace.
  • Take the residential elevator or climb the stairs to the luxurious second floor where every bedroom is spacious.
  • Here you have a second floor laundry room and a hall that leads back to the upper covered balcony that mirrors the one below.

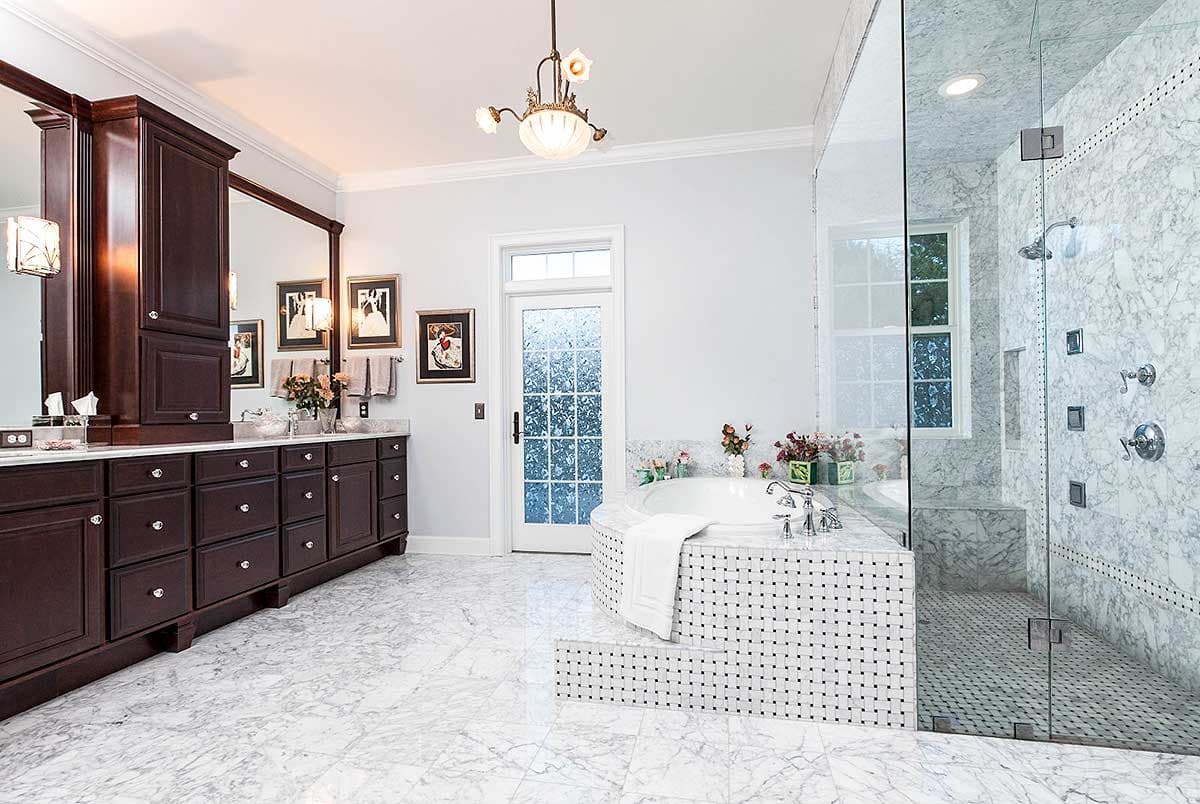

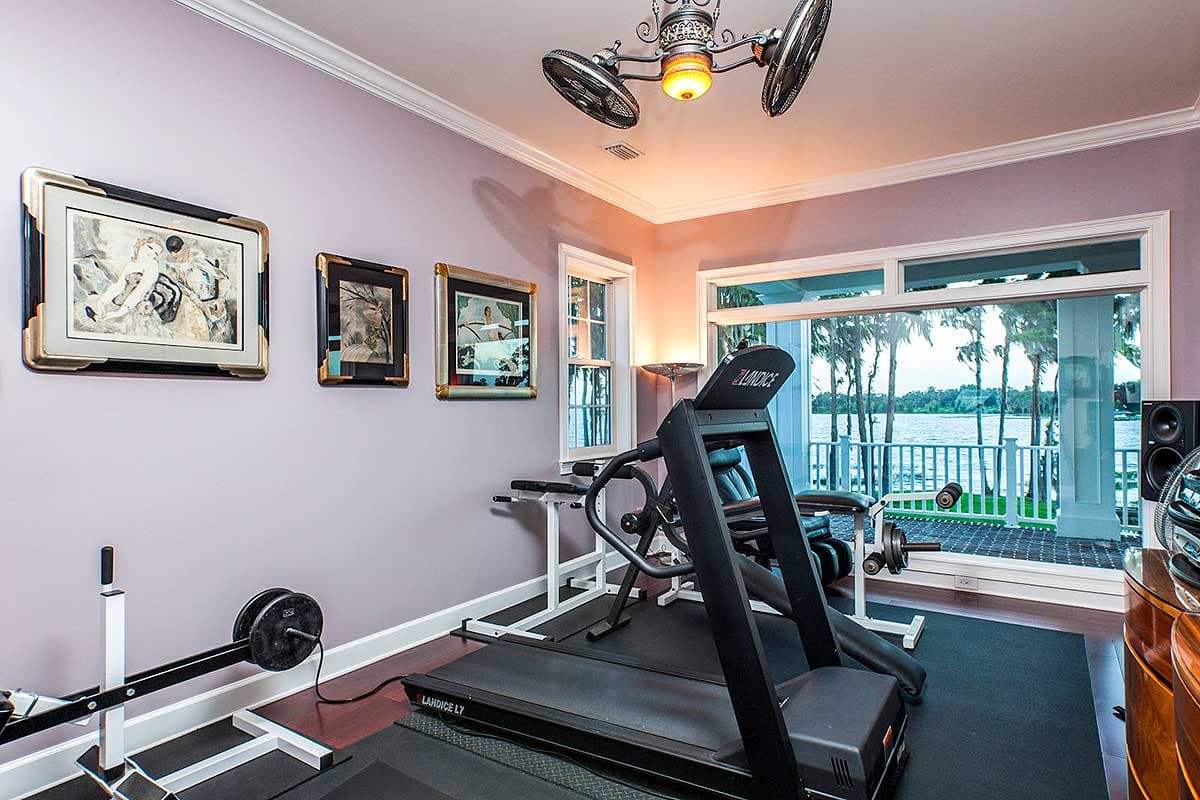

  • Homeowners are pampered with a private gym, an enormous closet with an island and an elegant master bathroom.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

Floor Plan

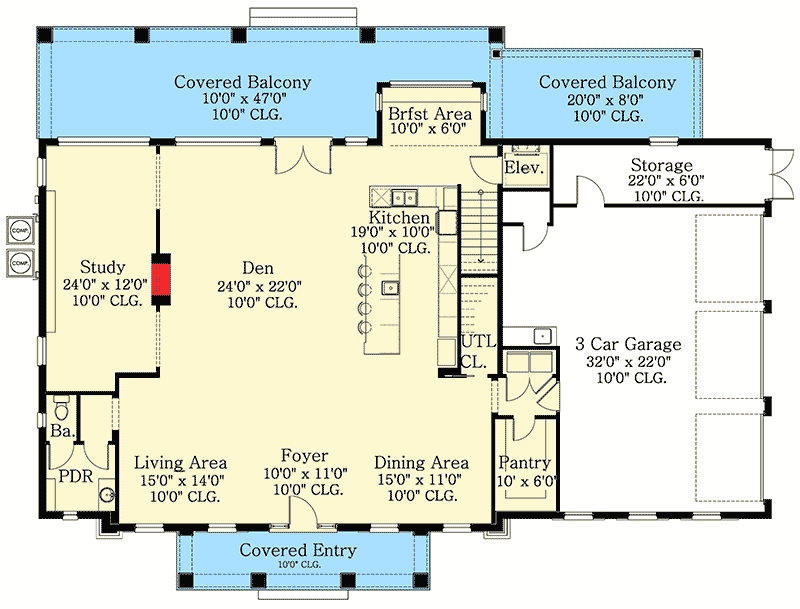

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Grand Colonial House Plan - 82074KA floor plan - Main Level

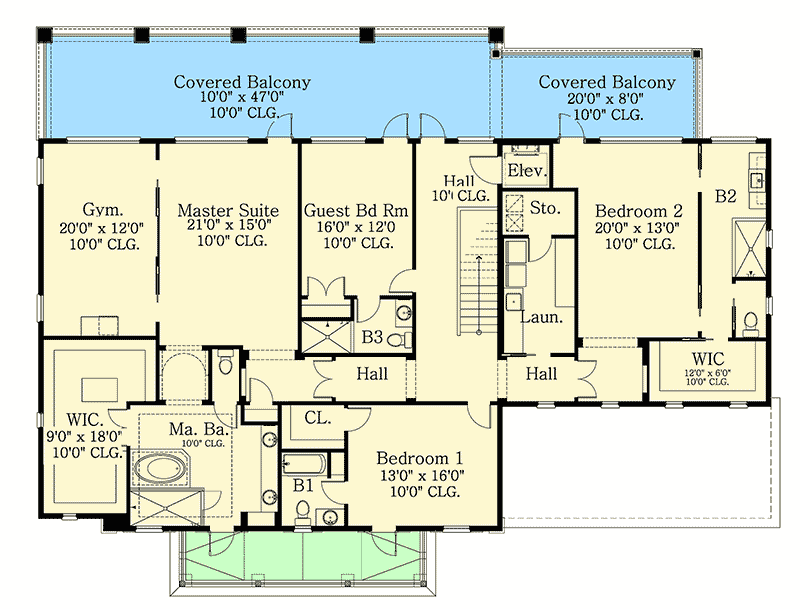

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Grand Colonial House Plan - 82074KA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,303 sq. ft.
  • 1st Floor: 2,457 sq. ft.
  • 2nd Floor: 2,846 sq. ft.
  • Porch, Front: 160 sq. ft.
  • Porch, Rear: 791 sq. ft.
  • Balcony / Veranda: 791 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 79' 0"
  • Depth: 60' 4"
  • Max ridge height: 30' 2"

Garage

  • Type: Attached
  • Area: 861 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Grand Colonial House Plan

  • 5,303

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $3,495
  • PDF - Single-Build $3,795
  • CAD - Single-Build $3,795
  • View all purchase option online

About This Plan

  • A gorgeous front portico gives you a sheltered entry into this Colonial house plan.
  • The floor plan is wide open from the moment you walk into the foyer, giving you amazing sightlines.
  • Back to back fireplaces warm both the enormous den and the 24' deep study.
  • A covered balcony runs the full width of the back of the house.
  • You'll never run out of counter space in the giant kitchen that has a large island facing the fireplace.
  • Take the residential elevator or climb the stairs to the luxurious second floor where every bedroom is spacious.
  • Here you have a second floor laundry room and a hall that leads back to the upper covered balcony that mirrors the one below.
  • Homeowners are pampered with a private gym, an enormous closet with an island and an elegant master bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,303 sq. ft.
  • 1st Floor: 2,457 sq. ft.
  • 2nd Floor: 2,846 sq. ft.
  • Porch, Front: 160 sq. ft.
  • Porch, Rear: 791 sq. ft.
  • Balcony / Veranda: 791 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 79' 0"
  • Depth: 60' 4"
  • Max ridge height: 30' 2"

Garage

  • Type: Attached
  • Area: 861 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Plan 82074KA
View this and more for this plan by visiting www.architechtecturaldesigns.com/82074KA
|
