Plan 54230HU Grand Contemporary House Plan

3,345 3-4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Grand Contemporary House Plan

Plan 54230HU

  • 3,345

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

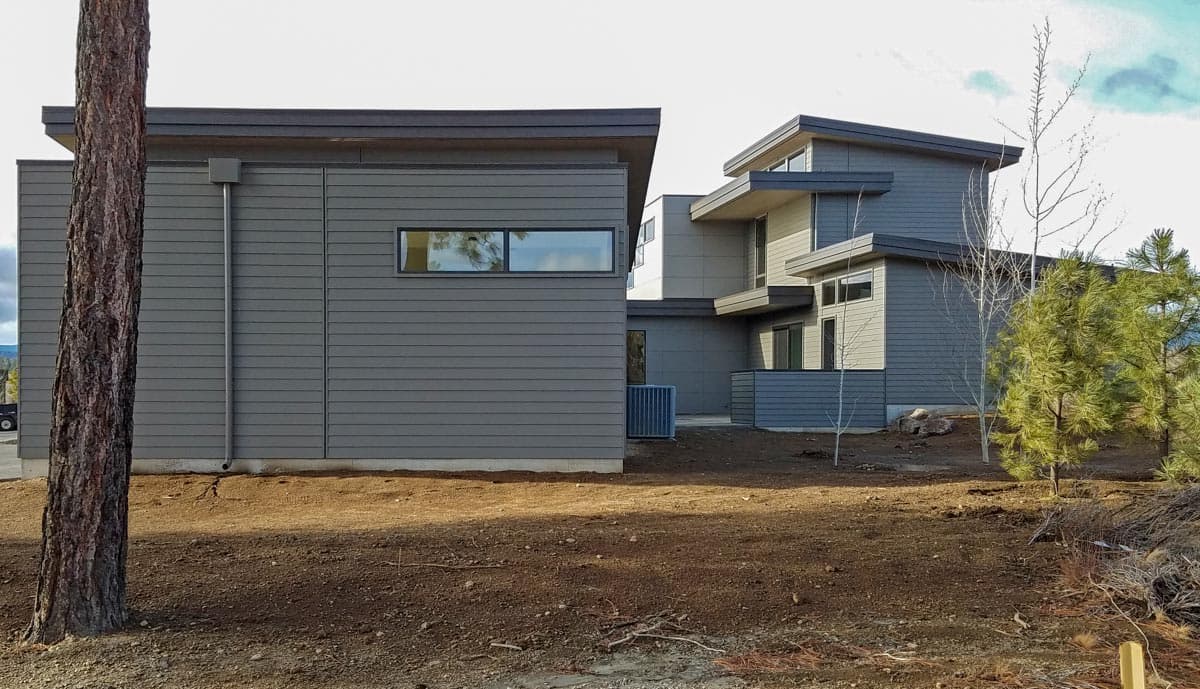

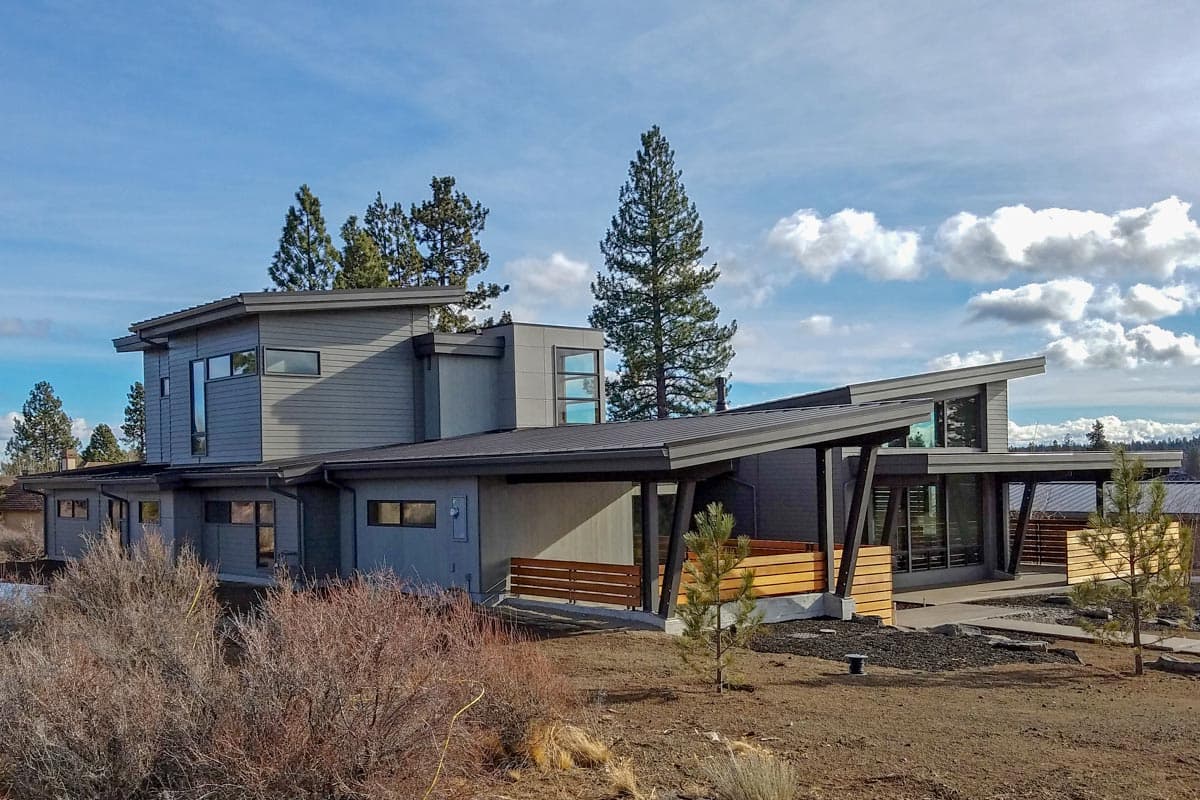

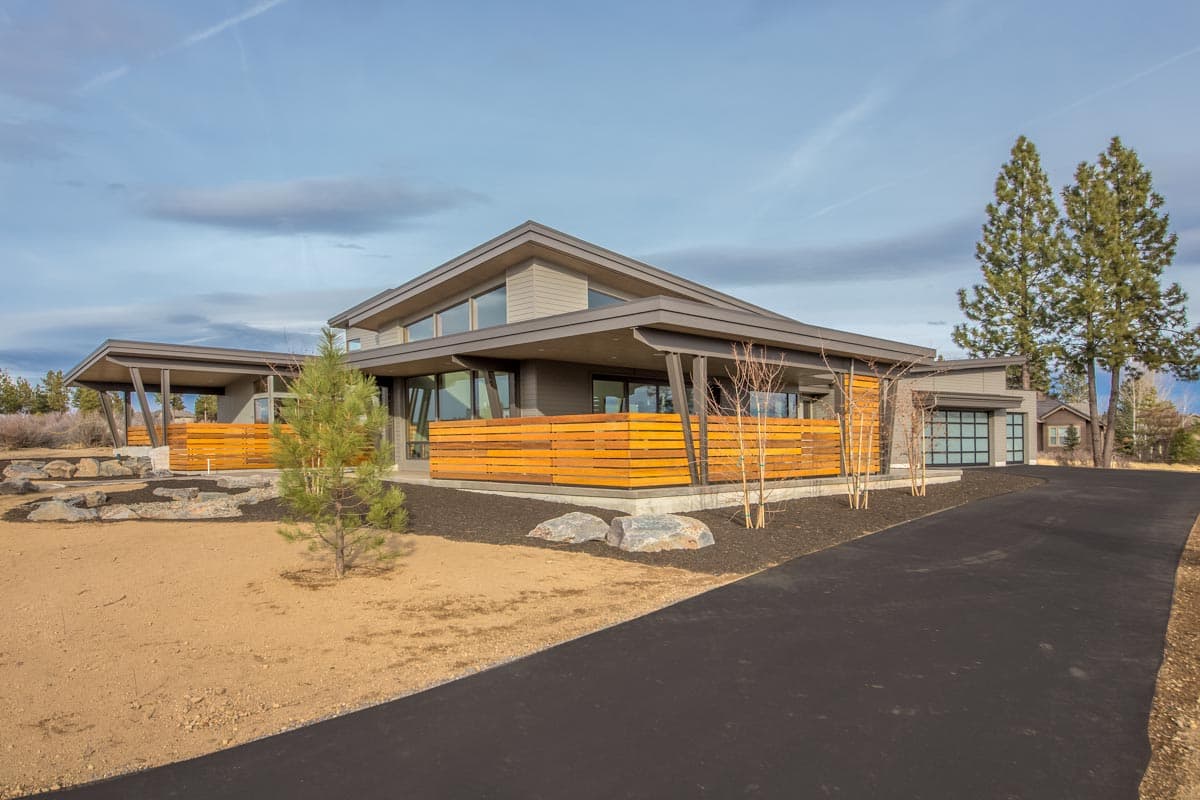

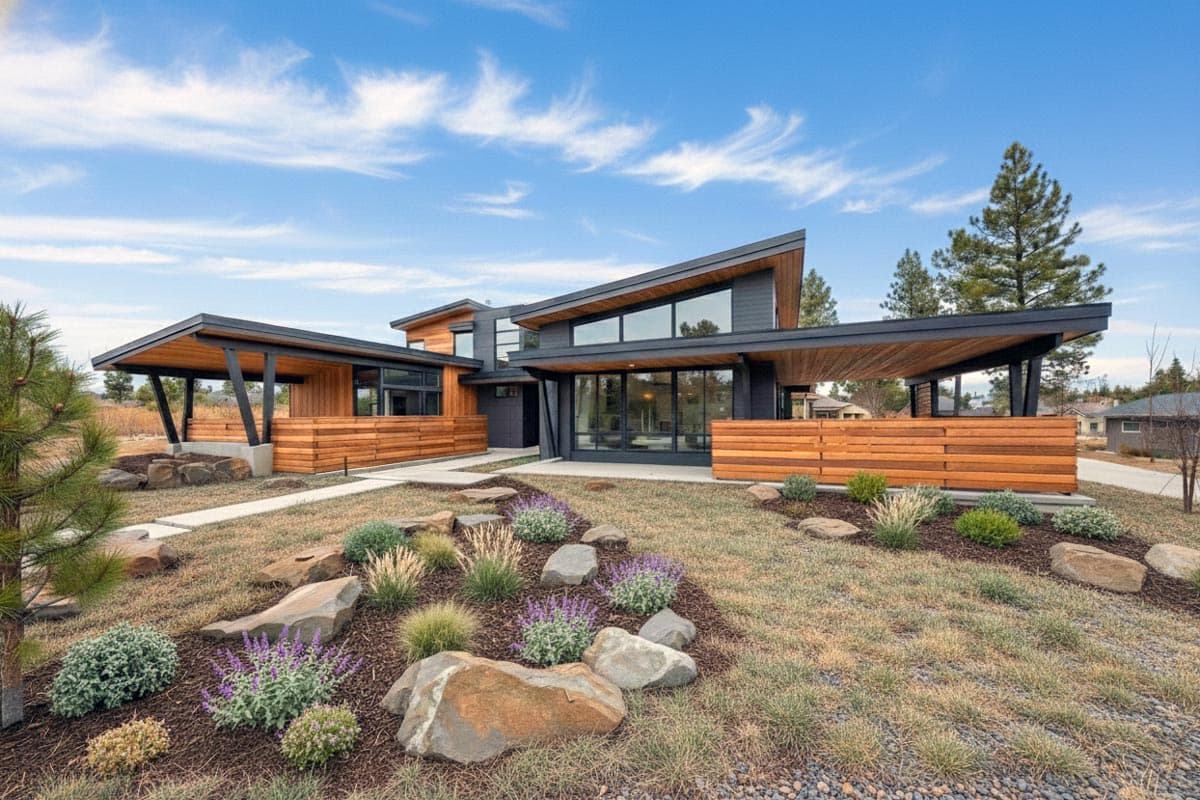

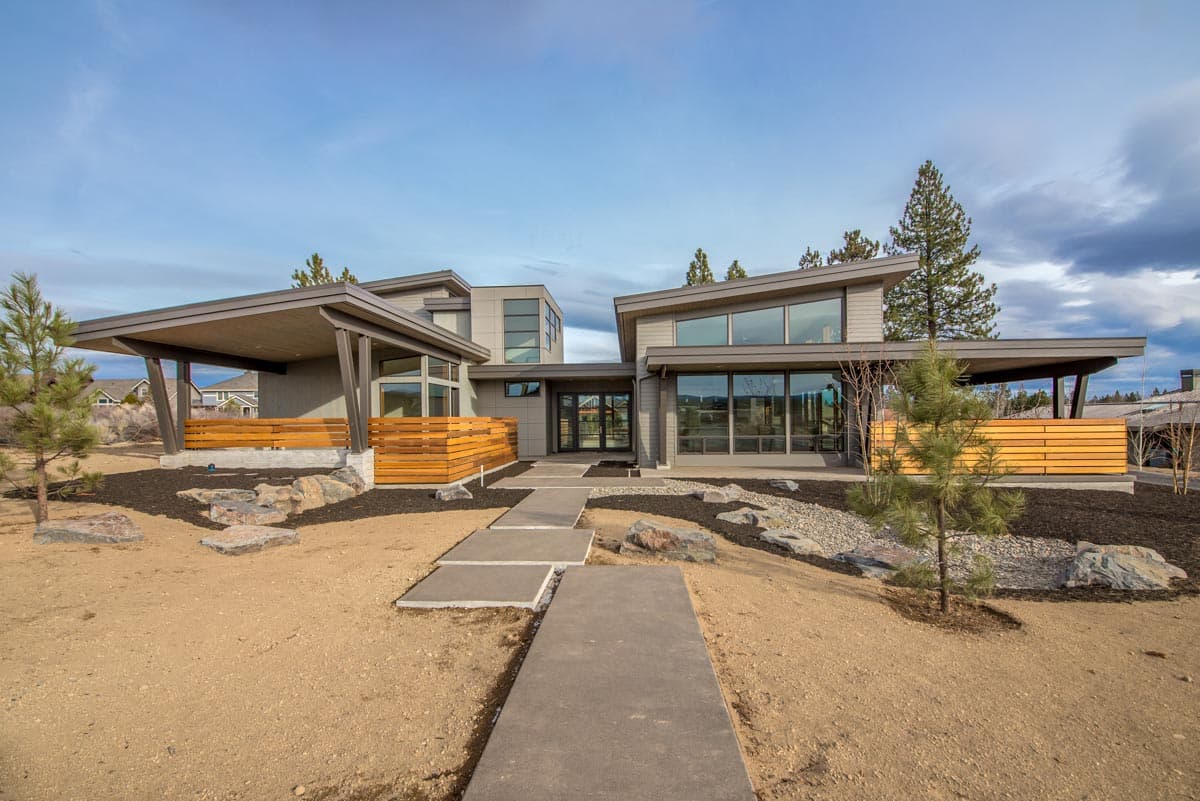

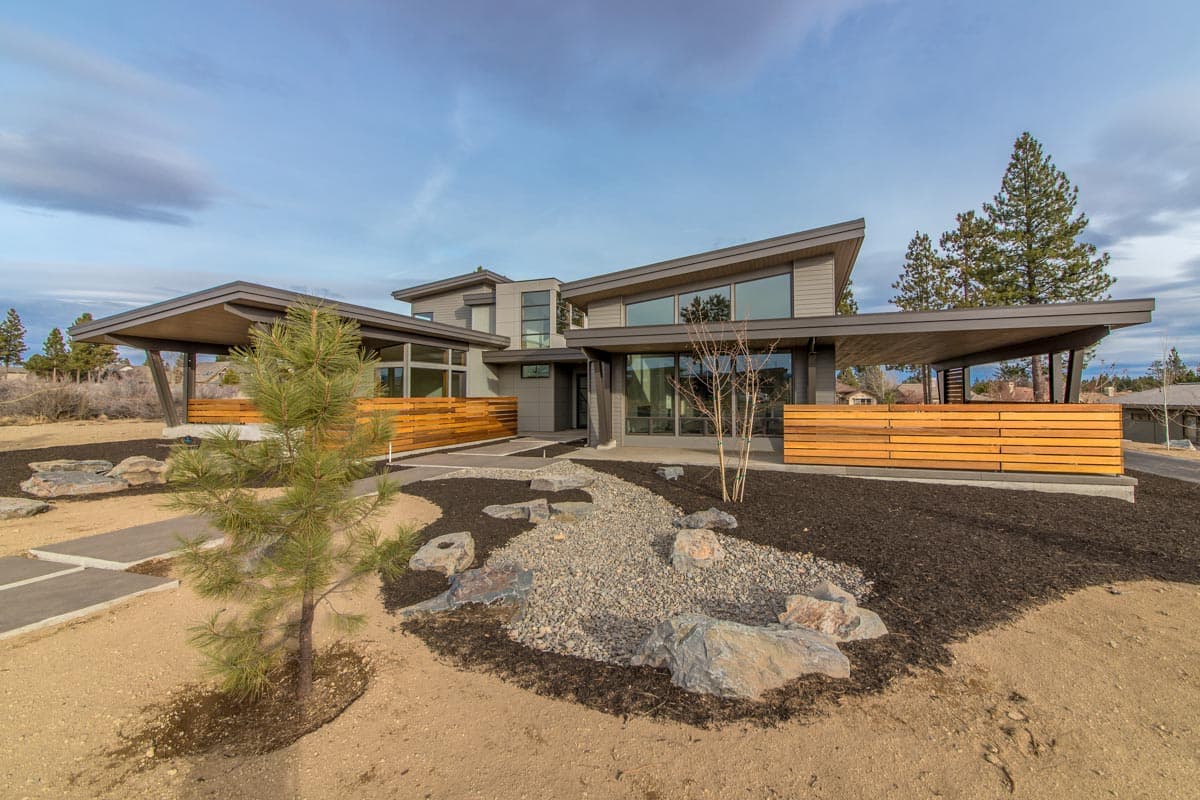

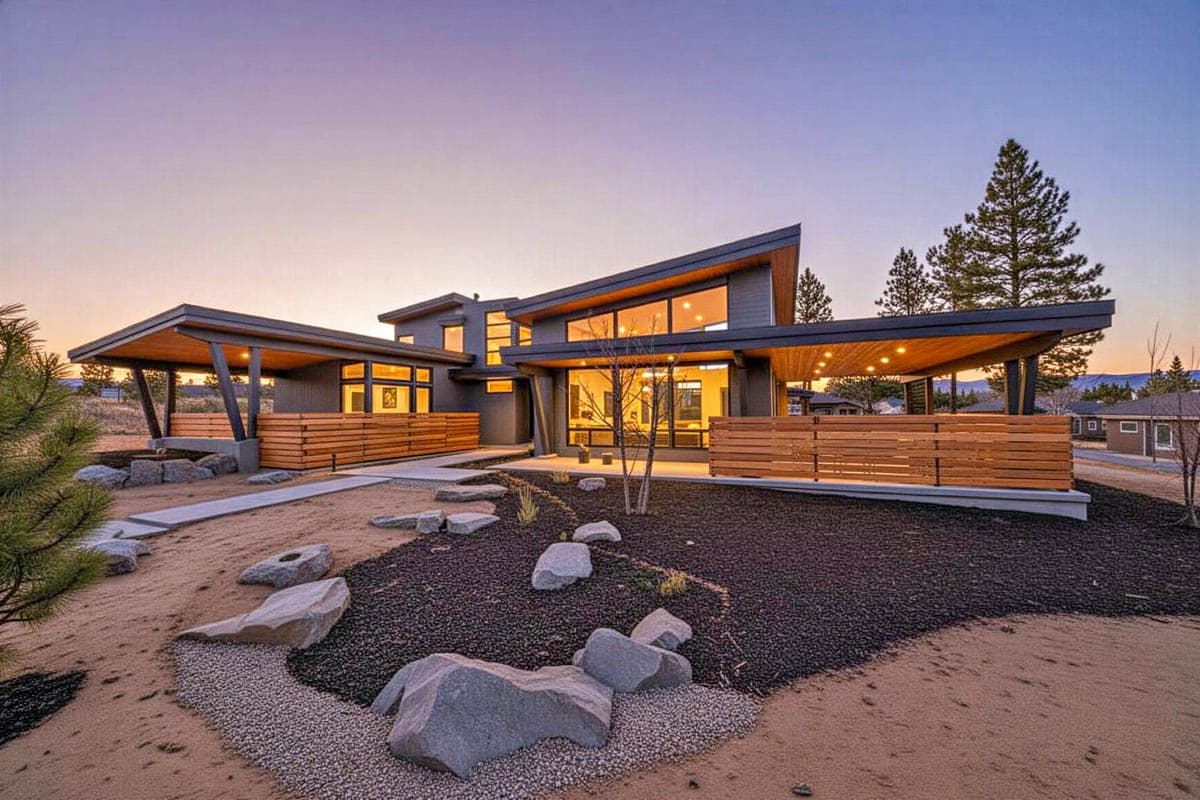

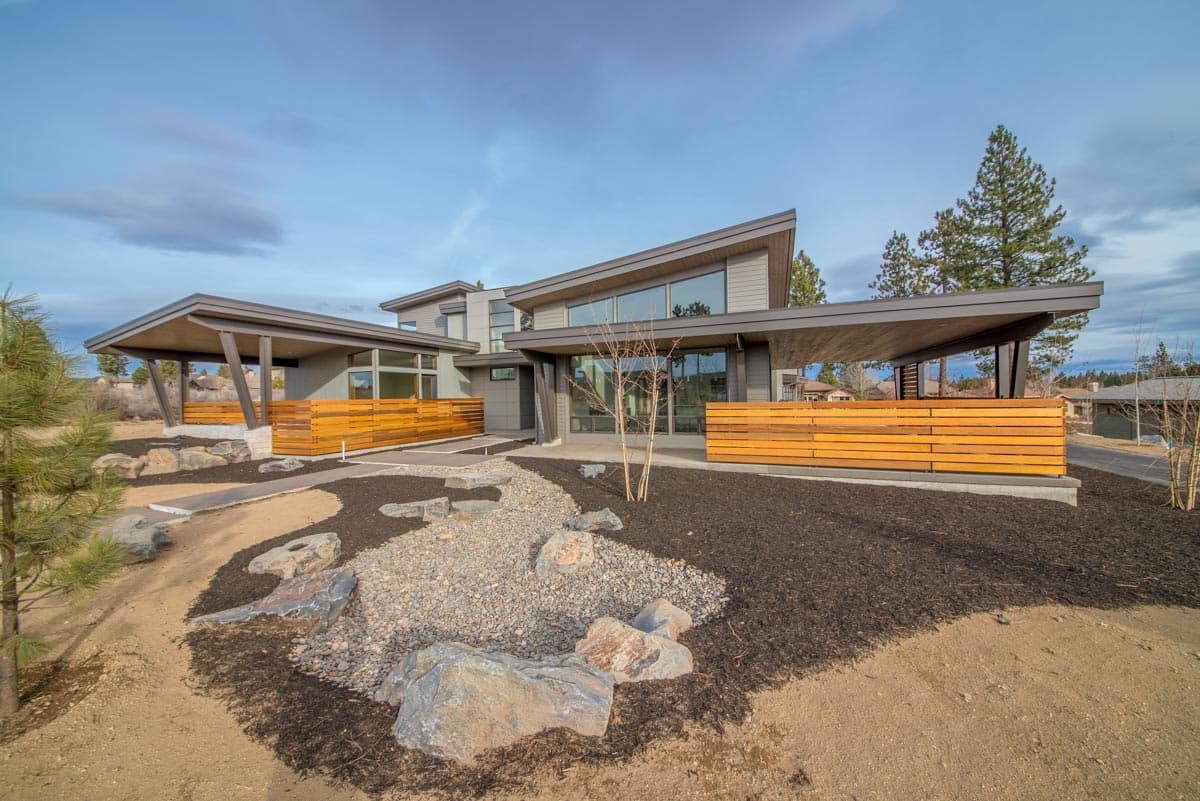

  • Interesting angles and slanted roof lines add up to a grand Contemporary house plan.

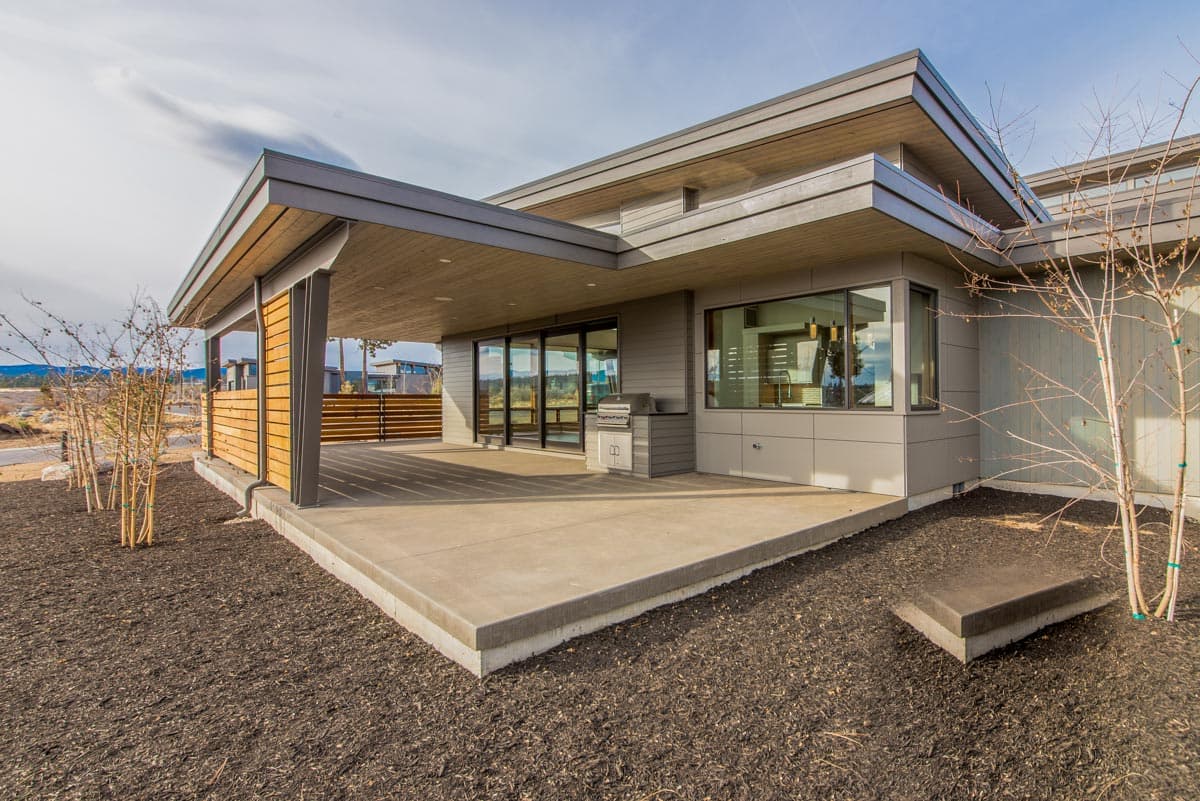

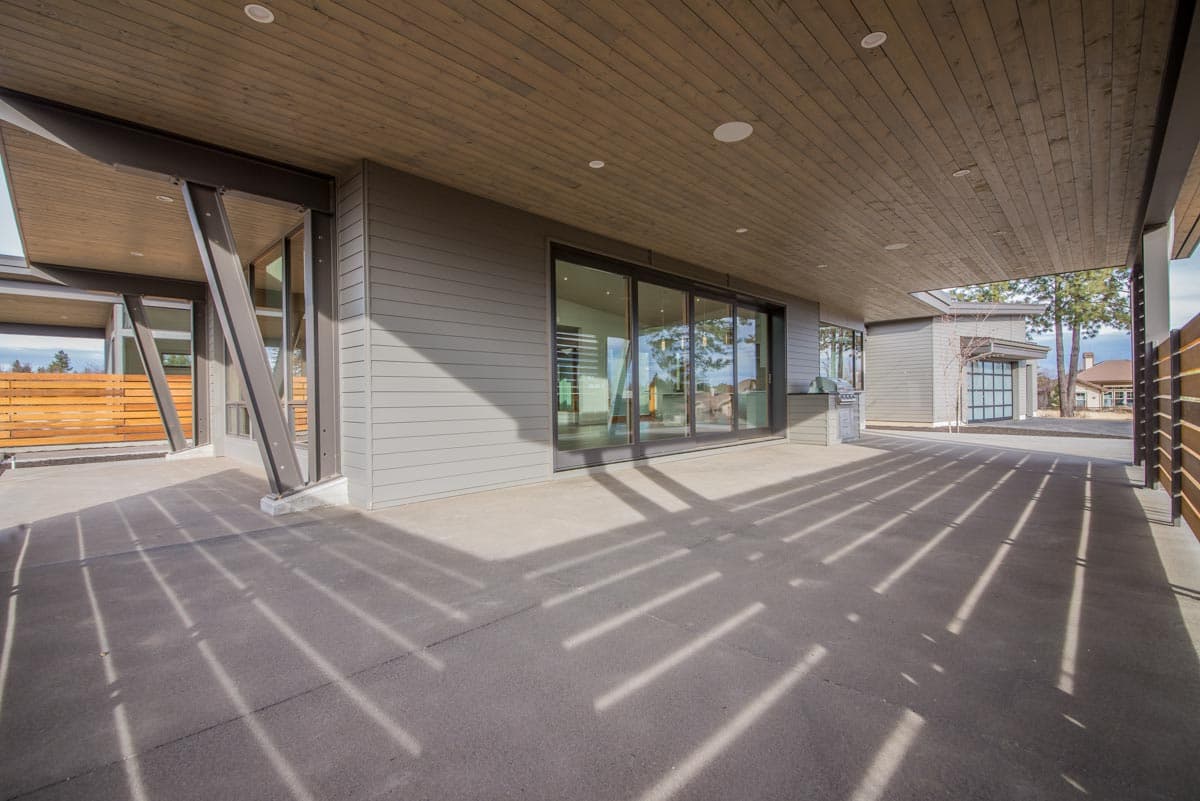

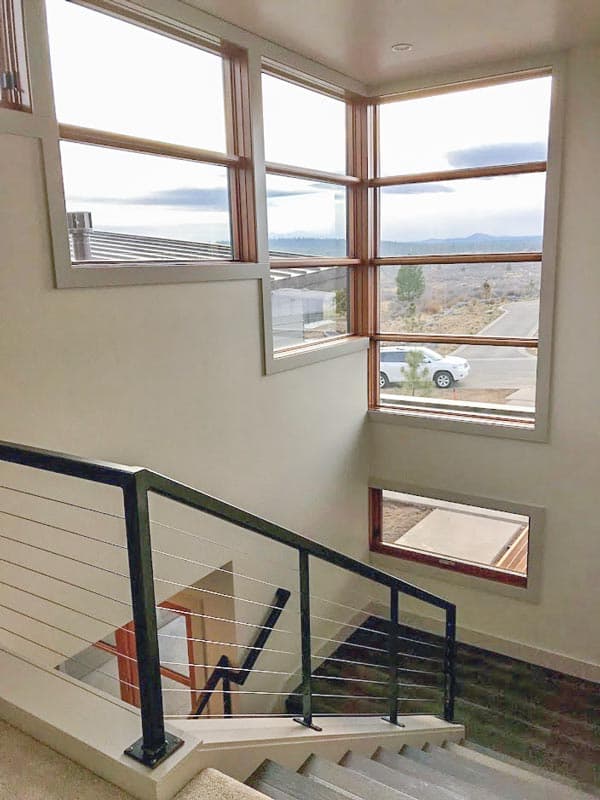

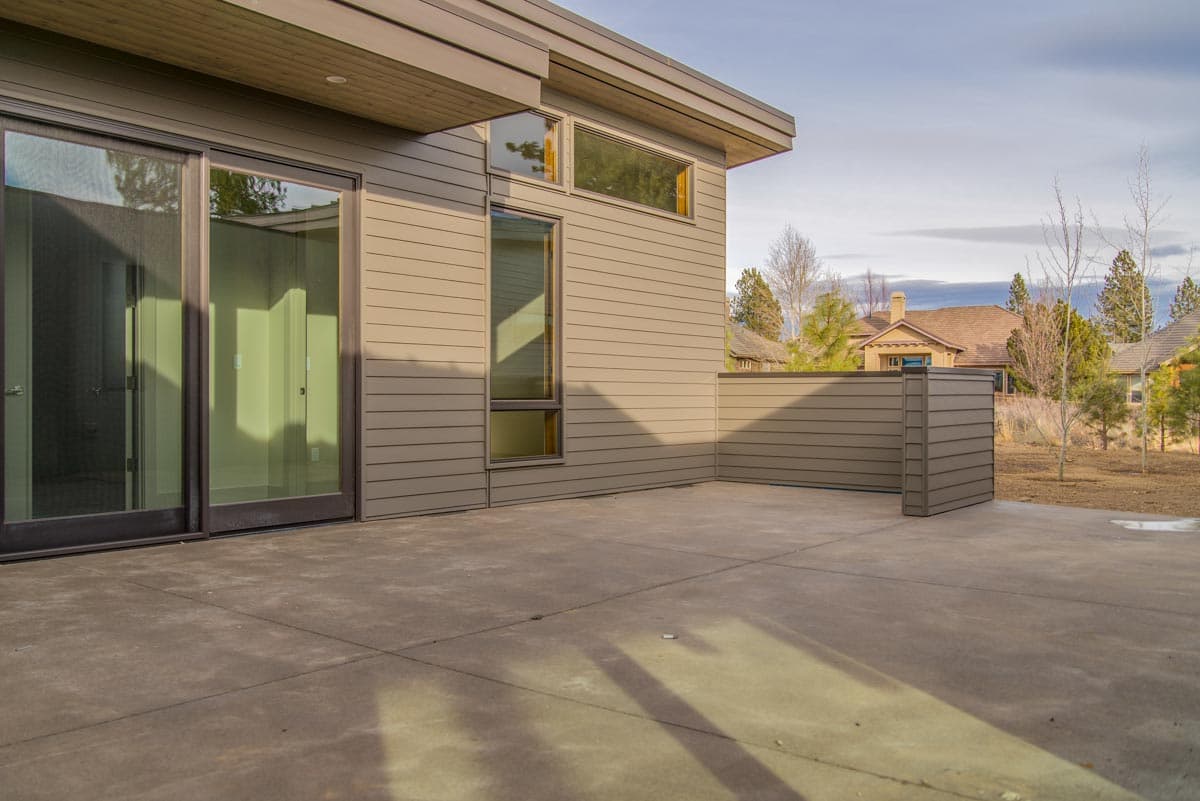

  • Light streams in from all the transom windows and glass and there are covered terraces and open courtyards for your family to enjoy.

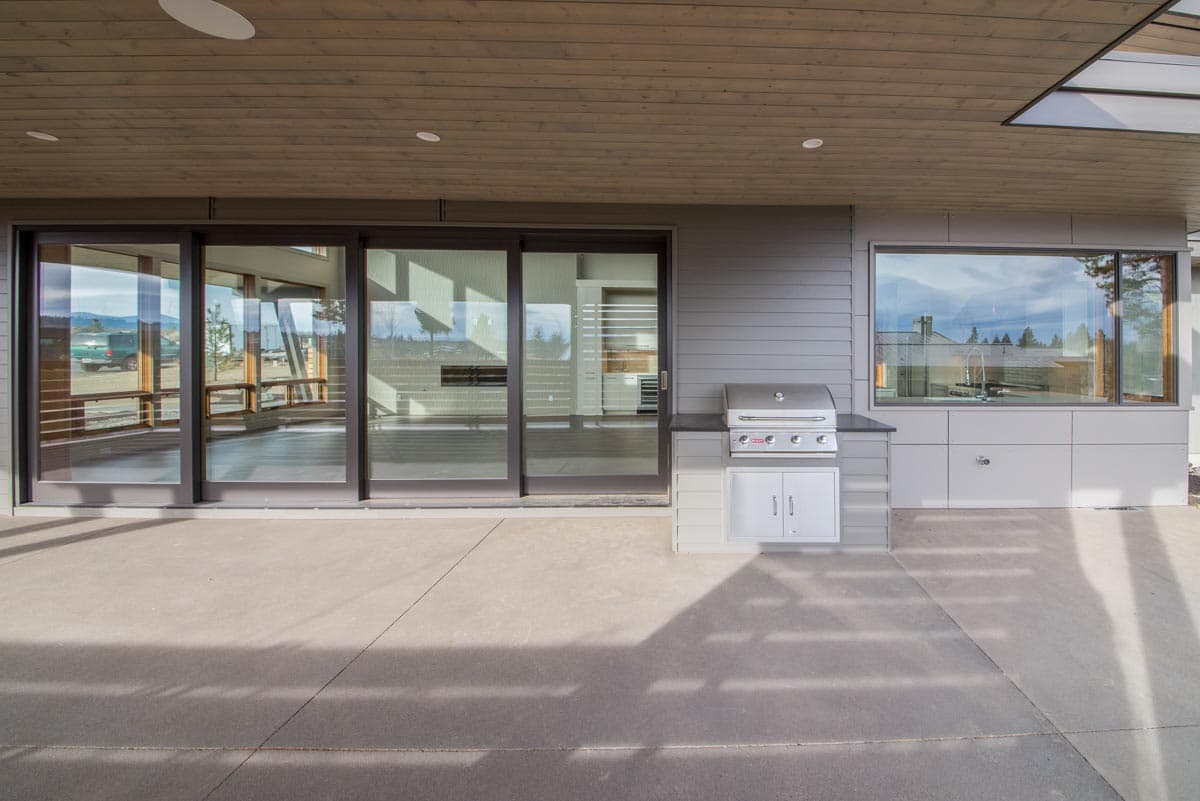

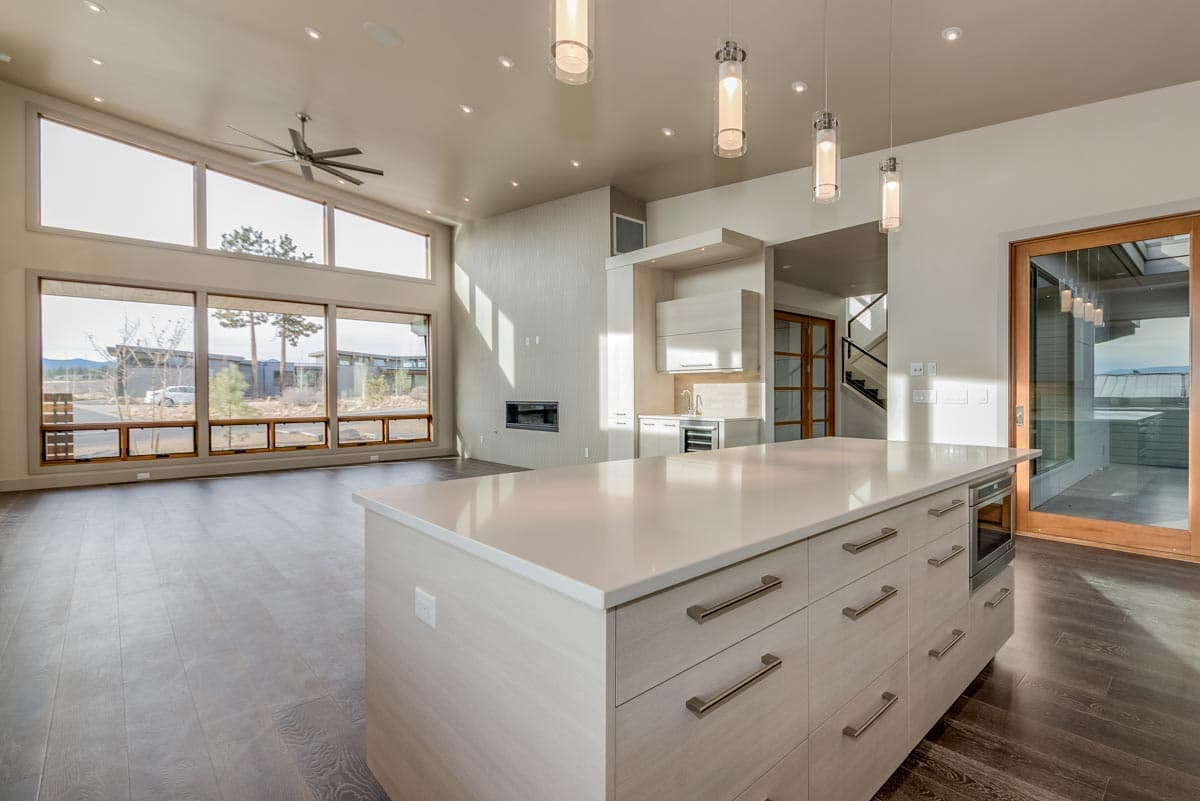

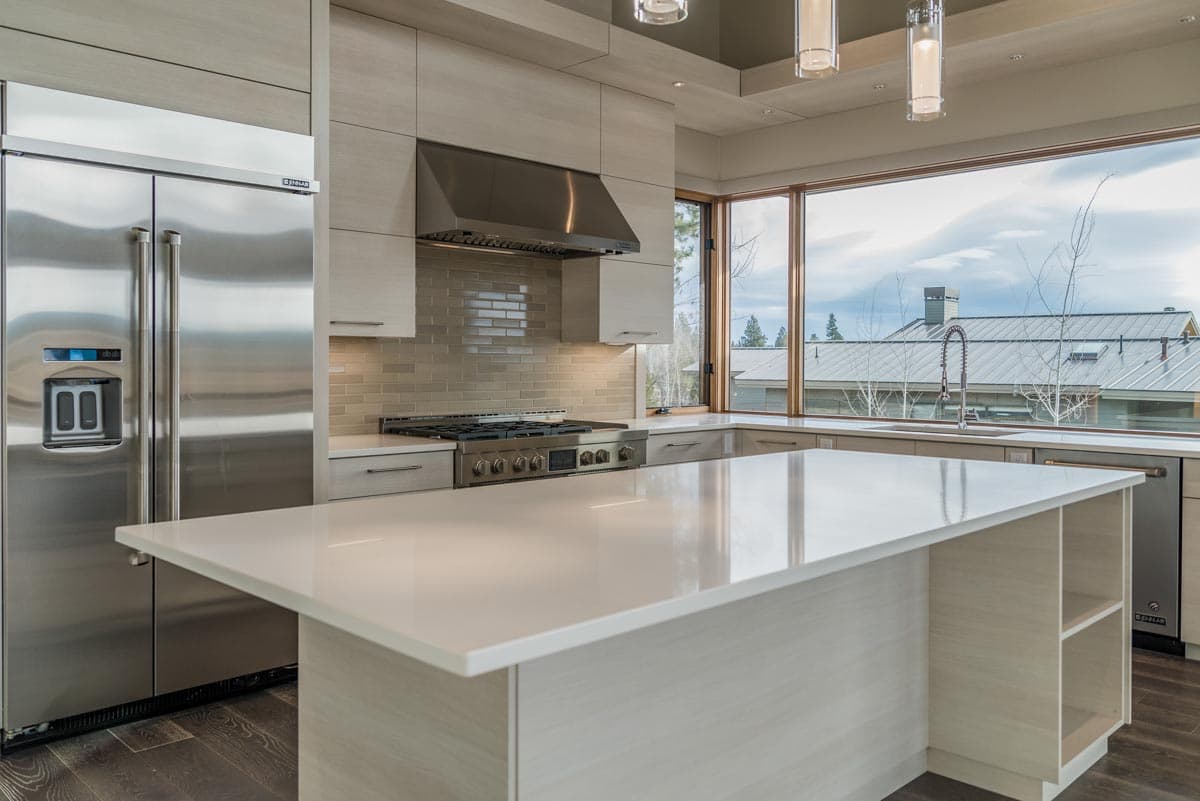

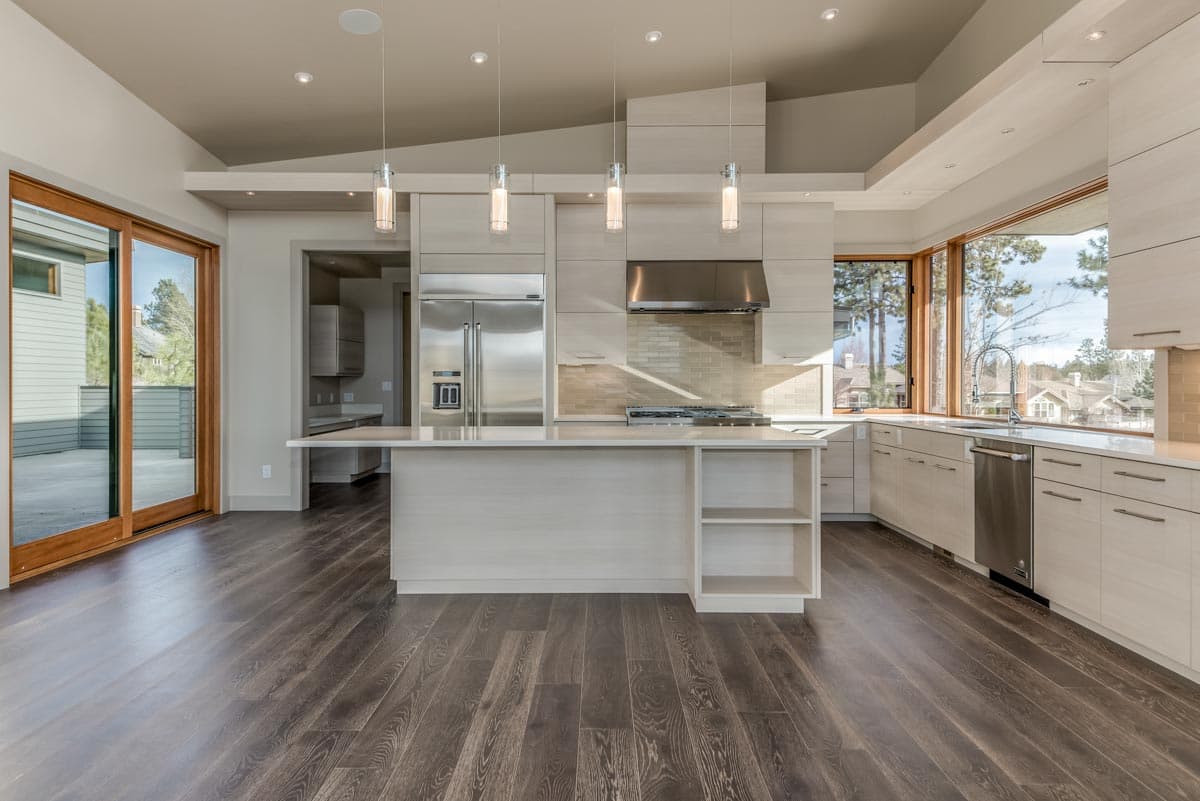

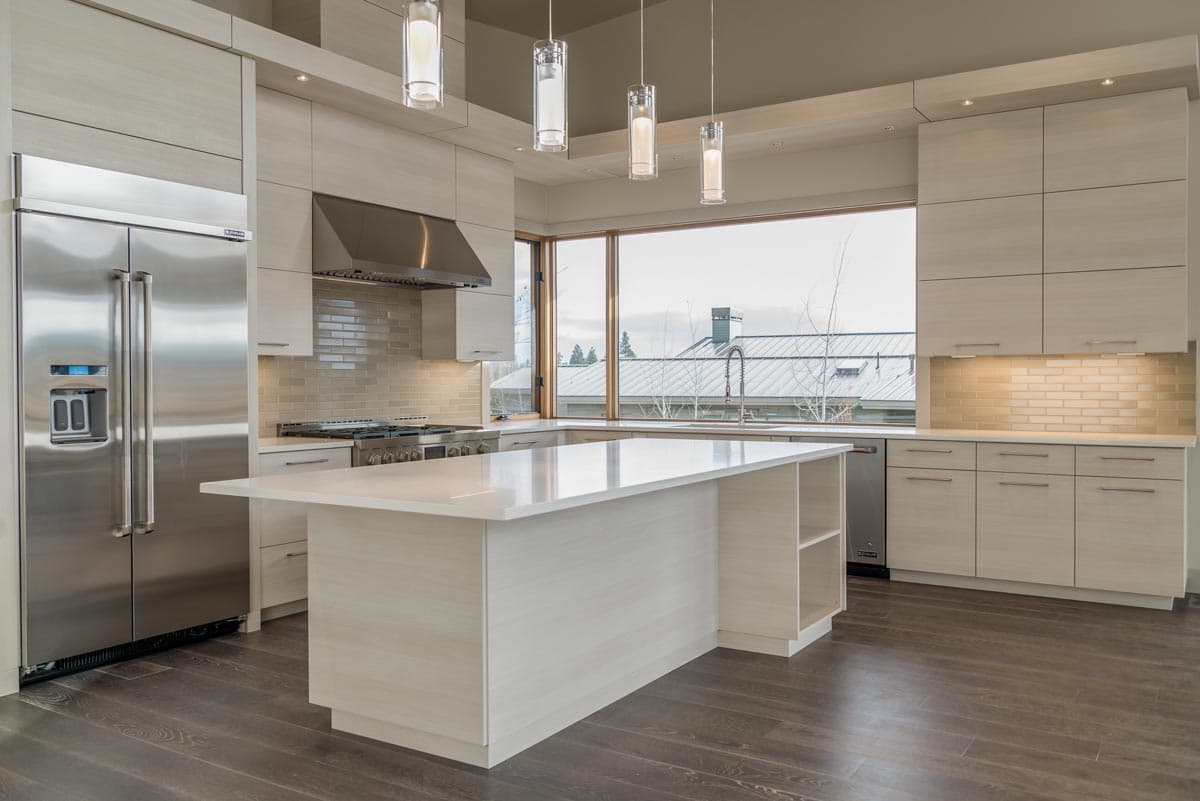

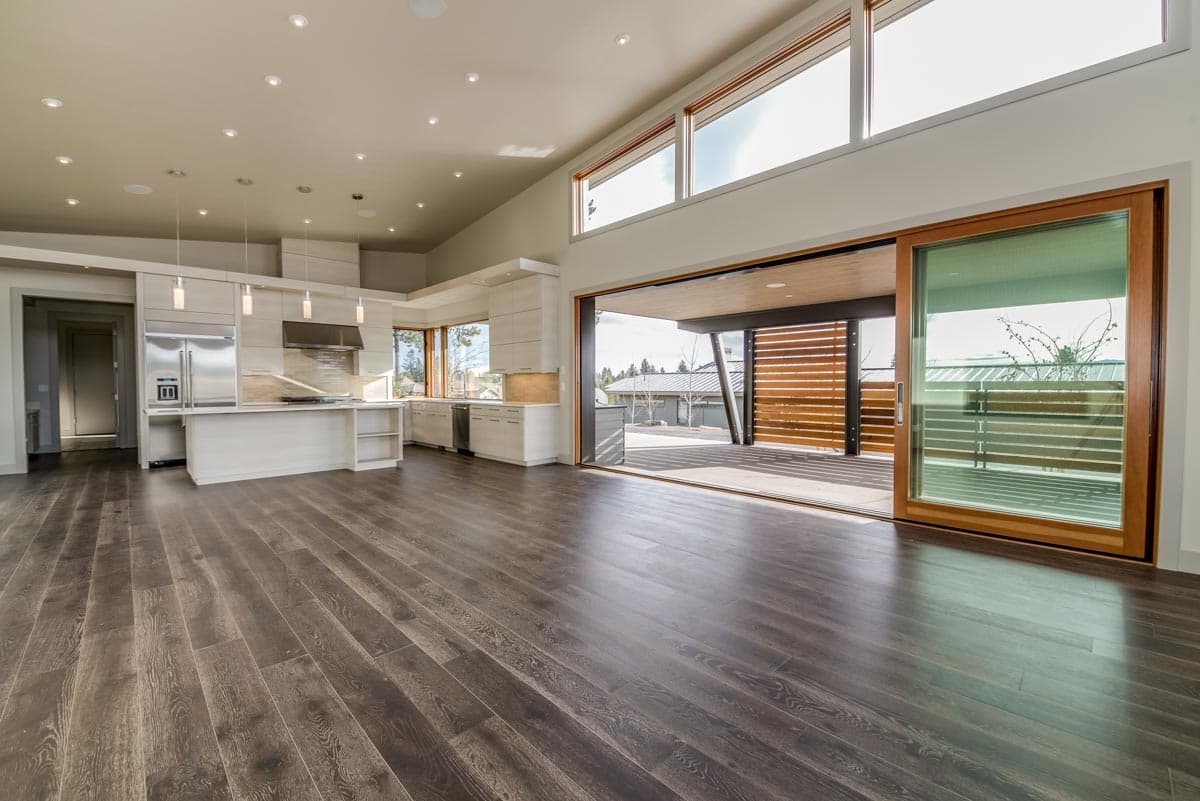

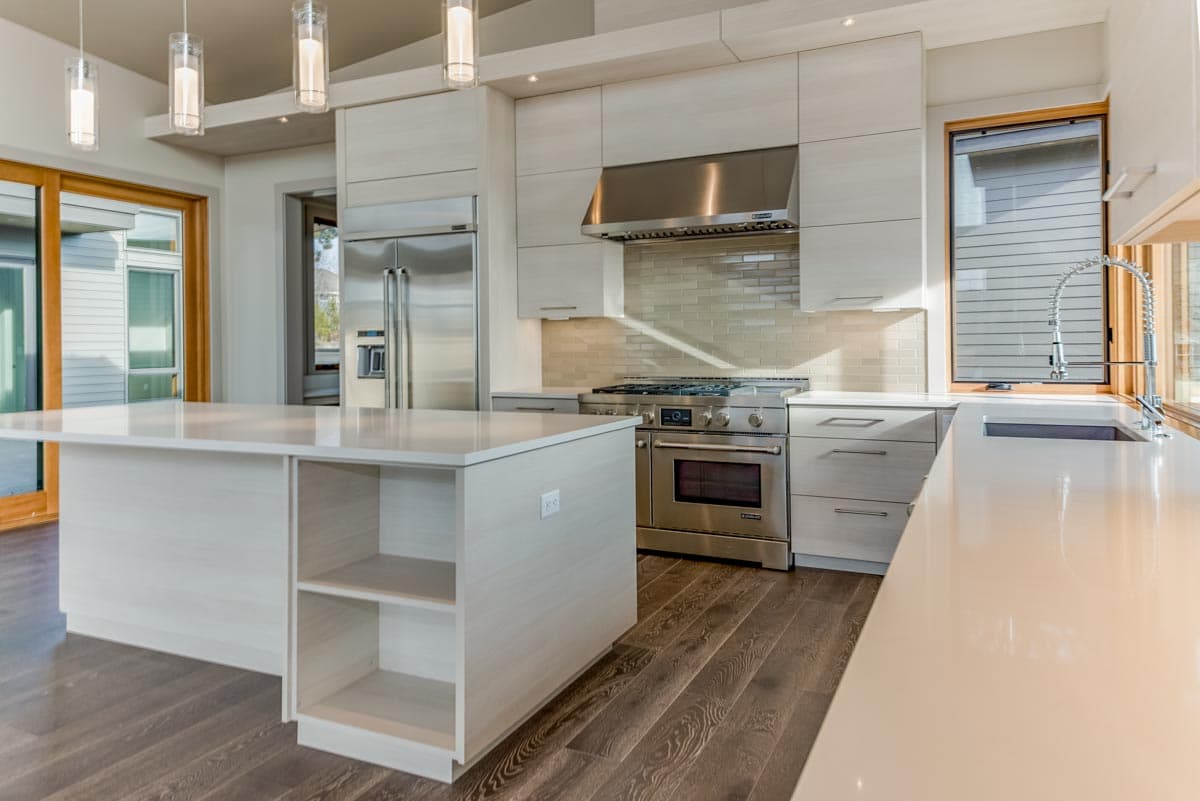

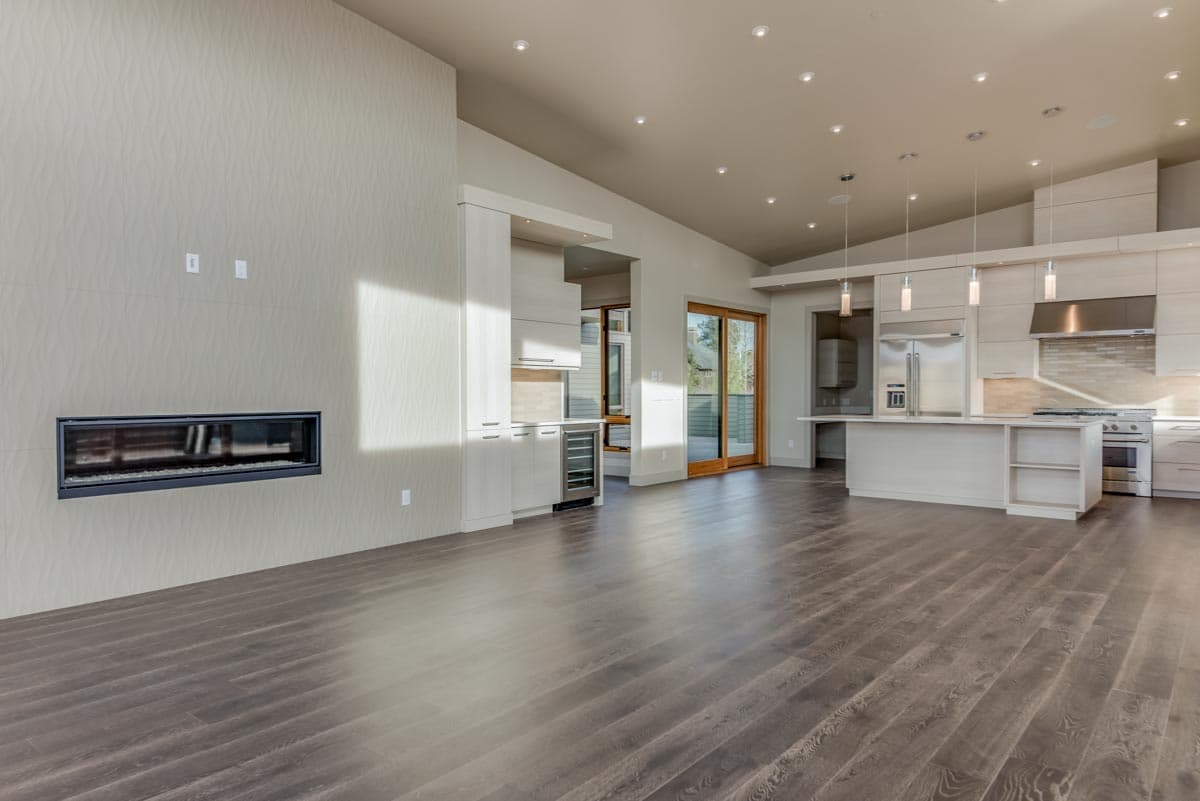

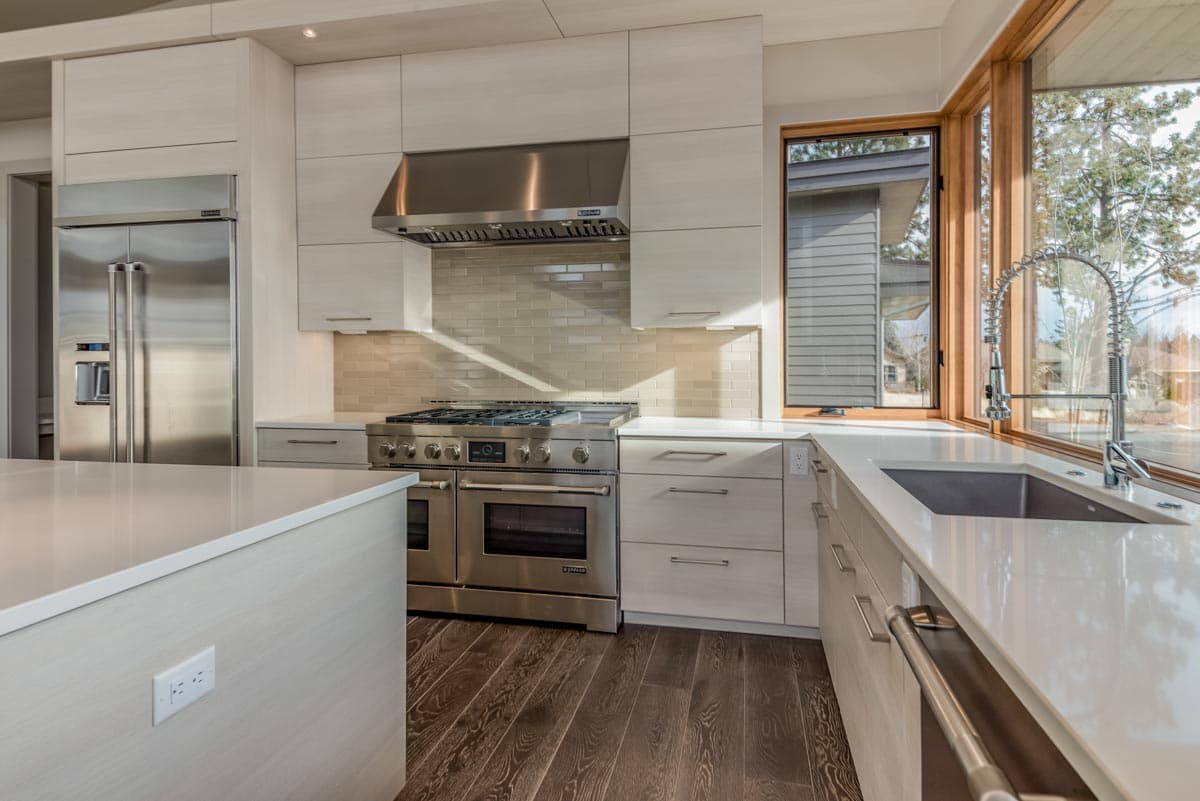

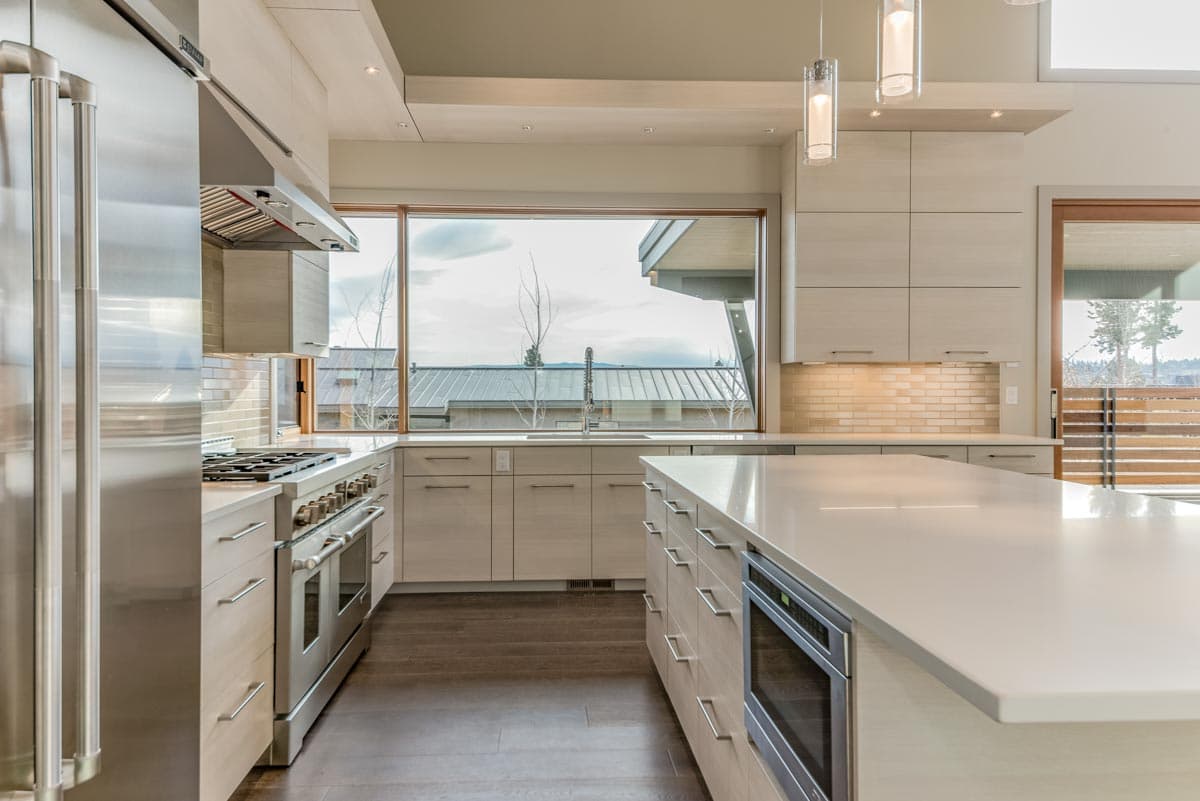

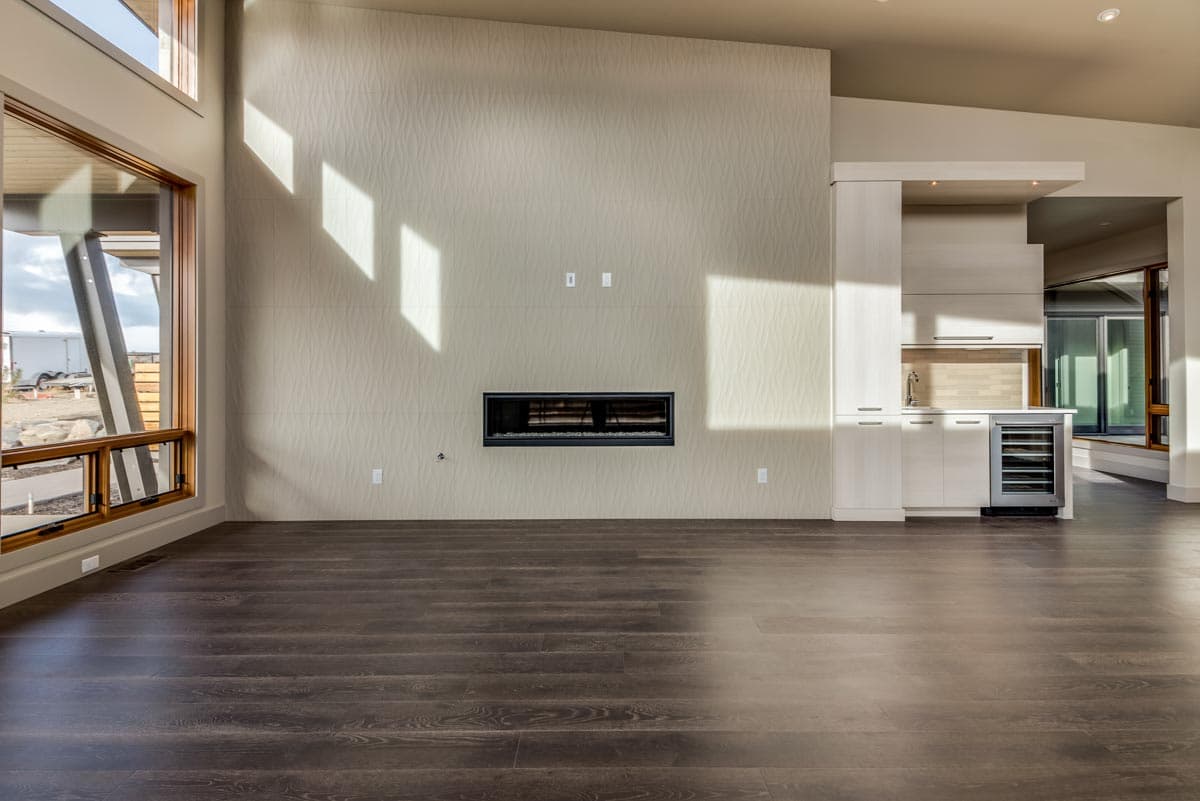

  • The eating, cooking and living spaces are all combined into one enormous great room with a wall of sliding glass doors to bring in views.

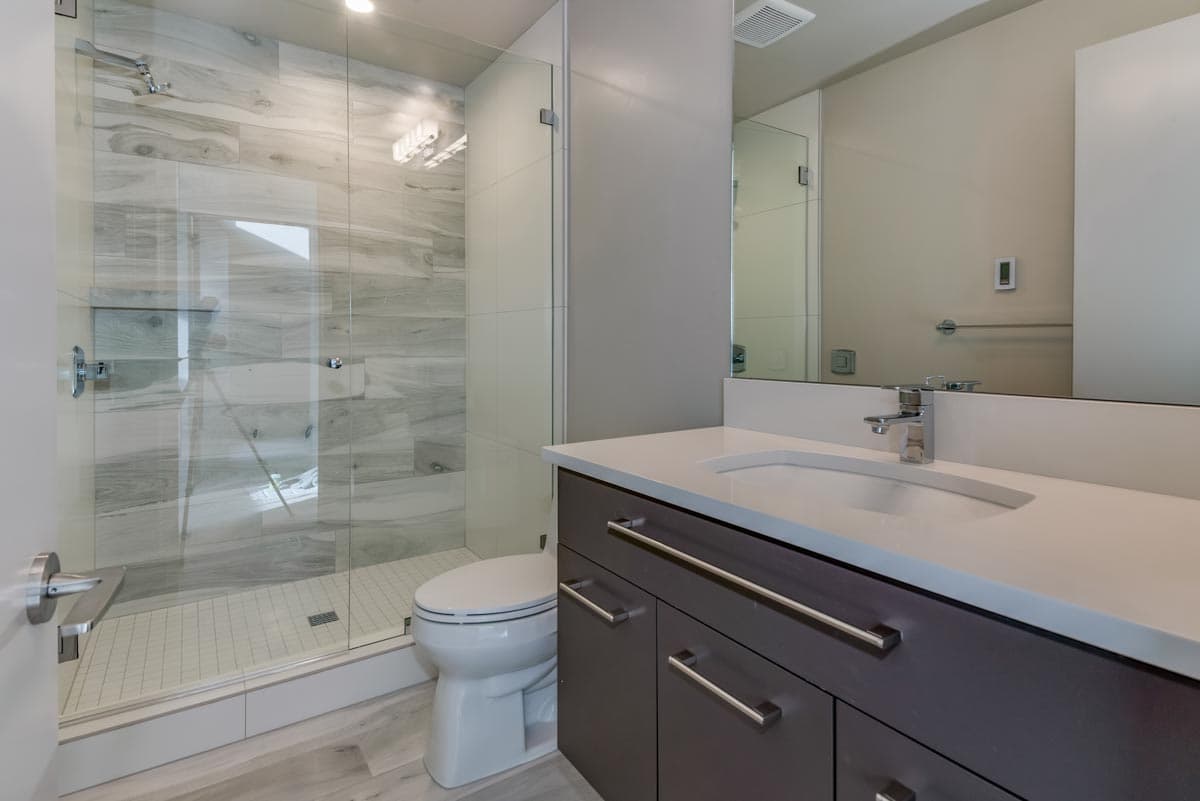

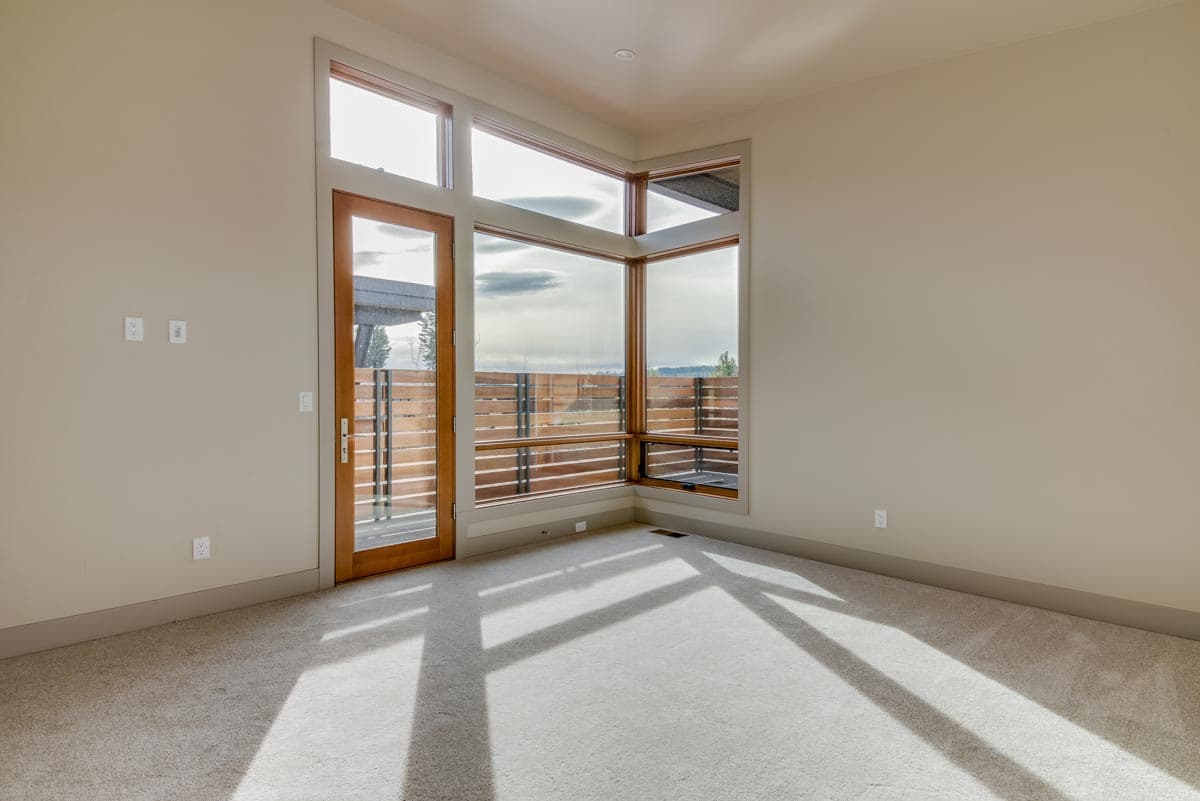

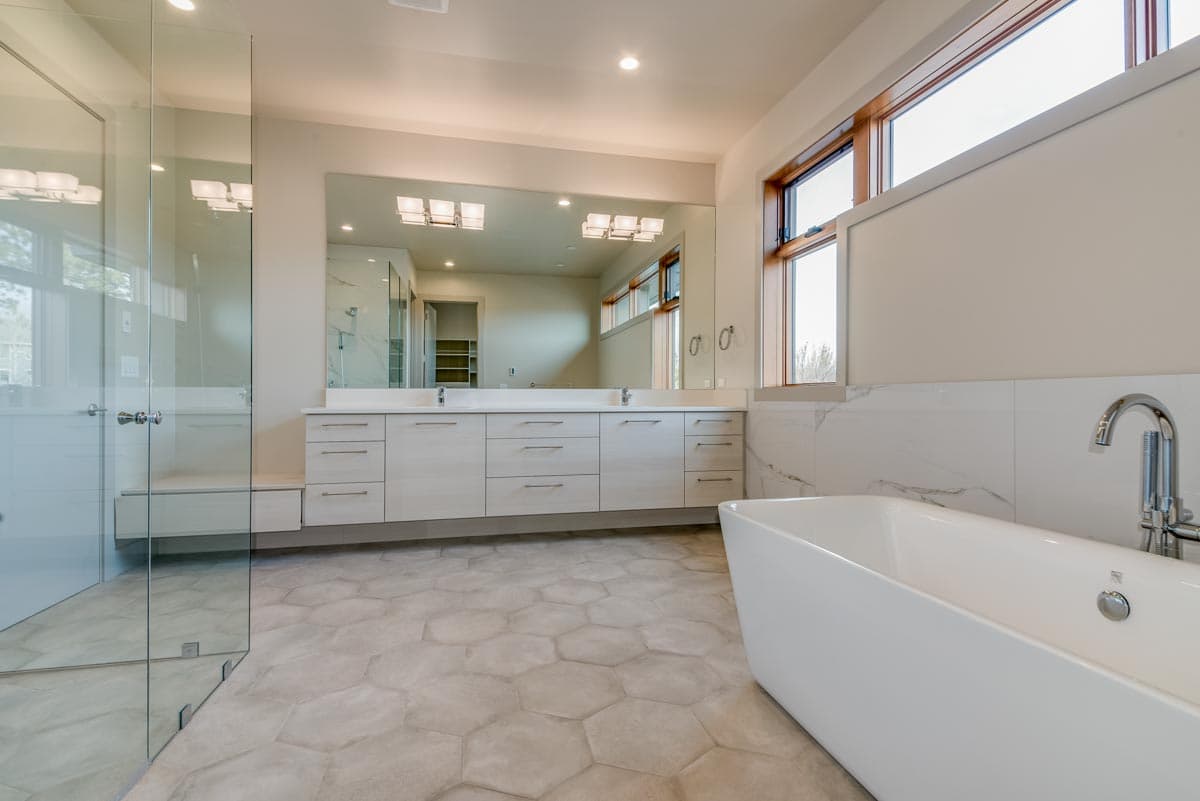

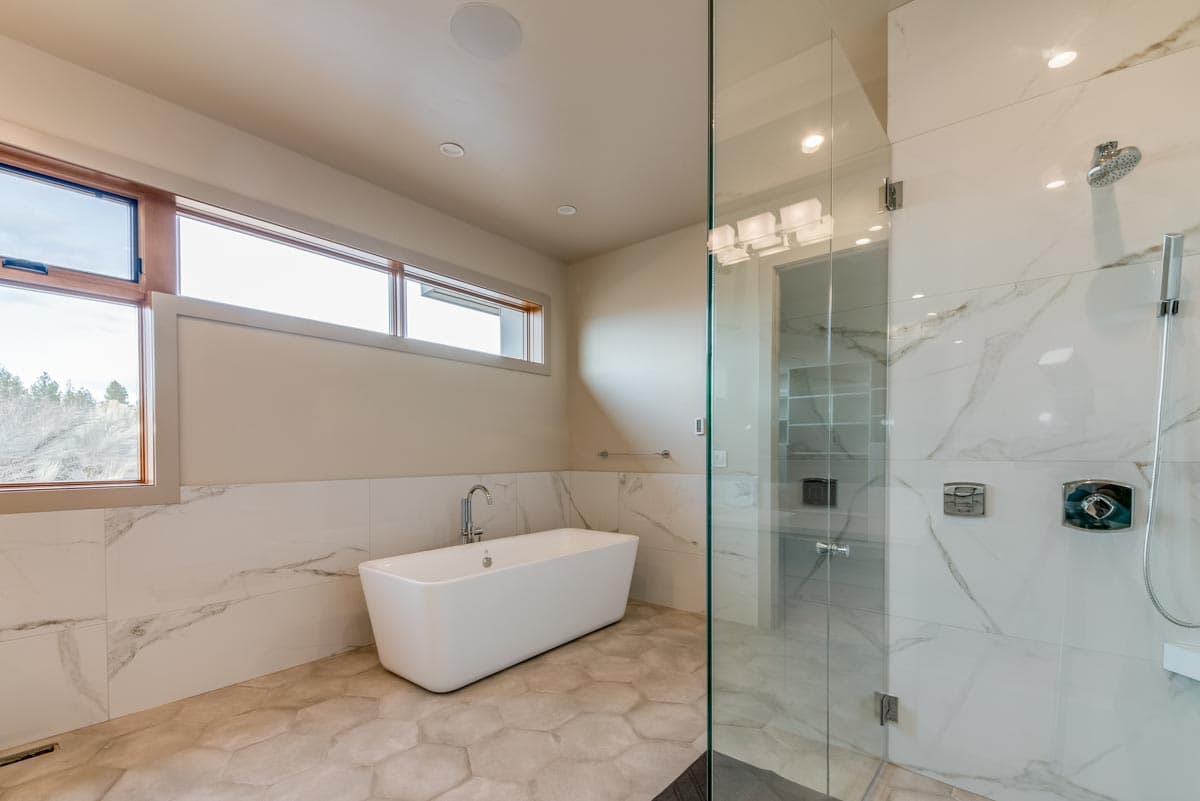

  • Homeowners get a master suite at the front of the house with a private terrace and a spacious and luxurious master bathroom.

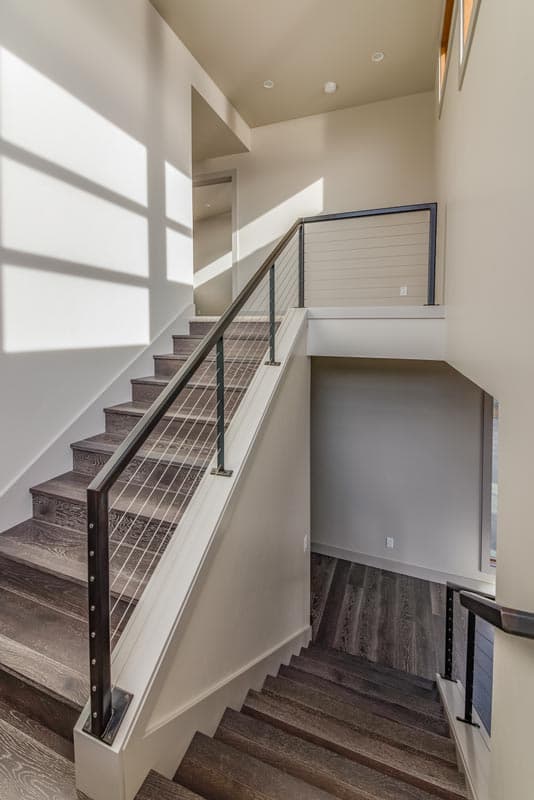

  • A bedroom and den lie down the hall and upstairs, bedroom 3 is set off by itself.
  • Use the game room as a bedroom if desired.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

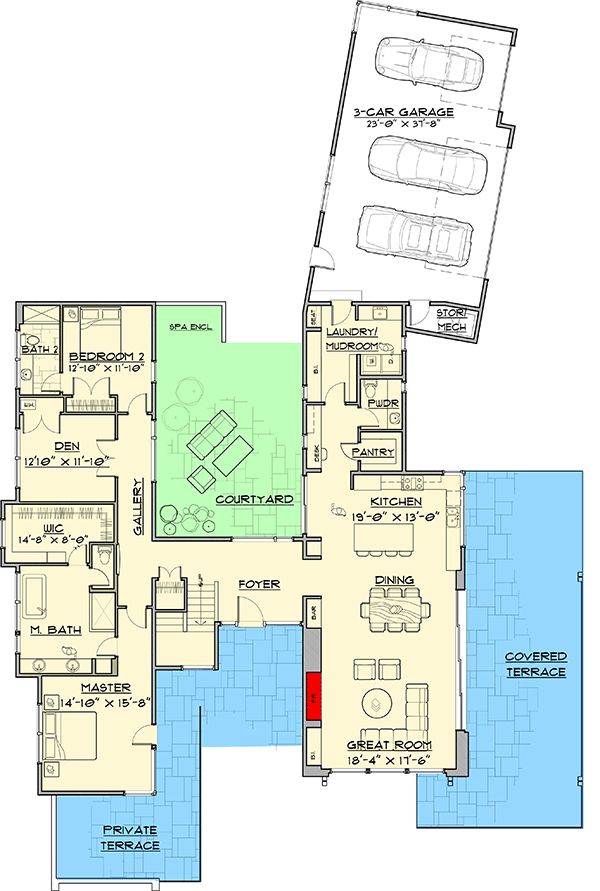

Grand Contemporary House Plan - 54230HU floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

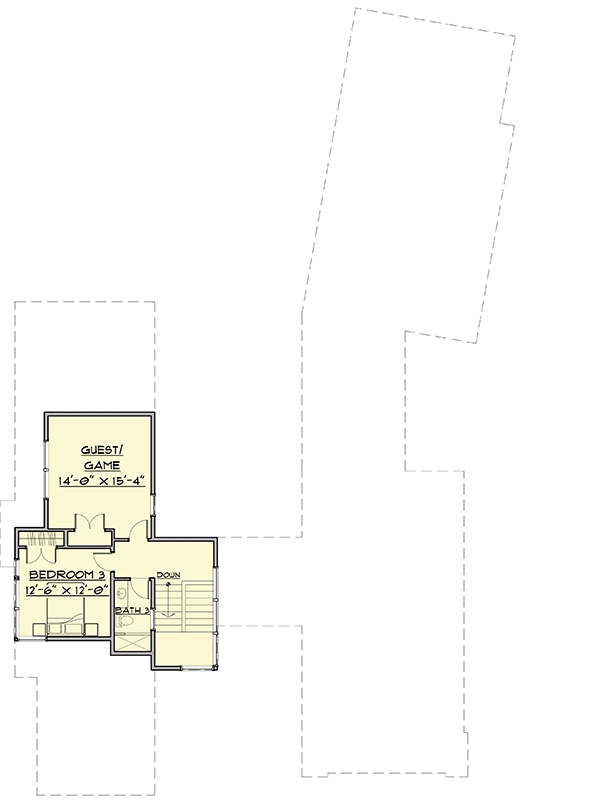

Grand Contemporary House Plan - 54230HU floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,345 sq. ft.
  • 1st Floor: 2,757 sq. ft.
  • 2nd Floor: 588 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 3"
  • Depth: 121' 6"
  • Max ridge height: 24' 7"

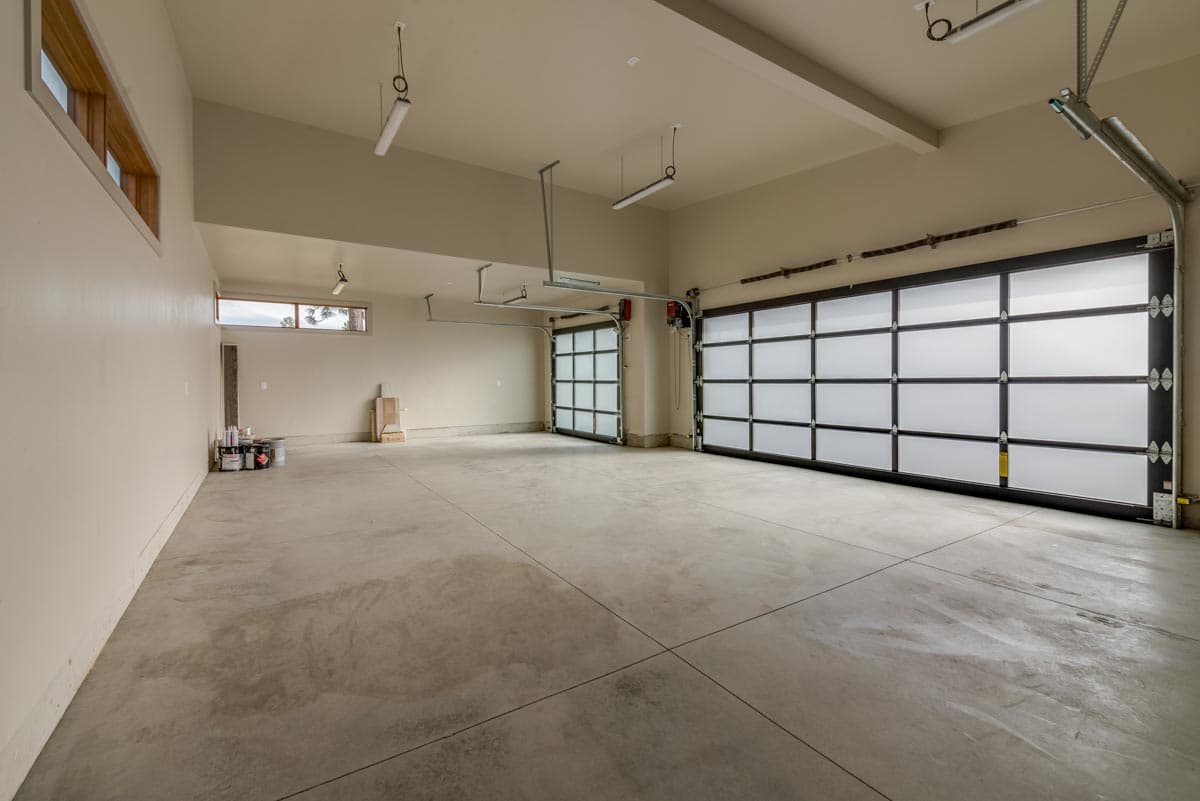

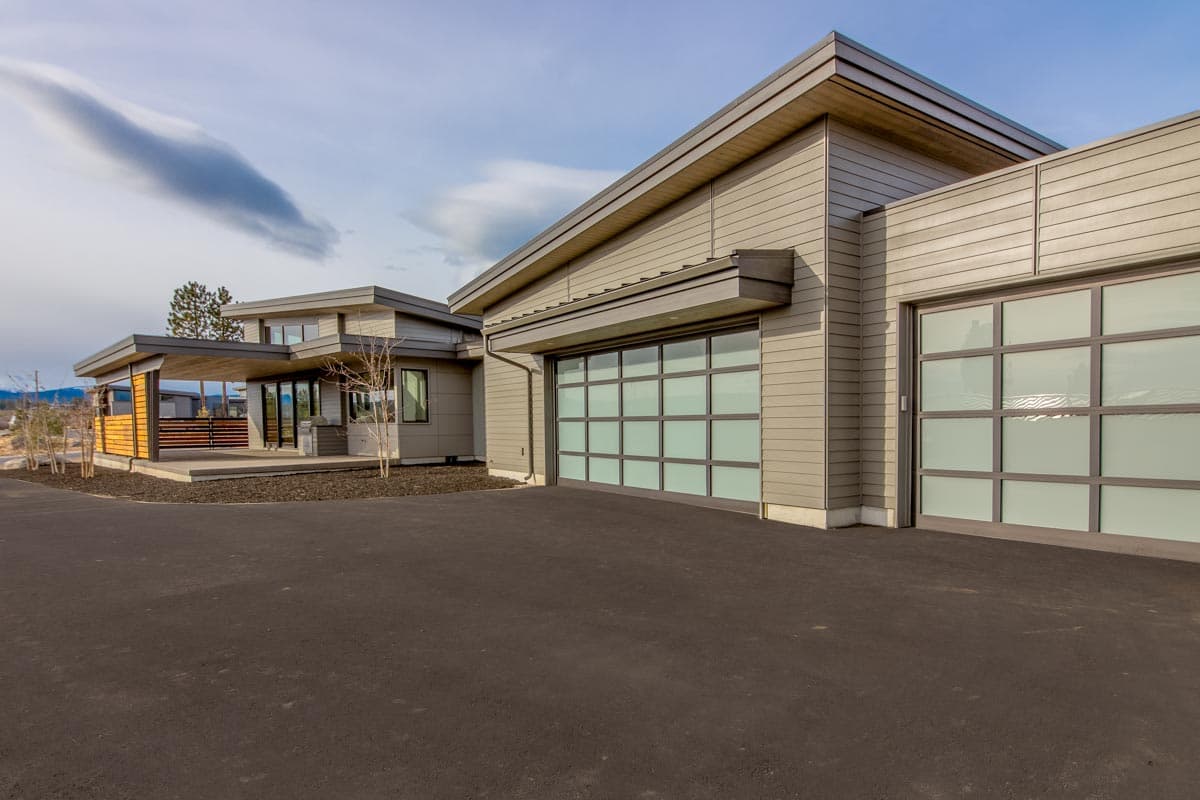

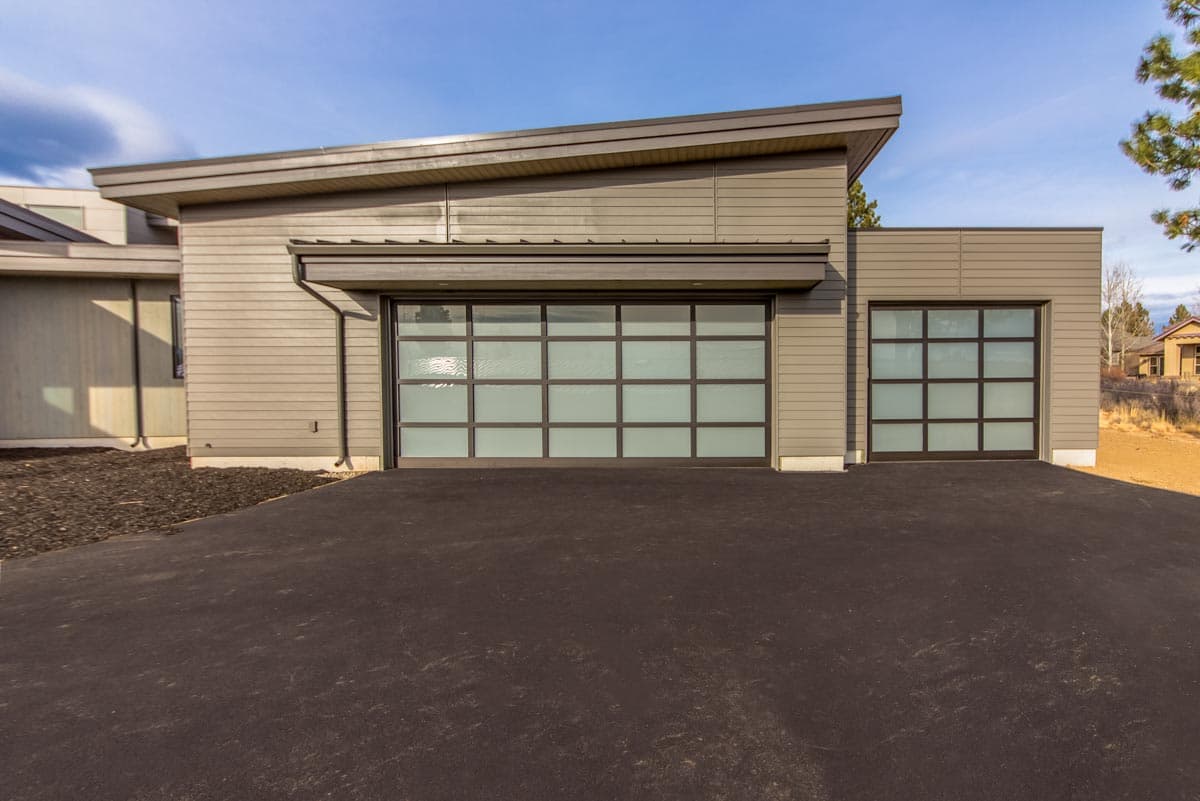

Garage

  • Type: Attached
  • Area: 968 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 7"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Grand Contemporary House Plan

  • 3,345

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • 5 Sets $2,095
  • 8 Sets $2,195
  • CAD + PDF - Single-Build $2,795
  • View all purchase option online

About This Plan

  • Interesting angles and slanted roof lines add up to a grand Contemporary house plan.
  • Light streams in from all the transom windows and glass and there are covered terraces and open courtyards for your family to enjoy.
  • The eating, cooking and living spaces are all combined into one enormous great room with a wall of sliding glass doors to bring in views.
  • Homeowners get a master suite at the front of the house with a private terrace and a spacious and luxurious master bathroom.
  • A bedroom and den lie down the hall and upstairs, bedroom 3 is set off by itself.
  • Use the game room as a bedroom if desired.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,345 sq. ft.
  • 1st Floor: 2,757 sq. ft.
  • 2nd Floor: 588 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 3"
  • Depth: 121' 6"
  • Max ridge height: 24' 7"

Garage

  • Type: Attached
  • Area: 968 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 7"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick And Truss
Plan 54230HU
View this and more for this plan by visiting www.architechtecturaldesigns.com/54230HU
|
