Plan 36712TX

Grand Craftsman House Plan: 4-5 Beds, Upstairs Master, Deep Porch

Name: Plan 36712TX: Grand Craftsman House Plan: 4-5 Beds, Upstairs Master, Deep Porch
Brand: Architectural Designs
SKU: 36712TX
Price: 1290.0 USD
Availability: InStock

Heated S.F.

3,245

Beds

4 - 5

Baths

4.5

Stories

Cars

Floor Plan

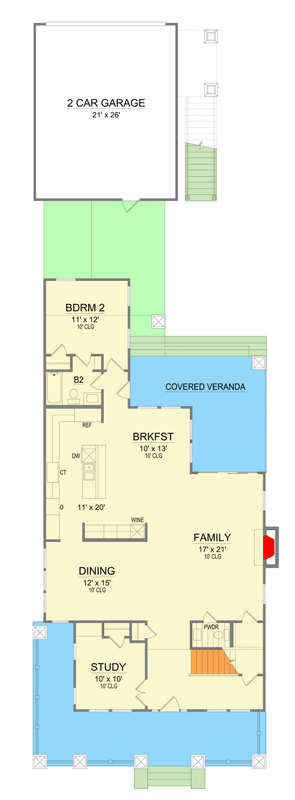

Main Level

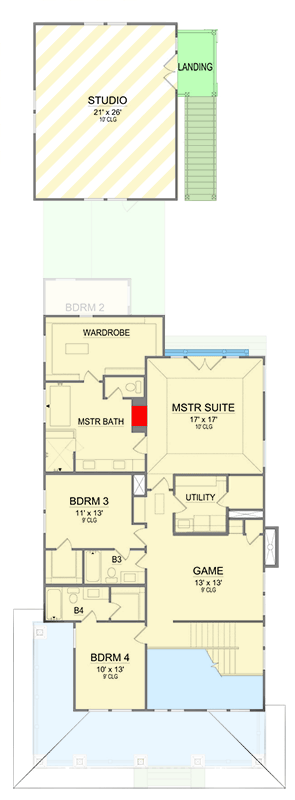

2nd Floor

Plan Details

This 3,245 sq. ft. Craftsman-style house plan features 4 to 5 bedrooms, 4 full bathrooms, 1 half bathroom, and a detached 578 sq. ft. two-car garage, presenting a timeless Traditional and Bungalow aesthetic.
Step inside from the welcoming covered porch into a thoughtfully designed layout where a dedicated library or study awaits near the entry, offering a quiet retreat for work or contemplation before the home opens into its vibrant living spaces.
The heart of the home unfolds with generous common areas, including a breakfast nook perfect for casual meals, all designed to foster connection and effortless flow between daily living and elegant entertaining.
The luxurious master suite, a private sanctuary located on the upper floor, provides a serene escape, while the clustered secondary bedrooms ensure comfort and privacy for family members or guests.
An expansive covered front porch, adorned with classic columns, invites residents to enjoy morning coffee or evening relaxation, extending the living space outdoors and enhancing the home's charming curb appeal.
An optionally finished 578 sq. ft. bonus room upstairs offers versatile space, ready to be transformed into an additional bedroom, a media room, or a private gym to suit evolving lifestyle needs.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

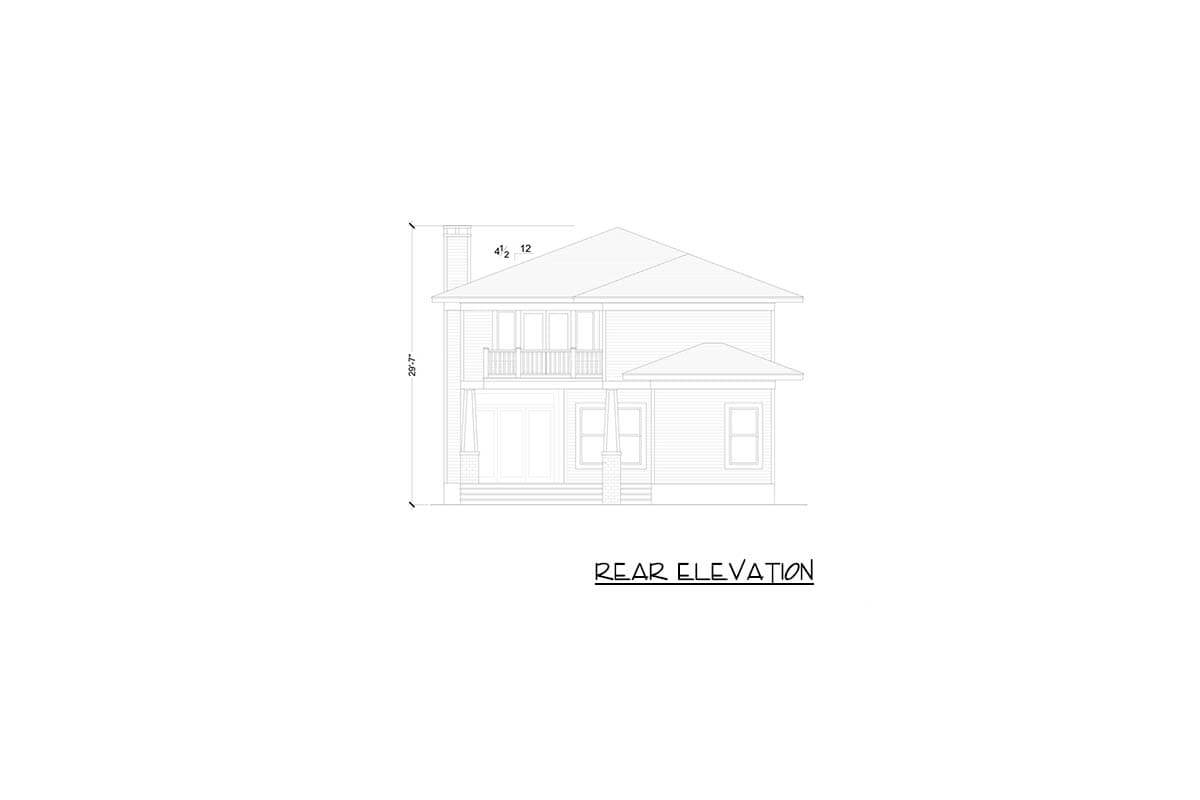

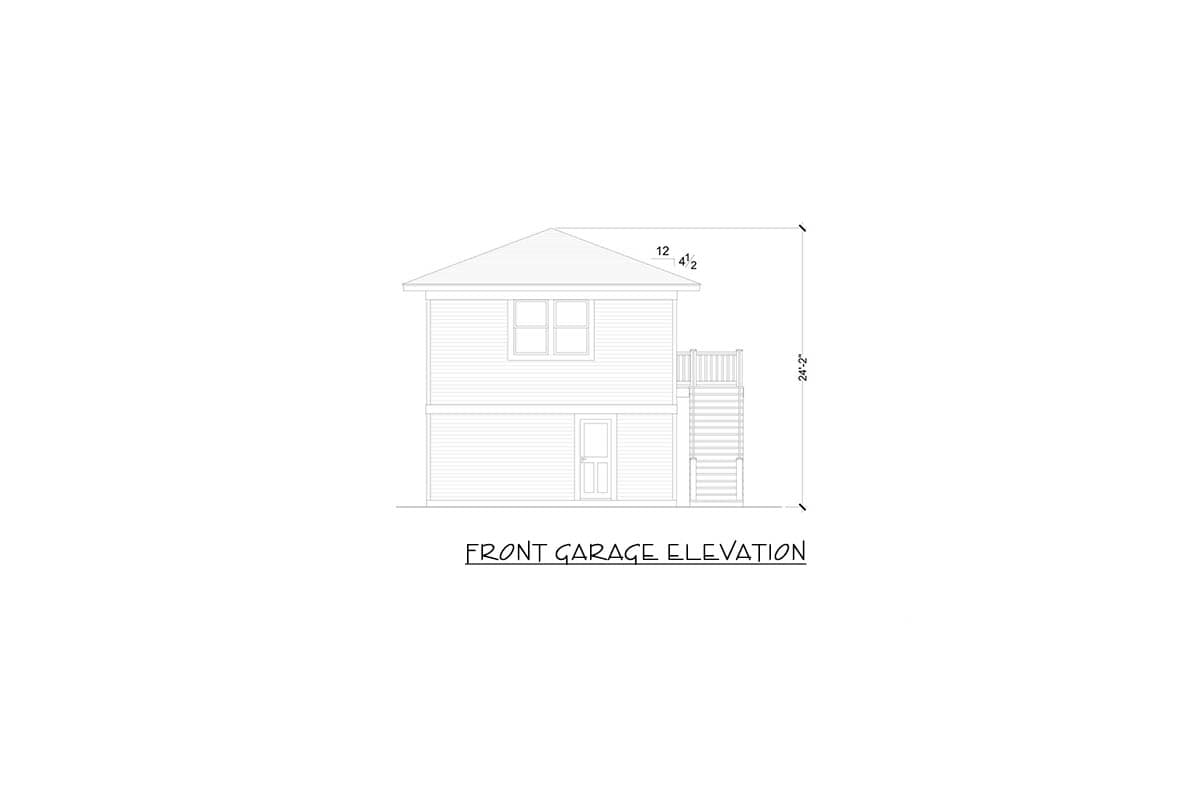

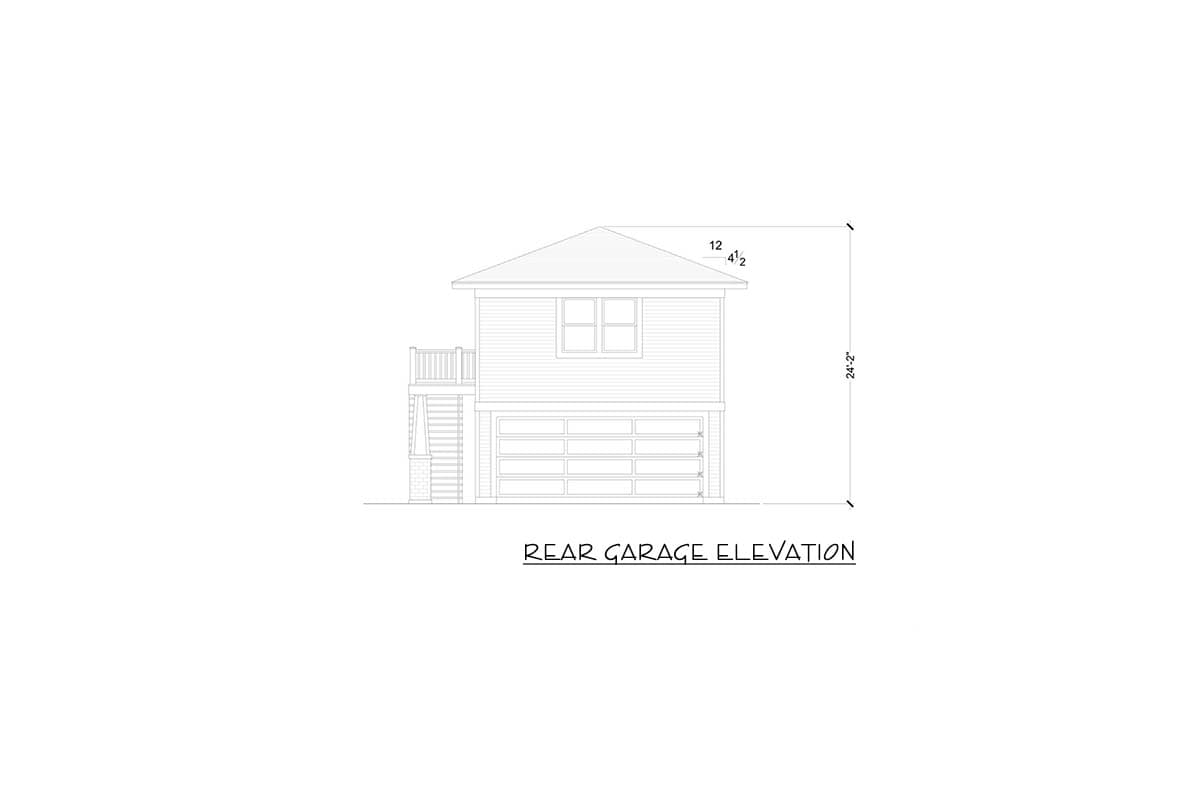

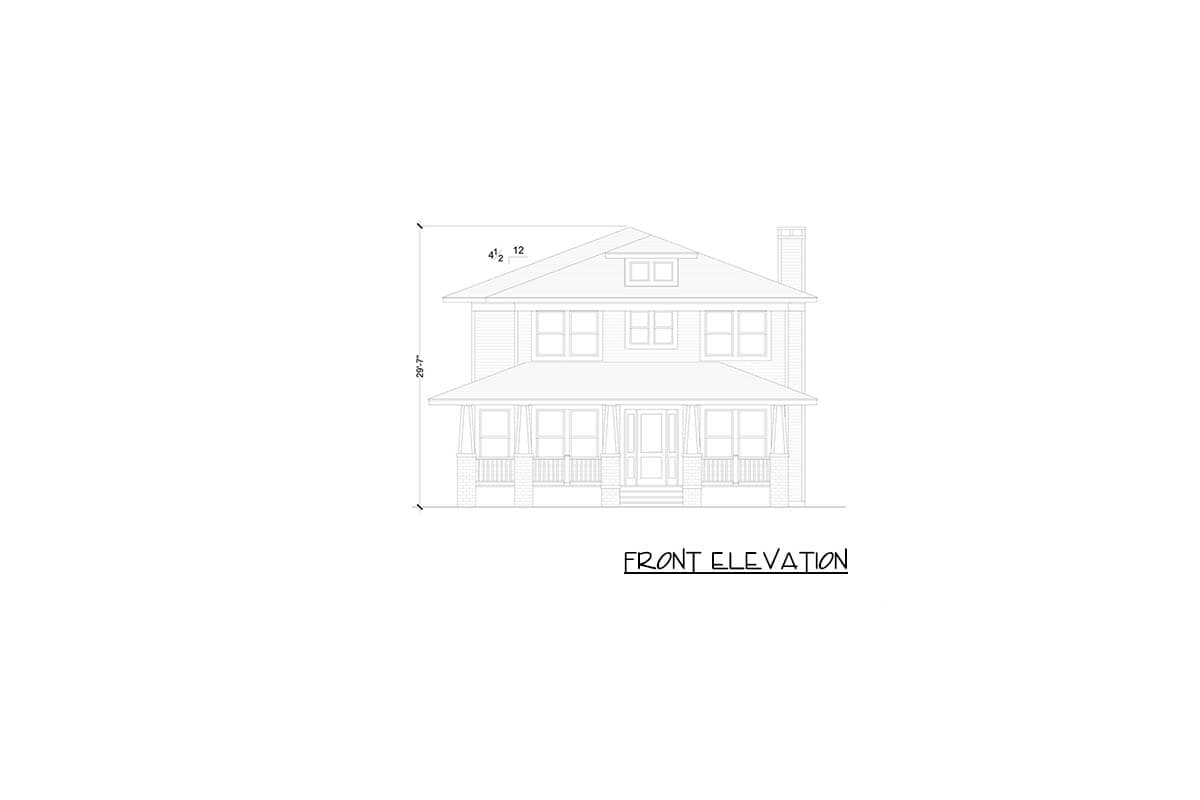

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

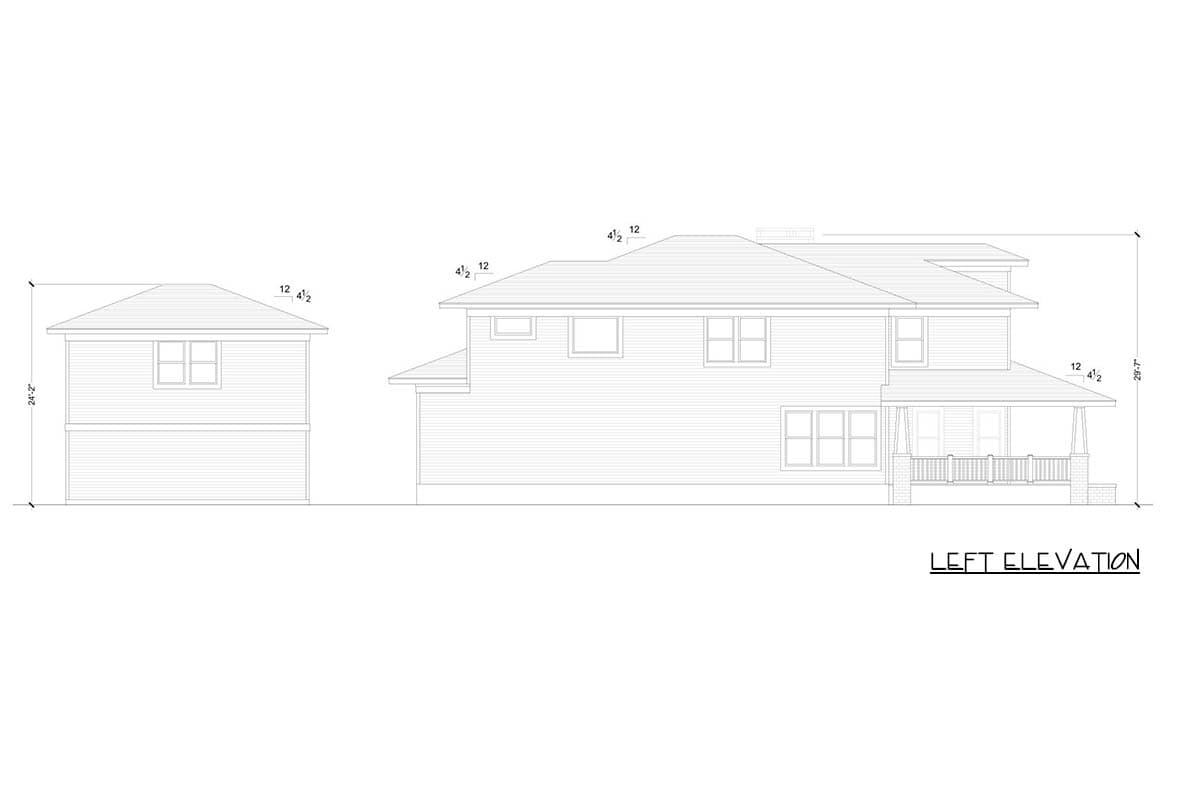

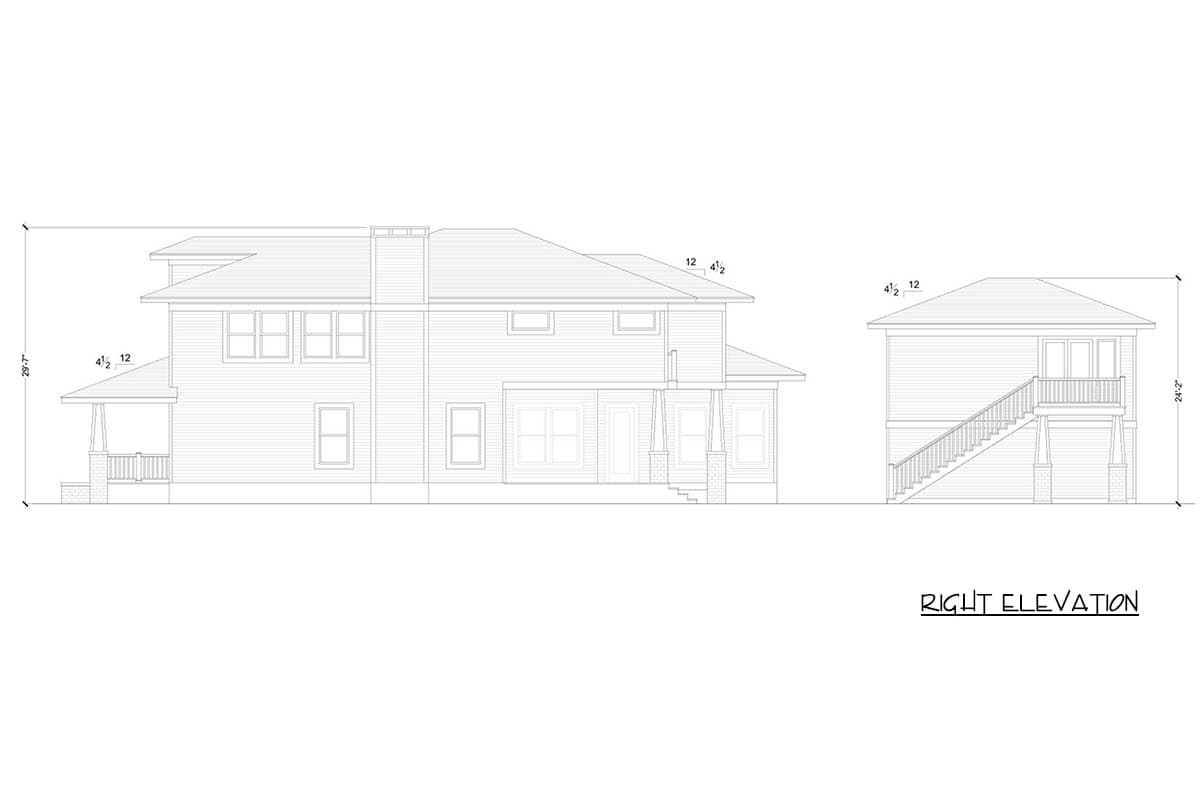

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
