Plan 64555SC

Grand Craftsman Mountain House Plan: 3 or 5 Bed, 4-Car Garage, Main Level Master

Name: Plan 64555SC: Grand Craftsman Mountain House Plan: 3 or 5 Bed, 4-Car Garage, Main Level Master
Brand: Architectural Designs
SKU: 64555SC
Price: 1550.0 USD
Availability: InStock

Heated S.F.

2,693

Beds

2 - 5

Baths

3 - 5

Stories

Cars

Floor Plan

Main Level

2nd Floor

Optional Lower Level

Plan Details

This magnificent 2,693 sq. ft. Craftsman Mountain House Plan features 3-5 bedrooms, 3-5 full bathrooms, and an oversized 962 sq. ft. 4-car attached garage, blending rustic elegance with modern functionality.
Step inside to discover a bright, open-concept layout on the main floor, where soaring 10-foot ceilings enhance the sense of space. A dedicated home office or flexible fifth bedroom is conveniently located near the entry, offering privacy for work or guests.
The heart of the home is an expansive open kitchen and dining area, featuring a butler's walk-in pantry and vaulted ceilings that create an airy atmosphere. Multiple sliding doors provide seamless transitions to the outdoor living spaces, perfect for enjoying morning coffee or an evening gathering.
The luxurious main-level master suite is a private retreat, boasting a lavish en-suite bath and dual walk-in closets, plus a dedicated sitting area. Two additional bedrooms are located in the finished lower level, alongside two full bathrooms, offering comfortable accommodations and privacy for family or guests.

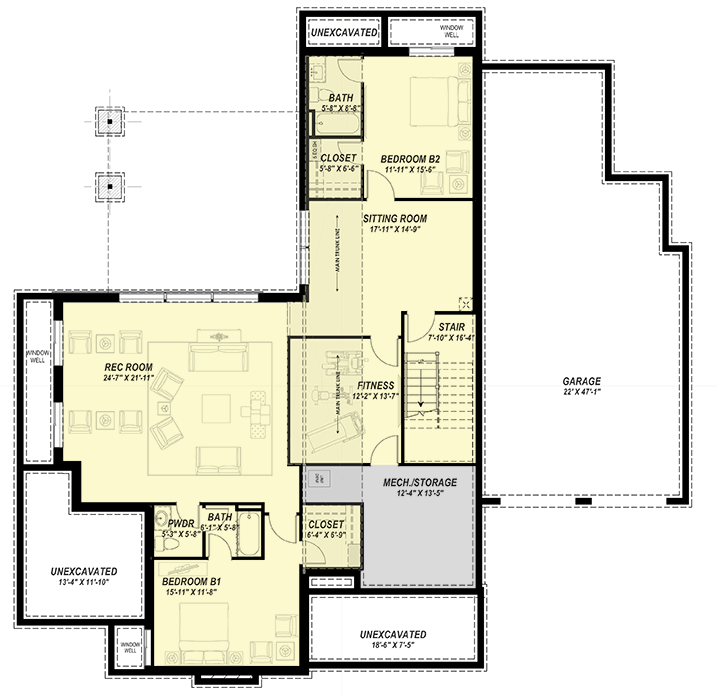

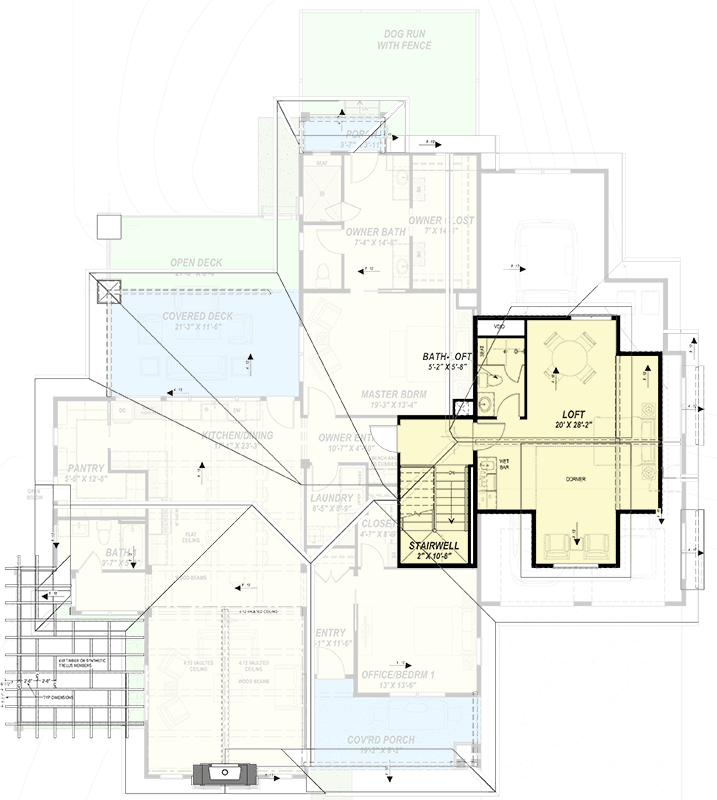

Beyond the main living areas, a versatile upper loft, with its 8-foot ceiling, provides an ideal space for a studio, playroom, or quiet retreat. The optional lower level potentially further expands your living options with a spacious game/rec room, a dedicated fitness area, and an additional sitting room, all illuminated by natural light from window wells.

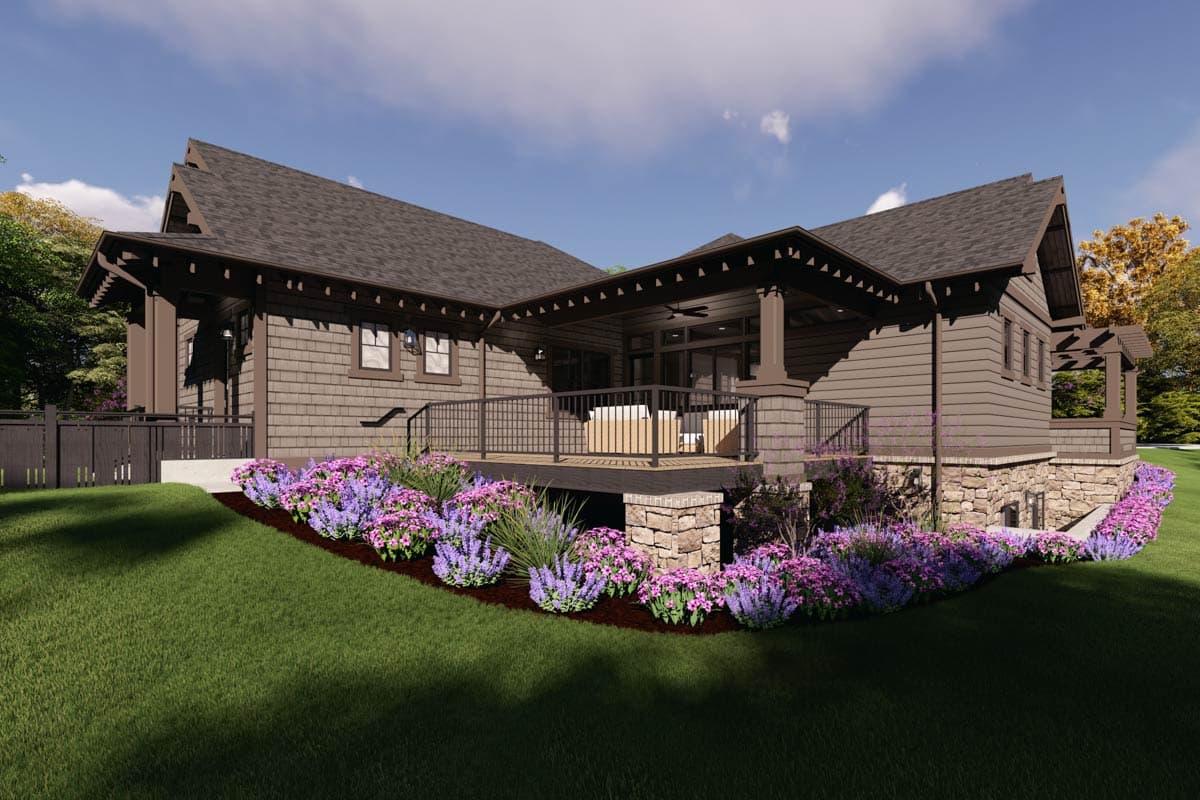

Outdoor living is celebrated with a welcoming covered front porch, an open rear deck, and a generous covered deck, offering ample space for relaxation and entertaining amidst the surrounding landscape. The oversized 4-car garage features stone accents and windowed doors, enhancing the home’s curb appeal.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

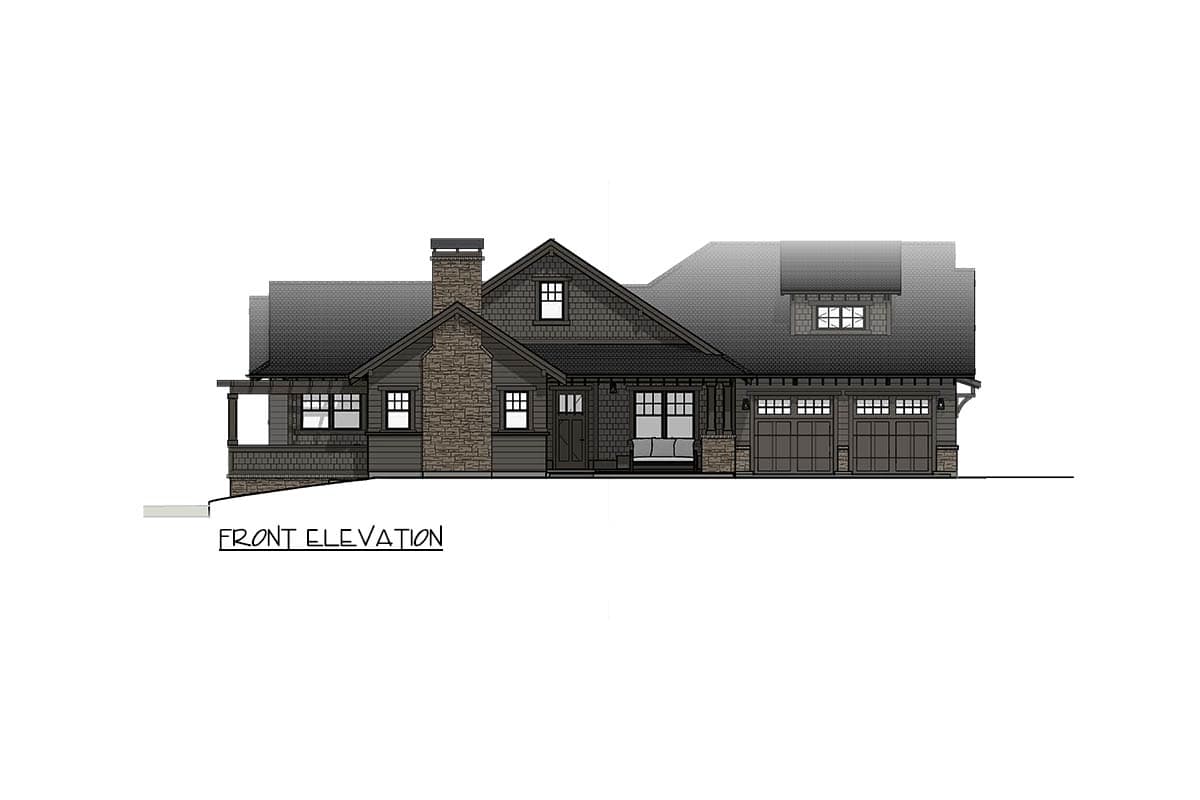

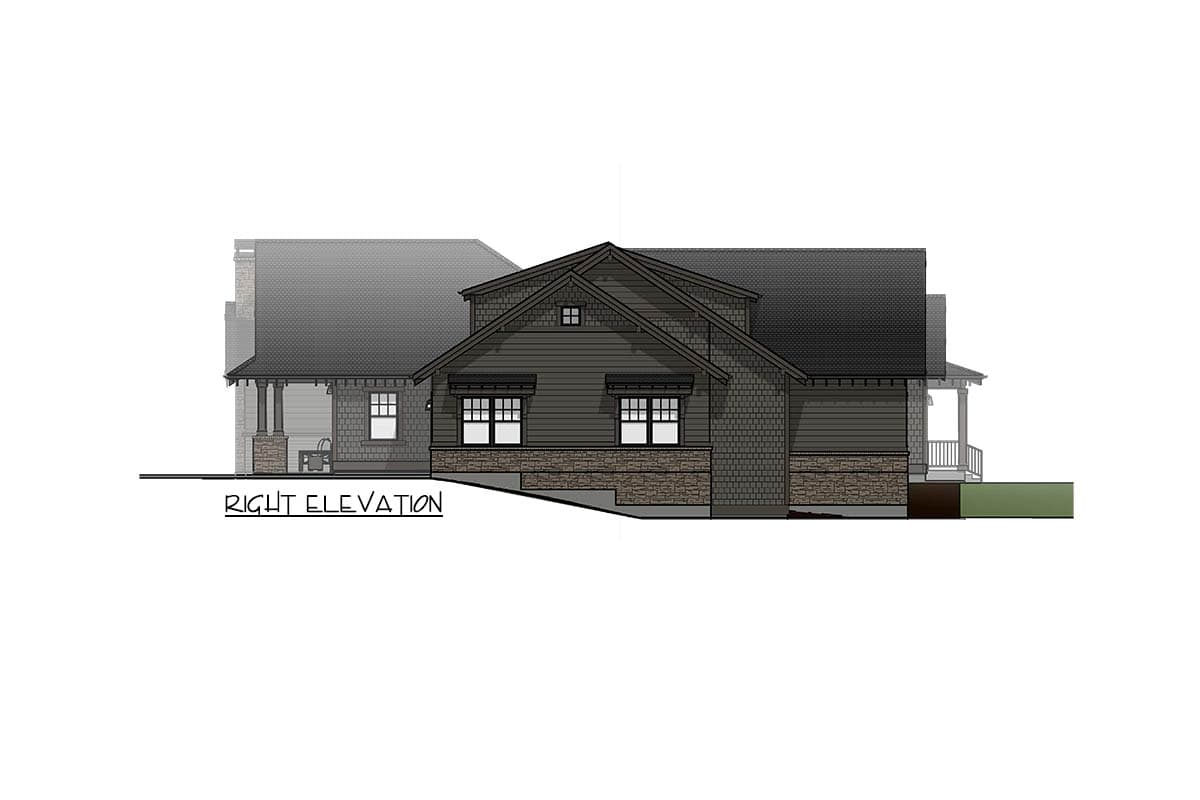

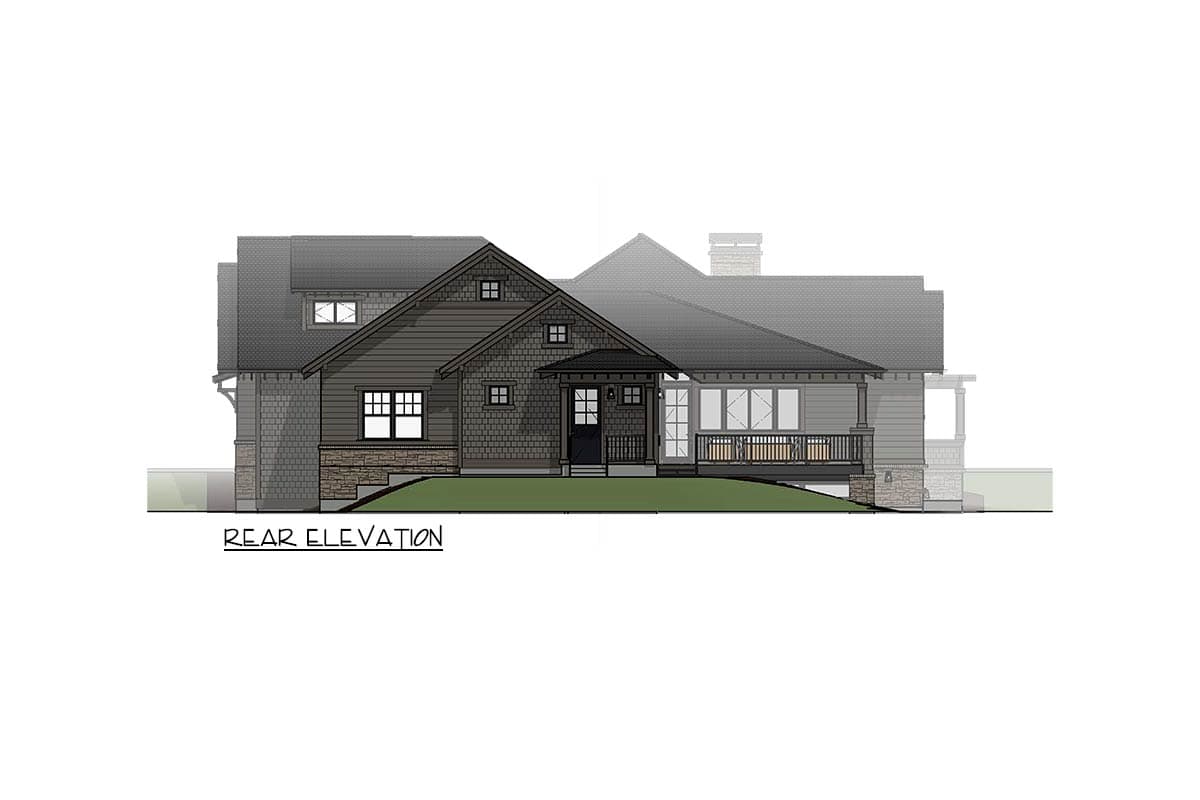

Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

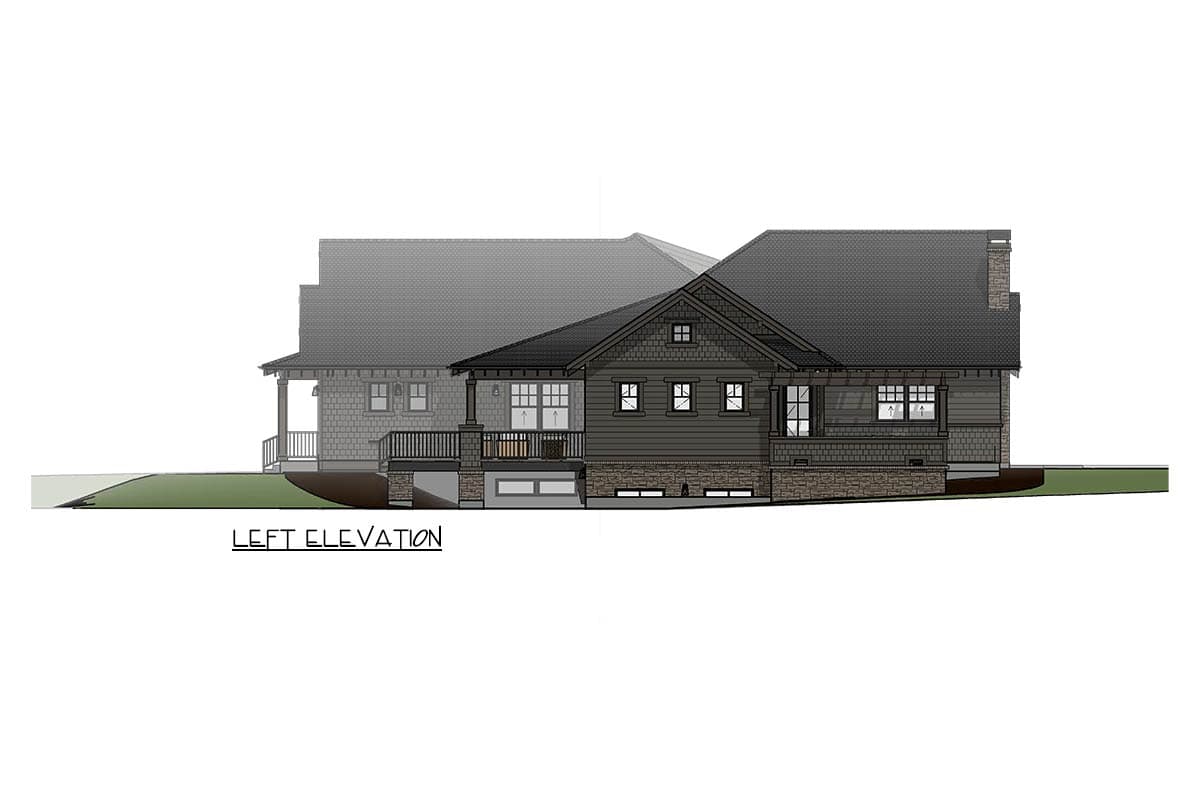

Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
