Grand Florida House Plan

Plan 66338WE

  • 6,680

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 5

    Cars

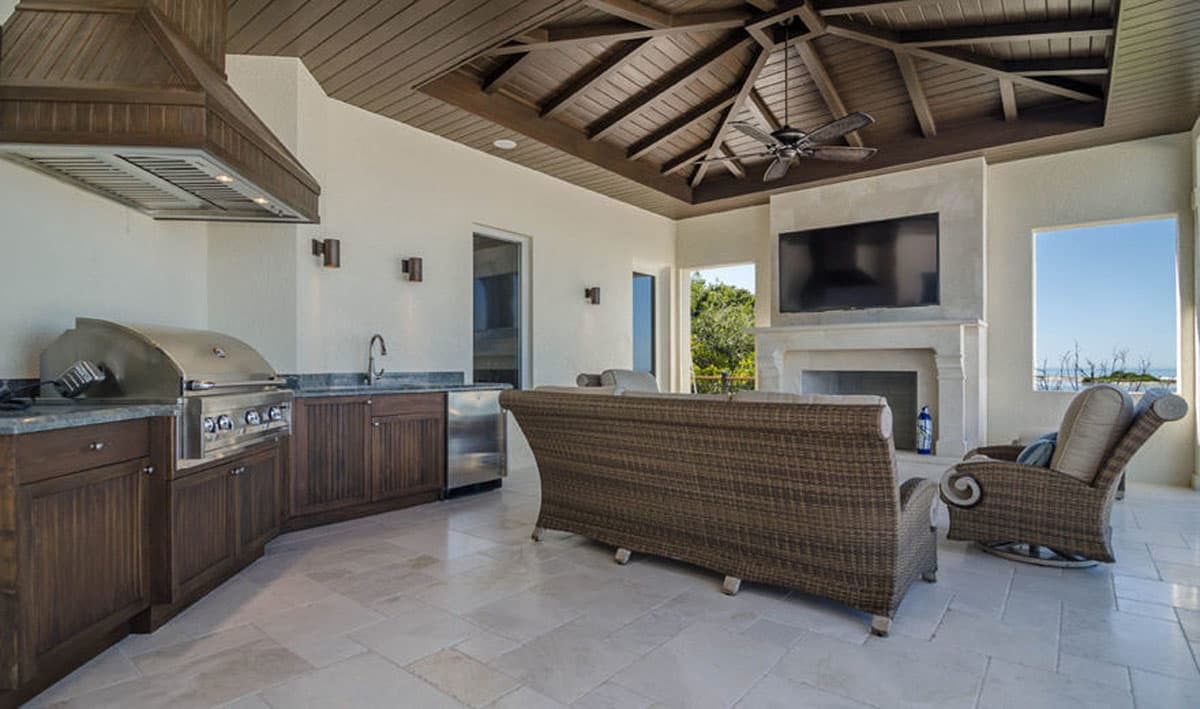

  • Extensive outdoor living areas and marvelous ceiling treatments are just the start of the luxurious amenities that come with this Florida house plan.

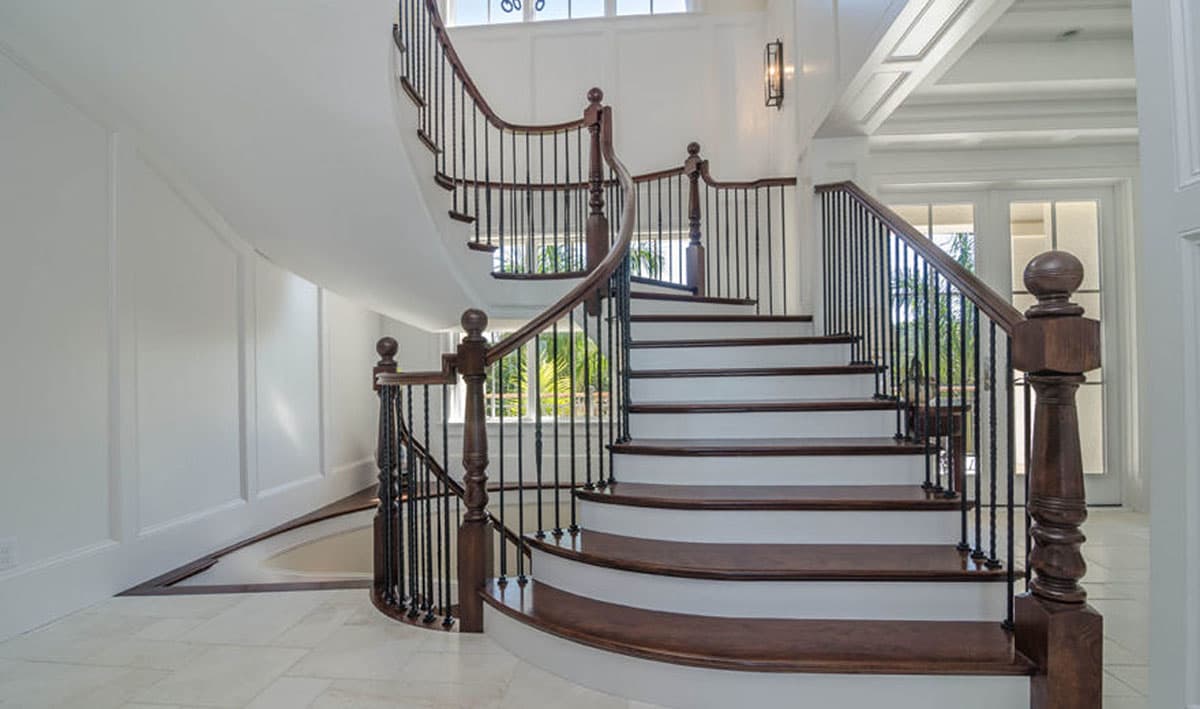

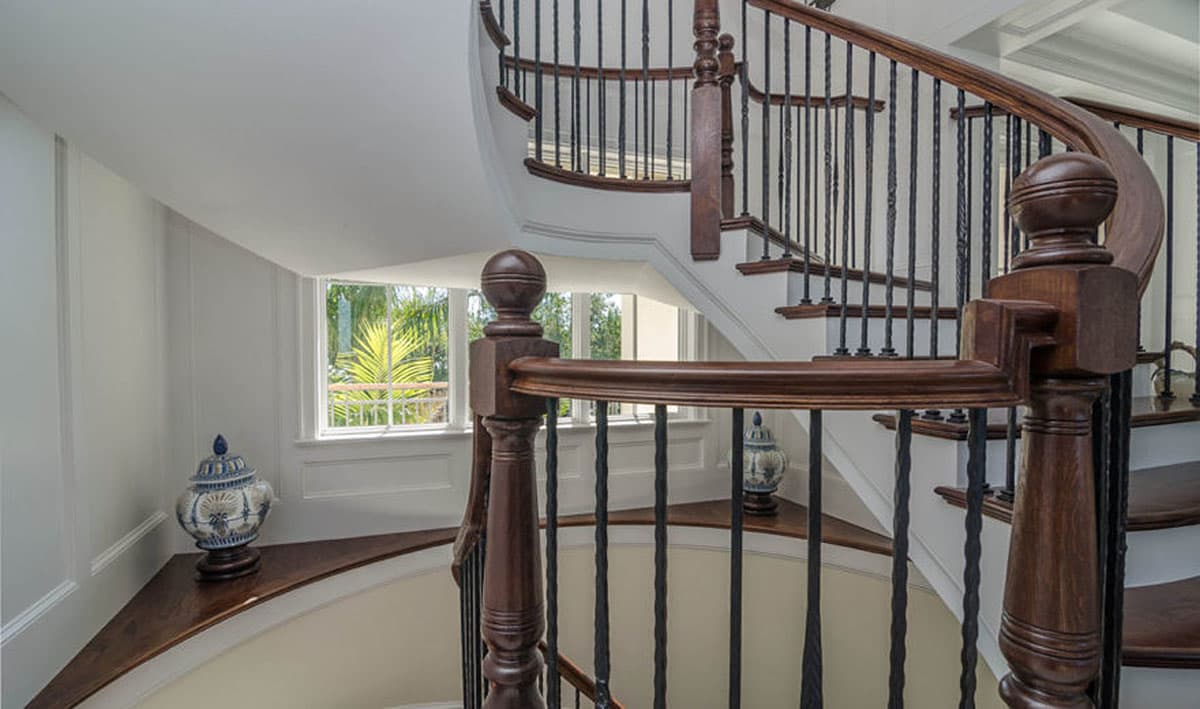

  • Enter the home through the lower level foyer where you can take the residential elevator or the beautifully curved staircase to reach the main living area.

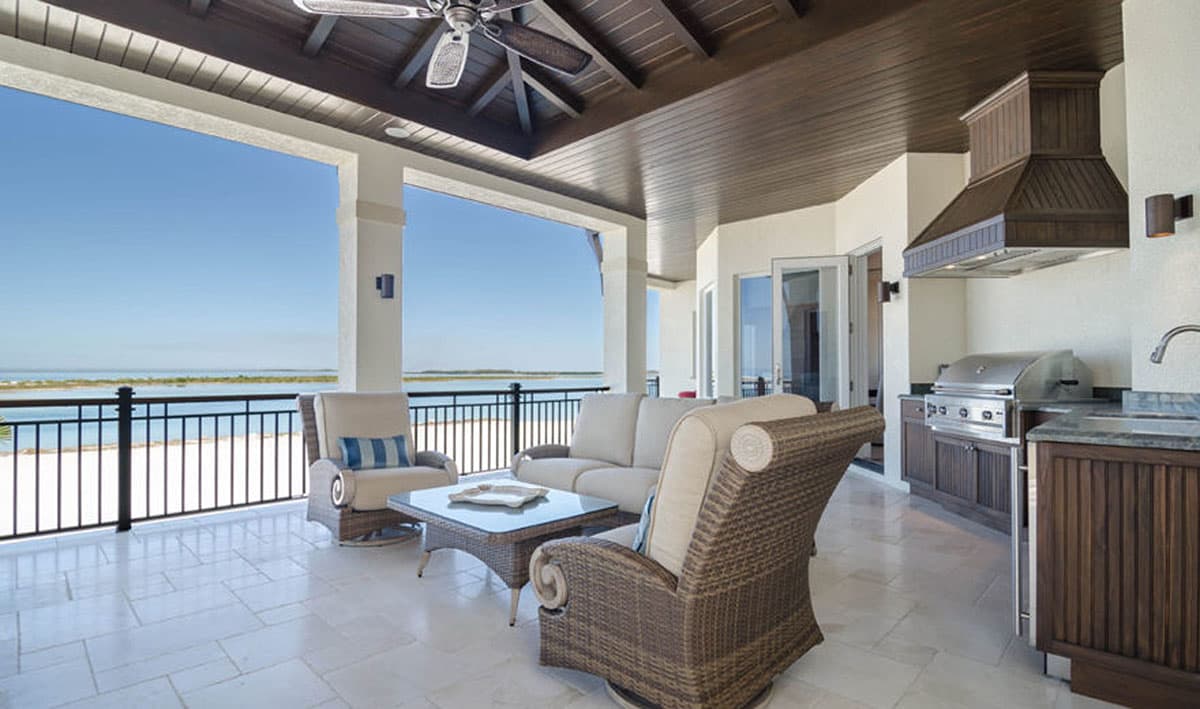

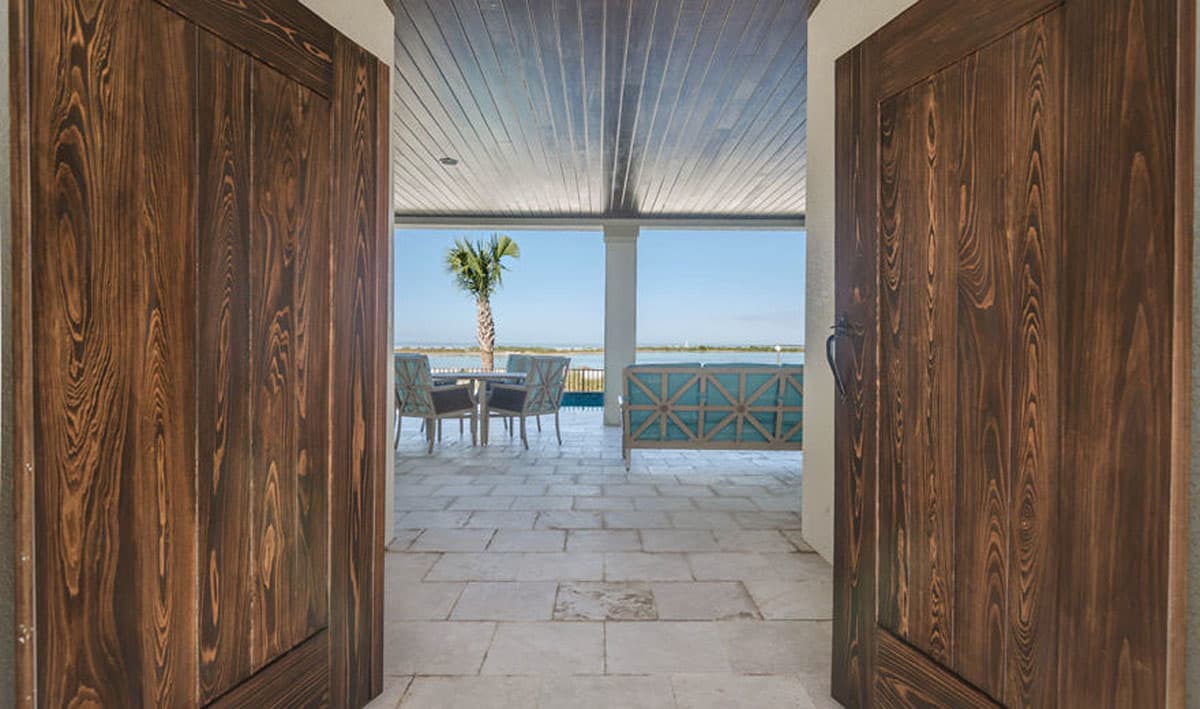

  • Here, the open floor plan gives you amazing sightlines and views of the huge rear covered lanai.

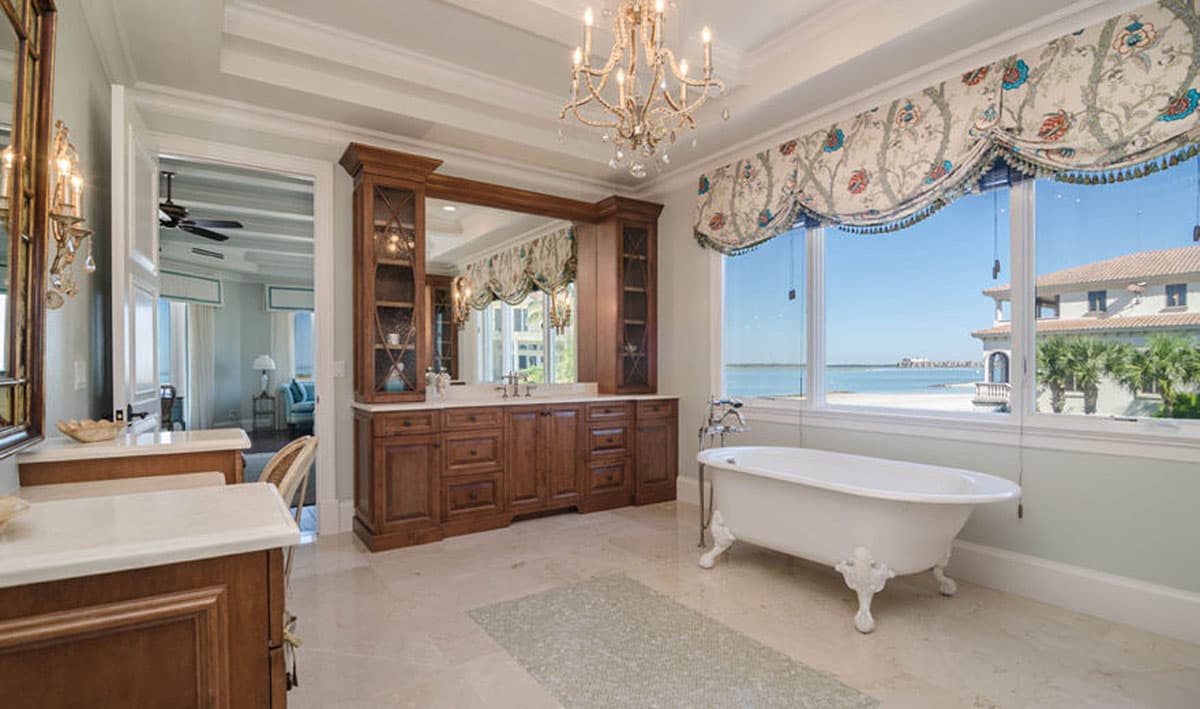

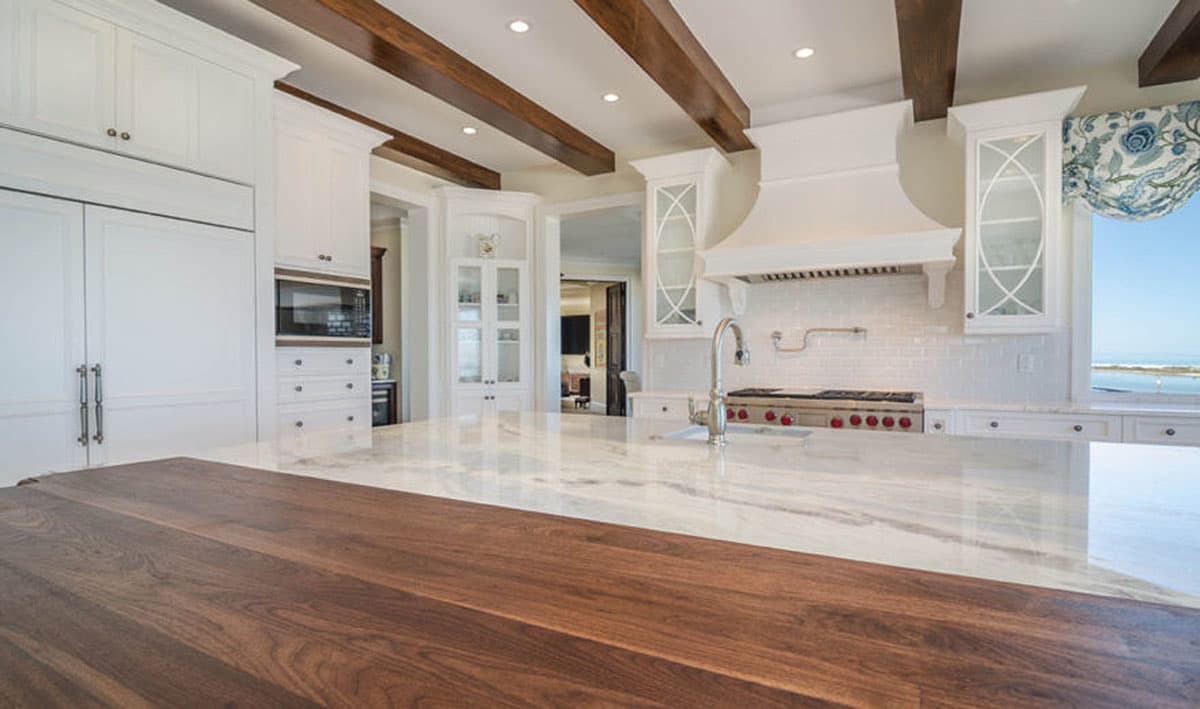

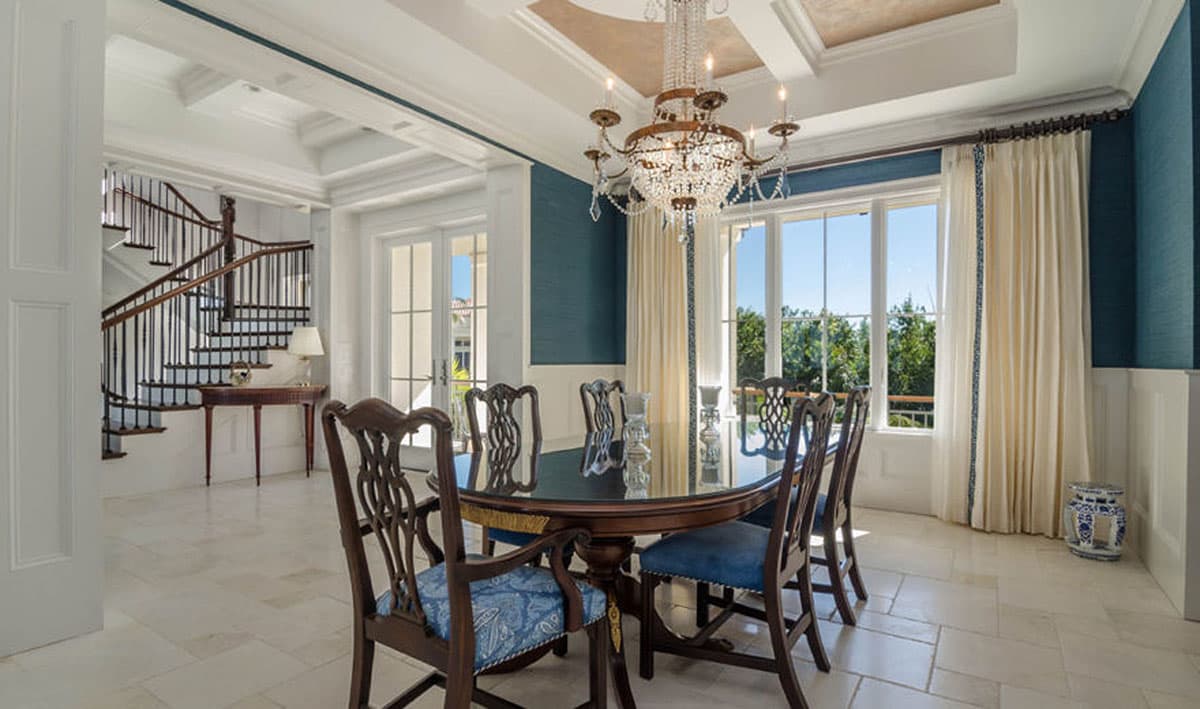

  • Beamed, tray and coffered ceilings add a custom touch to almost every room in the house including the master bathroom.
  • Watch movies in the giant theater that has a snack bar on one wall.
  • On the second floor, a huge sun deck can be reached through sliding glass doors in the enormous game room and bedrooms 2 and 3.

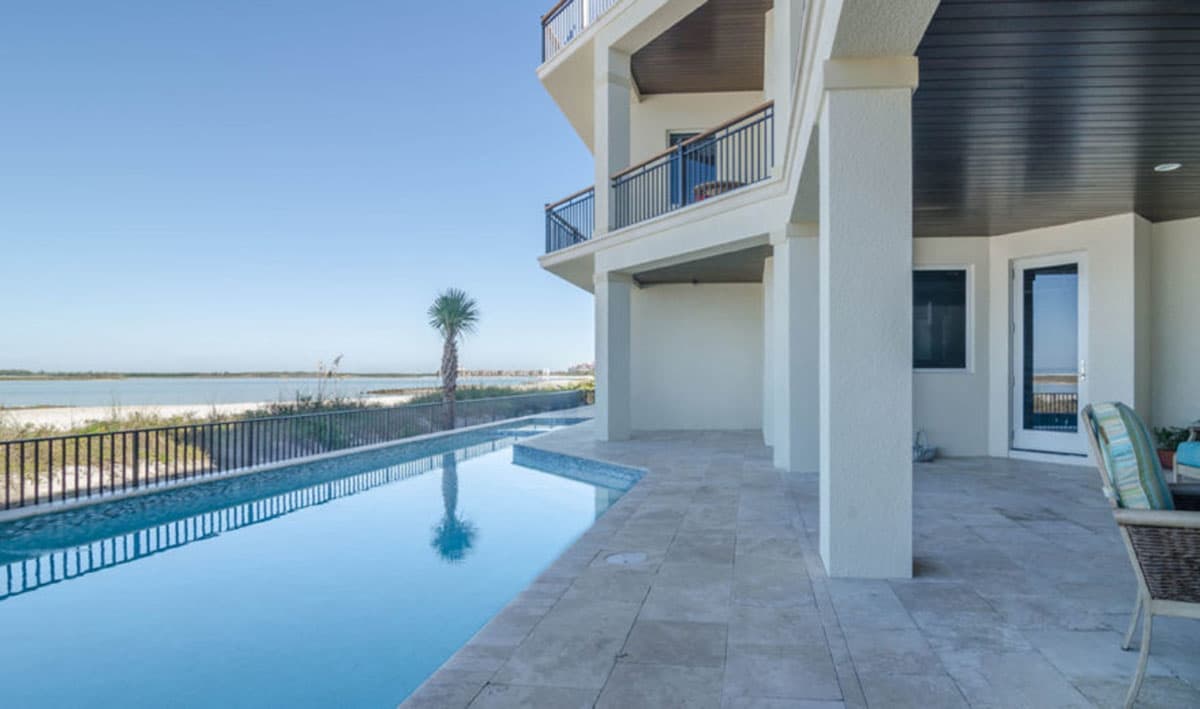

  • A covered balcony faces the front so you can catch the breeze from both sides of the home.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

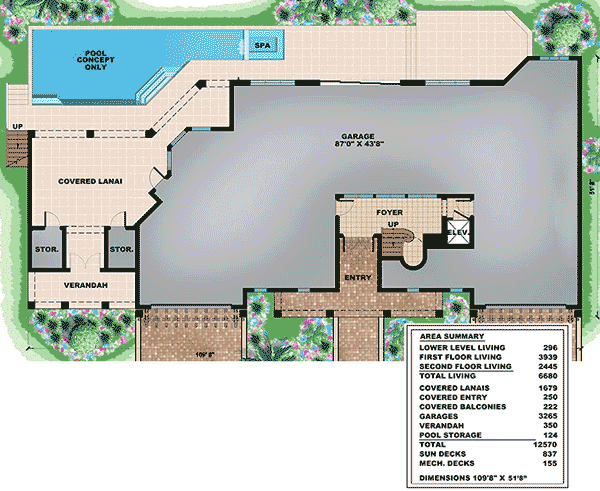

Grand Florida House Plan - 66338WE floor plan - Basement
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

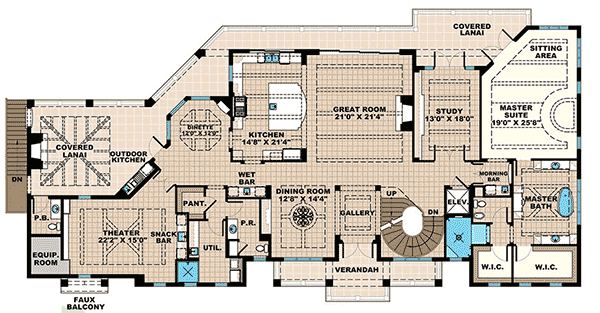

Grand Florida House Plan - 66338WE floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

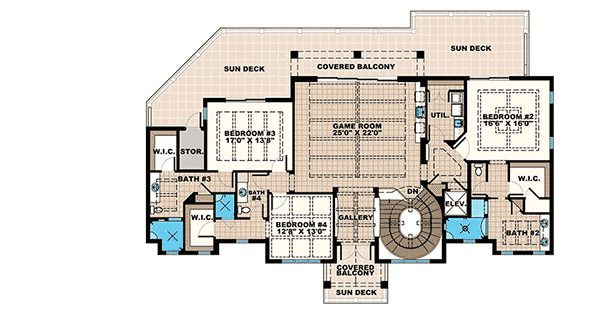

Grand Florida House Plan - 66338WE floor plan - 2nd Floor

Plan details

Grand Florida House Plan

  • 6,680

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 5

    Car garage

Buy This Plan
  • Reproducible Set $2,900
  • PDF - Single-Build $2,900
  • CAD - Single-Build $2,900
  • View all purchase option online

About This Plan

  • Extensive outdoor living areas and marvelous ceiling treatments are just the start of the luxurious amenities that come with this Florida house plan.
  • Enter the home through the lower level foyer where you can take the residential elevator or the beautifully curved staircase to reach the main living area.
  • Here, the open floor plan gives you amazing sightlines and views of the huge rear covered lanai.
  • Beamed, tray and coffered ceilings add a custom touch to almost every room in the house including the master bathroom.
  • Watch movies in the giant theater that has a snack bar on one wall.
  • On the second floor, a huge sun deck can be reached through sliding glass doors in the enormous game room and bedrooms 2 and 3.
  • A covered balcony faces the front so you can catch the breeze from both sides of the home.

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,680 sq. ft.
  • Lower Level: 296 sq. ft.
  • 1st Floor: 3,939 sq. ft.
  • 2nd Floor: 2,445 sq. ft.
  • Porch, Front: 250 sq. ft.
  • Deck: 837 sq. ft.
  • Balcony / Veranda: 222 sq. ft.
  • Lanai: 1,679 sq. ft.
  • Storage: 124 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 109' 8"
  • Depth: 51' 8"
  • Max ridge height: 38' 8"

Garage

  • Type: Drive Under
  • Area: 3265 sq. ft.
  • Count: 5 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 4" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
