Plan 59791ND Grand Foyer and Great Room

3,496 5 3.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Grand Foyer and Great Room

Plan 59791ND

  • 3,496

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • This house plan truly has something for every family member. You can enjoy movie night with friends in the great room, or spend some quiet time soaking in the master bath's whirlpool tub.
  • Tinker around in the hobby room just off the four-car garage, or show off your grilling talents on the large rear deck.
  • Kids will appreciate the privacy of their own rooms and will love spending time together in the large game room on the upper floor.
  • Even guests will have something to talk about with the inclusion of a comfortable guest room.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

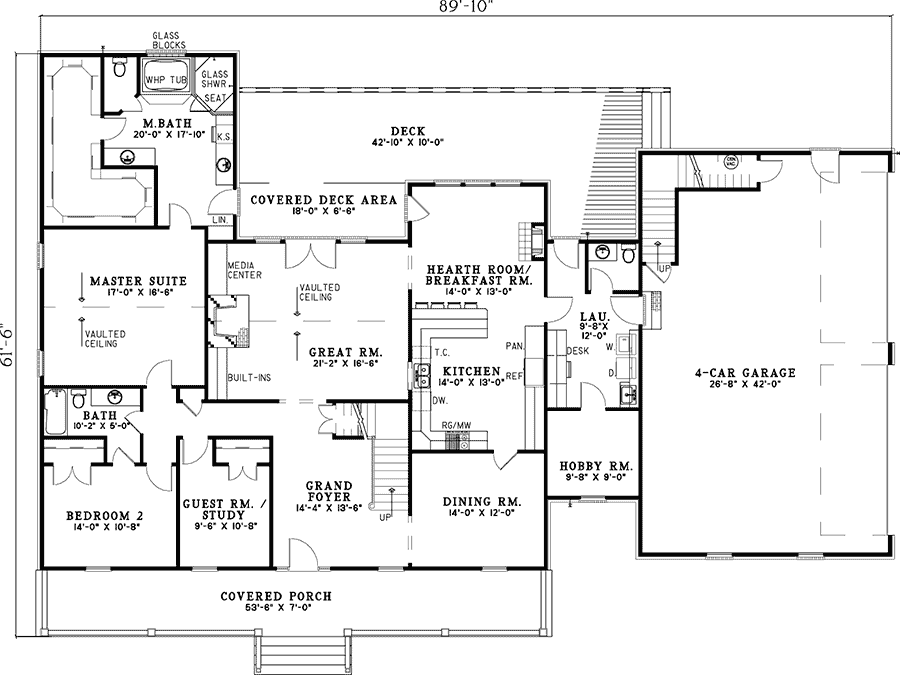

Grand Foyer and Great Room - 59791ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Grand Foyer and Great Room - 59791ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,496 sq. ft.
  • 1st Floor: 2,631 sq. ft.
  • 2nd Floor: 865 sq. ft.
  • Bonus: 680 sq. ft.
  • Porch, Combined: 371 sq. ft.
  • Deck: 528 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 89' 10"
  • Depth: 61' 6"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 1611 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Grand Foyer and Great Room

  • 3,496

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets $1,300
  • 5 Sets + PDF $1,550
  • PDF - Unlimited Build $1,900
  • CAD Unlimited + PDF $2,400
  • View all purchase option online
