Plan 510263WDY

Grand French Country House Plan with Porte Cochere and 5 Suites

Heated S.F.
5,283
Beds
5
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 510263WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510263WDY

M-F 9am-5pm EST |

1-203-761-8500

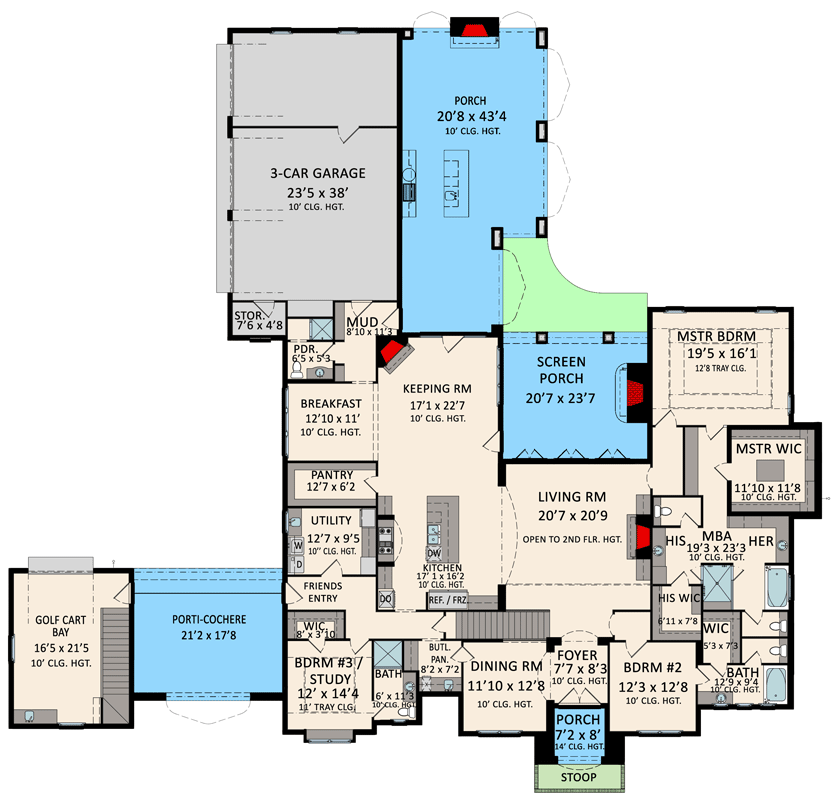

Main Level

Plan 510263WDY: Grand French Country House Plan with Porte Cochere and 5 Suites - Floor Plan - Main Level - European, French Country, Transitional

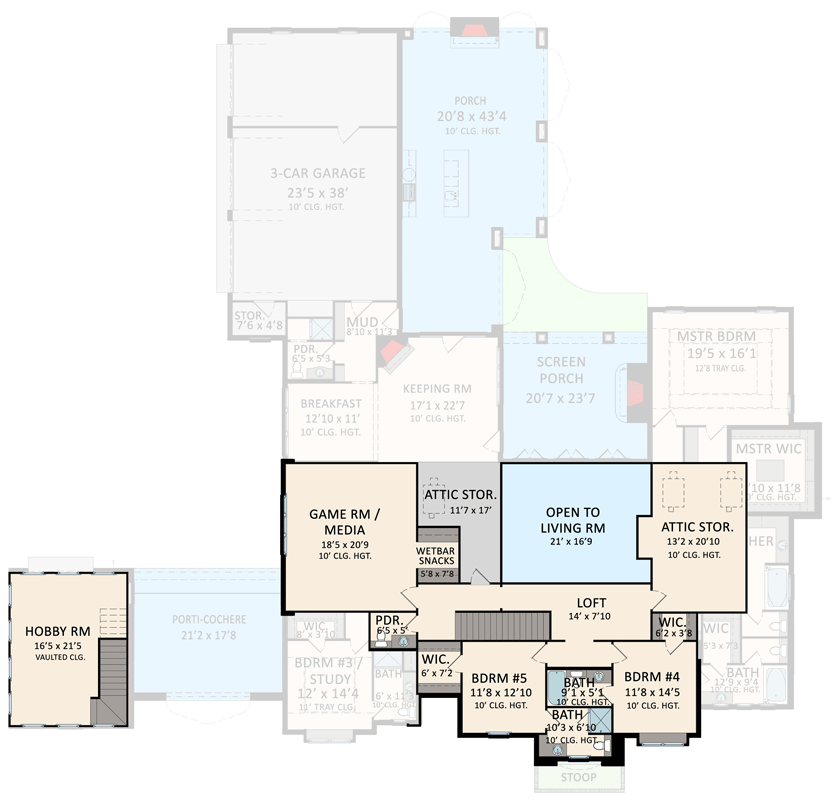

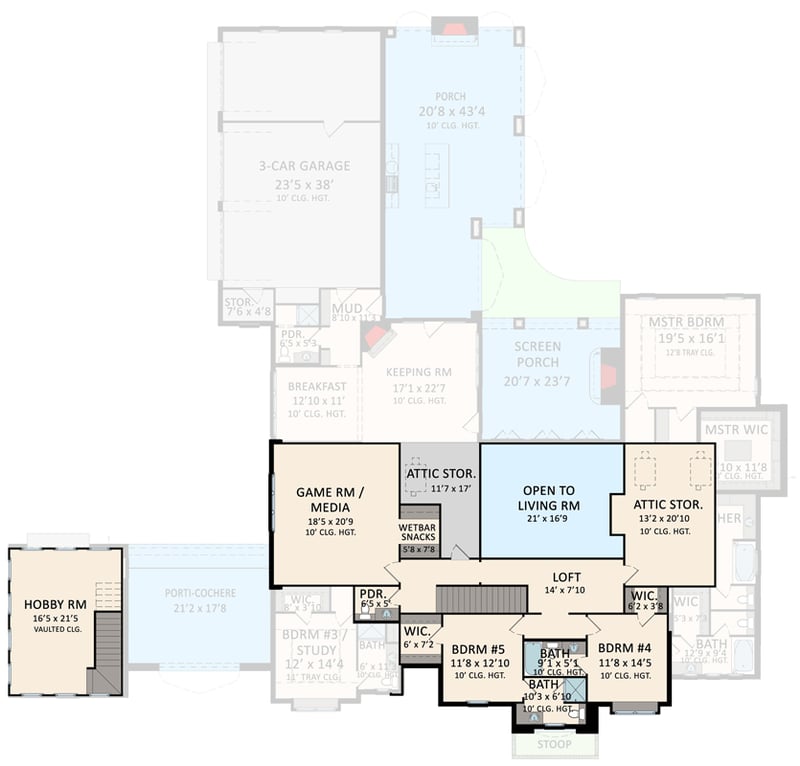

2nd Floor

Plan 510263WDY: Grand French Country House Plan with Porte Cochere and 5 Suites - Floor Plan - 2nd Floor - European, French Country, Transitional

Plan Details

  • This expansive 5,283 sq. ft. European French Country house plan boasts 5 bedrooms, 5.5 bathrooms, and an impressive 1,750 sq. ft. 3-car side-entry garage, all wrapped in a timeless transitional facade.
  • Upon entering, guests are welcomed into an impressive foyer that leads directly to a dramatic two-story great room, setting a tone of sophisticated grandeur. The main level also thoughtfully incorporates a private library/study and a versatile flex room, offering both quiet retreat and adaptable space.
  • The heart of the home flows seamlessly, connecting the gourmet kitchen with a charming breakfast nook and a spacious keeping room, ideal for everyday living. Adjacent, a formal dining room and a butler walk-in pantry provide elegant spaces for entertaining and effortless meal preparation.
  • Designed for ultimate comfort, the luxurious master suite is privately situated on the first floor, offering a serene escape. Upstairs, the split bedroom layout provides privacy for additional family members or guests, each with access to their own bathroom.
  • Beyond the primary living areas, this residence features a dedicated game/rec room and a media room, perfect for leisure and entertainment. A bright loft space on the second floor offers additional flexible living.
  • Experience refined outdoor living with over 1,264 sq. ft. of combined porch space, including a covered outdoor area complete with an inviting outdoor fireplace, perfect for morning coffee or evening gatherings under the stars.

What's Included

  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

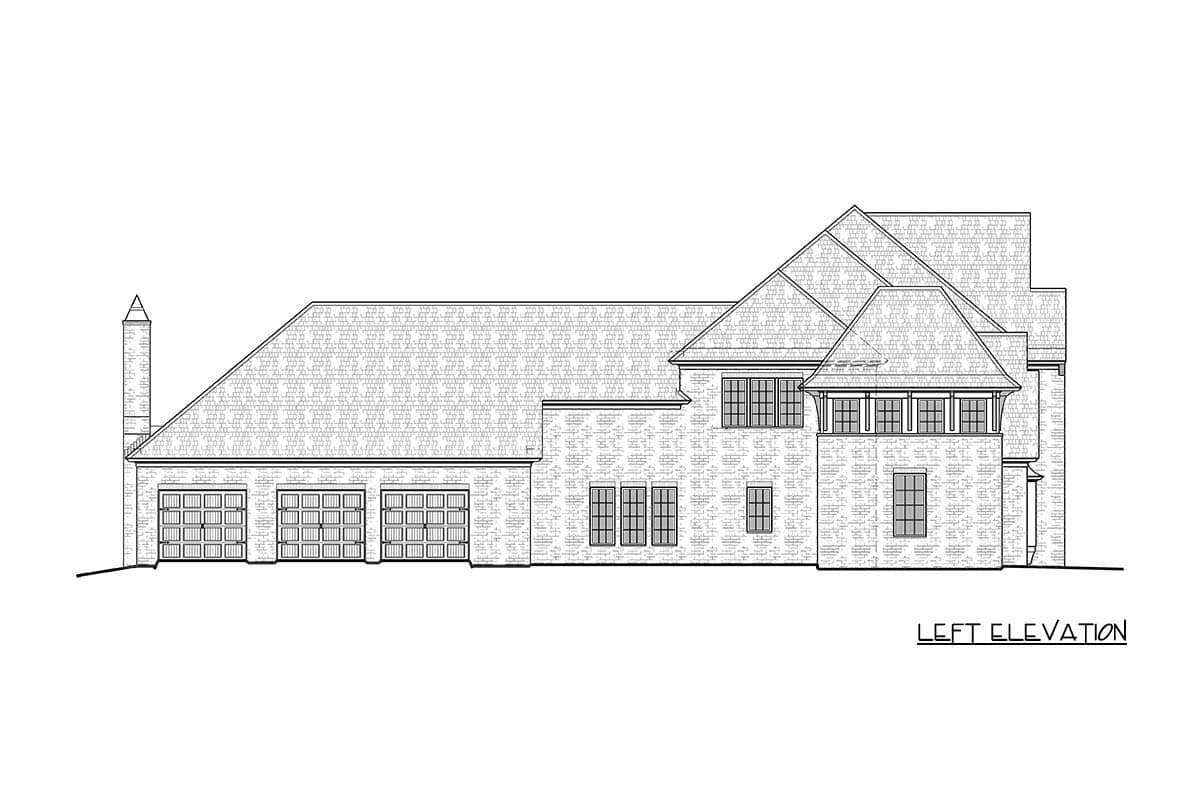

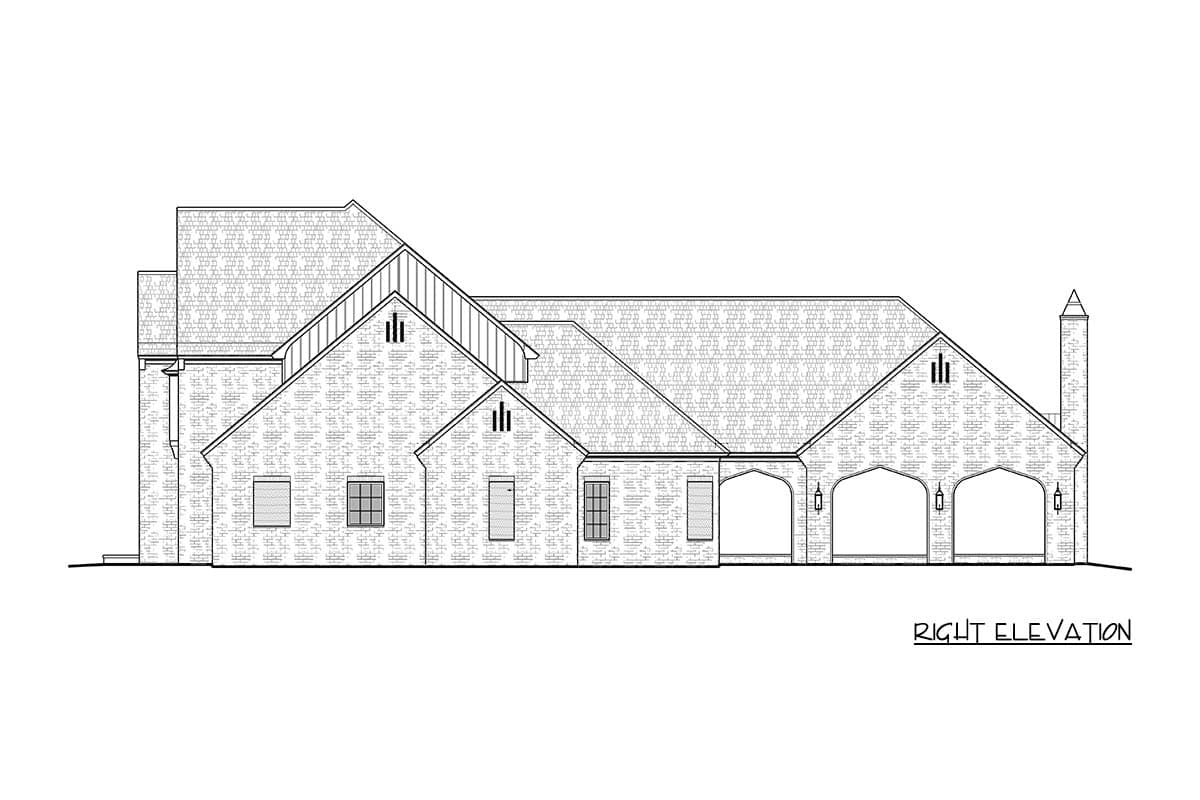

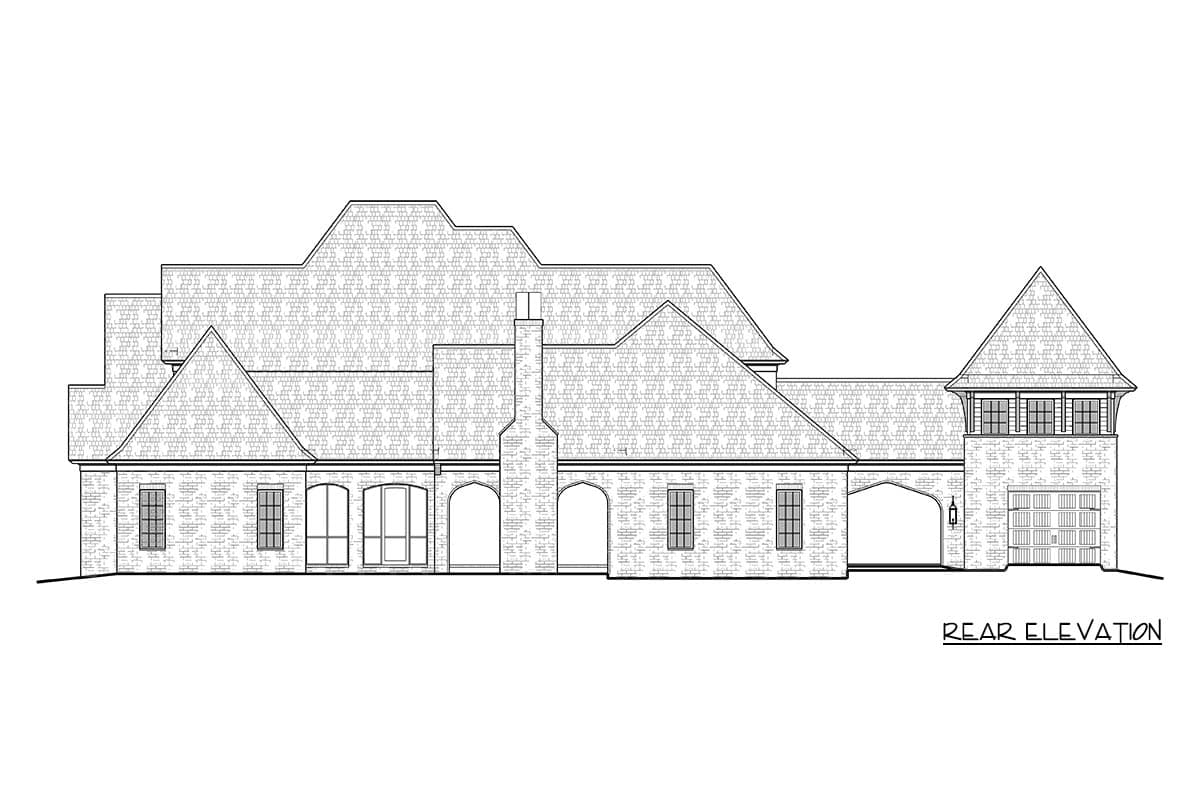

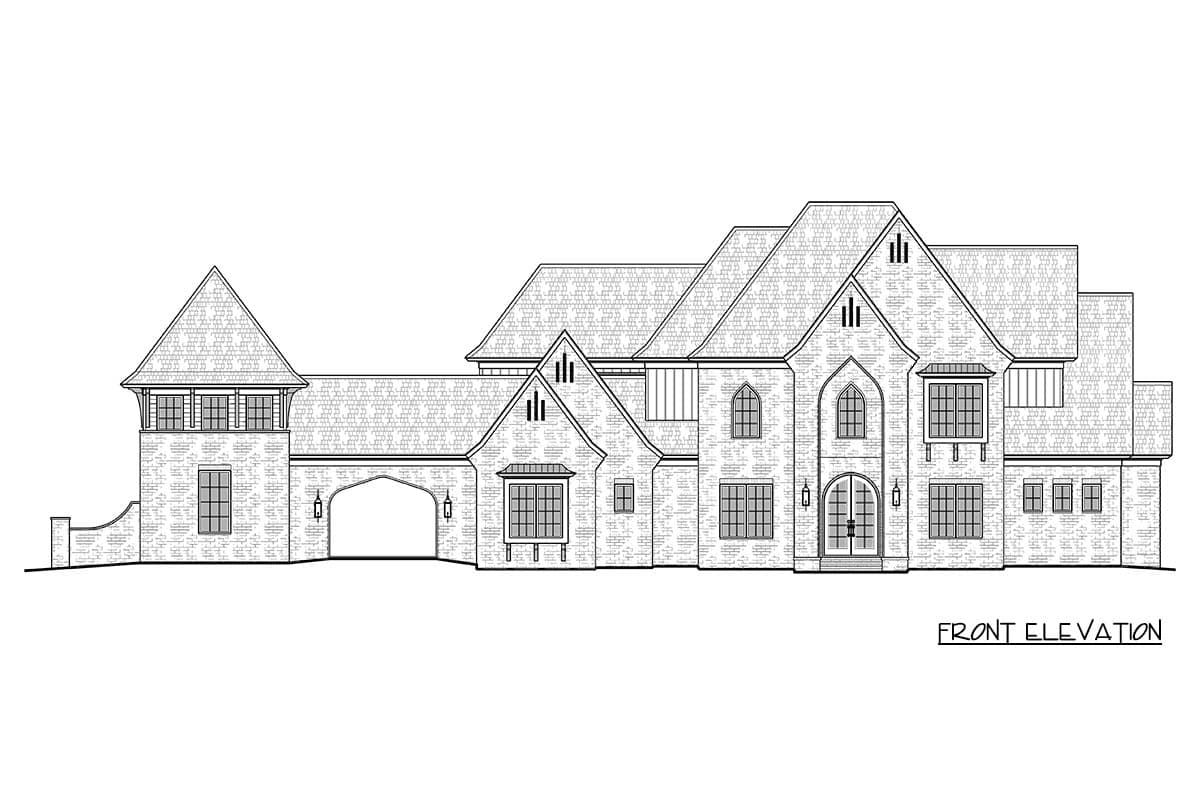

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

5,283 sq. ft.

1st Floor

3,759 sq. ft.

2nd Floor

1,524 sq. ft.

Porch, Combined

1,264 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

119' 6"

Depth

111' 9"

Max Ridge Height

39' 10"

Garage

Type

Standard

Area

1750 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

16 on 12

Framing Type

Stick

Architectural Style

European

French Country

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Game/Rec Room

Keeping Room

Library/Study

Loft

Master Suite - 1st Floor

Media Room

Outdoor Fireplace

Porte Cochere

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

5,283 sq. ft.

1st Floor

3,759 sq. ft.

2nd Floor

1,524 sq. ft.

Porch, Combined

1,264 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

119' 6"

Depth

111' 9"

Max Ridge Height

39' 10"

Garage

Type

Standard

Area

1750 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

16 on 12

Framing Type

Stick

Architectural Style

European

French Country

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Game/Rec Room

Keeping Room

Library/Study

Loft

Master Suite - 1st Floor

Media Room

Outdoor Fireplace

Porte Cochere

Two Story Great Room

Walk-in Pantry
