Plan 147050RML

Grand Modern Transitional House Plan with Soaring Entry and Wet Bar

Heated S.F.
3,803
Beds
3
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 147050RML

Main Level
Main Level
2nd Floor
2nd Floor

Plan 147050RML

M-F 9am-5pm EST |

1-203-761-8500

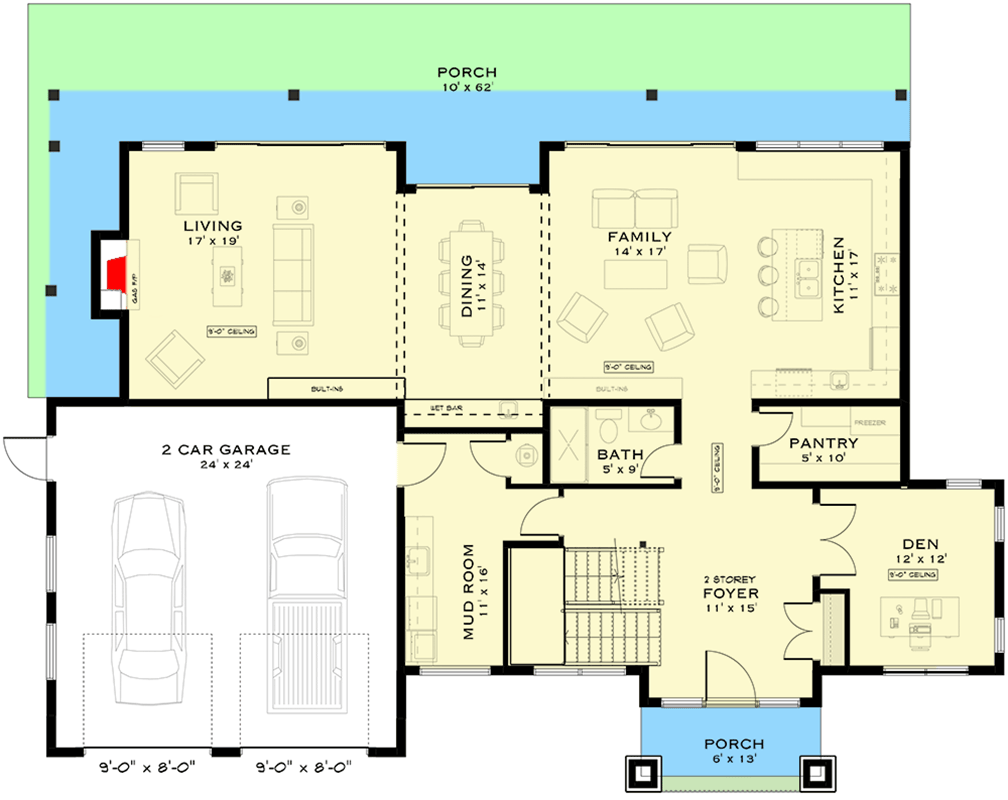

Main Level

Plan 147050RML: Grand Modern Transitional House Plan with Soaring Entry and Wet Bar - Floor Plan - Main Level - Modern, Transitional

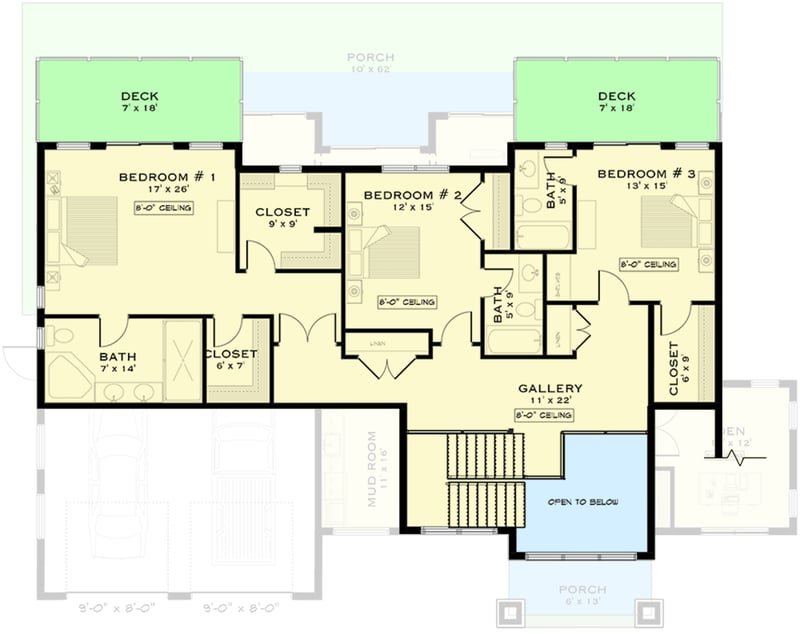

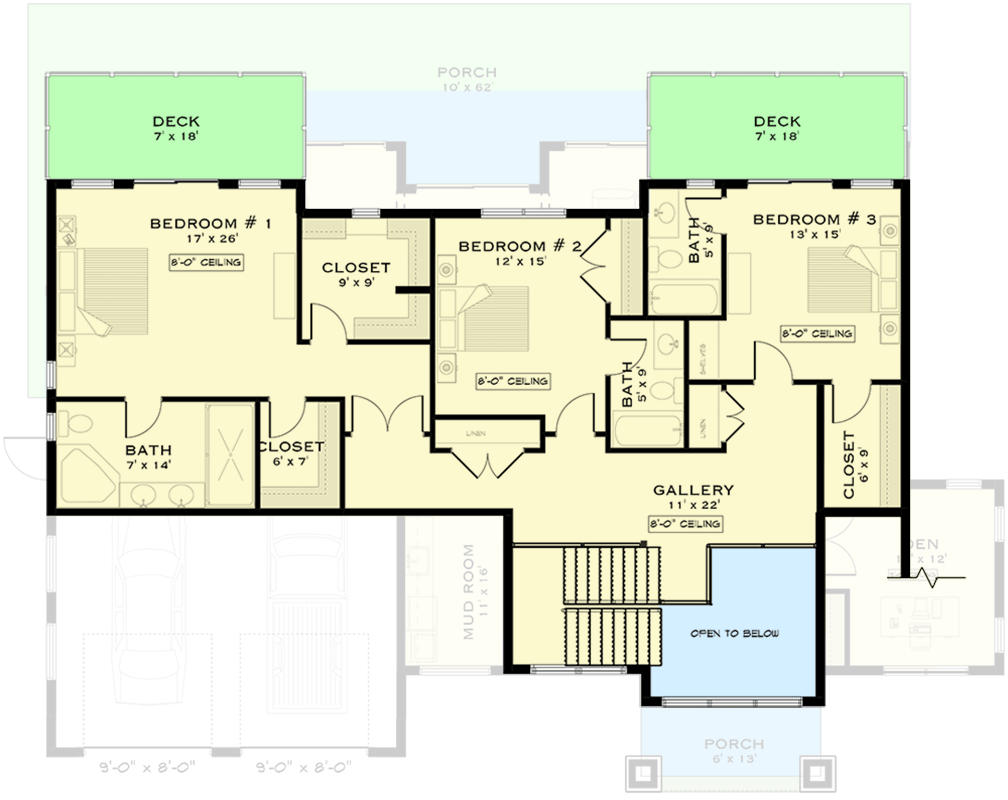

2nd Floor

Plan 147050RML: Grand Modern Transitional House Plan with Soaring Entry and Wet Bar - Floor Plan - 2nd Floor - Modern, Transitional

Plan Details

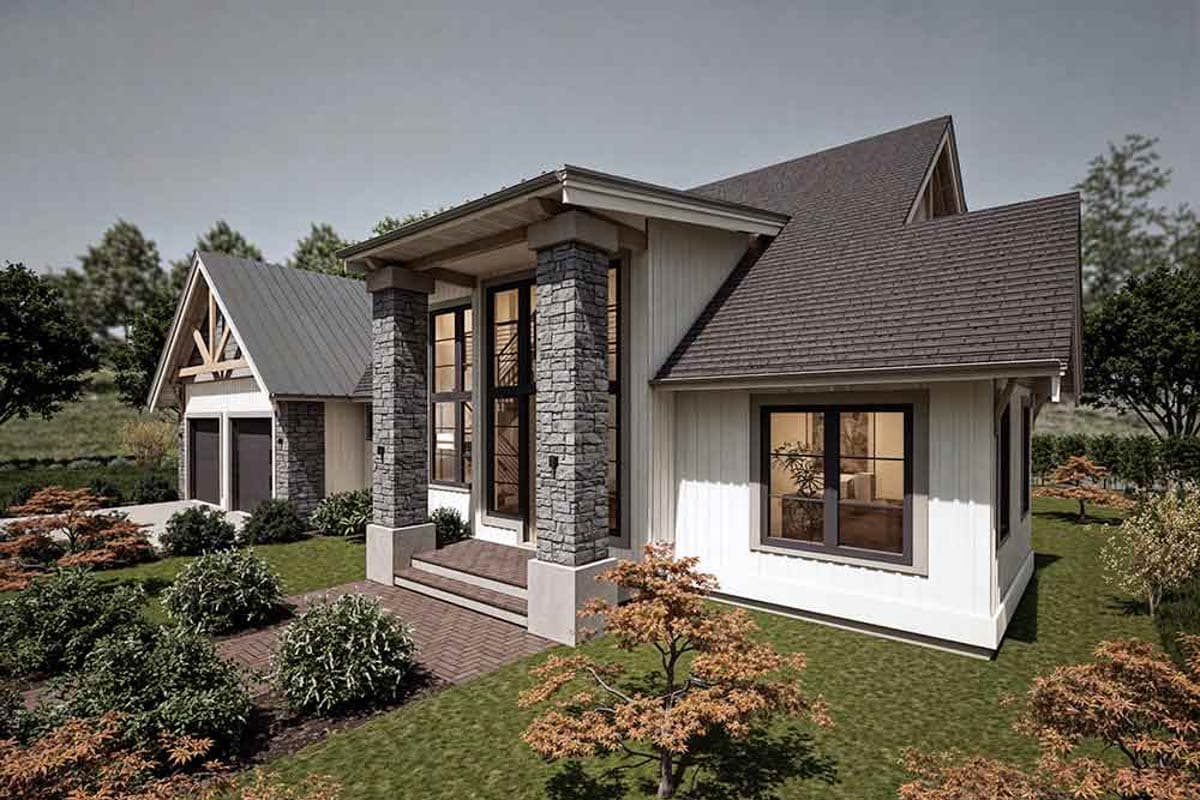

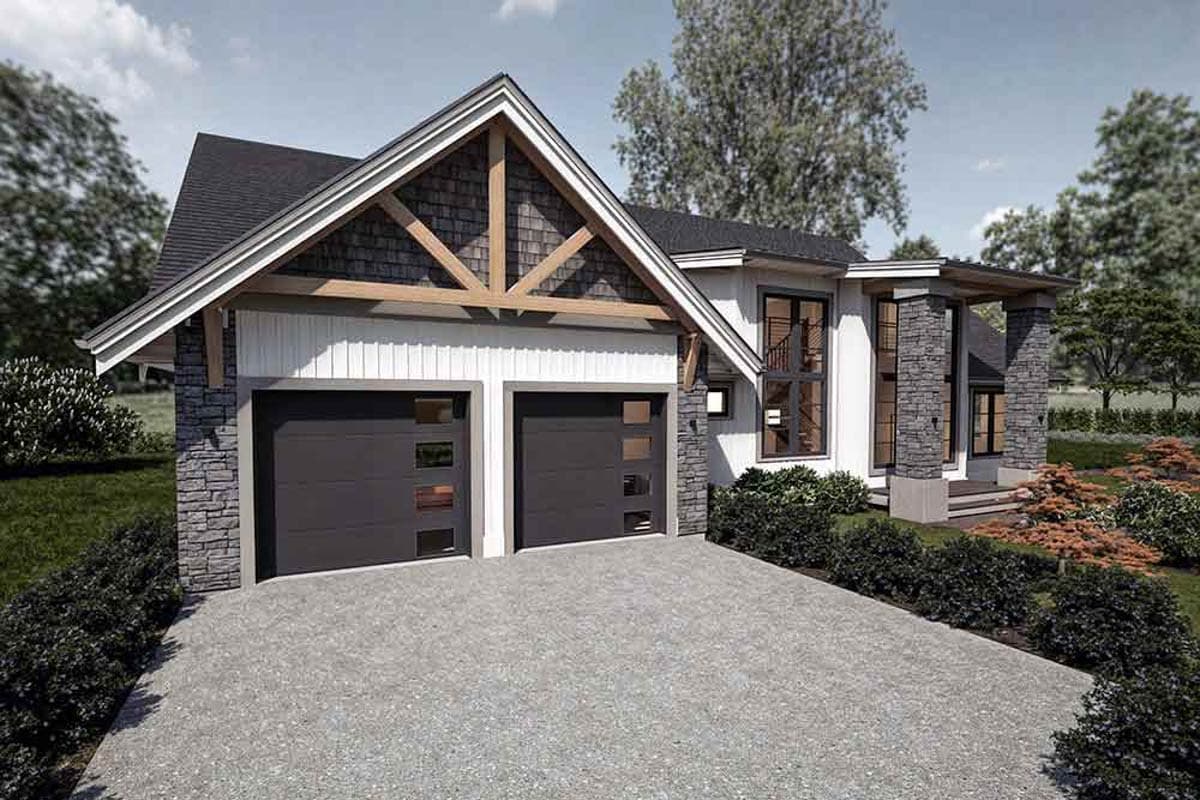

  • The 3,803 sq. ft. Modern Transitional house plan features 3 bedrooms, 3.5 bathrooms, and an attached 630 sq. ft. 2-car garage with front entry, showcasing a sophisticated blend of contemporary lines and classic textures with stone and shingle accents.
  • Step into a dramatic two-story entry, framed by expansive windows that invite abundant natural light, revealing an open-concept layout designed for seamless living and effortless entertaining. A thoughtfully placed mudroom and main-level laundry ensure practical daily convenience.
  • The main living areas flow gracefully, with a gourmet kitchen featuring a convenient butler walk-in pantry, connecting to dining and living spaces that foster connection. This intuitive layout is ideal for both quiet family moments and vibrant social gatherings.
  • The private master suite, located upstairs for ultimate tranquility, offers a luxurious retreat, while the secondary bedrooms are thoughtfully clustered, providing comfortable and private spaces for family or guests.
  • Enhance your lifestyle with a dedicated wet bar, perfect for crafting cocktails and entertaining guests, adding a touch of sophisticated leisure to your home.
  • Embrace outdoor living with a generous 620 sq. ft. rear porch and an additional 252 sq. ft. deck, providing ample space for alfresco dining, morning coffee, or simply unwinding amidst the fresh air. A charming 78 sq. ft. front porch offers a welcoming approach.

What's Included

  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,803 sq. ft.

1st Floor

2,145 sq. ft.

2nd Floor

1,658 sq. ft.

Porch, Front

78 sq. ft.

Porch, Rear

620 sq. ft.

Porch, Combined

698 sq. ft.

Deck

252 sq. ft.

Deck & Porch

950 sq. ft.

Entry

165 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

67' 0"

Depth

49' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

630 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Modern

Transitional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Wet Bar
