Plan 55192BR
Grand Southern Design with 3 Beds and Private Courtyard
Heated S.F.
2,248
Beds
3
Baths
2.5
Stories
1-2
Cars
3
What's Included
Plan Details

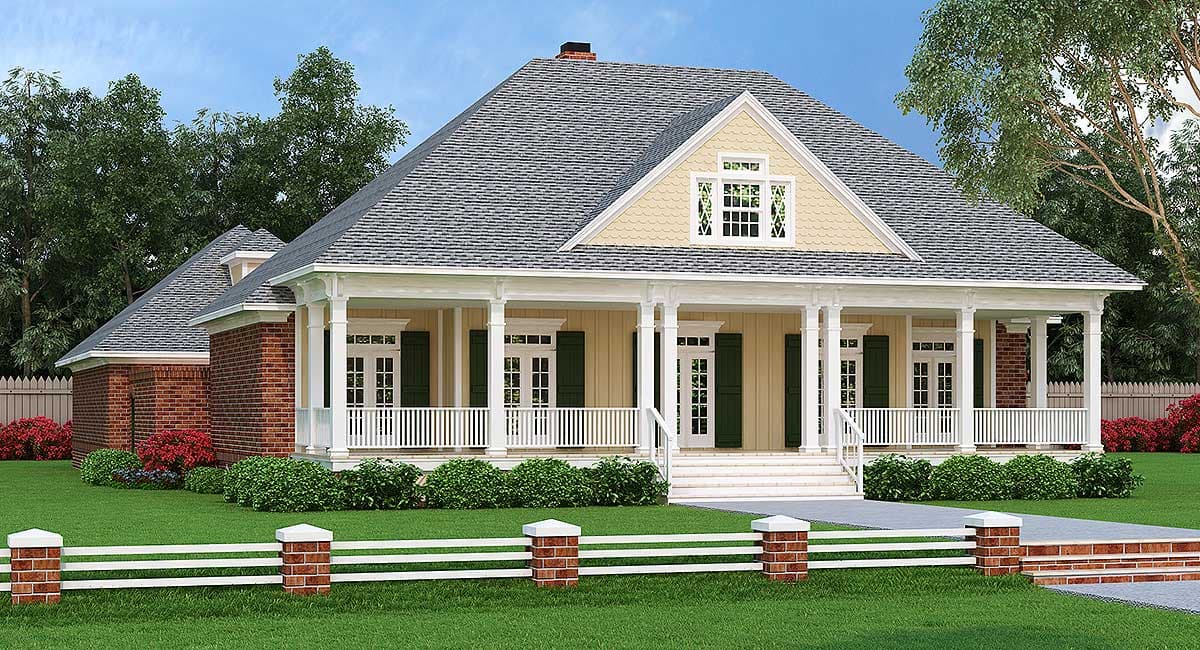

  • This graceful southern design is narrow and fits many urban lots. Designed to capture outdoor living, large rocking chair porches wrap both the front and rear of the home.
  • The main living spaces are open, breezy and light with an abundance of windows.
  • The kitchen is designed with a hint of separation but yet it is open to the living, dining and eating areas. It has an abundance of cabinets plus 2 raised bars and access to a private dining courtyard.
  • The master suite features tray ceilings plus an adjoining bath suite complete with a roll-in shower, spa tub, twin vanities, private toilet and a king size walk-in closet. To save steps, a door opens directly from the master bath into the utility room and kitchen.
  • The two secondary bed rooms have walk-in closets and a shared bath.
  • By the garage entry, large storage rooms make excellent butlers pantries and they are perfectly positioned for convenience.
  • The uniquely designed tandem garage allows for 3 cars while maintaining the narrow frontage.
  • A small niche leads to a stairwell that accesses an upstairs future space that can be used for an office, play room or even a future fourth bedroom.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Grand Southern Design with 3 Beds and Private Courtyard

  • 2,248

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

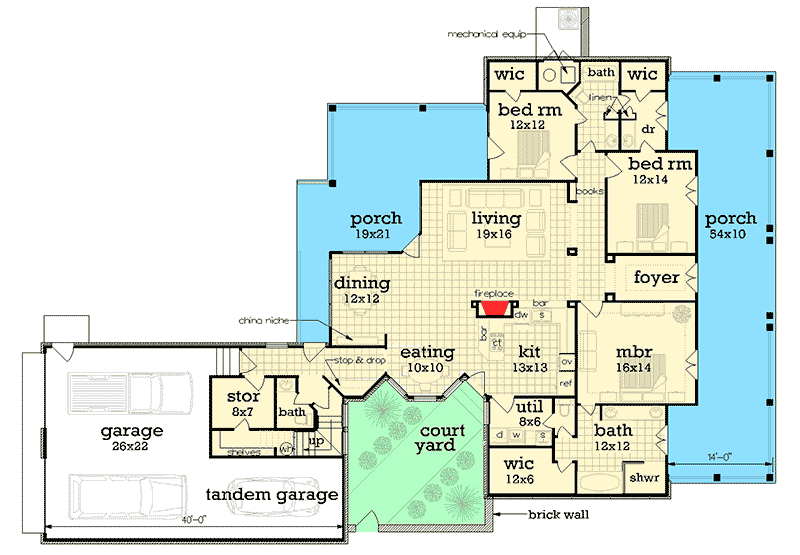

  • Main Level

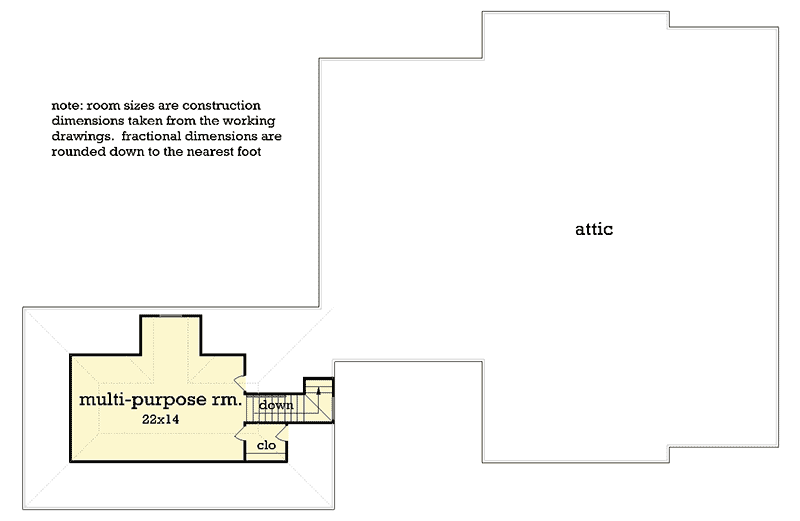

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,248 sq. ft.
  • 1st Floor: 1,864 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 97' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 786 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Grand Southern Design with 3 Beds and Private Courtyard

  • 2,248

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Grand Southern Design with 3 Beds and Private Courtyard

  • 2,248

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,248 sq. ft.
  • 1st Floor: 1,864 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 97' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 786 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
