Grand Southern Home Plan

Plan 65612BS

  • 4,016

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This grand home plan has marvelous curb appeal and a floor plan made for entertaining. A 2-story covered entry provides shelter and drama to the front of the home.
  • The split bedroom configuration gives privacy to the luxurious master suite where you have a private vestibule and two huge walk-in closets. The suite enjoys access to the covered lanai in back. The master bathroom luxurious and features a soaking tub that backs up to a two-entry shower.
  • The open layout of the main living area gives you wonderful views from room to room. The back wall of the great room opens to the lanai creating a fantastic blended indoor-outdoor space.

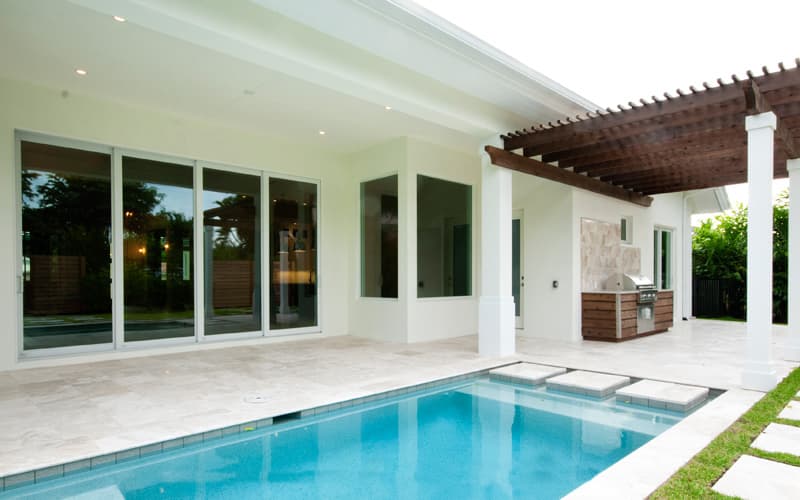

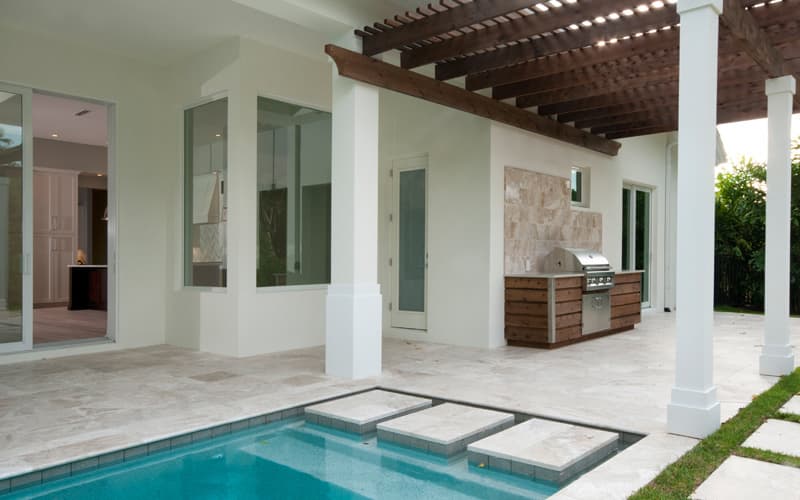

  • The huge rear covered lanai has plenty of space for a grilling station.
  • All four bedrooms in this house have private bathrooms.
  • Related Plan: Get slightly different room dimensions with house plan 65614BS (4,084 sq. ft.).
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:


Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

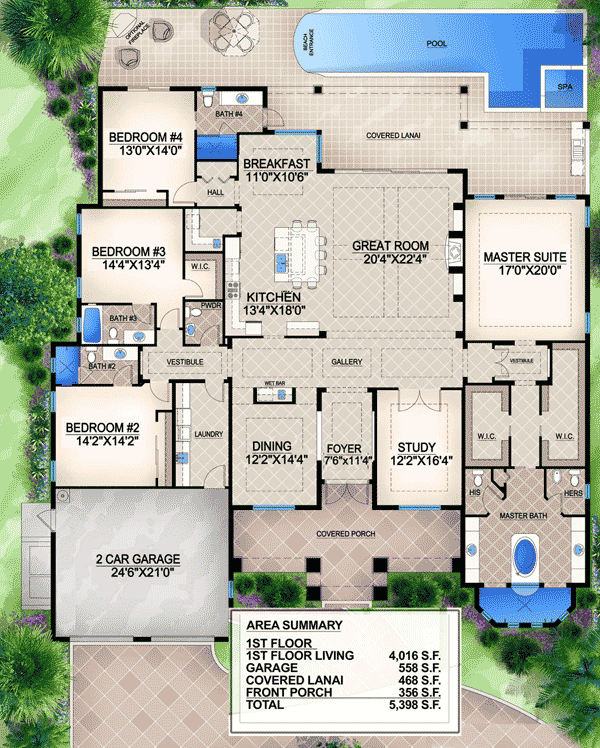

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Grand Southern Home Plan - 65612BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,016 sq. ft.
  • 1st Floor: 4,016 sq. ft.
  • Lanai: 468 sq. ft.
  • Porch, Front: 356 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 76' 4"
  • Depth: 78' 8"
  • Max ridge height: 28' 7"

Garage

  • Type: Attached
  • Area: 558 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Details Ceiling Type Width Depth Height

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Grand Southern Home Plan

  • 4,016

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $4,016
  • CAD + PDF - Single-Build $4,016
  • View all purchase option online

About This Plan

  • This grand home plan has marvelous curb appeal and a floor plan made for entertaining. A 2-story covered entry provides shelter and drama to the front of the home.
  • The split bedroom configuration gives privacy to the luxurious master suite where you have a private vestibule and two huge walk-in closets. The suite enjoys access to the covered lanai in back. The master bathroom luxurious and features a soaking tub that backs up to a two-entry shower.
  • The open layout of the main living area gives you wonderful views from room to room. The back wall of the great room opens to the lanai creating a fantastic blended indoor-outdoor space.
  • The huge rear covered lanai has plenty of space for a grilling station.
  • All four bedrooms in this house have private bathrooms.
  • Related Plan: Get slightly different room dimensions with house plan 65614BS (4,084 sq. ft.).
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.
