Plan 849057PGE

Exclusive

Grand Victorian House Plan with 5 Beds, Main-Level Owners Suite, and 3-Car Garage

Heated S.F.
4,237
Beds
5
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 849057PGE

Main Level
Main Level
2nd Floor
2nd Floor
Optional Finished Basement Level
Optional Finished Basement Level

Plan 849057PGE

M-F 9am-5pm EST |

1-203-761-8500

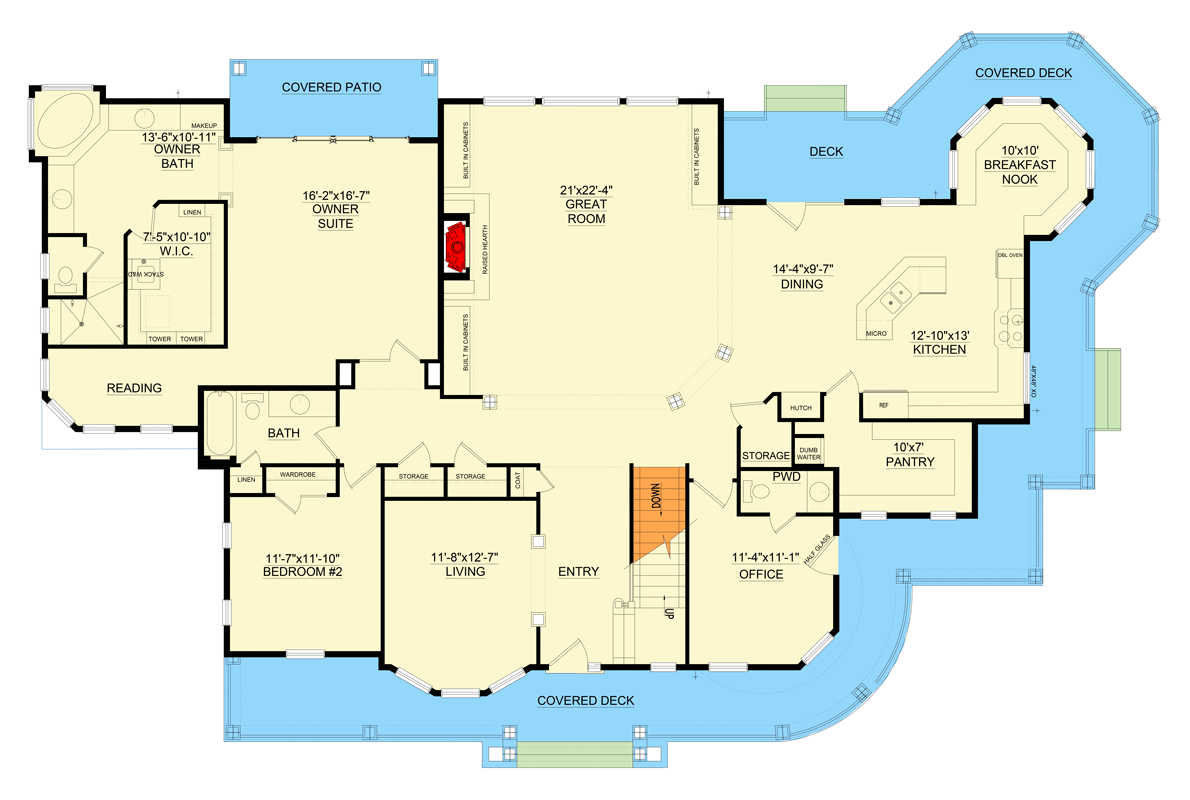

Main Level

Plan 849057PGE: Grand Victorian House Plan with 5 Beds, Main-Level Owners Suite, and 3-Car Garage - Floor Plan - Main Level - Traditional, Victorian

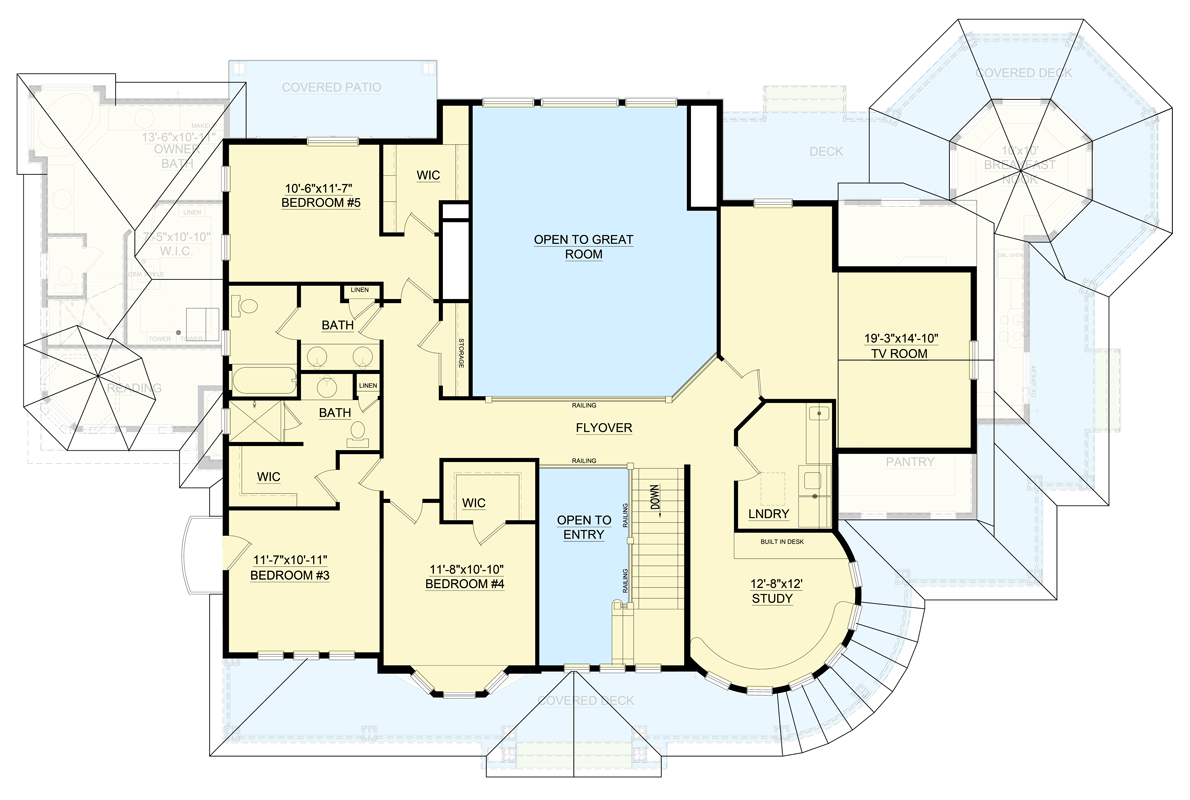

2nd Floor

Plan 849057PGE: Grand Victorian House Plan with 5 Beds, Main-Level Owners Suite, and 3-Car Garage - Floor Plan - 2nd Floor - Traditional, Victorian

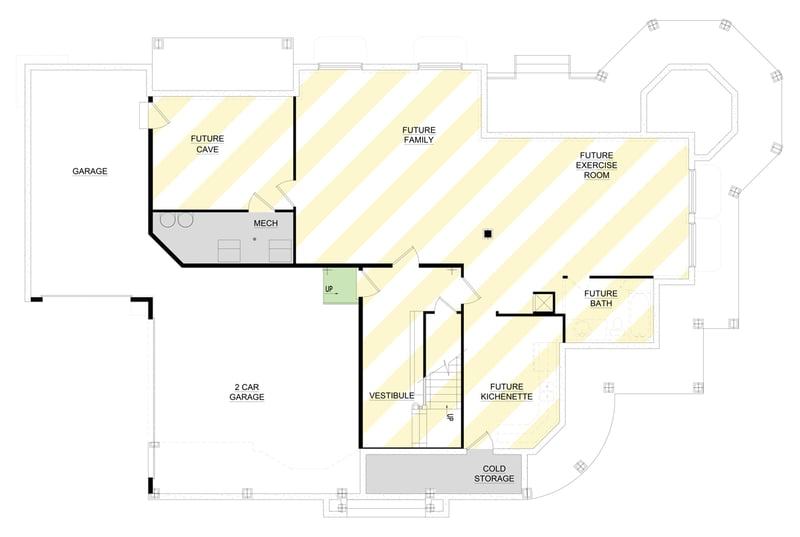

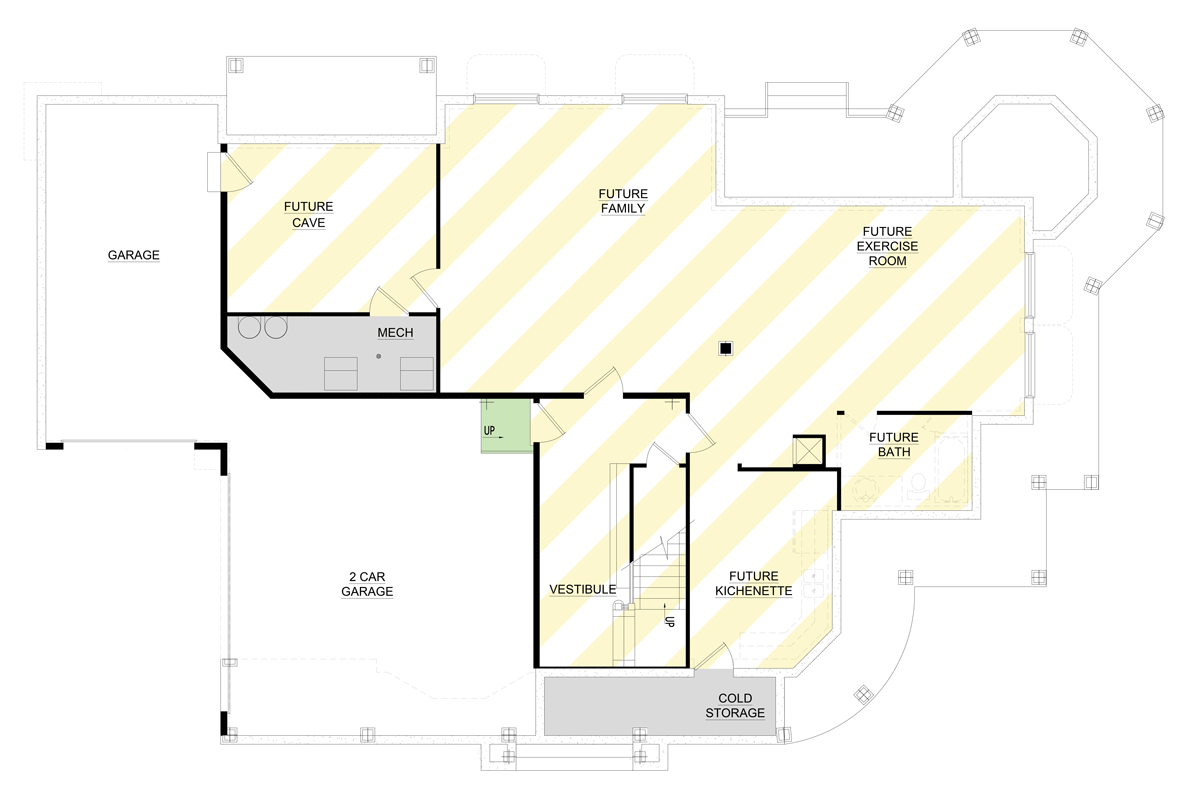

Optional Finished Basement Level

Plan 849057PGE: Grand Victorian House Plan with 5 Beds, Main-Level Owners Suite, and 3-Car Garage - Floor Plan - Optional Finished Basement Level - Traditional, Victorian

Plan Details

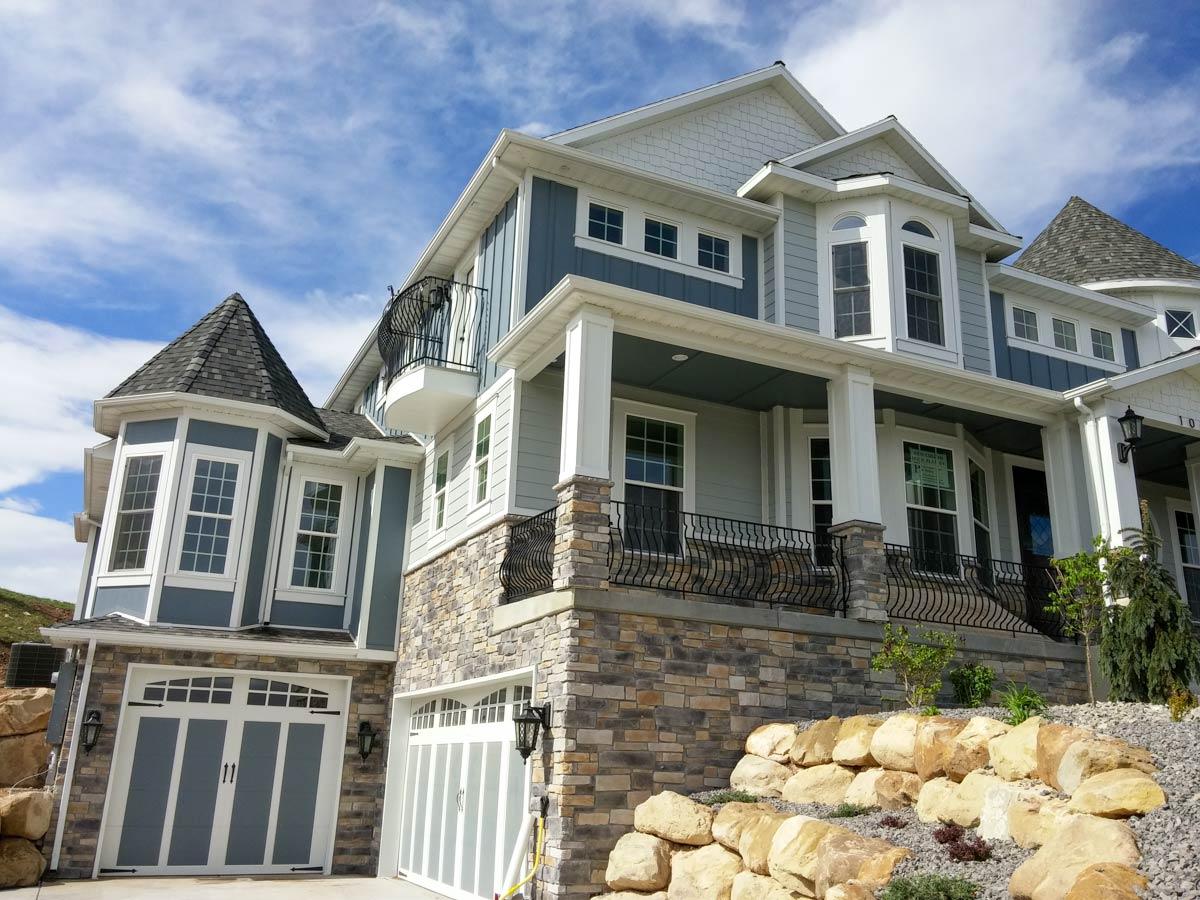

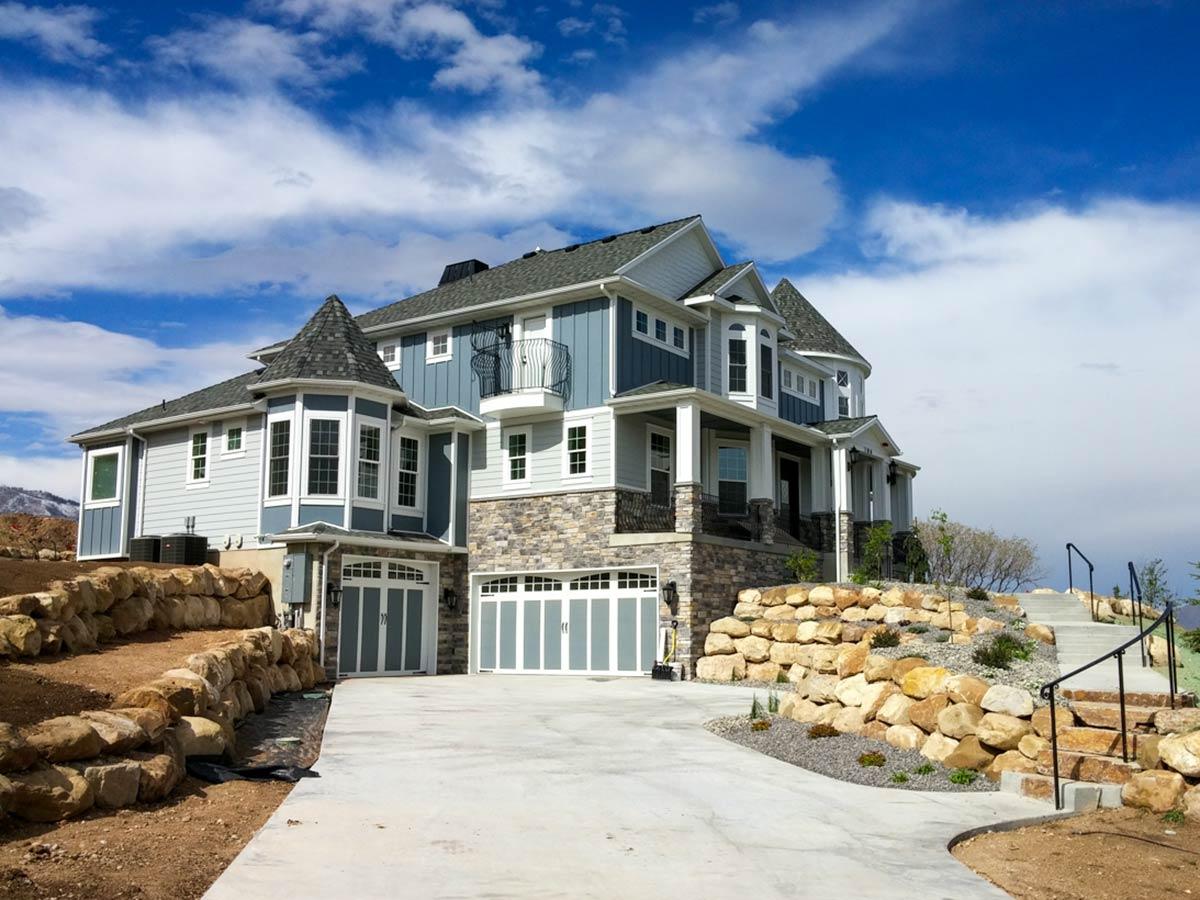

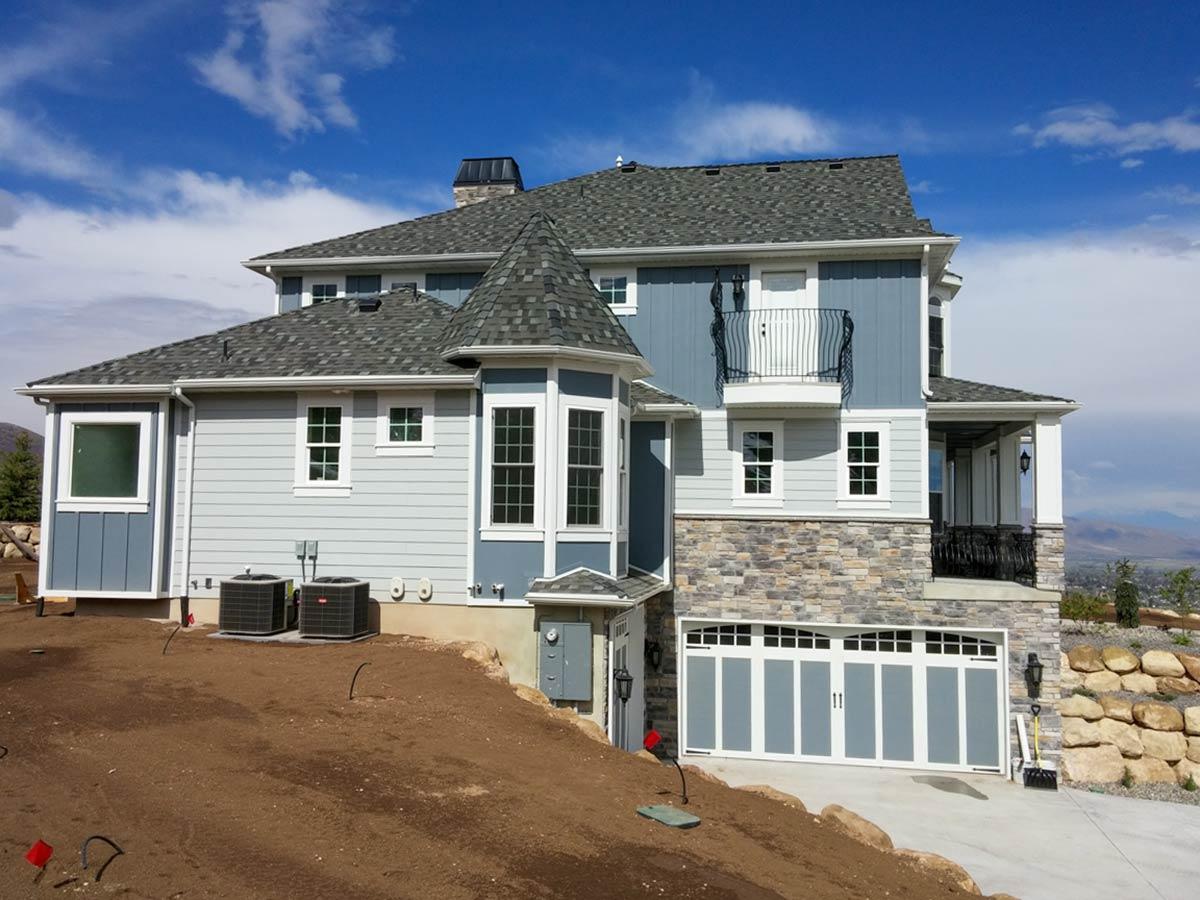

  • This expansive 4,237 sq. ft. Victorian house plan offers 5 bedrooms, 4.5 bathrooms, and a convenient 3-car drive-under garage, exuding timeless elegance with its classic architectural details.

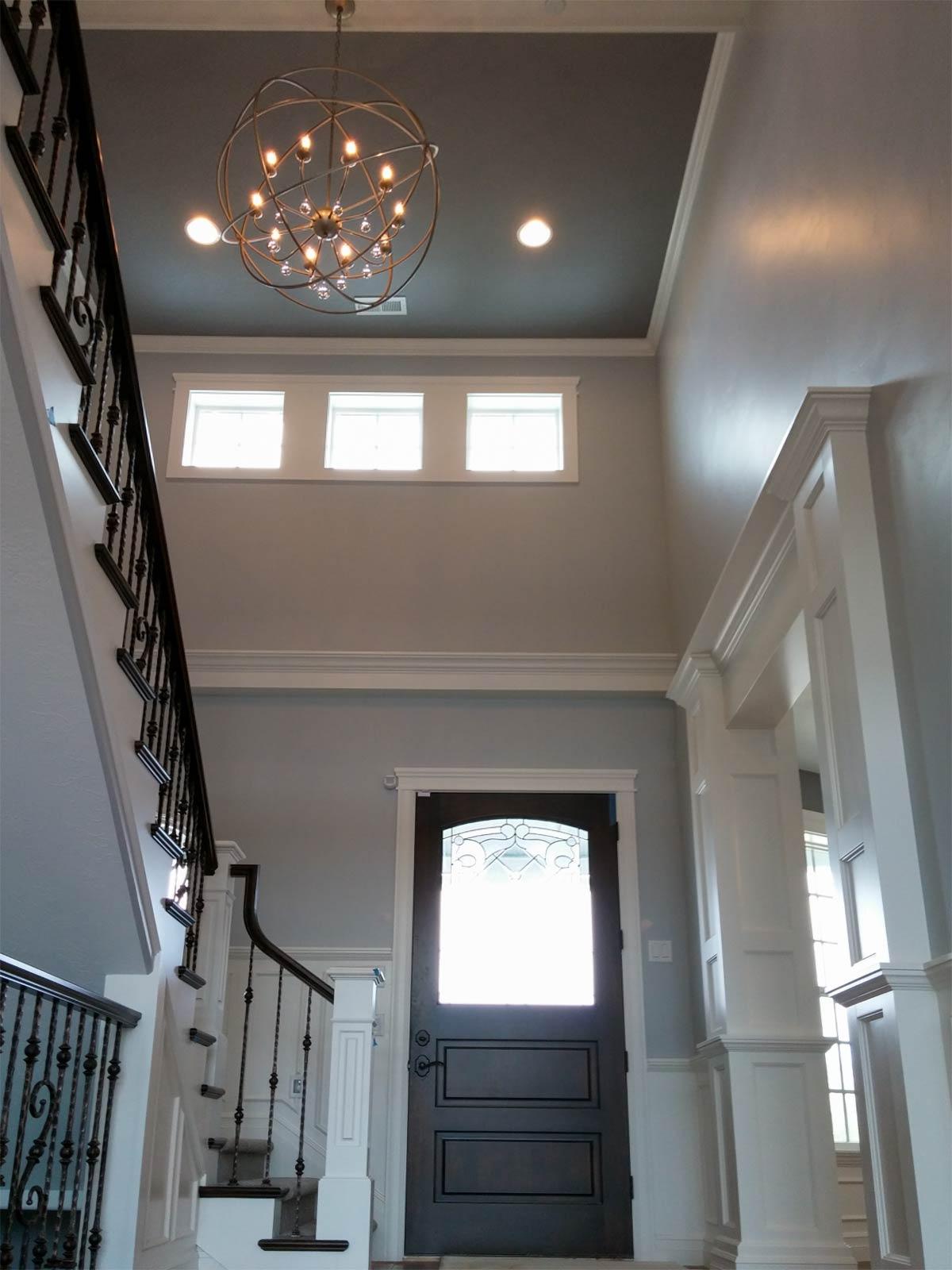

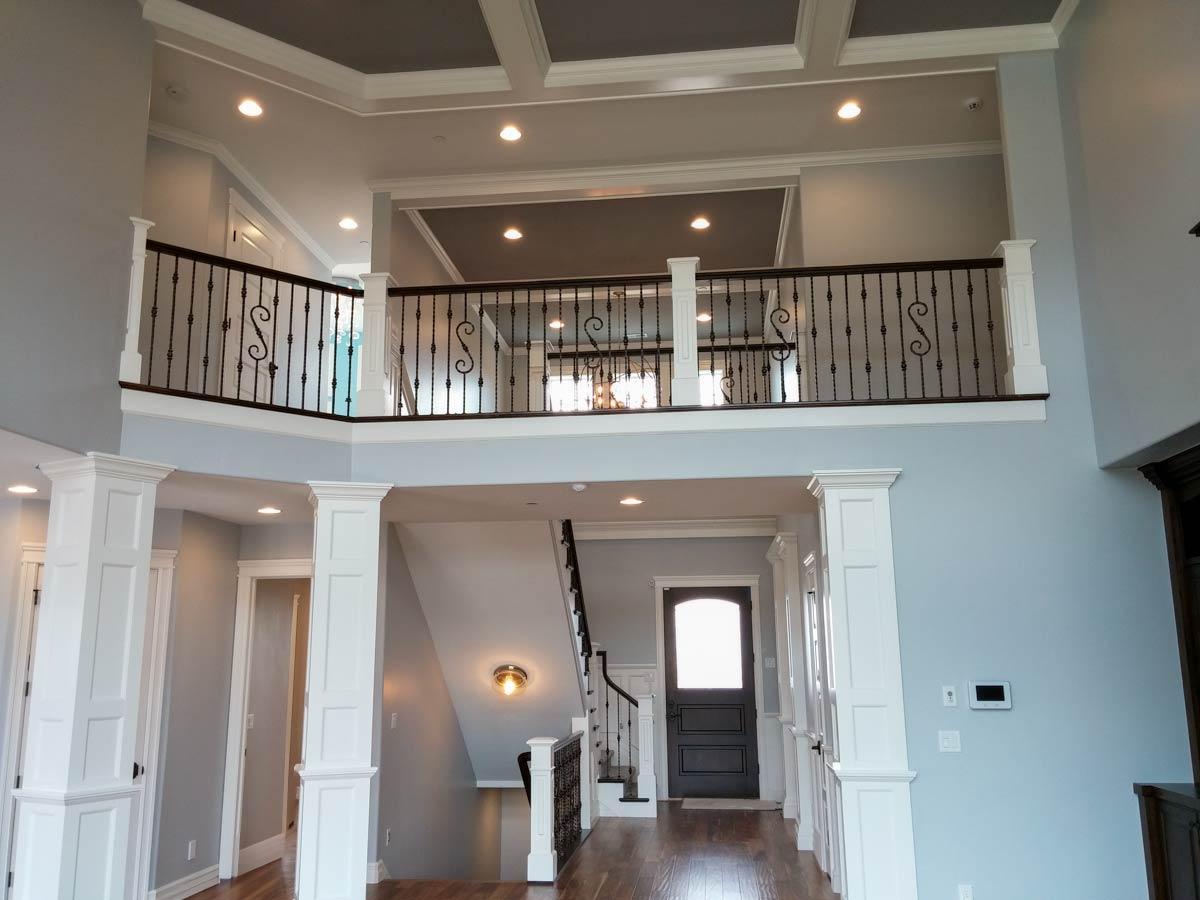

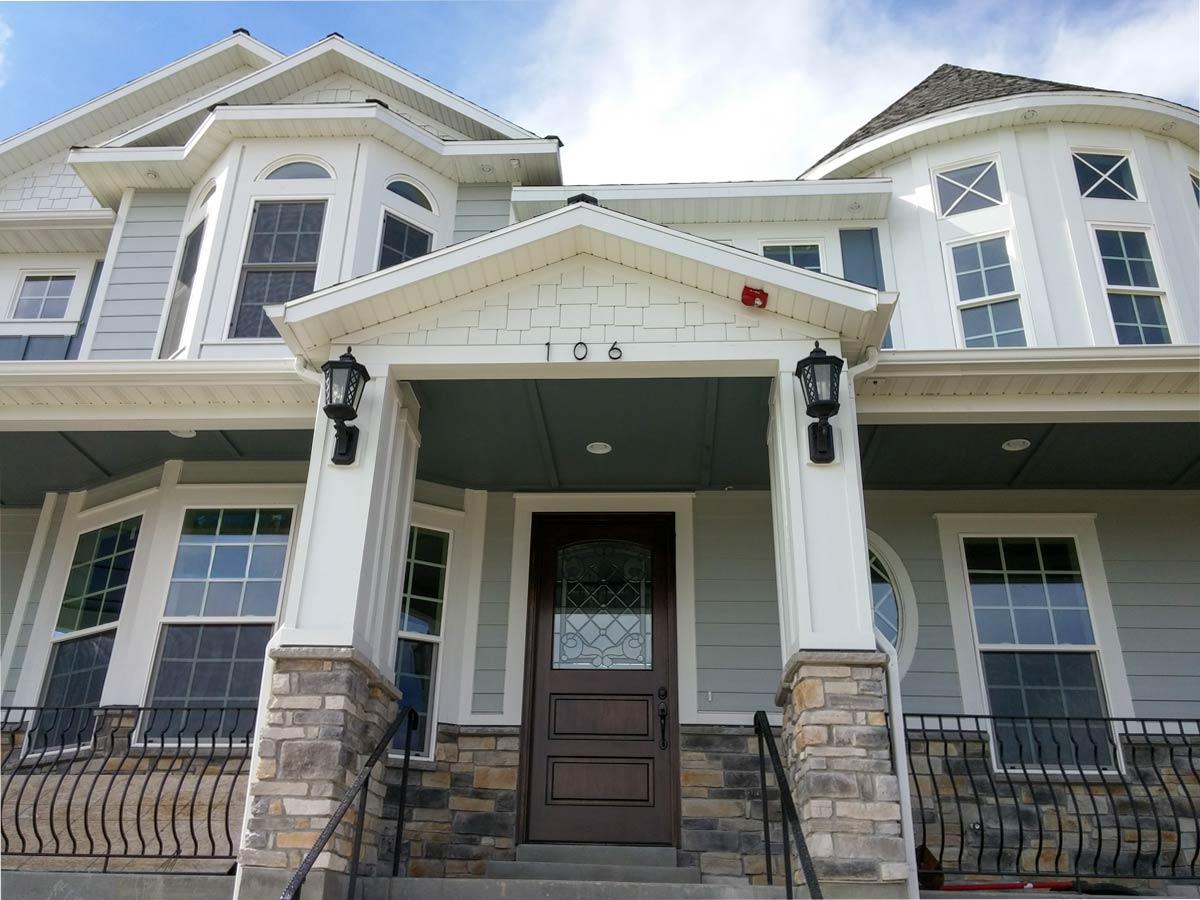

  • Upon entering, guests are greeted by a welcoming foyer that flows directly into a spacious living area, with a dedicated home office or library thoughtfully placed for privacy and productivity.

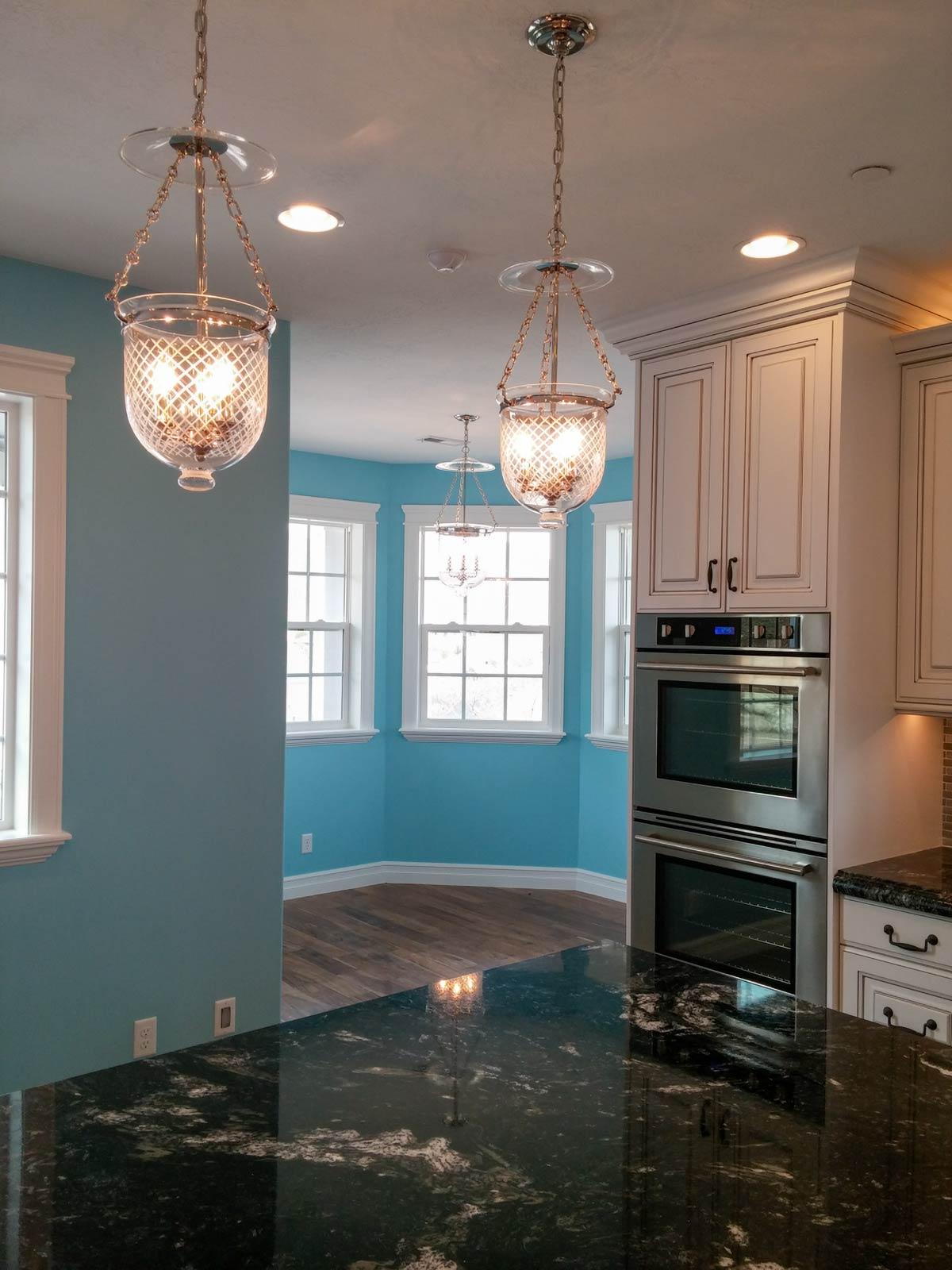

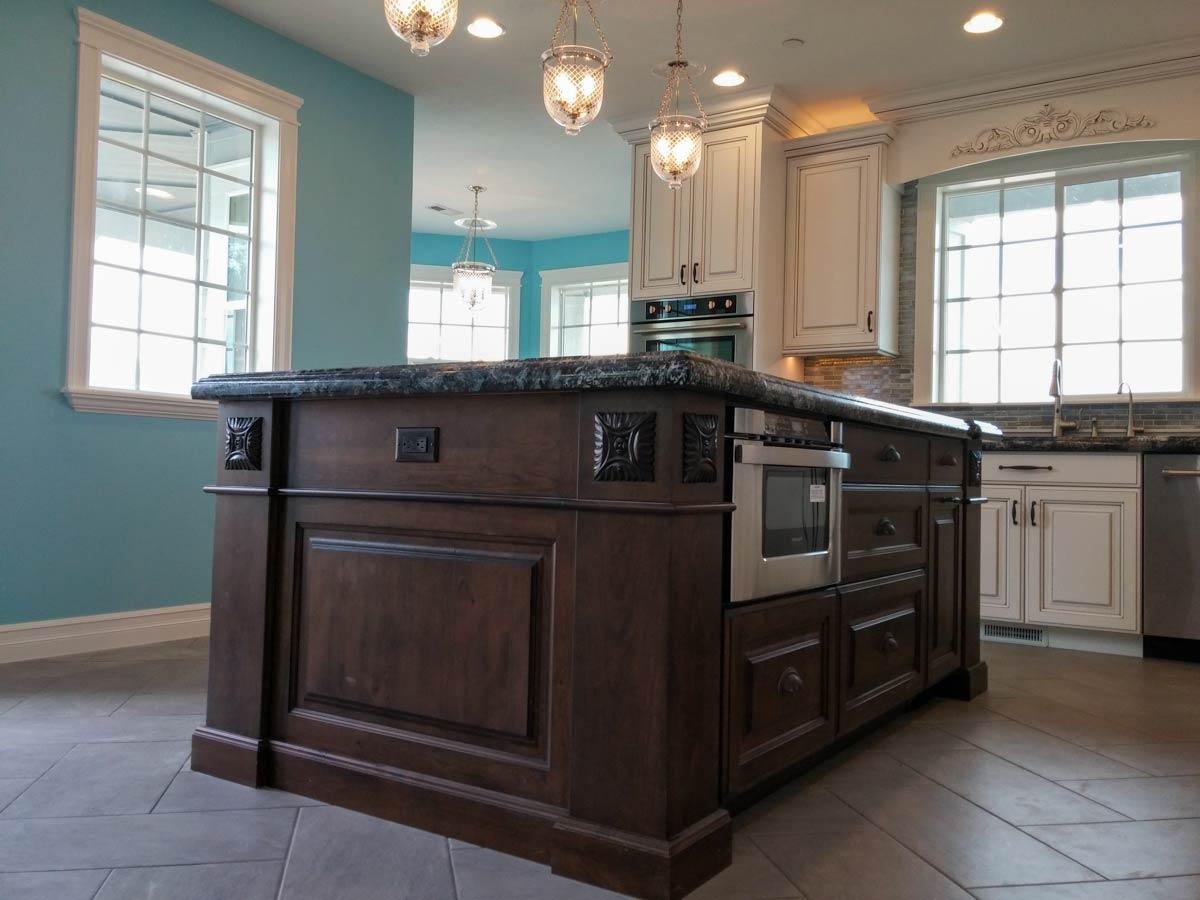

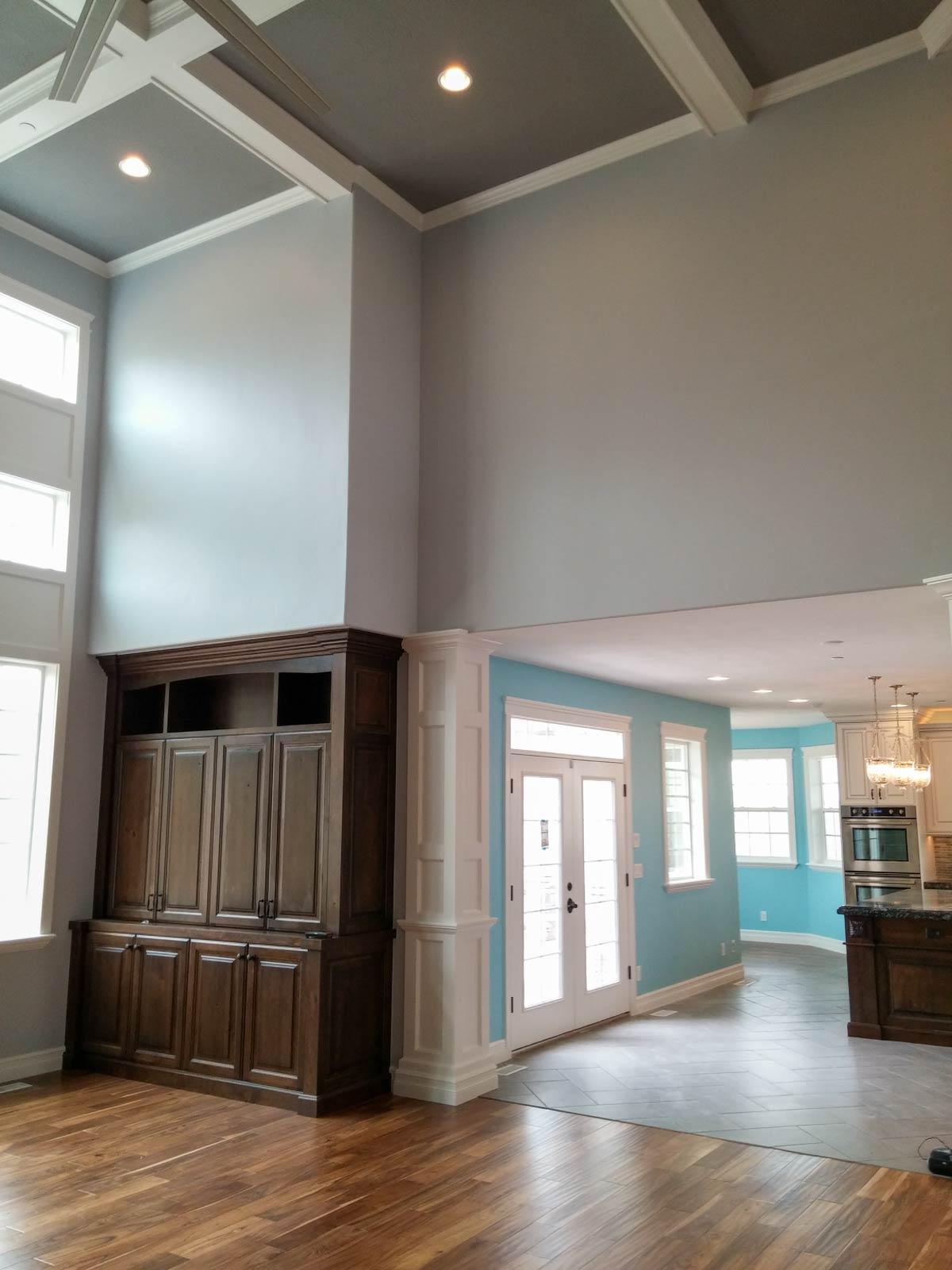

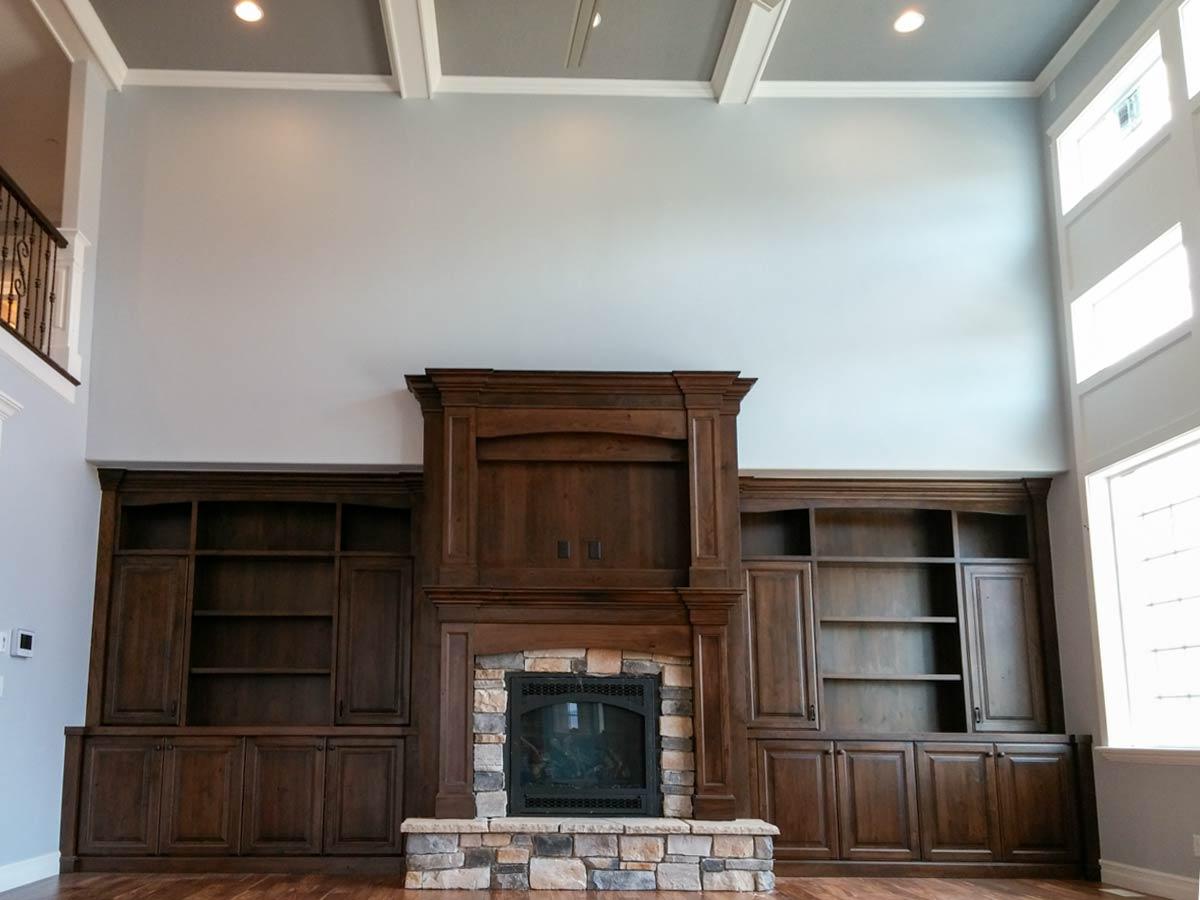

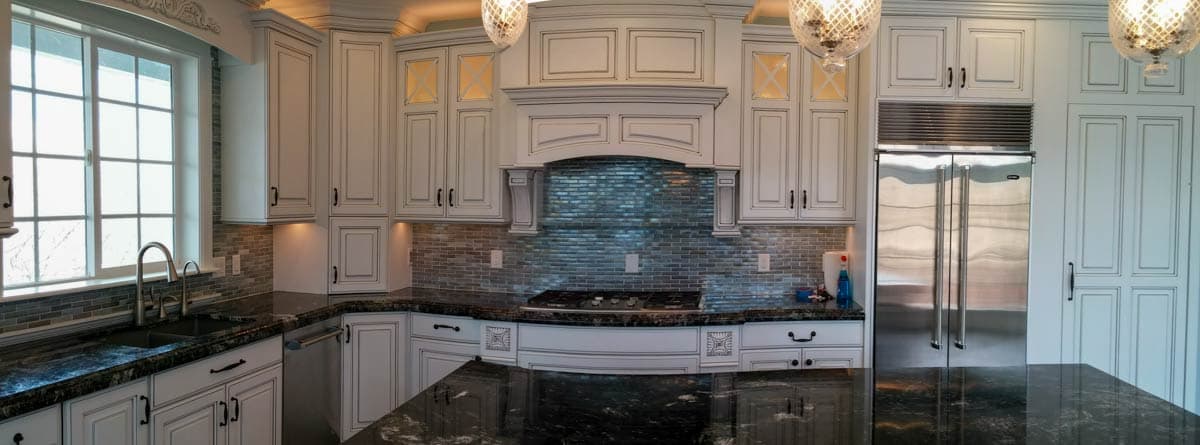

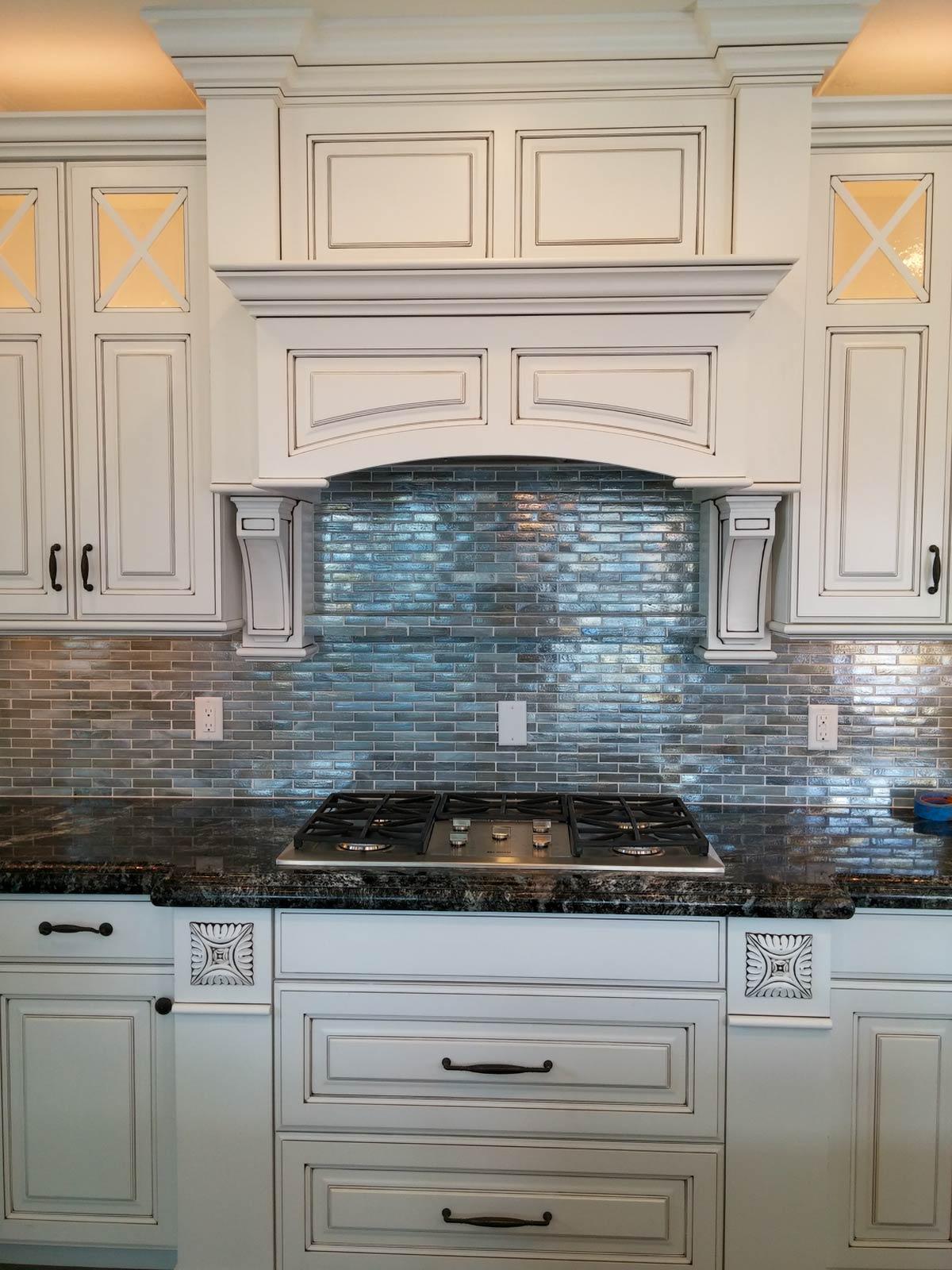

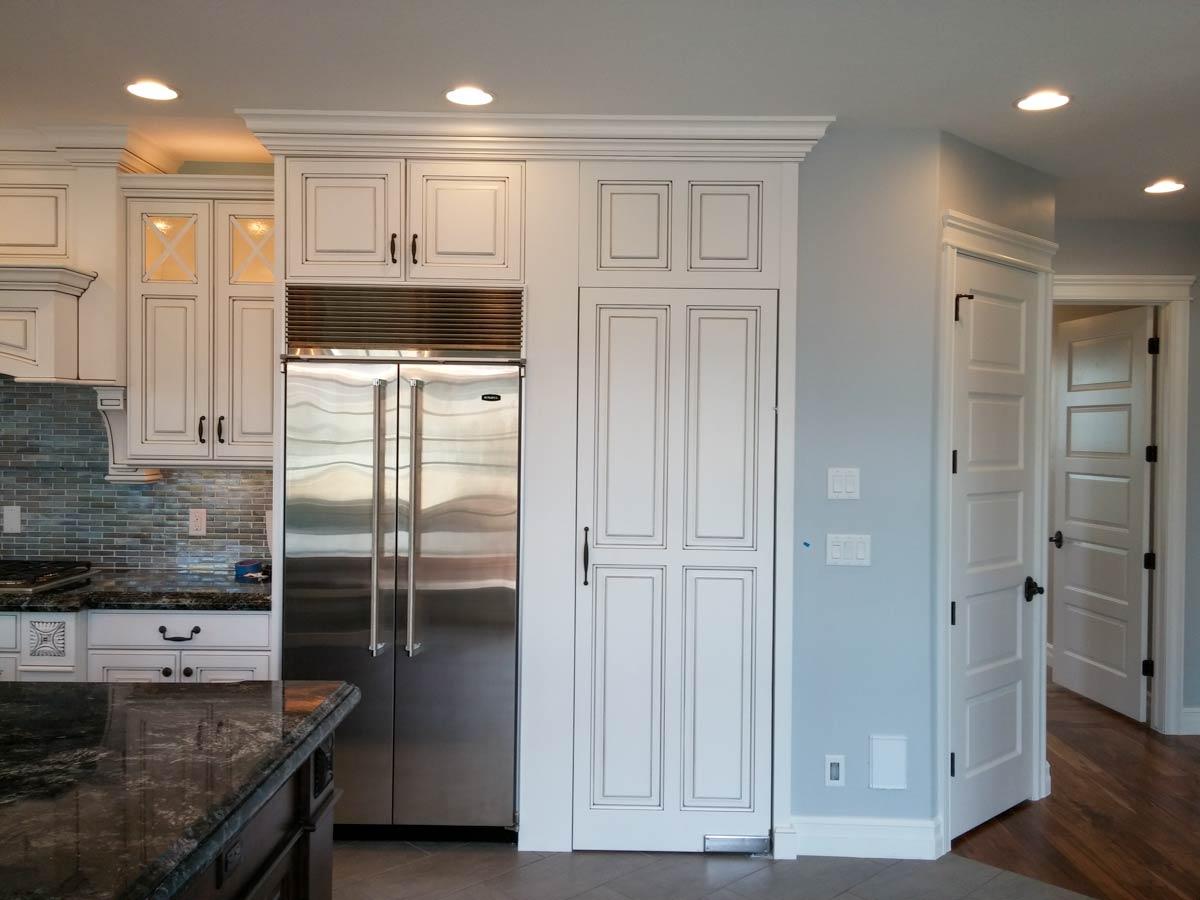

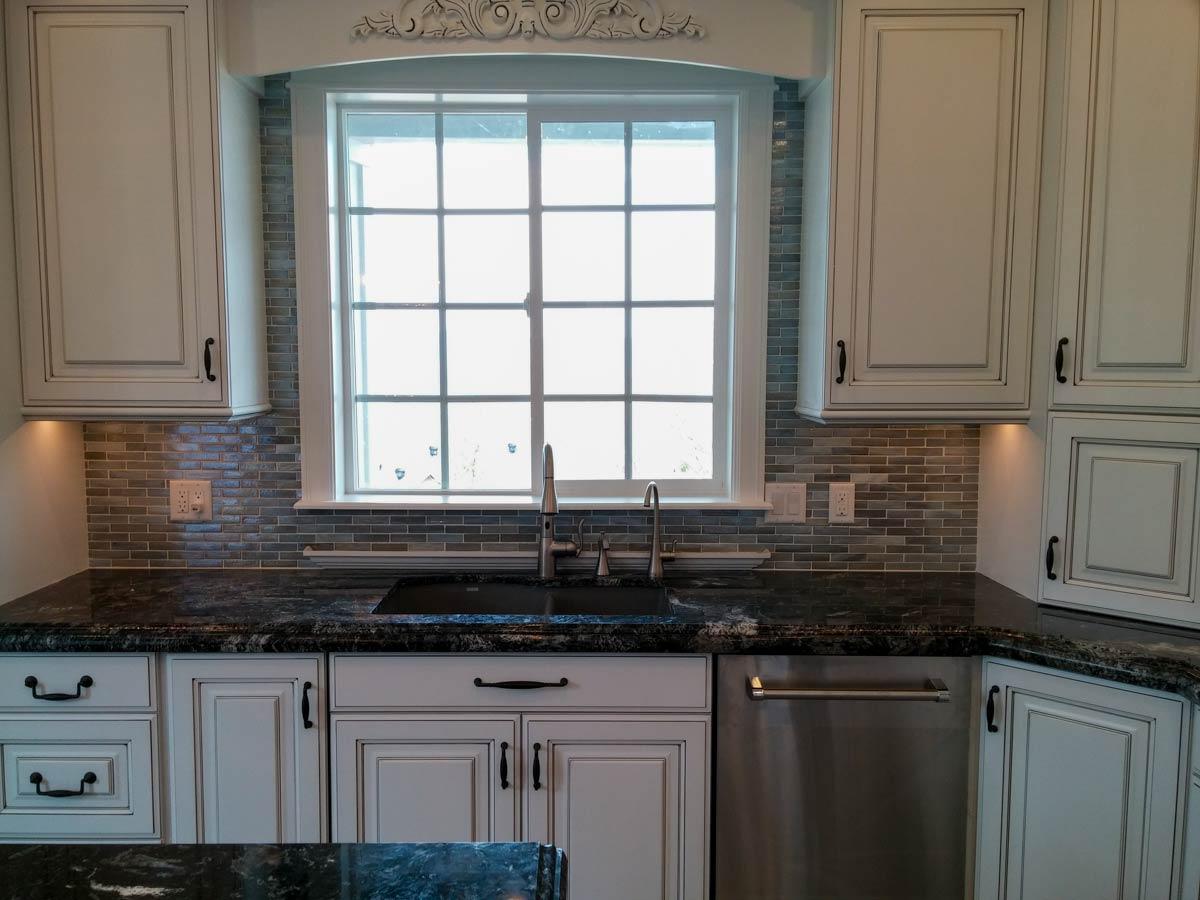

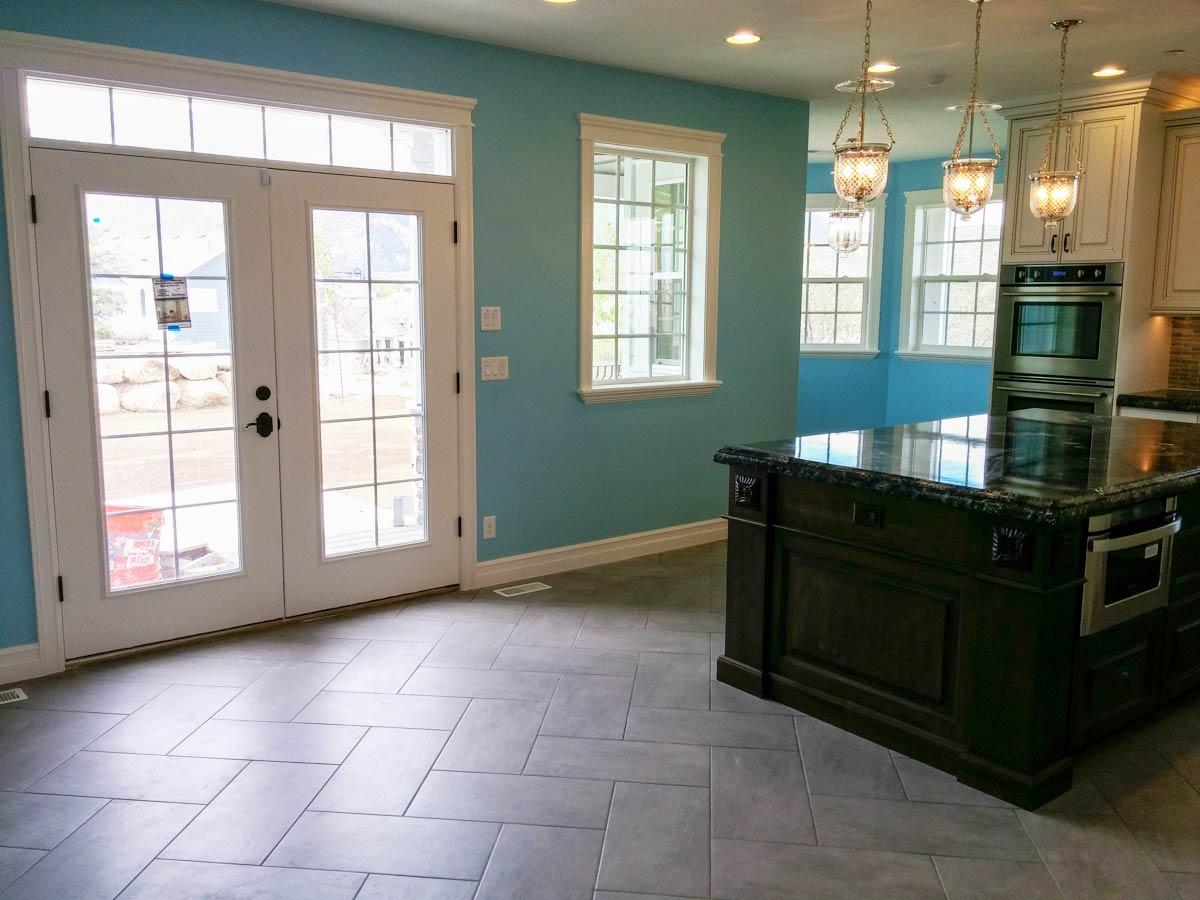

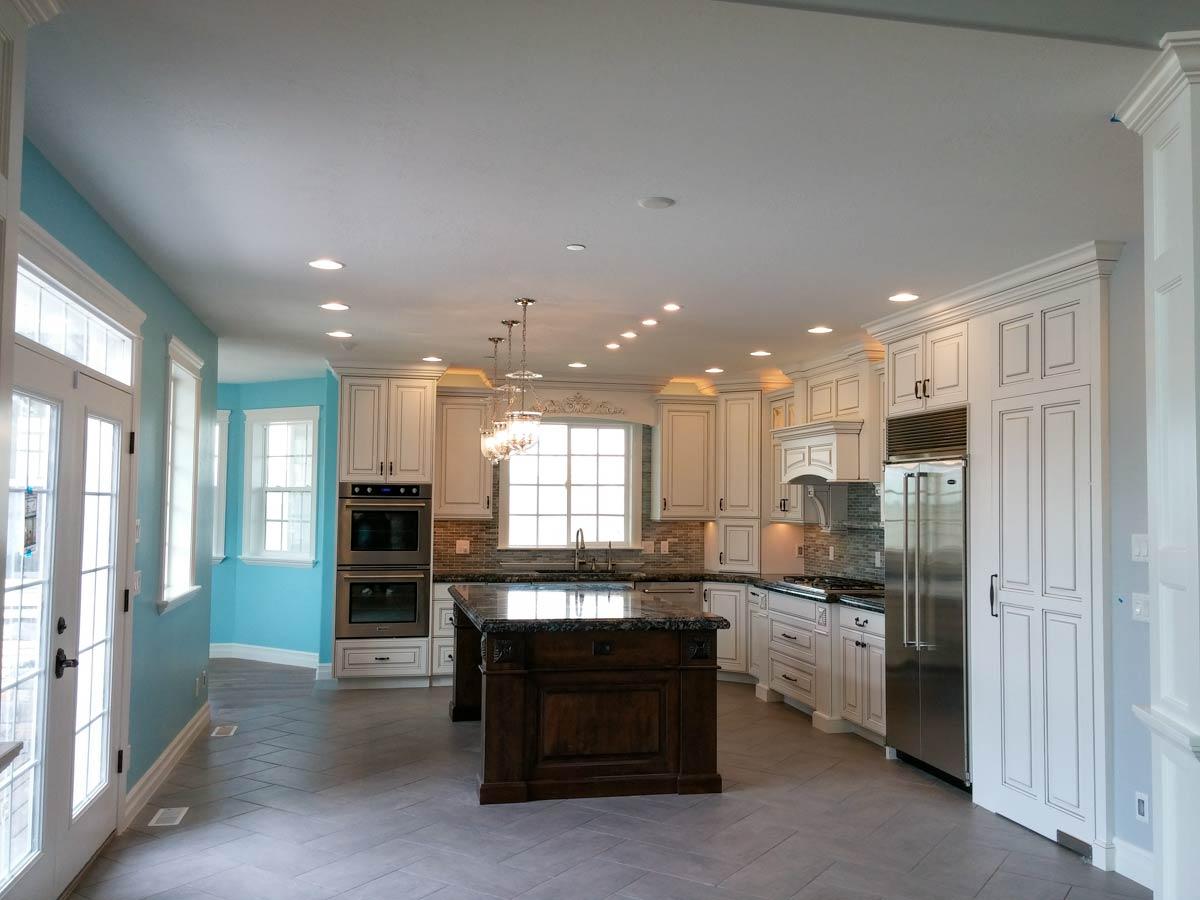

  • The heart of the home is the open-concept great room, seamlessly connecting to the dining area and a gourmet kitchen featuring a butler's walk-in pantry and an additional storage pantry, perfect for both everyday living and sophisticated entertaining.
  • The luxurious first-floor owner's suite provides a private sanctuary with a dedicated sitting area, an opulent bathroom, and direct access to the main-level laundry, while four additional bedrooms on the second floor offer comfortable accommodations and split living arrangements for family and guests.

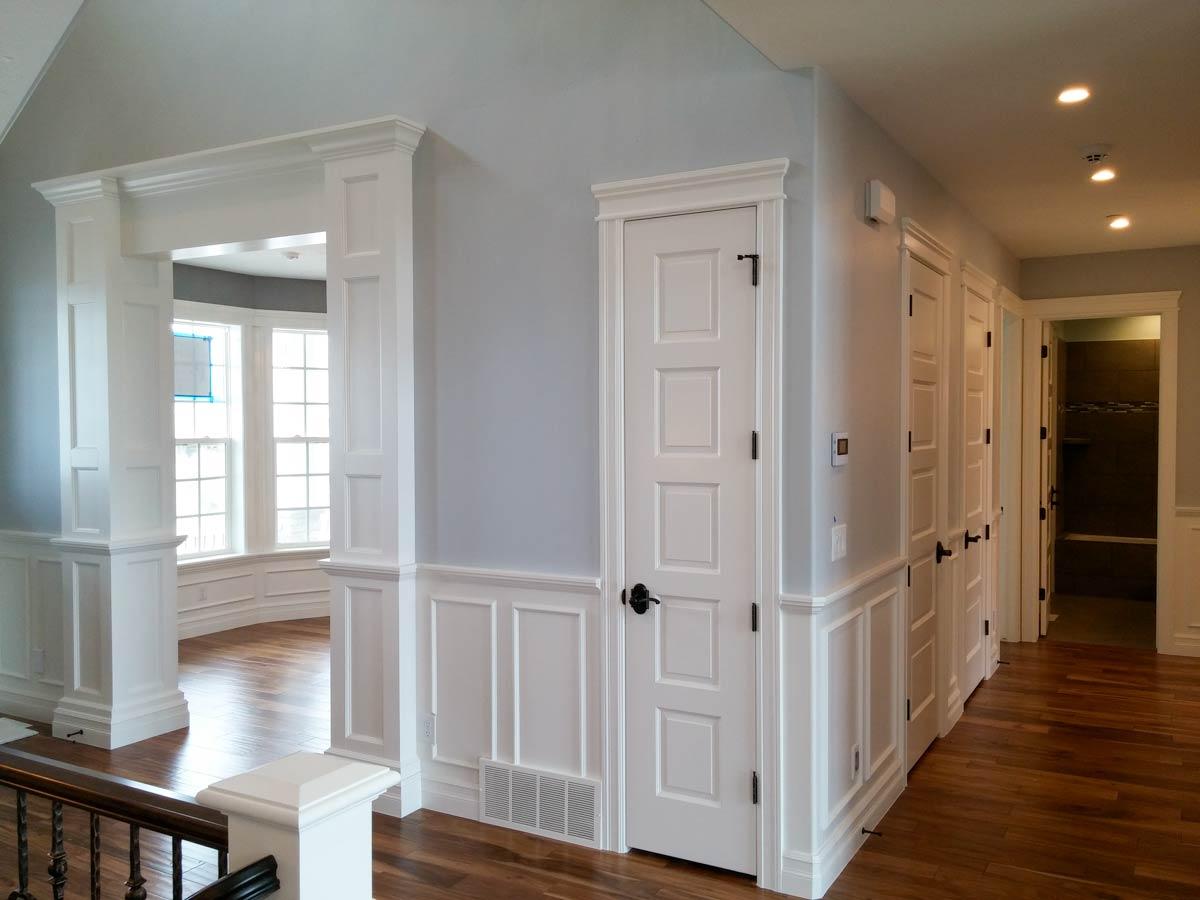

  • The second floor boasts a versatile TV room and a dedicated study with a built-in desk, providing flexible spaces for relaxation, hobbies, or focused work.

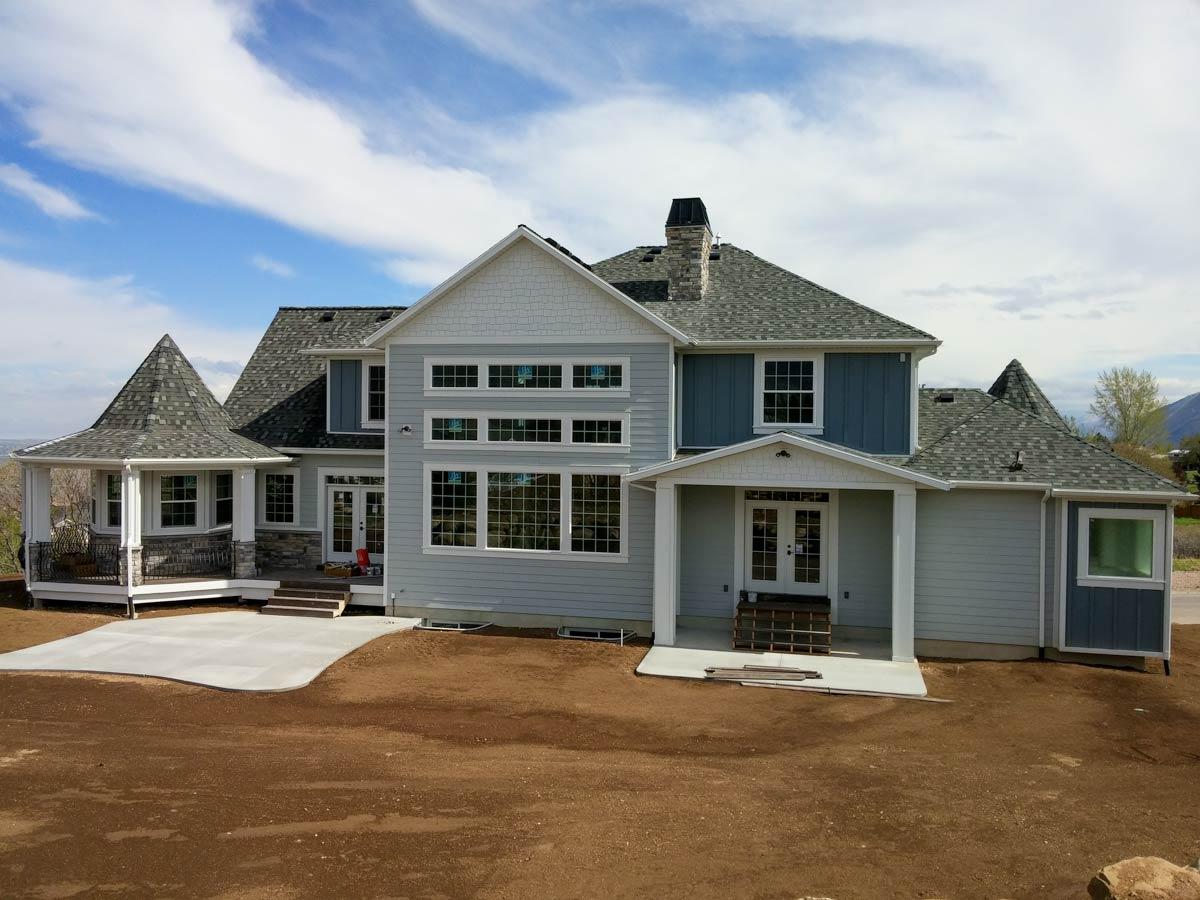

  • Enjoy the outdoors with multiple covered decks and patios across both levels, including a charming breakfast nook on the main-level covered deck, ideal for morning coffee or evening gatherings amidst picturesque views.
  • An expansive 1,687 sq. ft. walkout basement offers incredible potential for future expansion, with plans for a family room, exercise room, kitchenette, full bath, and a unique space, allowing for customization to suit any lifestyle.

What's Included

  • Cover Sheet

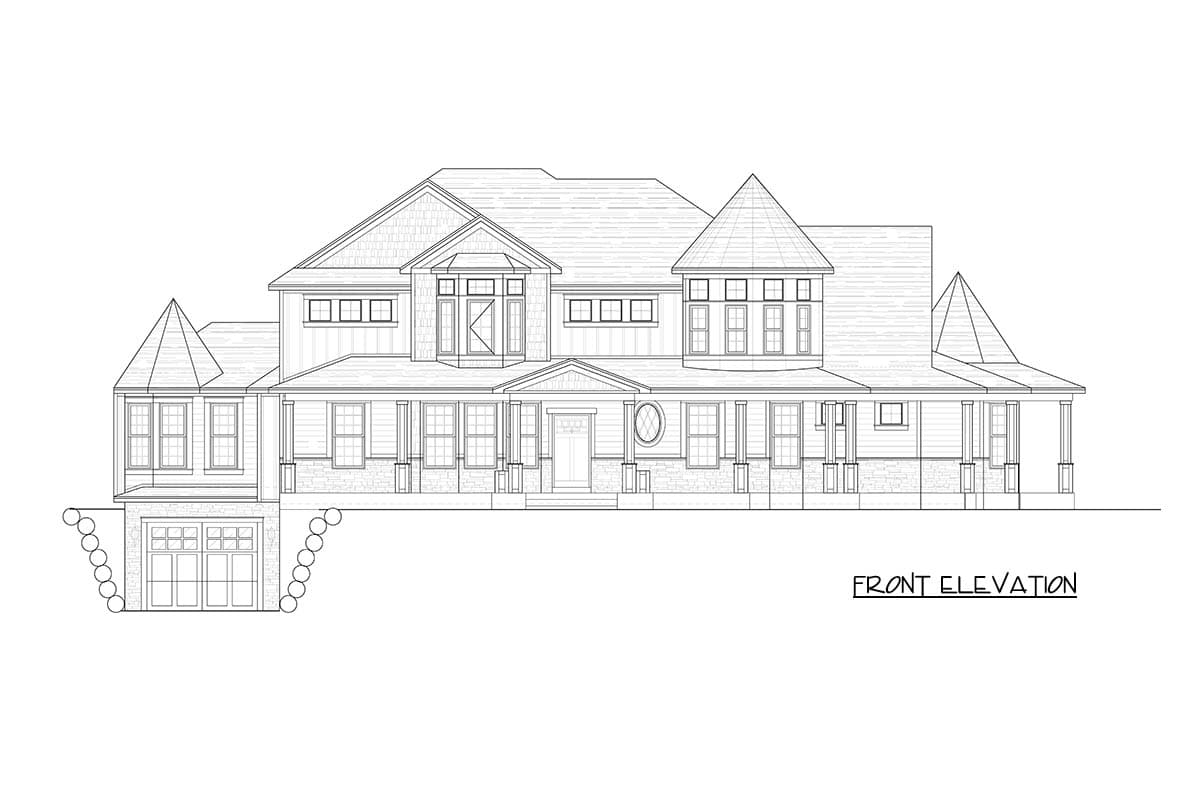

  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,237 sq. ft.

1st Floor

2,757 sq. ft.

2nd Floor

1,480 sq. ft.

Basement Unfinished

1,687 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

86' 9"

Depth

56' 4"

Max Ridge Height

30' 10"

Garage

Type

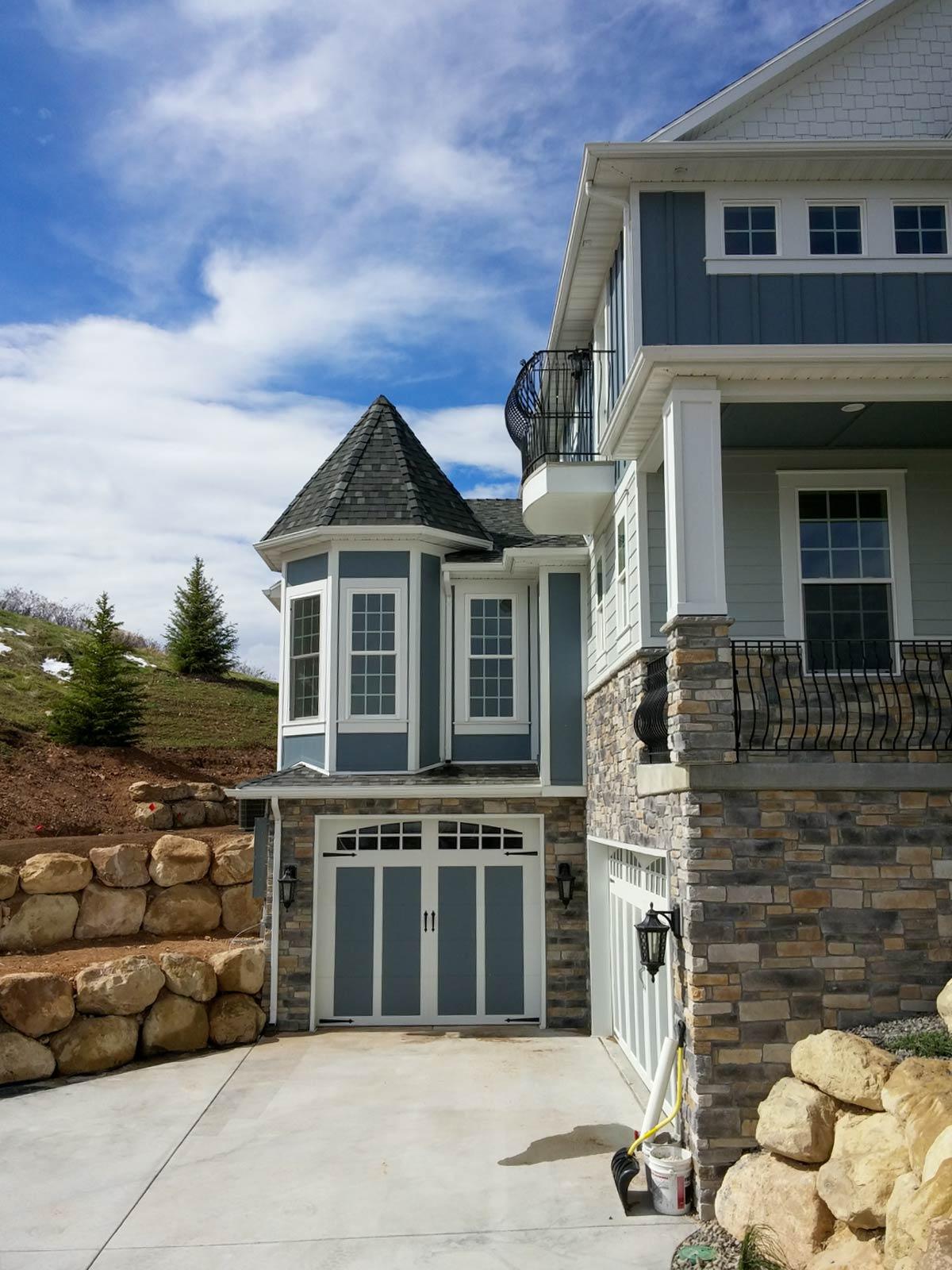

Drive Under

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Traditional

Victorian

Special Features

Bedrooms - Clustered

Breakfast Nook

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Two Story Great Room

Walk-in Pantry

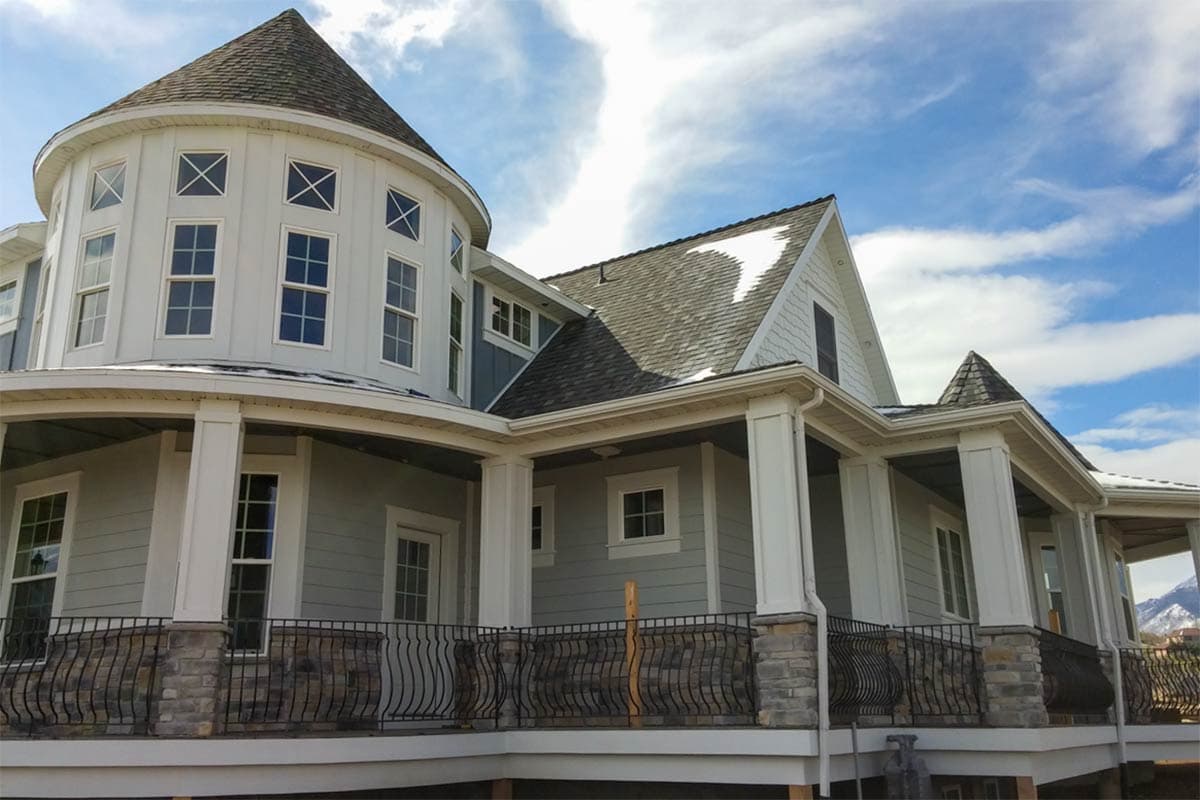

Wraparound Porch

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

4,237 sq. ft.

1st Floor

2,757 sq. ft.

2nd Floor

1,480 sq. ft.

Basement Unfinished

1,687 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

86' 9"

Depth

56' 4"

Max Ridge Height

30' 10"

Garage

Type

Drive Under

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Traditional

Victorian

Special Features

Bedrooms - Clustered

Breakfast Nook

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Two Story Great Room

Walk-in Pantry

Wraparound Porch
