Great for Gatherings

Plan 39044ST

  • 1,700

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • A covered porch, multiple gables, and wood trim decorate the exterior of this lovely one level home plan.
  • An open great room with fireplace, breakfast bay with furniture recess, and kitchen with wrap-around snack bar create a spacious look and feel to the family gathering area. An adjacent library with double doors and built-ins expands the living area while offering privacy for quiet work.
  • Split bedrooms offer privacy to the master bedroom with bath and large walk-in closet.
  • The location of the laundry room offers convenience for the family entry and easy access from the kitchen and master bedroom.
  • An open stair way encourages the full basement to become part of the home for additional living space.

  • General notes and specifications

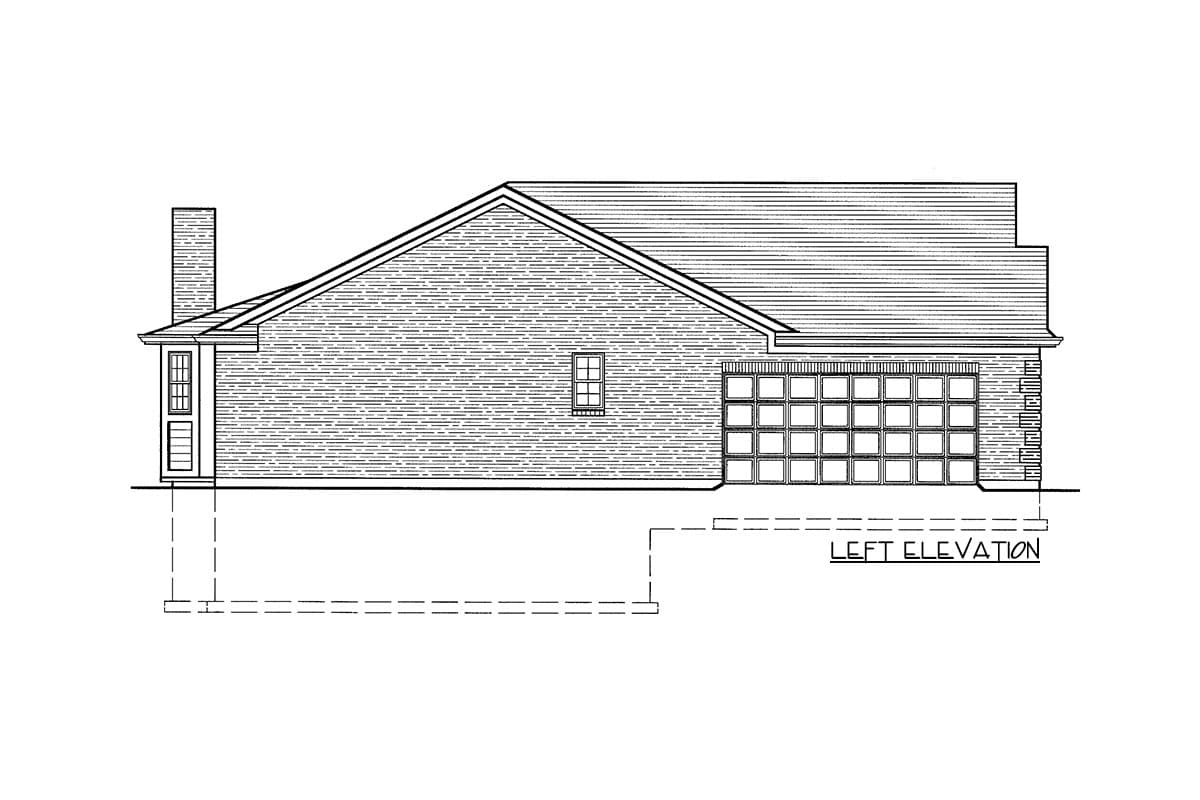

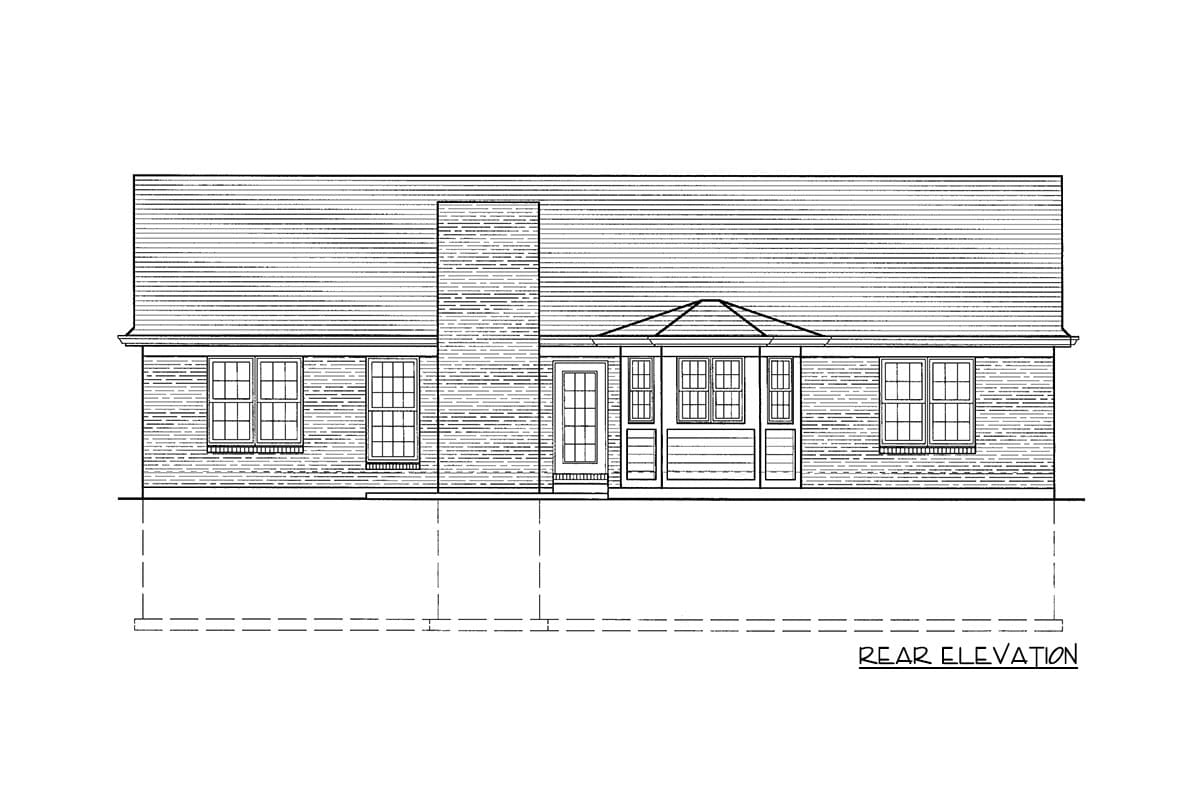

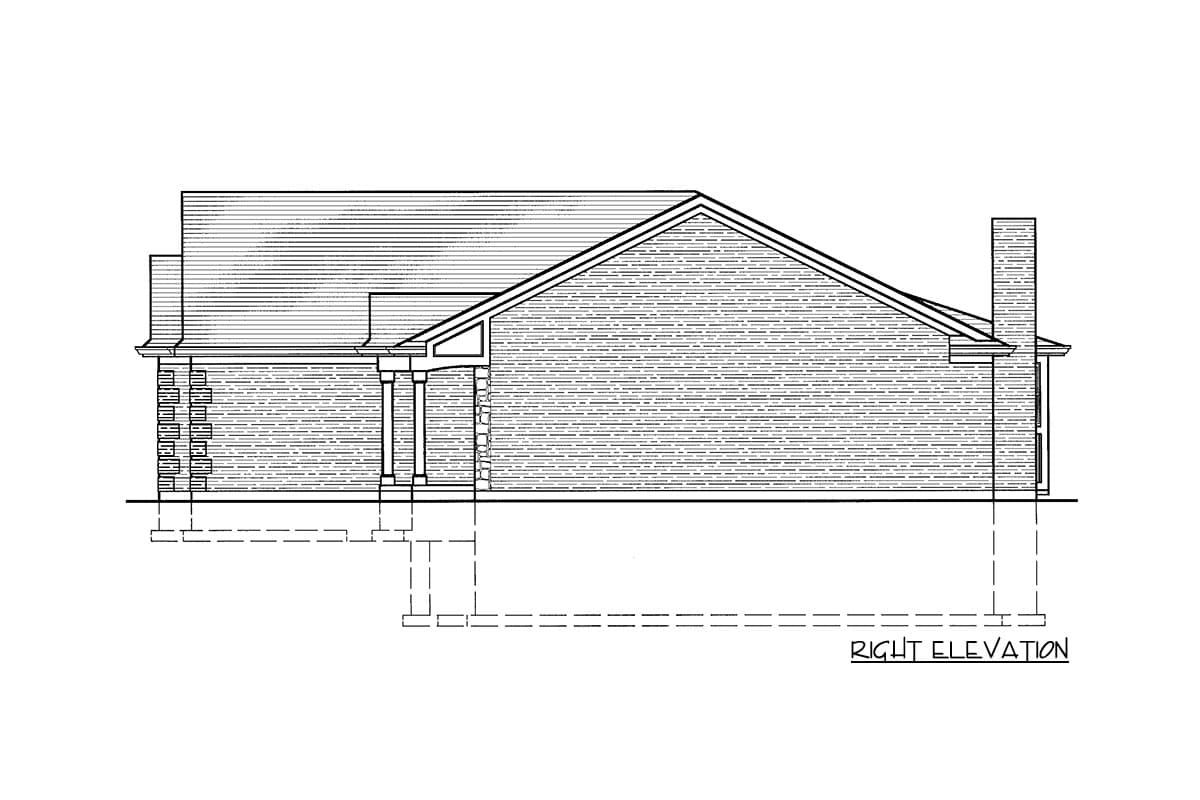

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

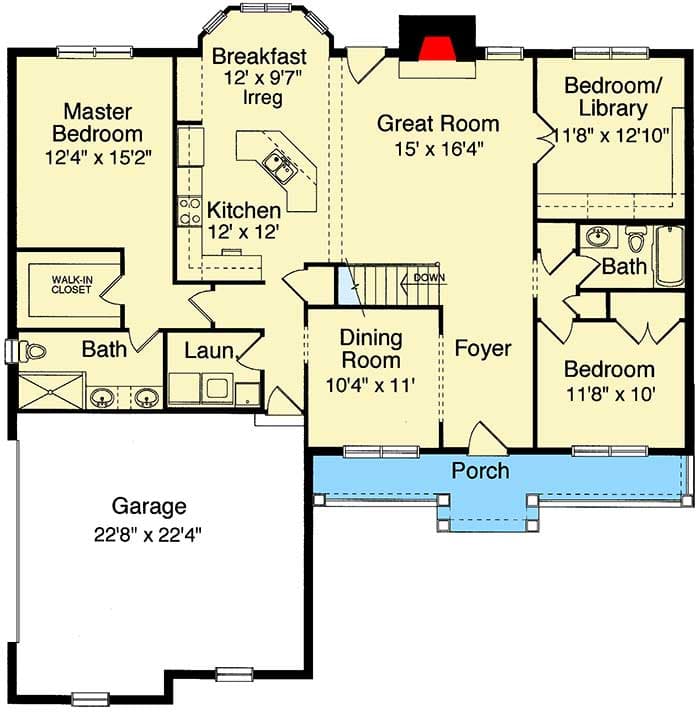

Great for Gatherings - 39044ST floor plan - Main Level

Great for Gatherings

  • 1,700

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,700 sq. ft.
  • 1st Floor: 1,700 sq. ft.

Dimensions

  • Width: 54' 0"
  • Depth: 55' 5"
  • Max ridge height: 19' 3"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 506 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
