Plan 5922ND

Great for the Family

Heated S.F.
3,278
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 5922ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 5922ND

M-F 9am-5pm EST |

1-203-761-8500

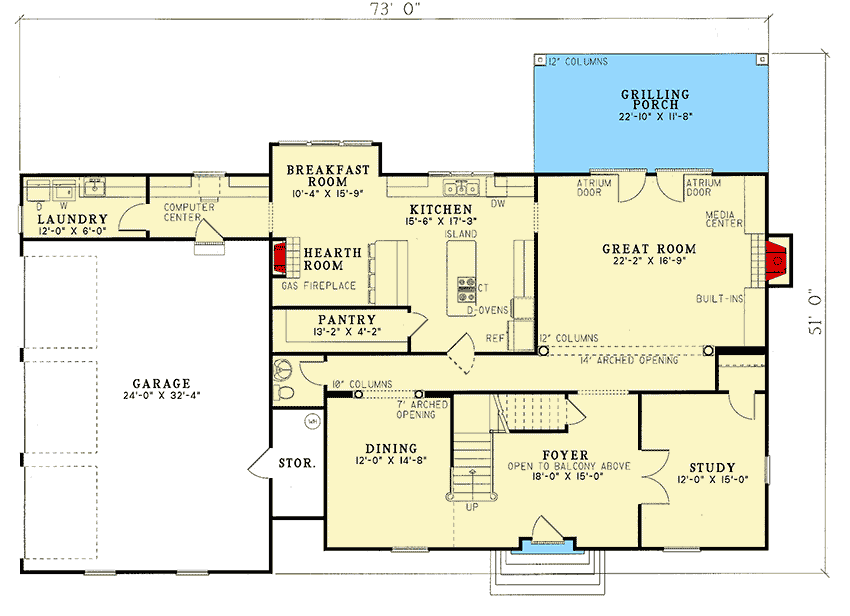

Main Level

Plan 5922ND: Great for the Family - Floor Plan - Main Level - Traditional

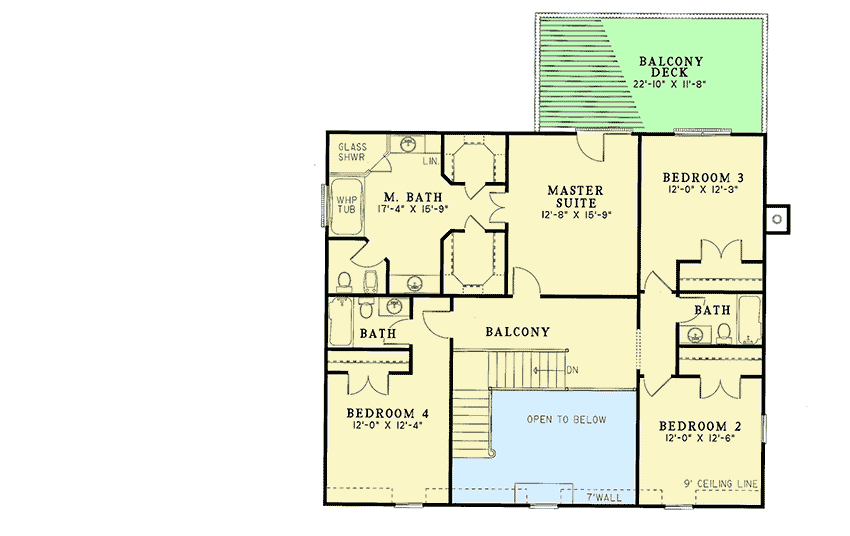

2nd Floor

Plan 5922ND: Great for the Family - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Entering the home, you'll find French doors that lead you to the private study.
  • Entertaining is easy in your spacious dining and great rooms surrounded by marvelous columns and atrium doors that access the extensive rear grilling porch from the great room.
  • Your convenient computer center allows for both privacy and monitoring of the children.
  • All of the bedrooms are located on the upper floor, often providing the advantage of keeping an eye on the children.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,278 sq. ft.

1st Floor

1,921 sq. ft.

2nd Floor

1,357 sq. ft.

Porch, Rear

270 sq. ft.

Entry

78 sq. ft.

Balcony / Veranda

266 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 0"

Depth

51' 0"

Max Ridge Height

34' 8"

Garage

Type

Attached

Area

776 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Library/Study

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Photo Gallery
