Plan 9255VS Great Layout for Entertaining

2,537 4 2.5 - 3.5 2 2
Print
Compare
...

Great Layout for Entertaining

Plan 9255VS

  • 2,537

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Traditional lines and perfect symmetry make this design a neighborhood favorite.
  • Four columns delineate the great room which dominates the first floor creating a wonderful space for entertaining.
  • Complete with a walk-in pantry and close to the command center, the kitchen easily serves the breakfast area as well as the formal dining room.
  • Upstairs, an arched entry demarcates the children's side of the floor with three bedrooms, a computer station and a laundry room.
  • The isolated master suite includes a bedroom with a tray ceiling, sitting area and a vaulted bath with lots of amenities.
  • Ceilings: 9' first floor; 8' second floor.
  • Foundation options: standard basement or daylight basement. Specify when ordering.

All plans include:

  • Foundation plan
  • Floor plans with electrical layouts
  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

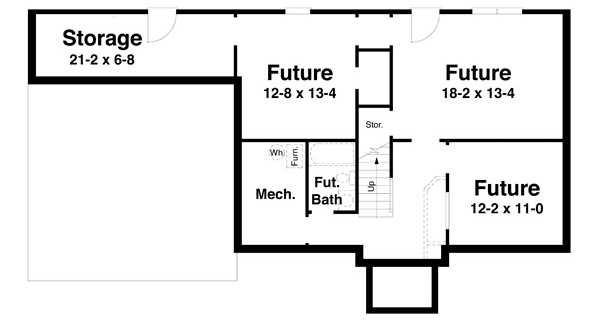

Great Layout for Entertaining - 9255VS floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

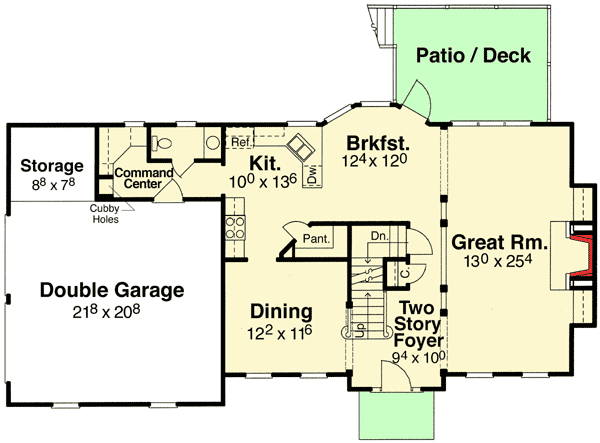

Great Layout for Entertaining - 9255VS floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

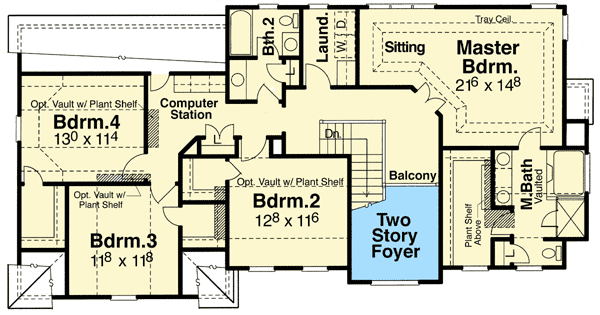

Great Layout for Entertaining - 9255VS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,537 sq. ft.
  • 1st Floor: 1,105 sq. ft.
  • 2nd Floor: 1,432 sq. ft.
  • Storage: 72 sq. ft.
  • Bonus: 993 sq. ft.
  • Deck: 130 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 61' 0"
  • Depth: 31' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Great Layout for Entertaining

  • 2,537

    Heated s.f.

  • 4

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets $1,350
  • PDF - Unlimited Build $2,500
  • View all purchase option online

About This Plan

  • Traditional lines and perfect symmetry make this design a neighborhood favorite.
  • Four columns delineate the great room which dominates the first floor creating a wonderful space for entertaining.
  • Complete with a walk-in pantry and close to the command center, the kitchen easily serves the breakfast area as well as the formal dining room.
  • Upstairs, an arched entry demarcates the children's side of the floor with three bedrooms, a computer station and a laundry room.
  • The isolated master suite includes a bedroom with a tray ceiling, sitting area and a vaulted bath with lots of amenities.
  • Ceilings: 9' first floor; 8' second floor.
  • Foundation options: standard basement or daylight basement. Specify when ordering.

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,537 sq. ft.
  • 1st Floor: 1,105 sq. ft.
  • 2nd Floor: 1,432 sq. ft.
  • Storage: 72 sq. ft.
  • Bonus: 993 sq. ft.
  • Deck: 130 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 61' 0"
  • Depth: 31' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 9255VS
View this and more for this plan by visiting www.architechtecturaldesigns.com/9255VS
|
Need Help? 800-854-7852
|
