Plan 39155ST
Great Room with 18' Ceiling
Heated S.F.
2,167
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • A beautiful exterior of siding and stone introduces a plan that offers a large great room with 18' ceiling and a cozy fireplace.
  • The dining room is spacious and bright with windows on two sides. Sliders lead to the rear porch.
  • Angled for better views, the kitchen work space is defined by an island with seating.
  • Located on the first floor, the master suite provides a sloped ceiling and double bowl vanity plus an over-sized walk-in shower.
  • A turned staircase leads to a second floor balcony with loft and three additional bedrooms.
What's Included
  • General notes and specifications

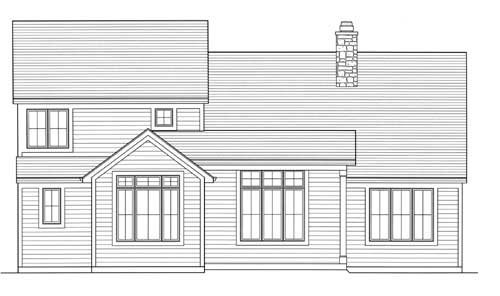

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Great Room with 18' Ceiling

  • 2,167

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Basement

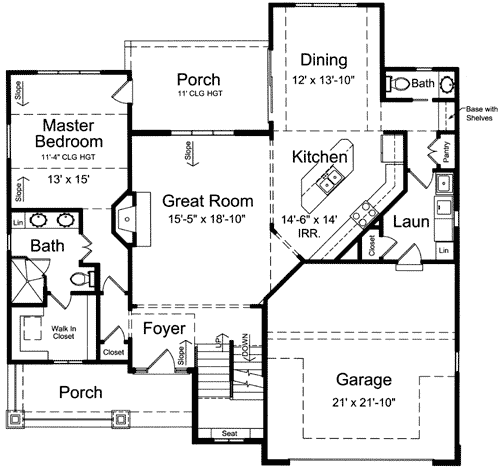

  • Main Level

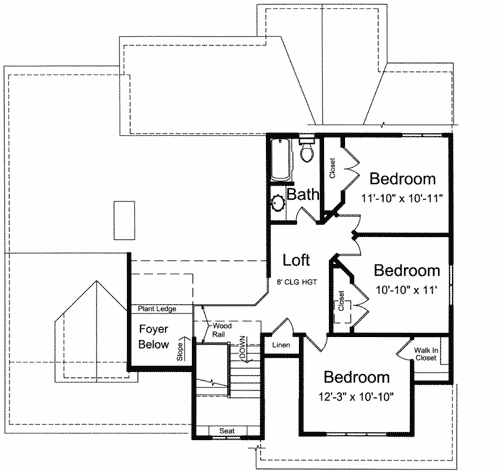

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,167 sq. ft.
  • 1st Floor: 1,471 sq. ft.
  • 2nd Floor: 696 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 51' 0"
  • Max ridge height: 28' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 449 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5-Apr on 12
  • Framing Type: Truss
