Plan 24334TW Great Room with Loft

2,961 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Great Room with Loft

Plan 24334TW

  • 2,961

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • An open floor plan and lots of outdoor spaces make this rugged home great for second home or primary residence.

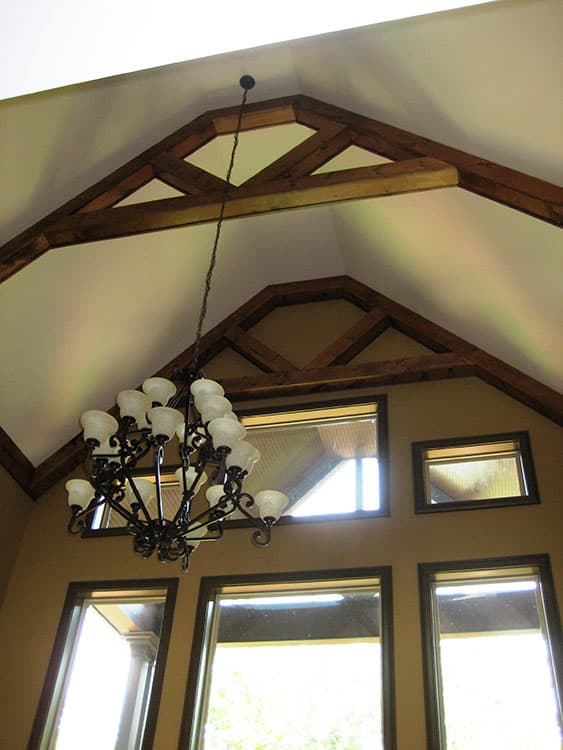

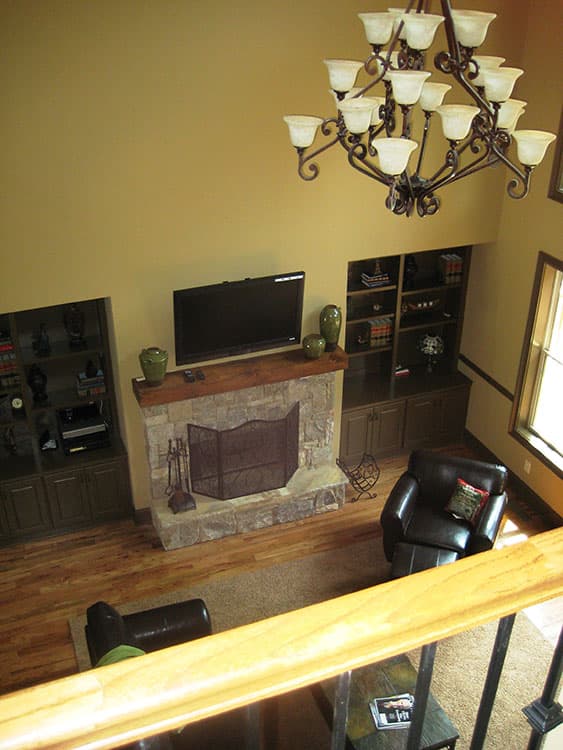

  • The two-story vaulted great room opens to a loft above.
  • Lots of windows allow views to lake/mountain/golf course from almost every room in home.

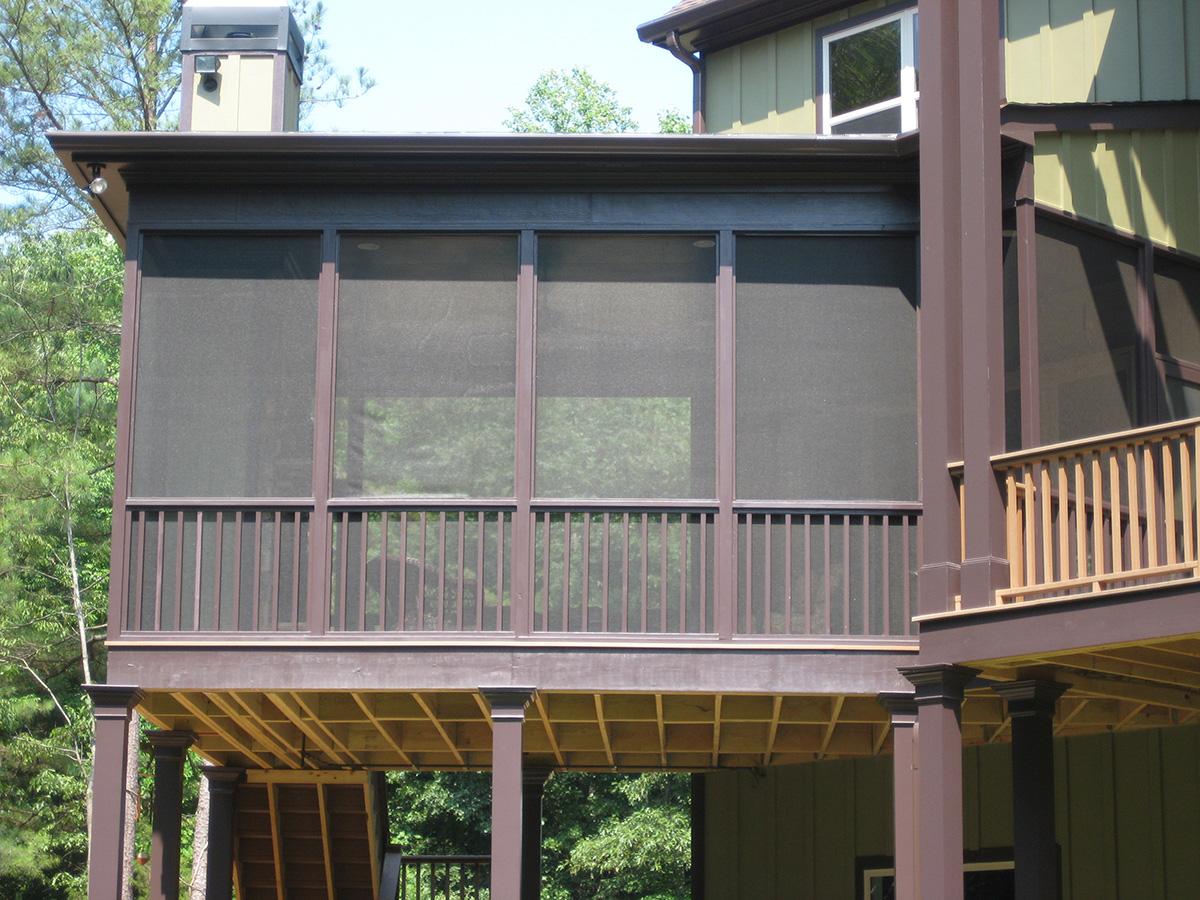

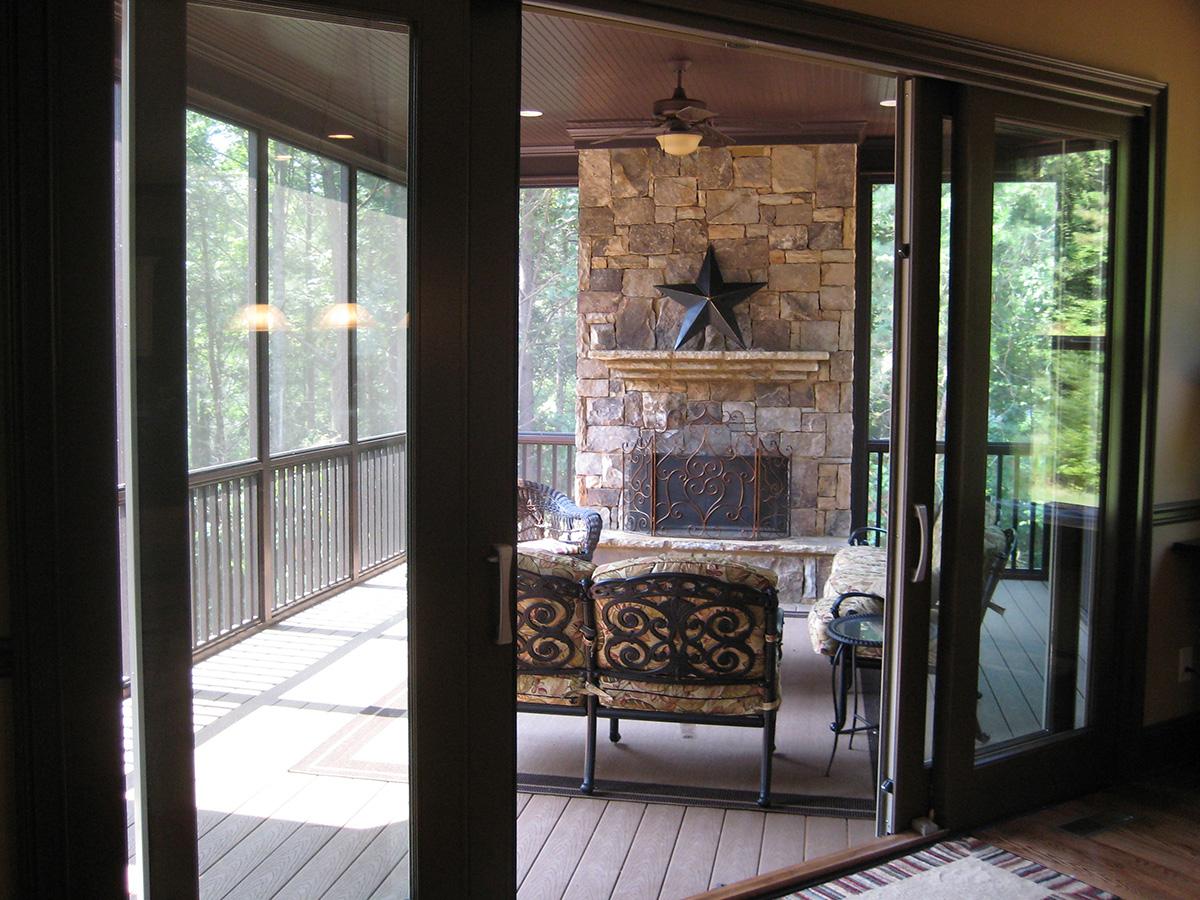

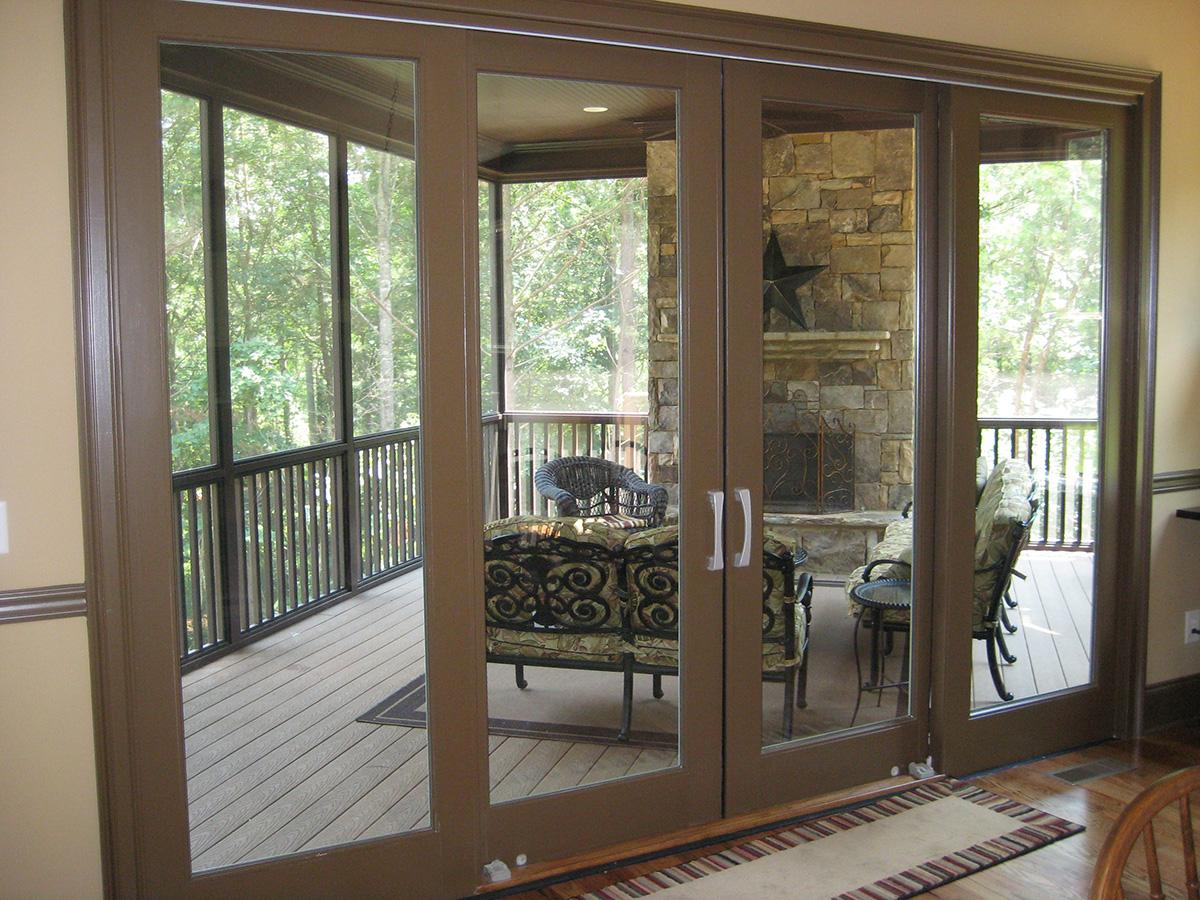

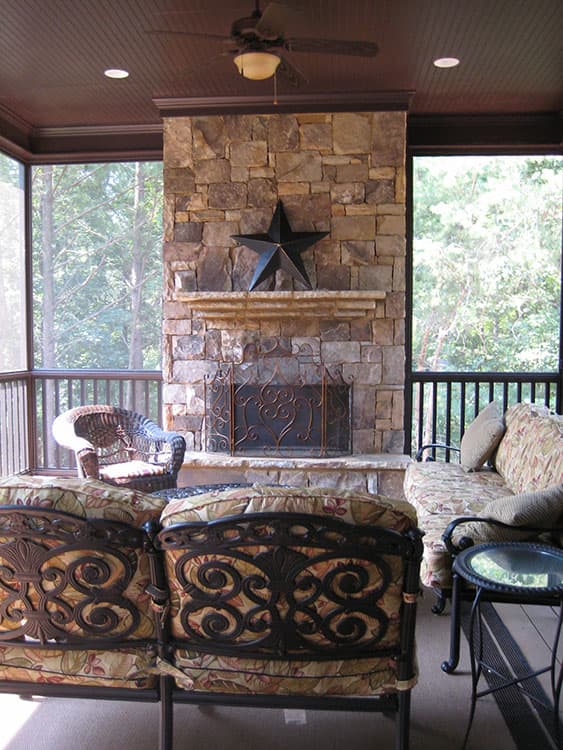

  • Spend time in the two-story vaulted rear covered porch with separate angled screened porch with a fireplace.
  • A pergola covers the deck off the master suite with its spa bath and huge walk-in closet.
  • Plenty of room for family or friends who want to stay over, with 3 bedrooms and two baths on the upper level.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.

The plans include the following:

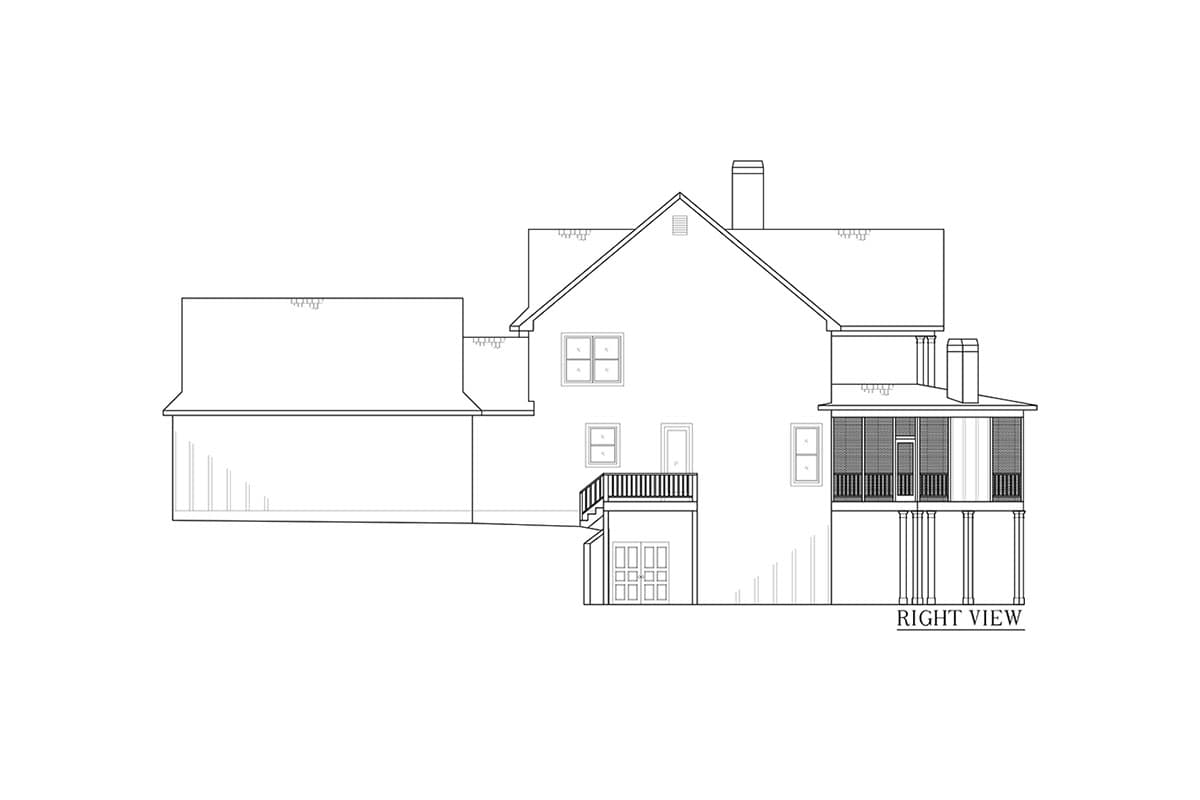

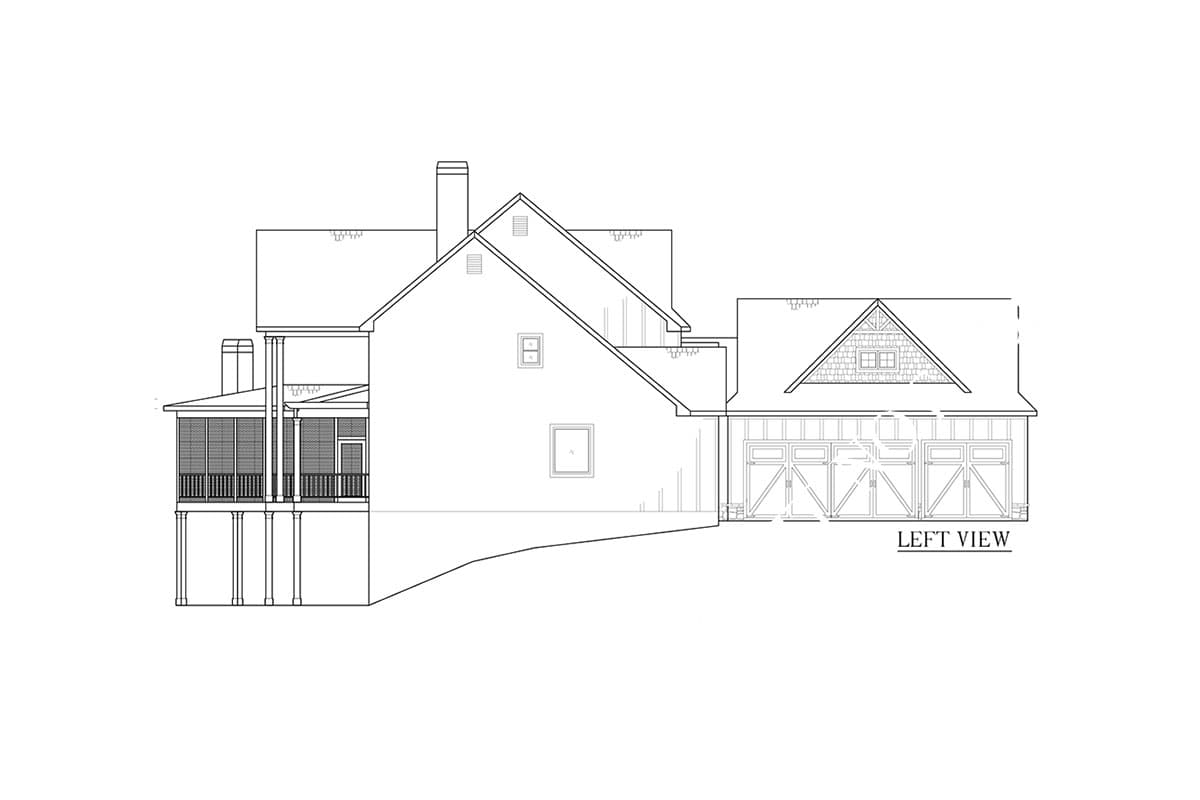

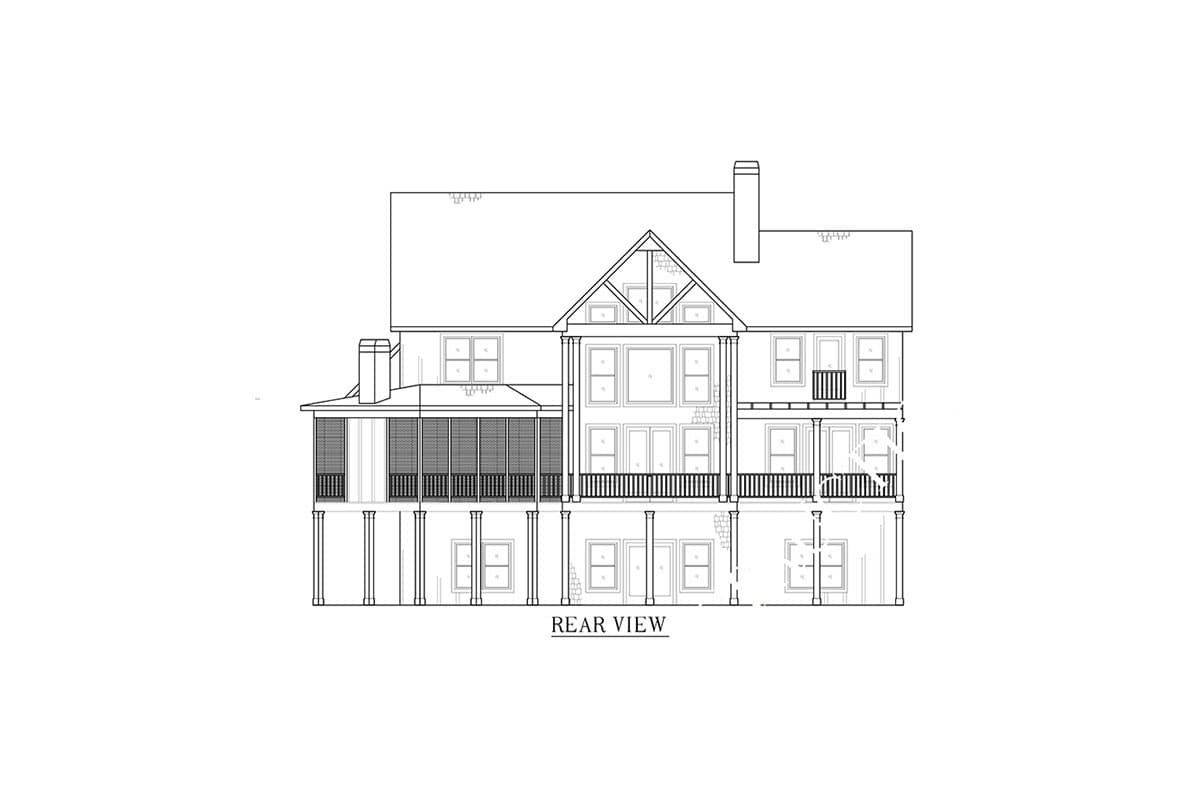

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

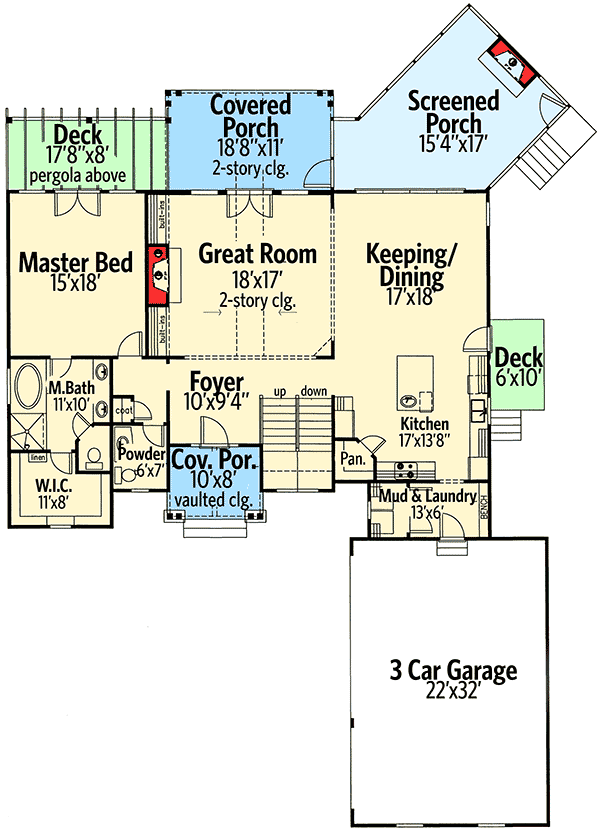

Great Room with Loft - 24334TW floor plan - Main Level

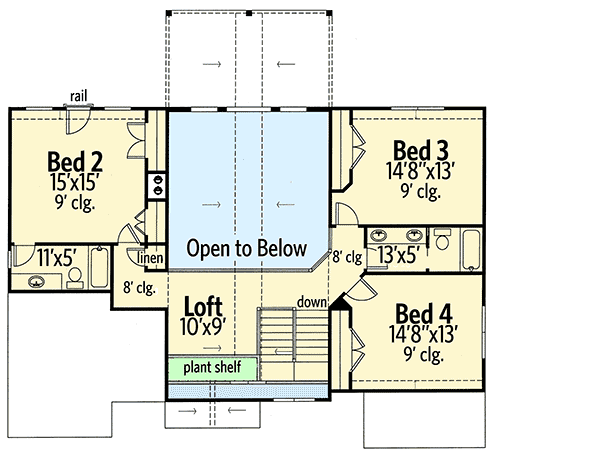

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Great Room with Loft - 24334TW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,961 sq. ft.
  • 1st Floor: 1,855 sq. ft.
  • 2nd Floor: 1,106 sq. ft.
  • Screened Porch: 328 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 63' 0"
  • Depth: 91' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 700 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Great Room with Loft

  • 2,961

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,300
  • CAD + PDF - Single-Build $1,400
  • View all purchase option online

About This Plan

  • An open floor plan and lots of outdoor spaces make this rugged home great for second home or primary residence.
  • The two-story vaulted great room opens to a loft above.
  • Lots of windows allow views to lake/mountain/golf course from almost every room in home.
  • Spend time in the two-story vaulted rear covered porch with separate angled screened porch with a fireplace.
  • A pergola covers the deck off the master suite with its spa bath and huge walk-in closet.
  • Plenty of room for family or friends who want to stay over, with 3 bedrooms and two baths on the upper level.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,961 sq. ft.
  • 1st Floor: 1,855 sq. ft.
  • 2nd Floor: 1,106 sq. ft.
  • Screened Porch: 328 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 63' 0"
  • Depth: 91' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 700 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 24334TW
View this and more for this plan by visiting www.architechtecturaldesigns.com/24334TW
|
Need Help? 800-854-7852
|
Plan 24334TW
