Plan 6883AM
Great Traffic Flow
Heated S.F.
2,328
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 6883AM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 6883AM

1-800-854-7852

1-262-521-4596

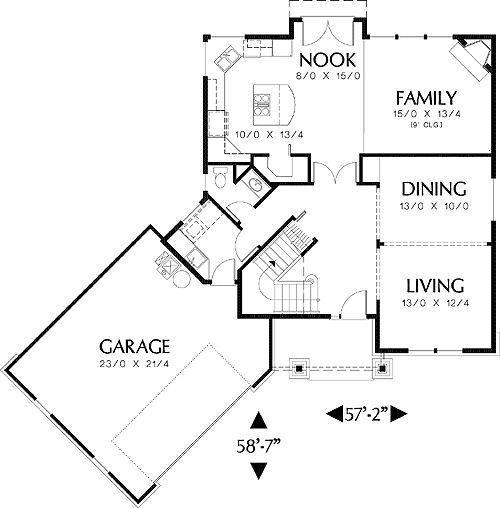

Main Level
floor plan image Main Level

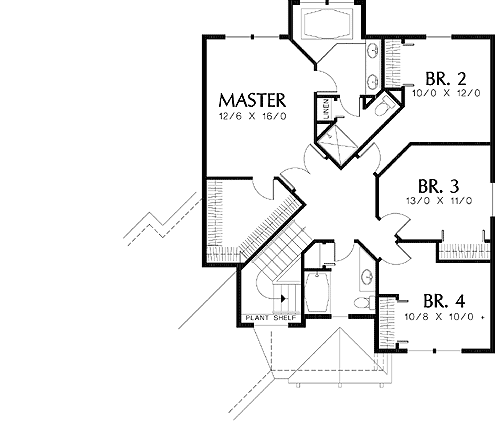

2nd Floor
floor plan image 2nd Floor
Plan Details
  • With its good-sized foyer, the floor plan of this bungalow design promotes a fluid traffic flow.
  • Your guests walk into the foyer from a front porch sheltered by a gabled roof. The living and dining rooms, open to each other, are visible on one side.
  • Straight back, the informal area effectively integrates a kitchen, eating nook and family room. The kitchen features a walk-in pantry and a cooktop-eating island. A corner fireplace warms the family room, where the ceiling rises nine feet.
  • On the bedroom floor, double doors open to the master suite with its huge walk-in closet and luxurious bath. The bath contains a garden tub set in a bay window, separate shower, linen closet and his and her sinks. Another full bath serves the three family bedrooms.
  • Foundation: crawl space.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,328 sq. ft.

1st Floor

1,205 sq. ft.

2nd Floor

1,123 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 2"

Depth

58' 7"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

491 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Country

Special Features

Angled Garage

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,328 sq. ft.

1st Floor

1,205 sq. ft.

2nd Floor

1,123 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 2"

Depth

58' 7"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

491 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Country

Special Features

Angled Garage

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Plan Collections

Photo Gallery
