Plan 31612GF

Guest Apartment Above a Detached 2-car Garage

Heated S.F.
495
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 31612GF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 31612GF

M-F 9am-5pm EST |

1-203-761-8500

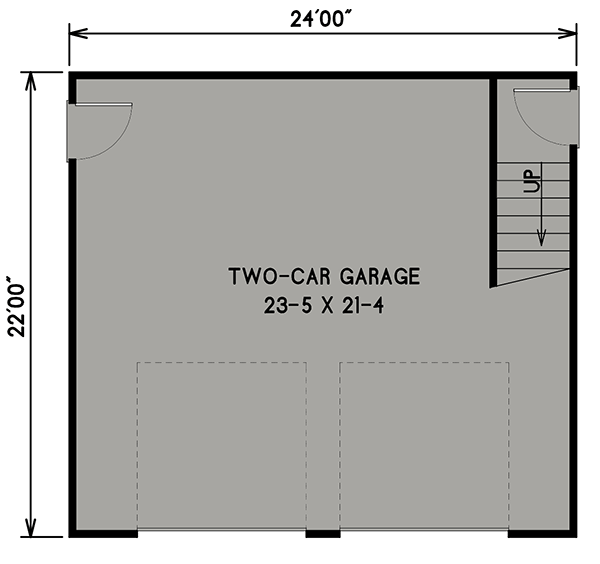

Main Level

Plan 31612GF: Guest Apartment Above a Detached 2-car Garage - Floor Plan - Main Level - Carriage, Country, Craftsman, Traditional

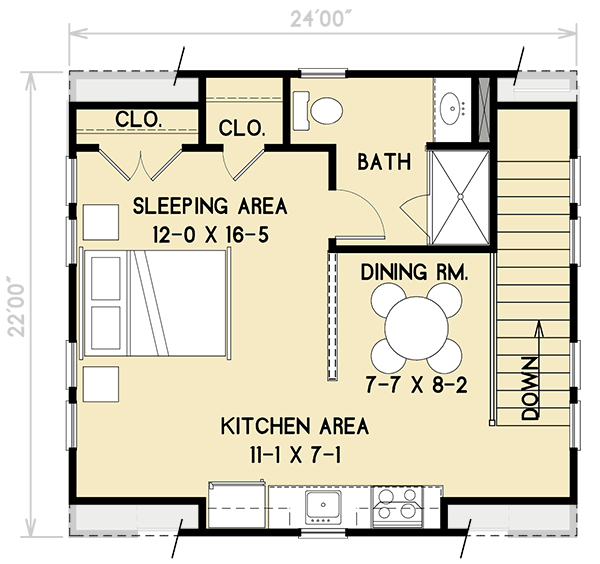

2nd Floor

Plan 31612GF: Guest Apartment Above a Detached 2-car Garage - Floor Plan - 2nd Floor - Carriage, Country, Craftsman, Traditional

Plan Details

  • This plan gives you a guest apartment built over a detached garage which could be placed behind a main house. This popular multiple occupancy lifestyle for a single-family lot is also known as an ADU for Accessory Dwelling Unit.
  • Stairs line the right side of the ground floor and take you to the 495 square foot second floor apartment suitable for an independent family member or rented to an outside occupant.
  • Related Plan: Get an alternate garage apartment/ADU with plan 31607GF.

What's Included

  • Cover Sheet: Shows typical notes and requirements.

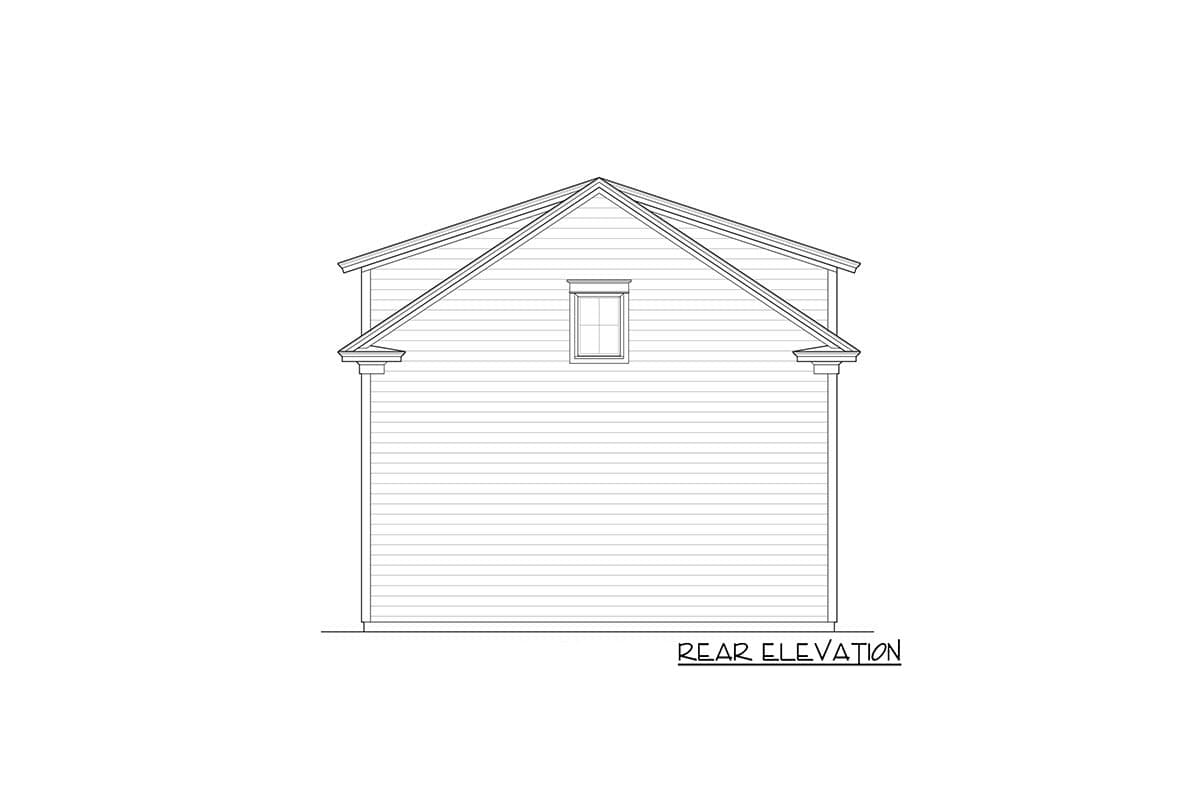

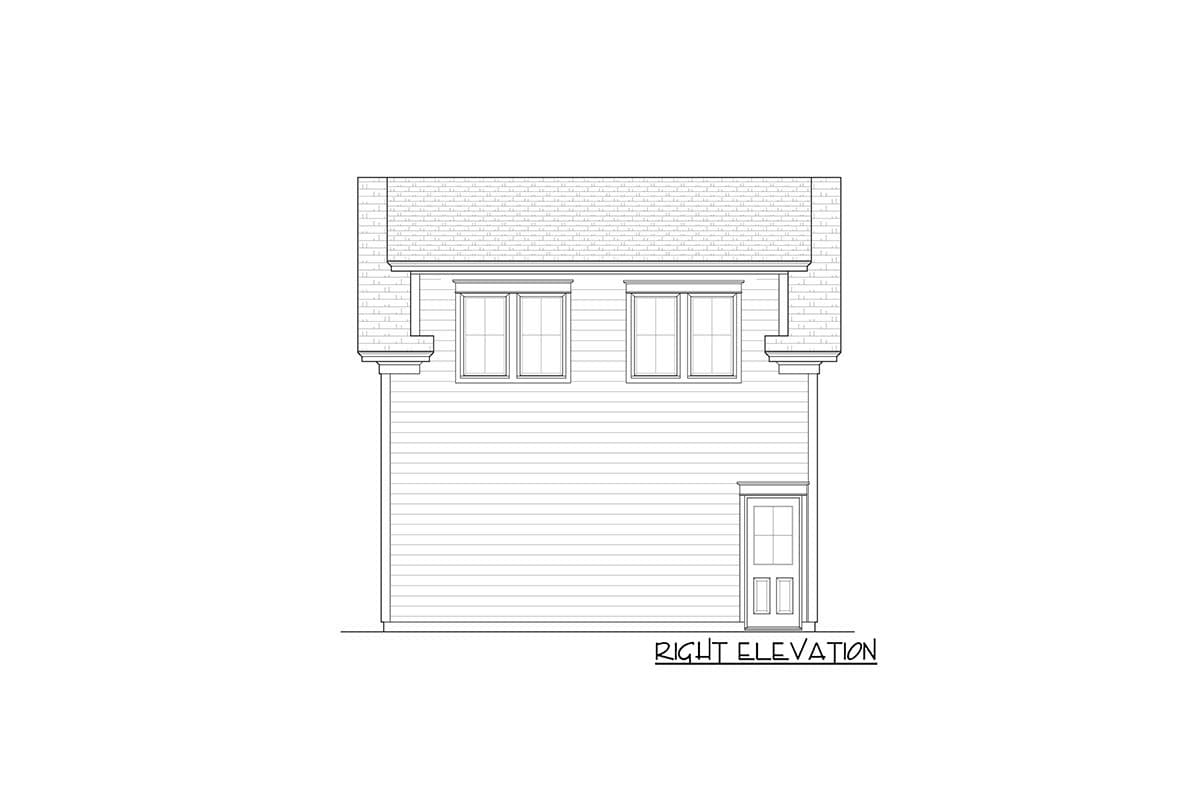

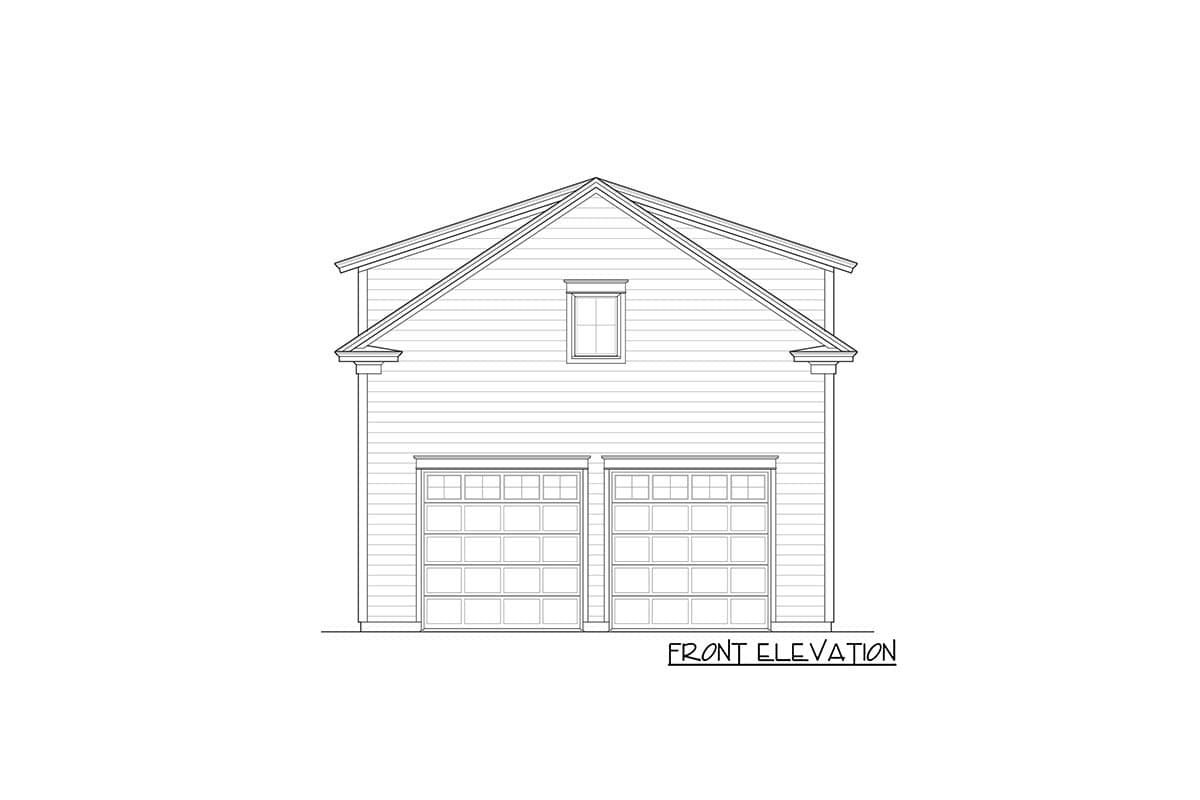

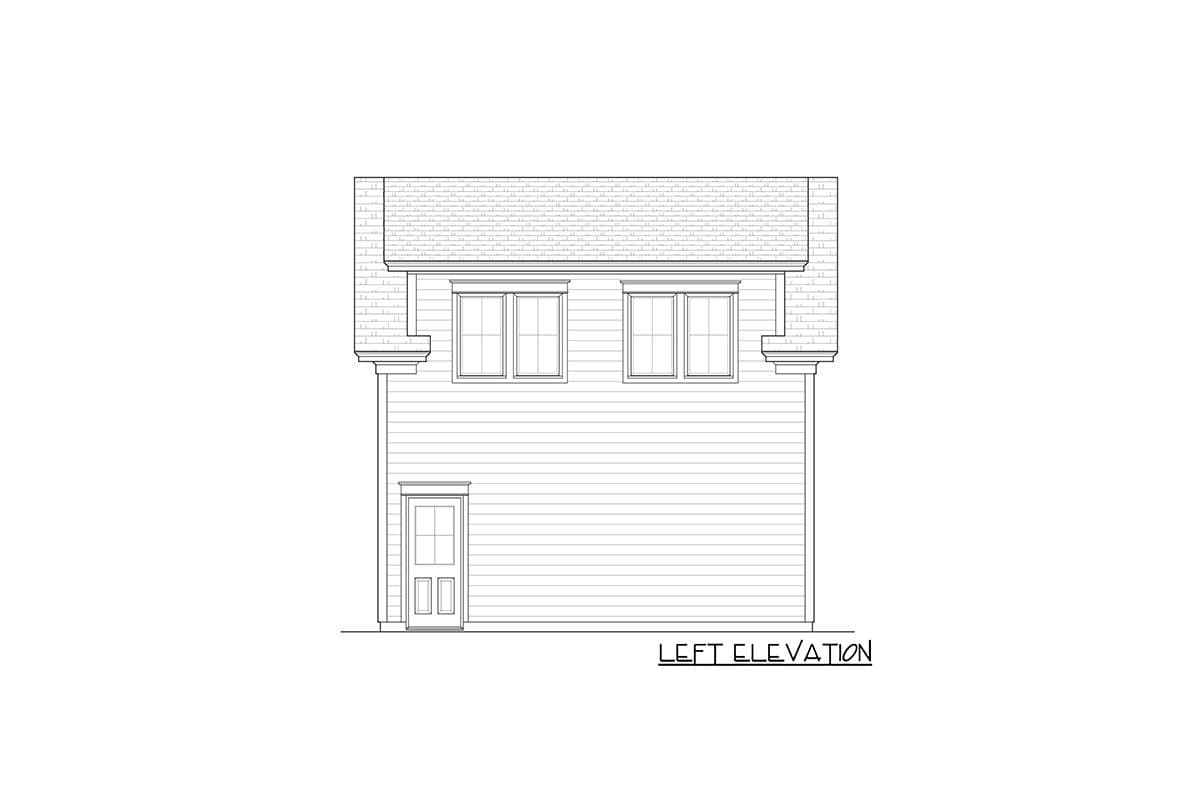

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plan: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - handled by your subcontractors
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - handled by your subcontractors
  • Energy calculations - handled locally when required
  • Electrical Layout - handled by your builder and subcontractor

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

495 sq. ft.

2nd Floor

495 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

24' 0"

Depth

22' 0"

Max Ridge Height

23' 2"

Garage

Type

Detached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Craftsman

Traditional

Special Features

Master Suite - Upstairs

Plan Collections

ADU
