Plan 62768DJ Guest House Plan with RV Garage and Upstairs Living

1,144 1 1.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Guest House Plan with RV Garage and Upstairs Living

Plan 62768DJ

  • 1,144

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 3

    Cars

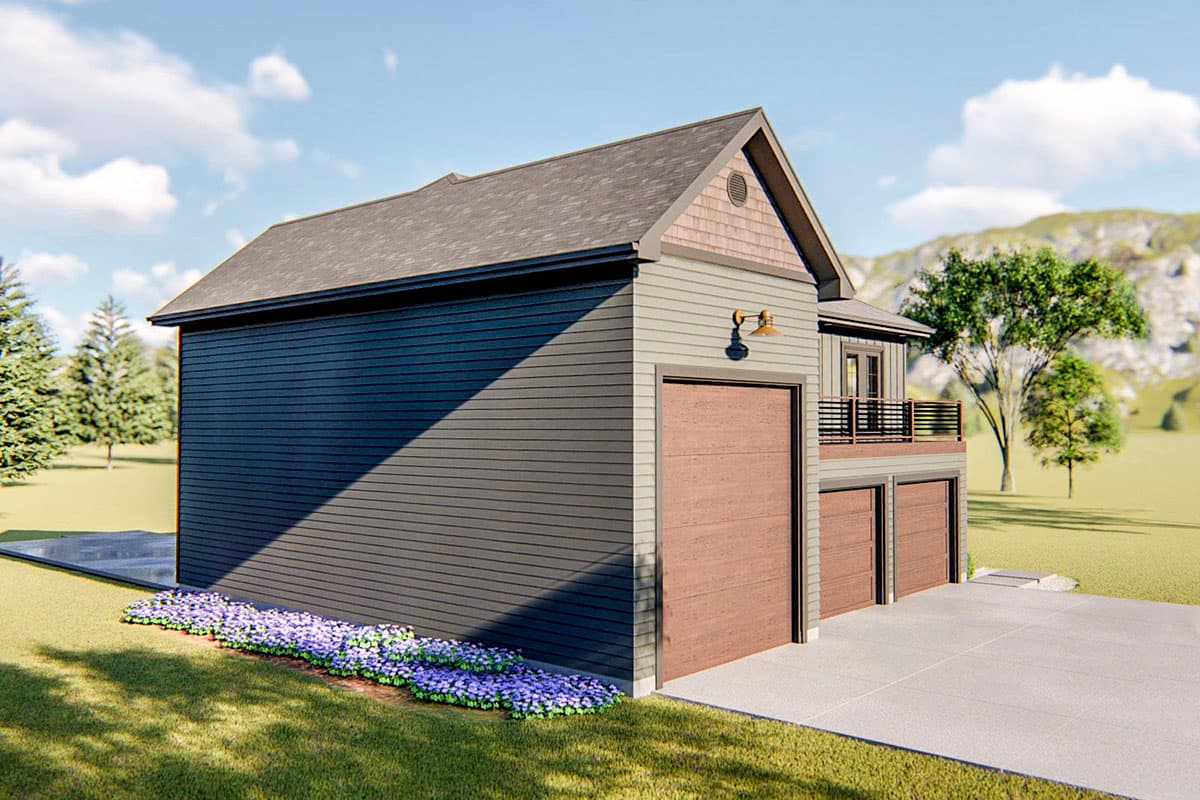

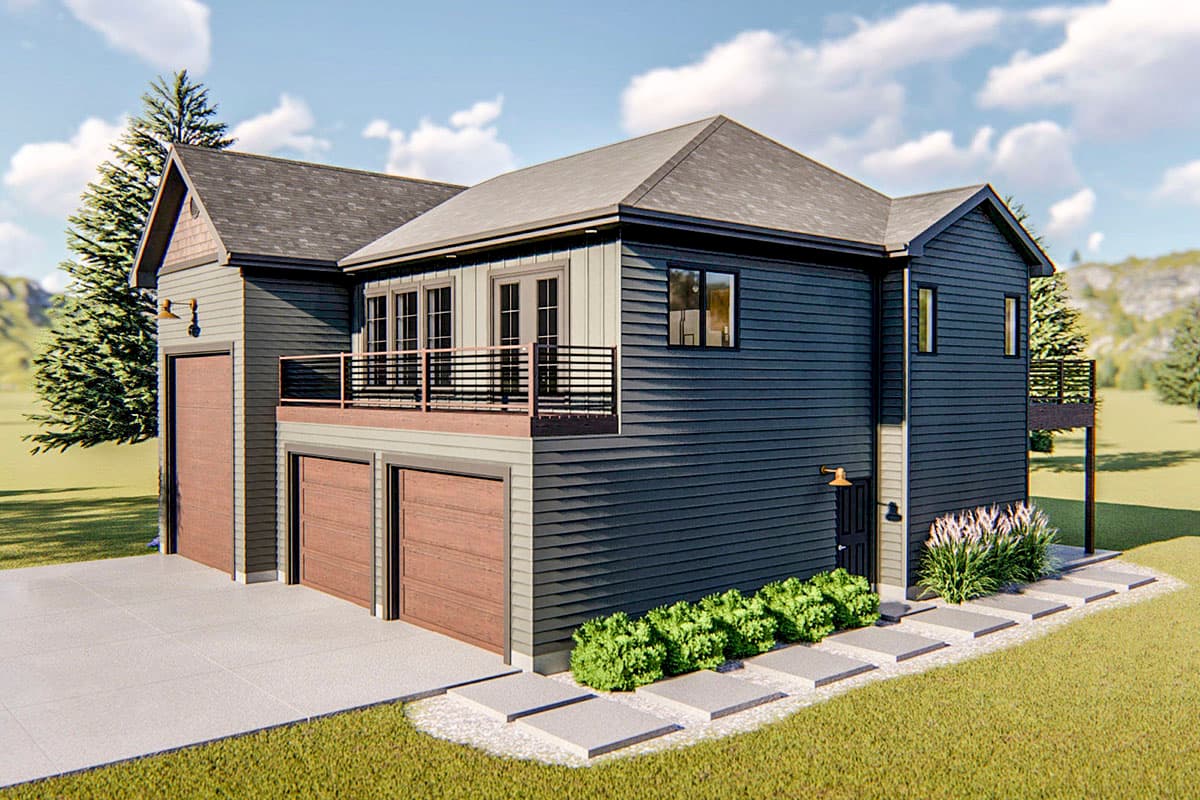

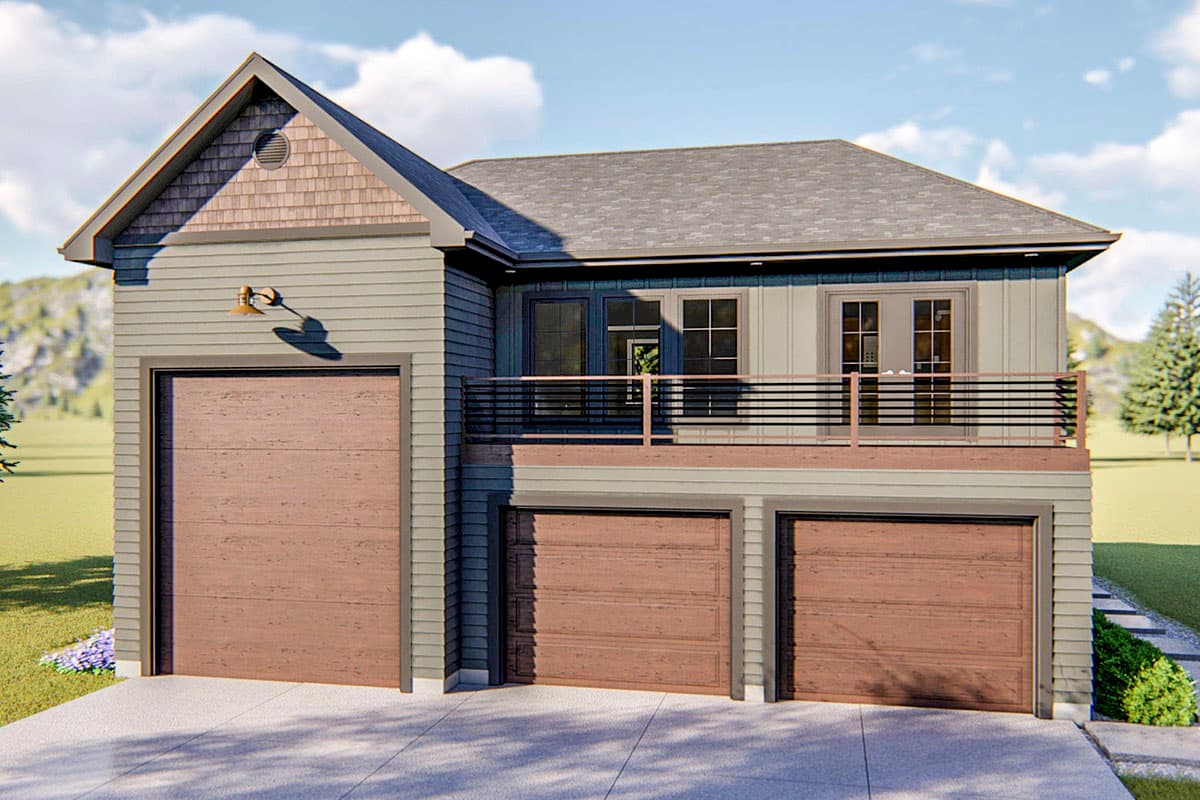

  • This house plan is great for those looking for either a guest house or a place to park your RV. Or both! The craftsman exterior gives this apartment garage a rustic feel.
  • On the main level, you'll find a 2-car garage and a pull through RV garage. Also on the main floor is a wet bar that has a bench and lockers for storage.
  • On the upper level of this garage, you will find an efficient apartment that has a full kitchen. The kitchen includes an island with a flush snack bar.

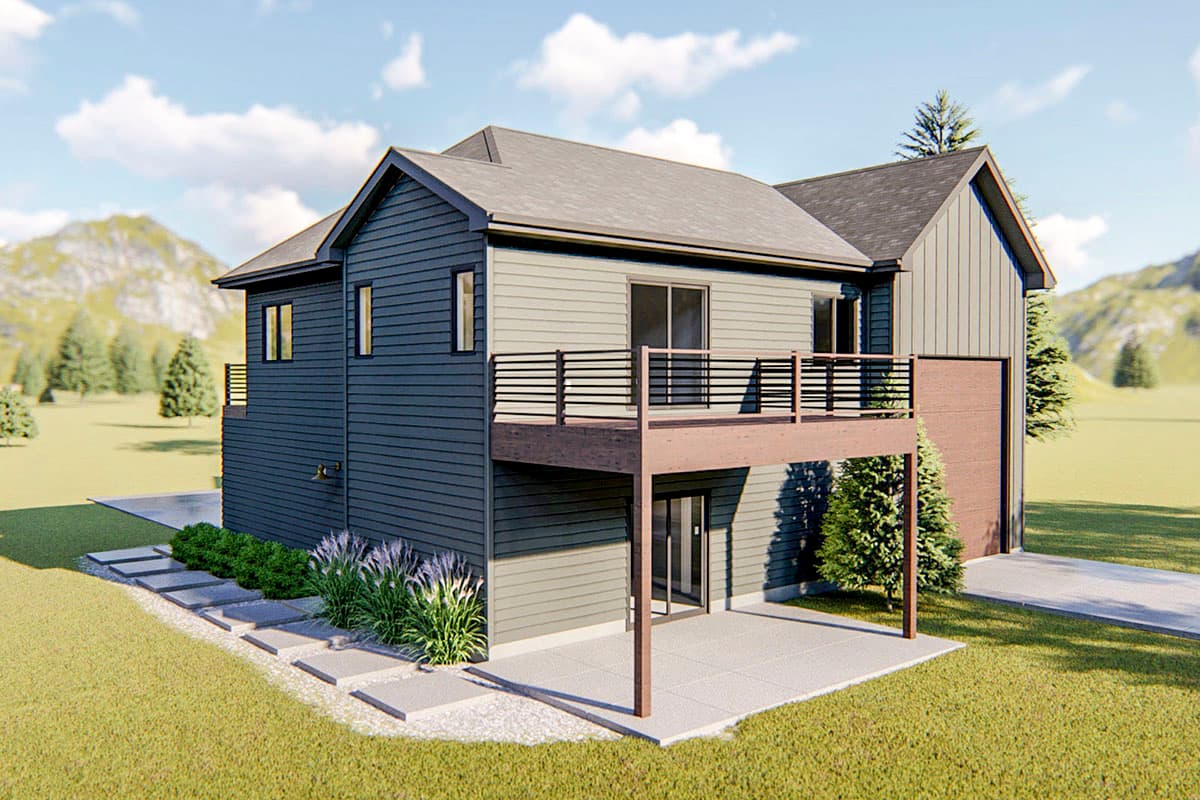

  • Enjoy your outdoor space with a large balcony off of the front of the apartment.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

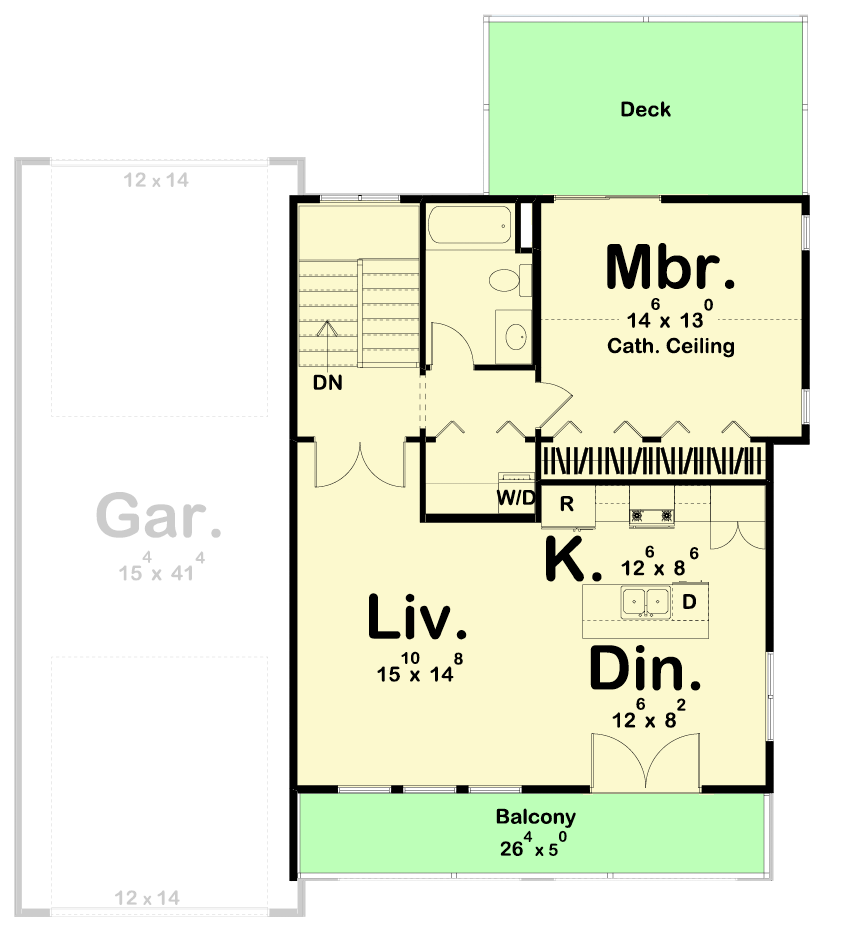

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Guest House Plan with RV Garage and Upstairs Living - 62768DJ floor plan - 2nd Floor

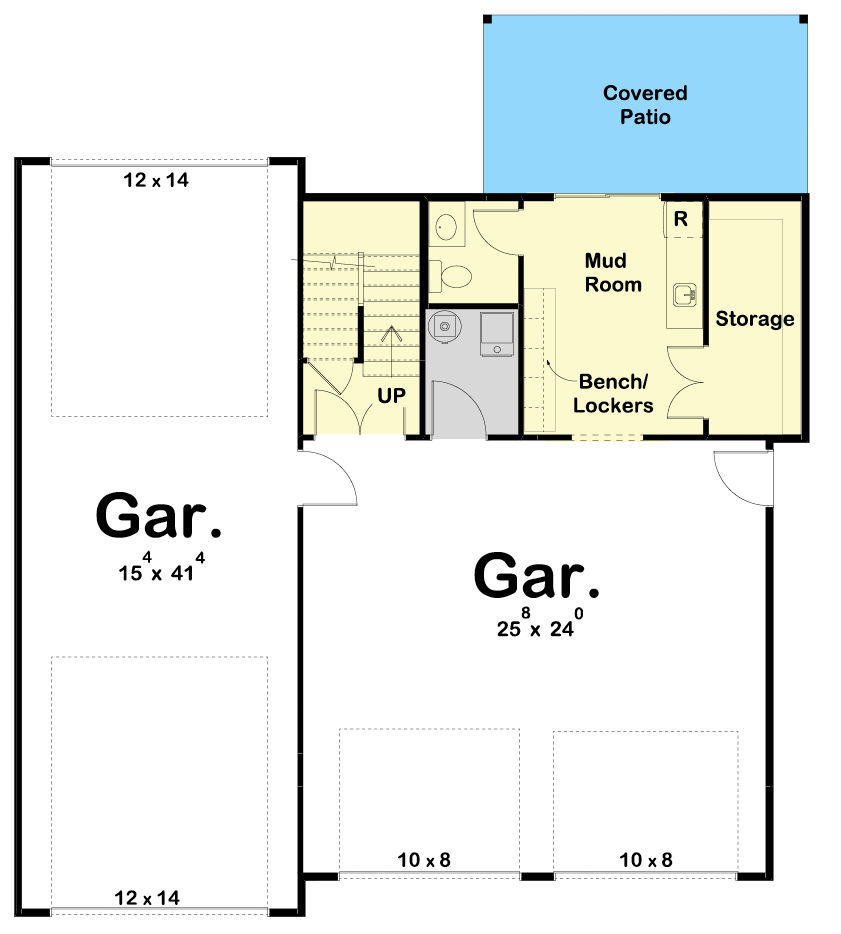

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Guest House Plan with RV Garage and Upstairs Living - 62768DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,144 sq. ft.
  • 1st Floor: 295 sq. ft.
  • 2nd Floor: 849 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 50' 0"

Garage

  • Type: RV Garage, Detached
  • Area: 1310 sq. ft.
  • Count: 3 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Architectural Style

Special features

Guest House Plan with RV Garage and Upstairs Living

  • 1,144

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets + PDF $1,350
  • PDF - Unlimited Build $1,600
  • CAD + PDF - Single-Build $1,600
  • CAD - Unlimited Build $2,100
  • View all purchase option online

About This Plan

  • This house plan is great for those looking for either a guest house or a place to park your RV. Or both! The craftsman exterior gives this apartment garage a rustic feel.
  • On the main level, you'll find a 2-car garage and a pull through RV garage. Also on the main floor is a wet bar that has a bench and lockers for storage.
  • On the upper level of this garage, you will find an efficient apartment that has a full kitchen. The kitchen includes an island with a flush snack bar.
  • Enjoy your outdoor space with a large balcony off of the front of the apartment.

Floor Plans

  • 2nd Floor

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,144 sq. ft.
  • 1st Floor: 295 sq. ft.
  • 2nd Floor: 849 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 50' 0"

Garage

  • Type: RV Garage, Detached
  • Area: 1310 sq. ft.
  • Count: 3 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
