Plan 42816MJ

Guest or In-Law Suite

Heated S.F.
3,386
Beds
4 - 5
Baths
3 - 4
Stories
1-2
Cars
2

Floor Plan

Plan 42816MJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42816MJ

M-F 9am-5pm EST |

1-203-761-8500

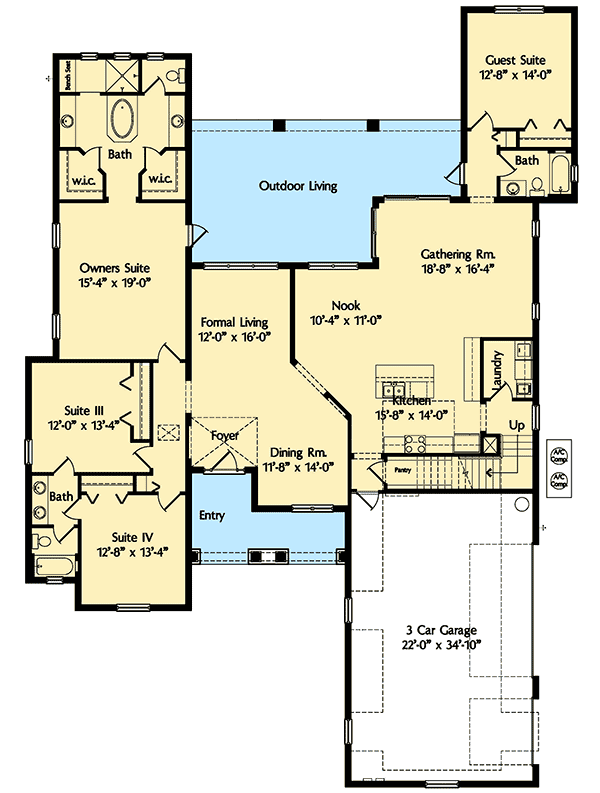

Main Level

Plan 42816MJ: Guest or In-Law Suite - Floor Plan - Main Level - European, Mediterranean, Spanish

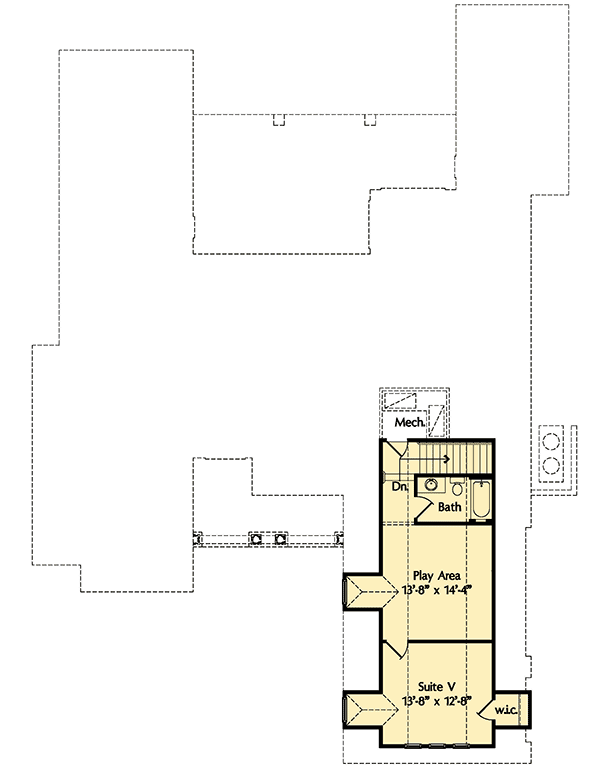

2nd Floor

Plan 42816MJ: Guest or In-Law Suite - Floor Plan - 2nd Floor - European, Mediterranean, Spanish

Plan Details

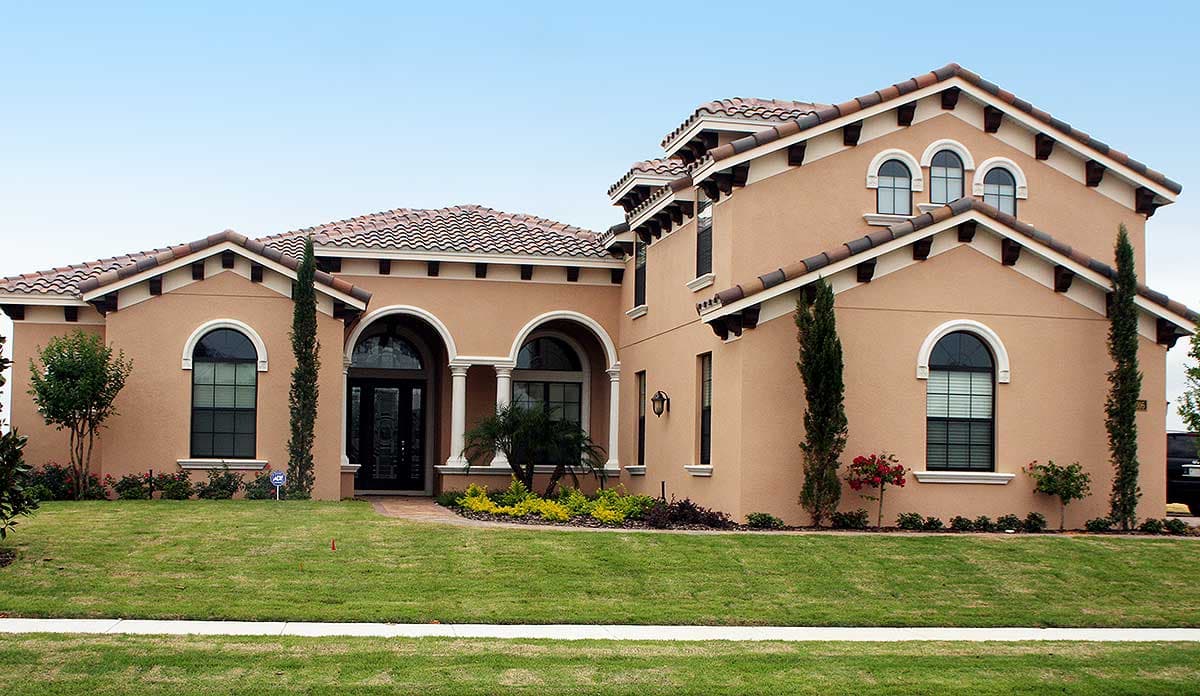

  • Arches and a clay tile roof accentuate this beautiful Mediterranean home plan.
  • Both the formal and informal areas of the home have an open layout.
  • Guests or in-laws have their own private space off to the rear.
  • Windows all along the back of the home overlook the rear covered outdoor living area.
  • A spacious owner's suite is your reward at the end of a hard day.
  • An extra bedroom, bath and playroom can be found on the second floor.
  • This too would function well as an in-law suite.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,386 sq. ft.

1st Floor

2,979 sq. ft.

2nd Floor

407 sq. ft.

Porch, Combined

504 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

66' 8"

Depth

94' 4"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

752 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Architectural Style

European

Mediterranean

Spanish

Special Features

Bedrooms - Clustered

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Playroom

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,386 sq. ft.

1st Floor

2,979 sq. ft.

2nd Floor

407 sq. ft.

Porch, Combined

504 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

66' 8"

Depth

94' 4"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

752 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Architectural Style

European

Mediterranean

Spanish

Special Features

Bedrooms - Clustered

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Playroom

Walk-in Pantry

Plan Collections

Photo Gallery
