Handsome Craftsman House Plan with Vaulted Entry and Ornamental Beams

Plan 720039DA

  • 3,644

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This handsome Craftsman house plan with its blend of lap siding, shingles, and stone. Slender posts with bold stone bases frame the front covered porch creating a welcoming first impression. Inside the vaulted entry feels spacious.
  • Ornamental dropped beams and posts provide some visual separation of the dining room that is immediately to the left of the entry. The back of the floor plan is open and features a vaulted great room with double sliding glass doors along the rear wall which opens the room up to the covered patio beyond. A fireplace is framed with built-ins and can also be enjoyed in the kitchen which is only visually separated with additional dropped beams and a large island with eating bar. The kitchen is large and well-appointed - a space any home chef would be happy to work in. Steps away is a generous sized walk-in pantry.
  • Other features of note on the main floor master suite which features vaulted ceilings, direct access to the back patio and a luxurious private bathroom with large walk-in closets.
  • On the opposite side of the house is a vaulted study/suite and can be set up to meet the homeowners' needs. This suite makes an ideal second master bedroom as it features direct patio access, a walk-in closet, and private bathroom.
  • Upstairs, two additional bedrooms make share a common area.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

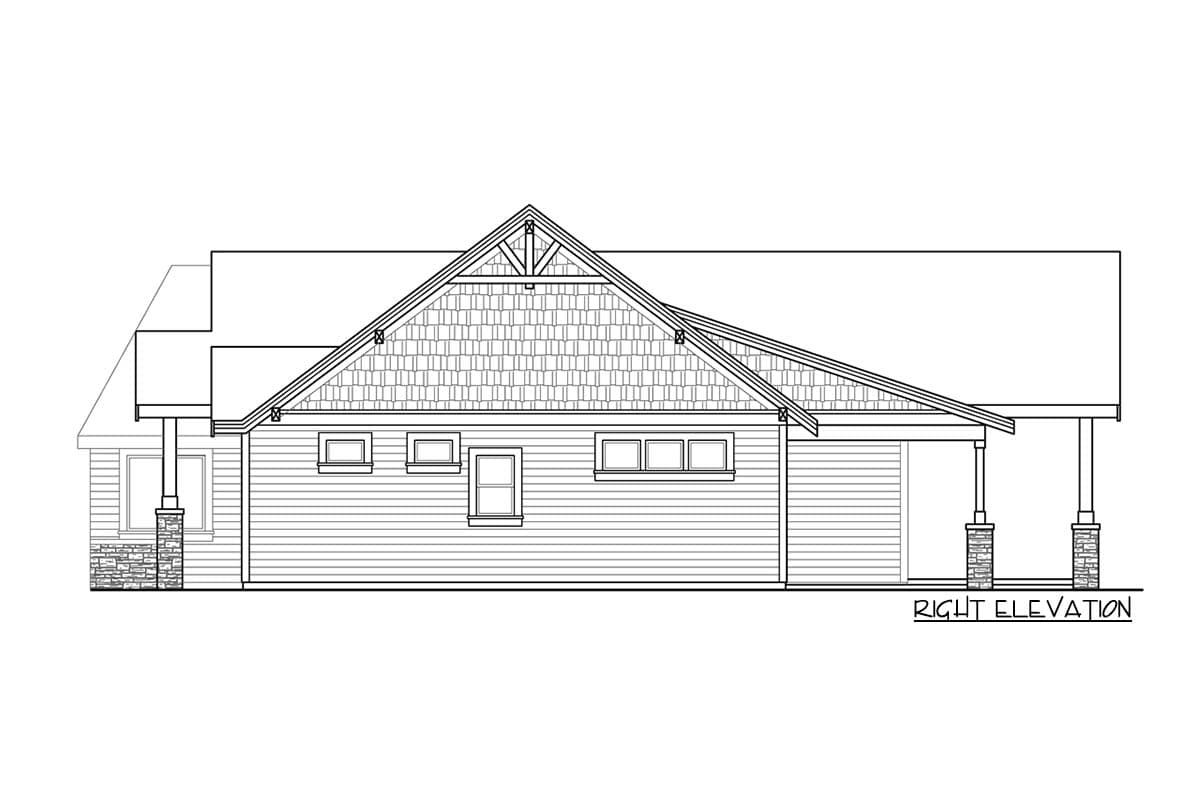

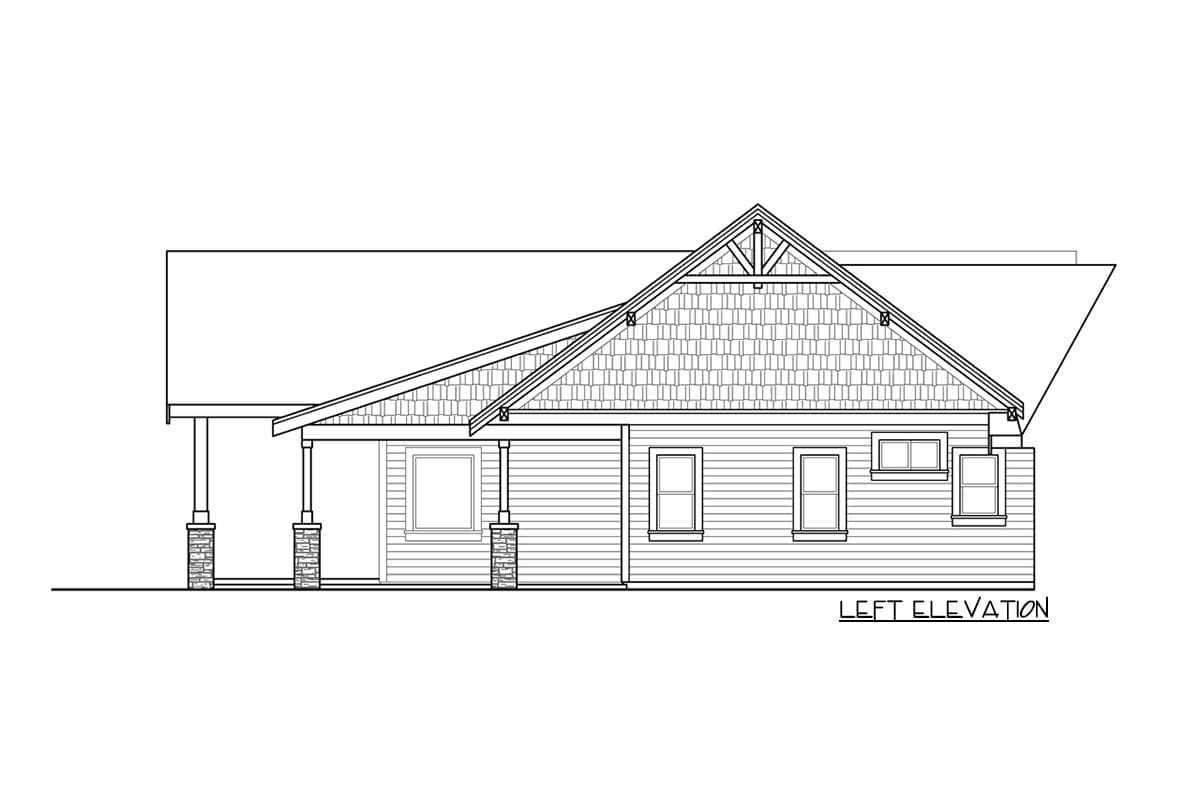

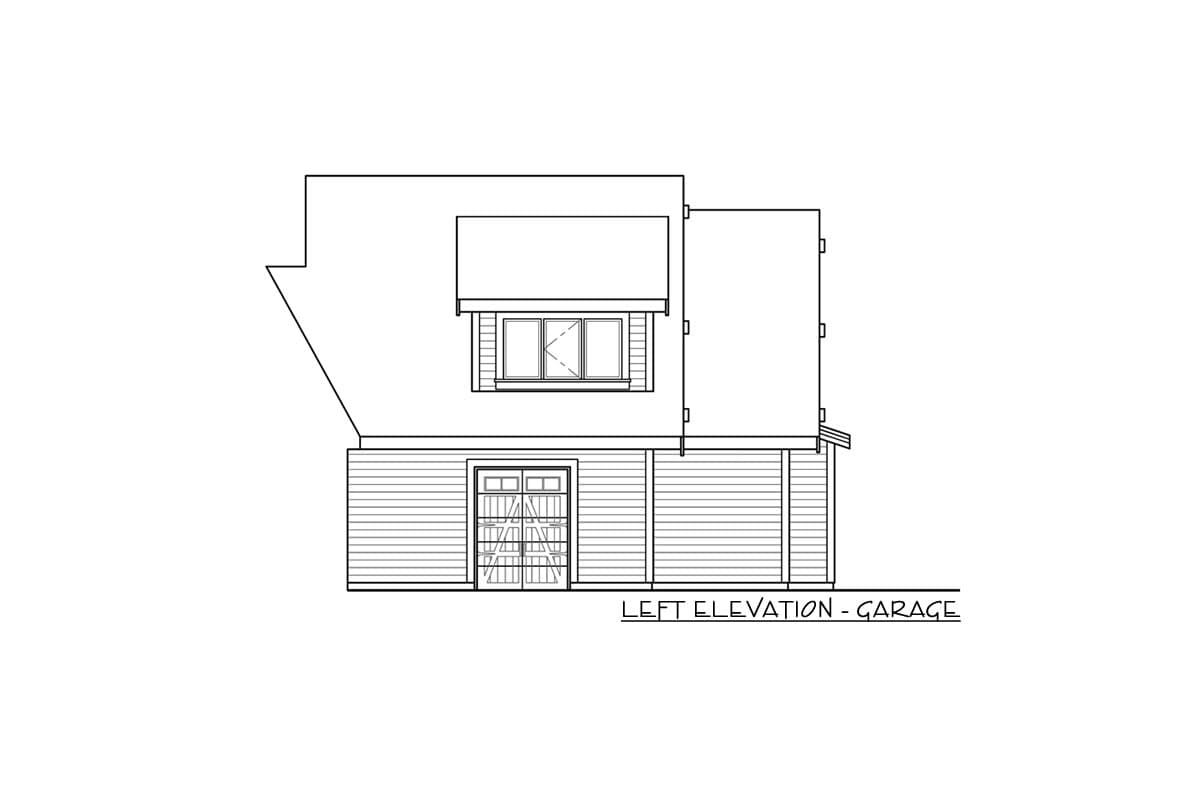

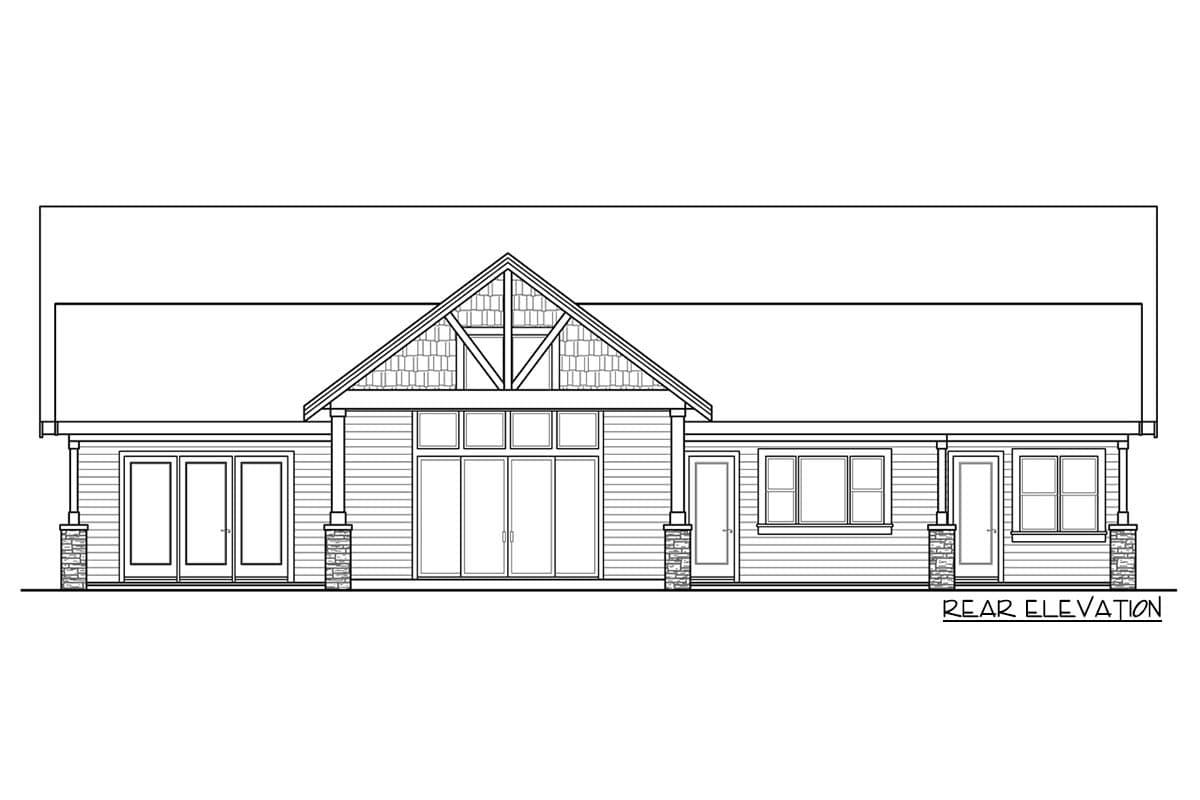

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

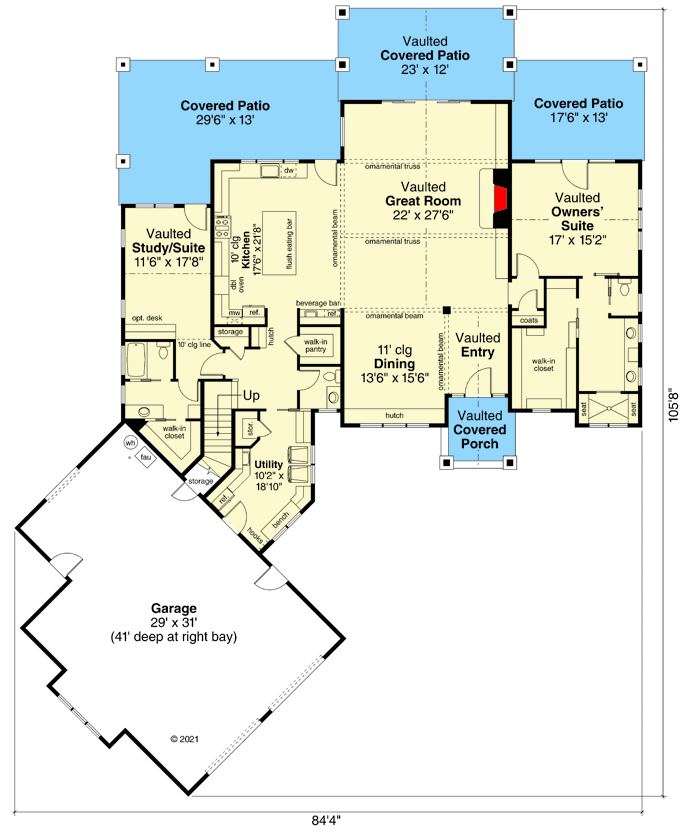

Handsome Craftsman House Plan with Vaulted Entry and Ornamental Beams - 720039DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

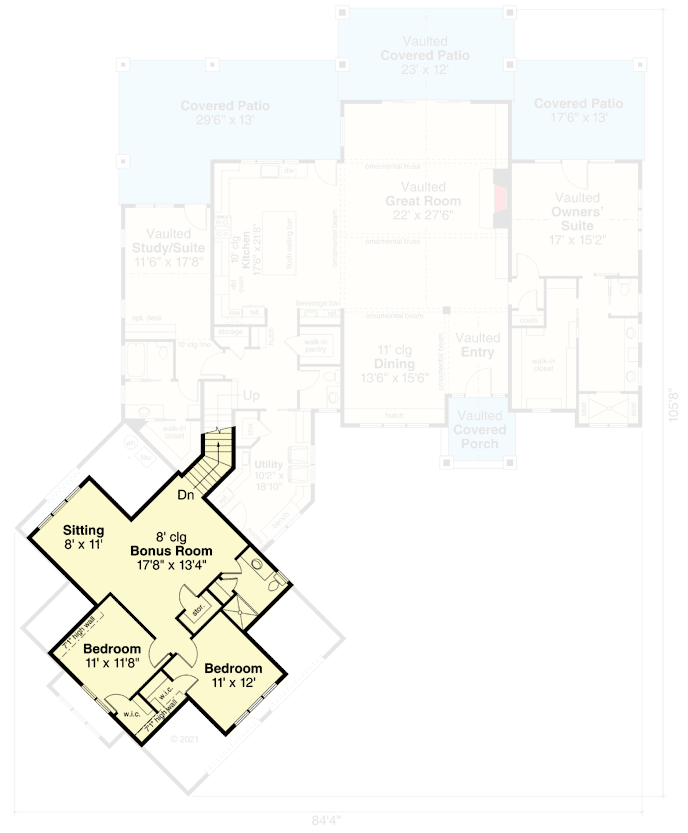

Handsome Craftsman House Plan with Vaulted Entry and Ornamental Beams - 720039DA floor plan - 2nd Floor

Handsome Craftsman House Plan with Vaulted Entry and Ornamental Beams

  • 3,644

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,644 sq. ft.
  • 1st Floor: 2,828 sq. ft.
  • 2nd Floor: 816 sq. ft.

Dimensions

  • Width: 84' 5"
  • Depth: 105' 10"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1193 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Handsome Craftsman House Plan with Vaulted Entry and Ornamental Beams

  • 3,644

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Handsome Craftsman House Plan with Vaulted Entry and Ornamental Beams

  • 3,644

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,644 sq. ft.
  • 1st Floor: 2,828 sq. ft.
  • 2nd Floor: 816 sq. ft.

Dimensions

  • Width: 84' 5"
  • Depth: 105' 10"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1193 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick And Truss
