Handsome Traditional Triplex - 1651 Sq Ft 3 Bedroom Units

Heated S.F.
4,953
Units
3
Width
Depth

Floor Plan

Plan 83136DC

Main Level
Main Level
2nd Floor
2nd Floor

Plan 83136DC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

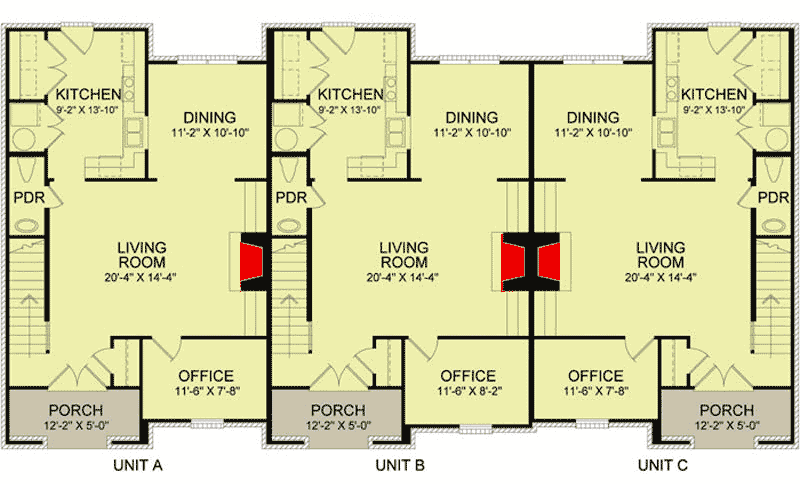

Plan 83136DC: Handsome Traditional Triplex - 1651 Sq Ft 3 Bedroom Units - Floor Plan - Main Level - European, Traditional

2nd Floor

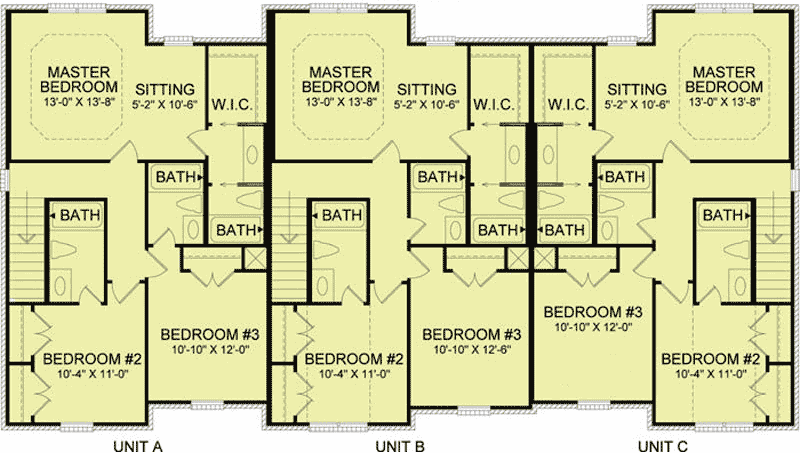

Plan 83136DC: Handsome Traditional Triplex - 1651 Sq Ft 3 Bedroom Units - Floor Plan - 2nd Floor - European, Traditional

Plan Details

  • Each unit in this handsome triplex has an elegant arched front door and beautiful decorative shutters
  • Each of the three units has 794 square feet on the first floor and 857 square feet on the second floor for a total living area per unit of 1,651 square feet.
  • Related Plan: Get an alternate 3-unit plan with 83135DC (2,686 square feet) and get 4 units with plan 83134DC.
Unit A
Heated Area
1,651Sq. Ft.
794 Sq. Ft. 1st
857 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
1Half Bath
Dimensions
24'width
38'depth
Unit B
Heated Area
1,651Sq. Ft.
794 Sq. Ft. 1st
857 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
24'width
38'depth
Unit C
Heated Area
1,651Sq. Ft.
794 Sq. Ft. 1st
857 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
24'width
38'depth

What's Included

  • Foundation Plan- includes your choice of concrete slab, crawl space or basment (when available).
  • Detailed Floor Plans- includes the placement of interior walls, room dimensions, doors, windows, fireplace and stairway location (if applicable), and electrical outlet locations.
  • Exterior Elevations- includes the front, rear and sides of the house with detailed measurement and exterior material requirements.
  • Cabinet Details- includes details of all cabinets, fireplaces, built-in unites and other interior features.
  • Cross Sections- includes cross section details of the home, flooring, insulation and roofing construction.
  • Roof Plans- includes rafter, dormer, gable and other feature layouts.
  • Specifications- includes recommendations for materials and equipment such as structural specifications, masonry work, concrete work, wood specifications, excavating and grading, drywall, floor, caulking, glazing and sealants.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,953 sq. ft.

1st Floor

2,382 sq. ft.

2nd Floor

2,571 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

8

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

24' 0"

Depth

38' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Architectural Style

European

Traditional

Special Features

Home Office

Laundry - Main Level

Master Suite - Sitting Area

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

4,953 sq. ft.

1st Floor

2,382 sq. ft.

2nd Floor

2,571 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

8

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

24' 0"

Depth

38' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Architectural Style

European

Traditional

Special Features

Home Office

Laundry - Main Level

Master Suite - Sitting Area

Master Suite - Upstairs
