Plan 80586PM

Handsome Tri-Plex

Heated S.F.

4,434

Units

3

Width

34'

Depth

46' 6"

What's Included

Floor Plan

Basement

Reverse Floor Plan

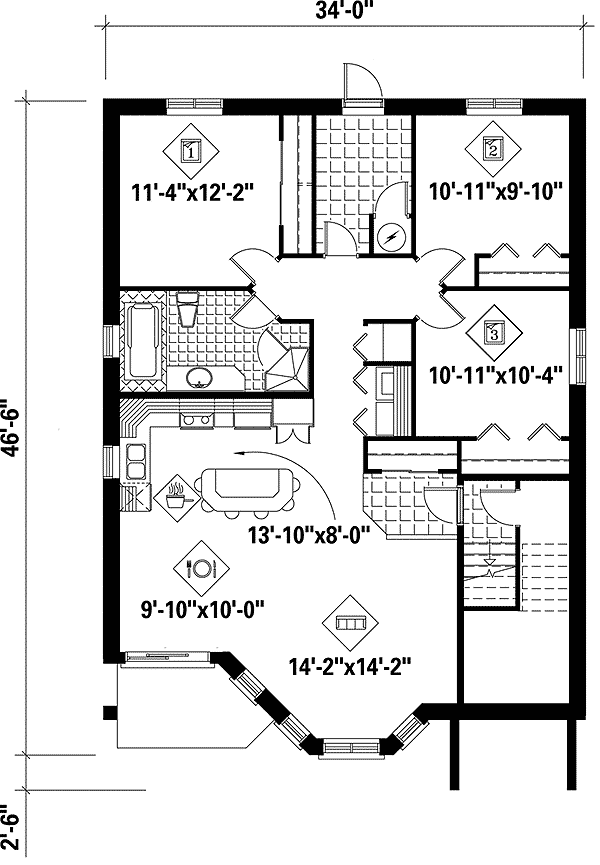

Handsome Tri-Plex - 80586PM floor plan - Basement

Main Level

Reverse Floor Plan

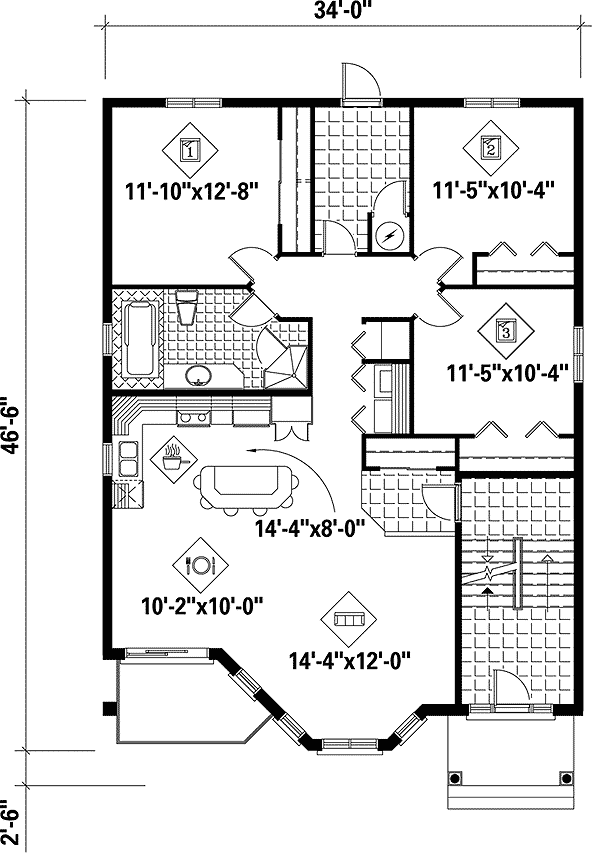

Handsome Tri-Plex - 80586PM floor plan - Main Level

2nd Floor

Reverse Floor Plan

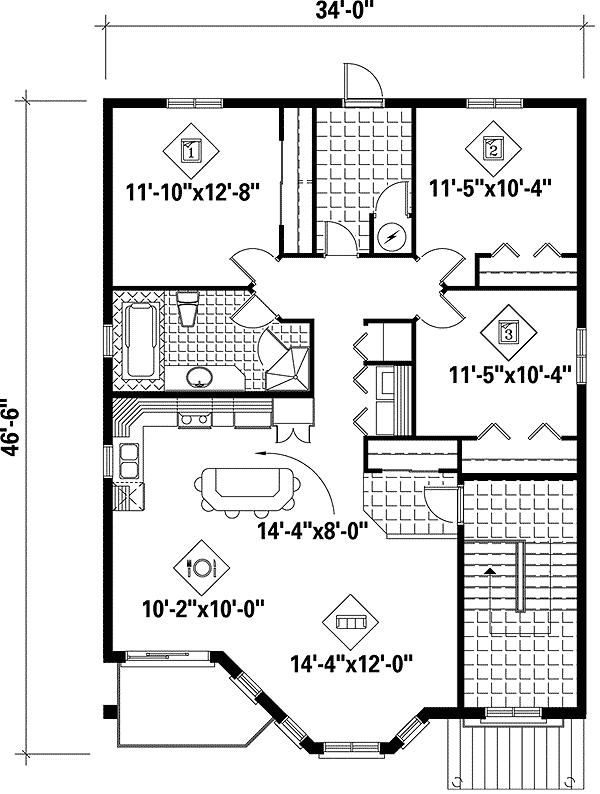

Handsome Tri-Plex - 80586PM floor plan - 2nd Floor

Plan Details

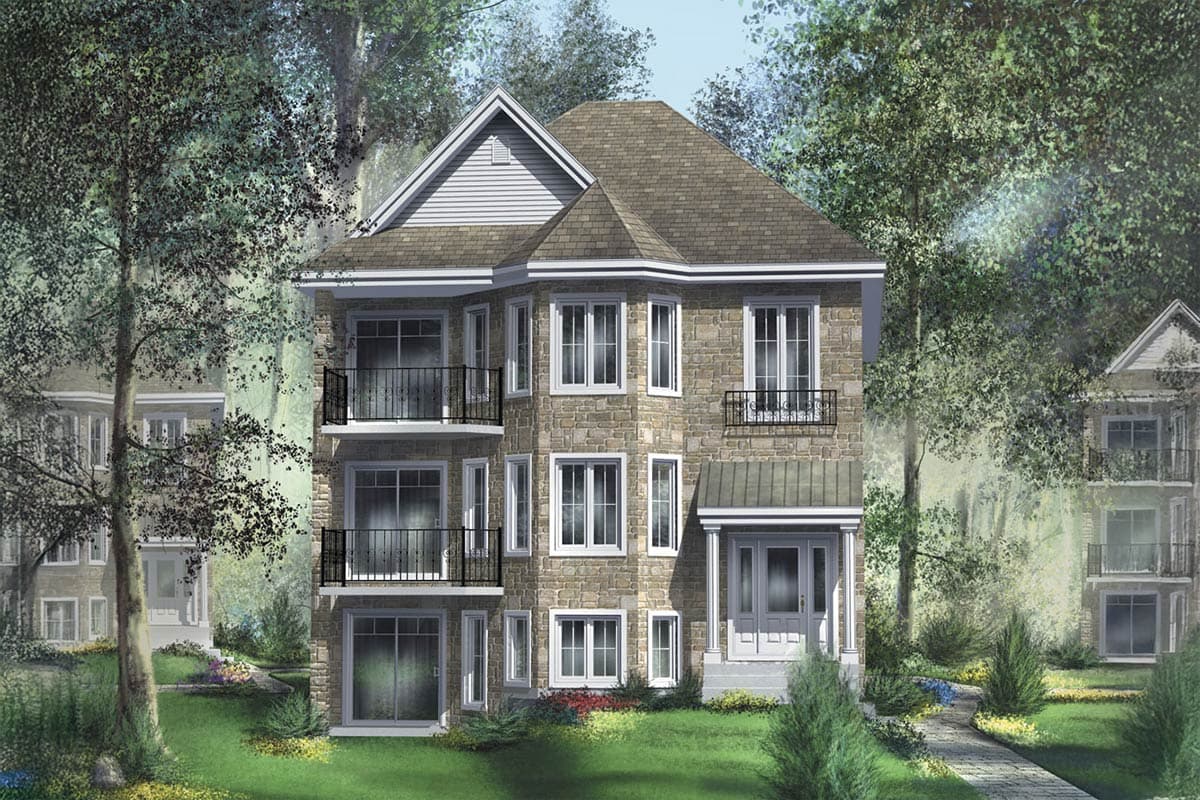

The handsome stone exterior and wrought-iron railings give this tri-plex home plan an attractive look.
Each unit has a bay window to extend the living room space.
The open floor plan makes the living space seem even larger.
All three bedrooms are in the back for quiet and a huge hall bathroom is shared by all.
The upper units have a balcony while the basement unit has a sliding glass door to a terrace.

Unit A

1,478 Sq. Ft.

1478 Sq. Ft. 1st Floor

3 Beds

1 Full Bath

34' w 46' d 44' h

Unit B

1,478 Sq. Ft.

1478 Sq. Ft. 2nd Floor

3 Beds

1 Full Bath

34' w 46' d 44' h

Unit C

1,478 Sq. Ft.

1478 Sq. Ft. Lower Level

3 Beds

1 Full Bath

34' w 46' d 44' h

What's Included

Please note this plan is designed to the National Building Code of Canada.

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

4,434 sq. ft.

Lower Level:

1,478 sq. ft.

1st Floor:

1,478 sq. ft.

2nd Floor:

1,478 sq. ft.

Beds/Baths

Bedrooms:

9

Full bathrooms:

3

Foundation Type

Standard Foundations:

Daylight

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

34' 0"

Depth:

46' 6"

Max Ridge Height:

44' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type:

Truss

Special Features

Master Suite - 1st Floor
