Plan 52555WM

harming Ranch House Plan with 3 Bedrooms, Mudroom, and 2-Car Garage

Heated S.F.
1,480
Beds
3
Baths
2.5
Stories
1
Cars
2

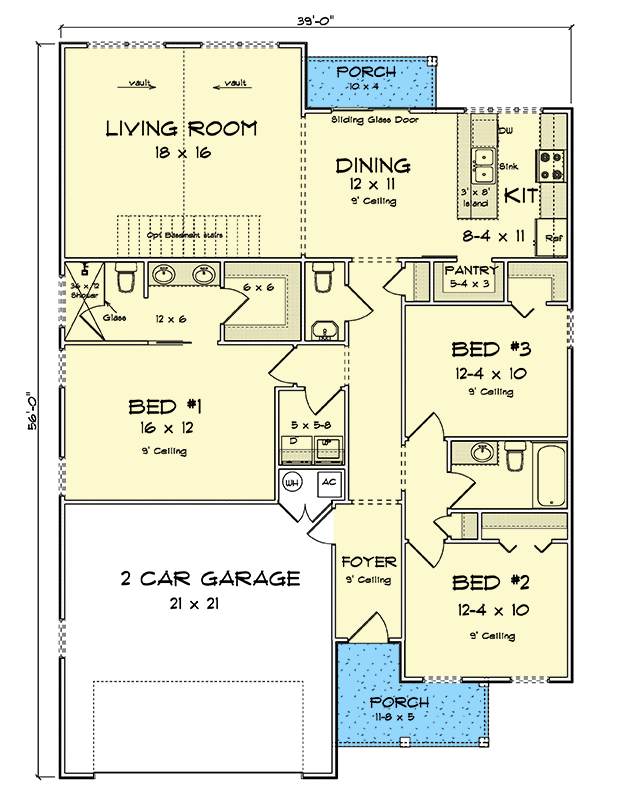

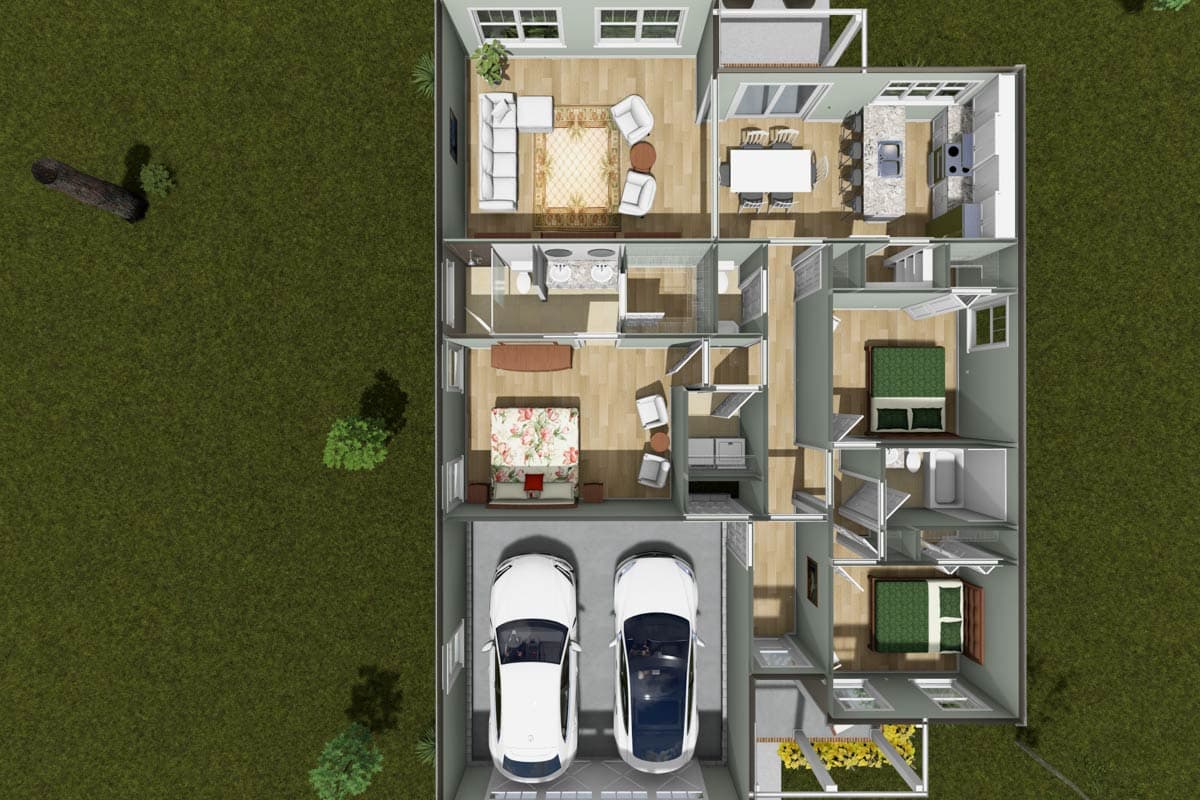

Floor Plan

Plan 52555WM

Main Level
Main Level

Plan 52555WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52555WM: harming Ranch House Plan with 3 Bedrooms, Mudroom, and 2-Car Garage - Floor Plan - Main Level - Ranch, Traditional

Plan Details

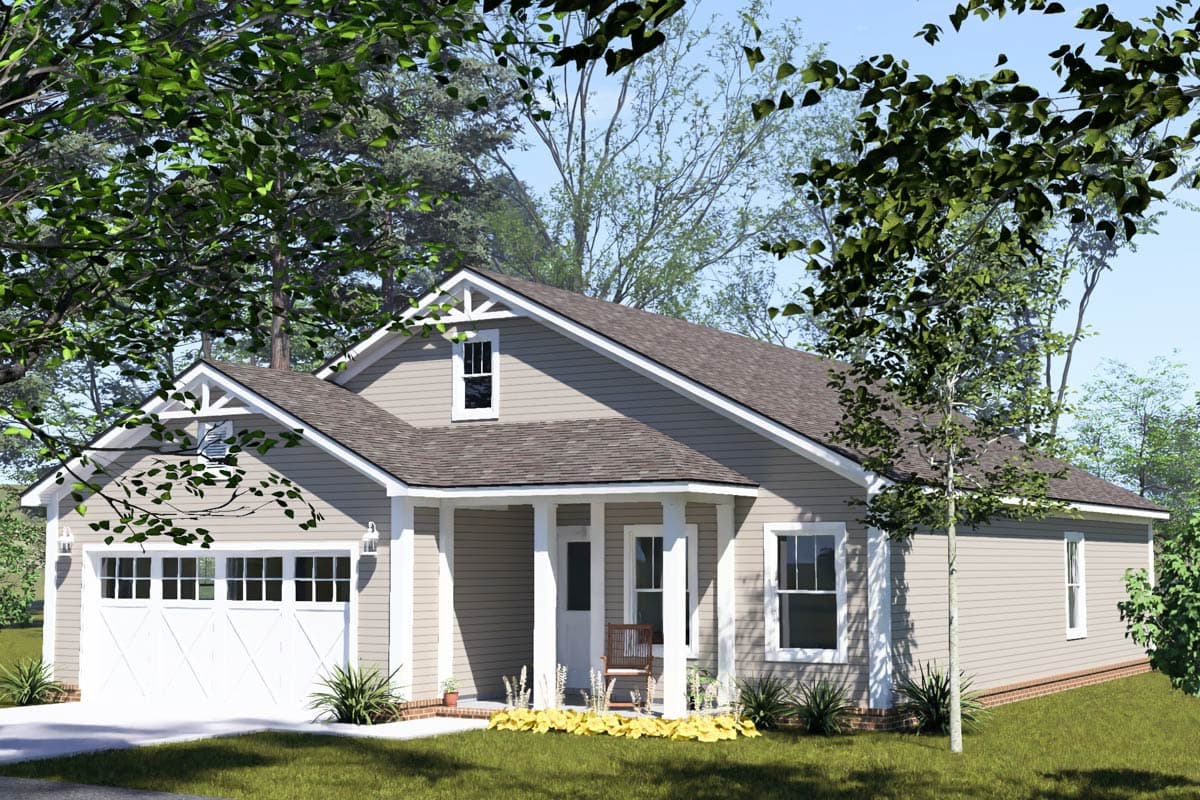

  • This Traditional Ranch house plan spans 1,480 finished sq ft, featuring 3 bedrooms, 2.5 baths, and a 455 sq ft, 2-car front-entry garage.

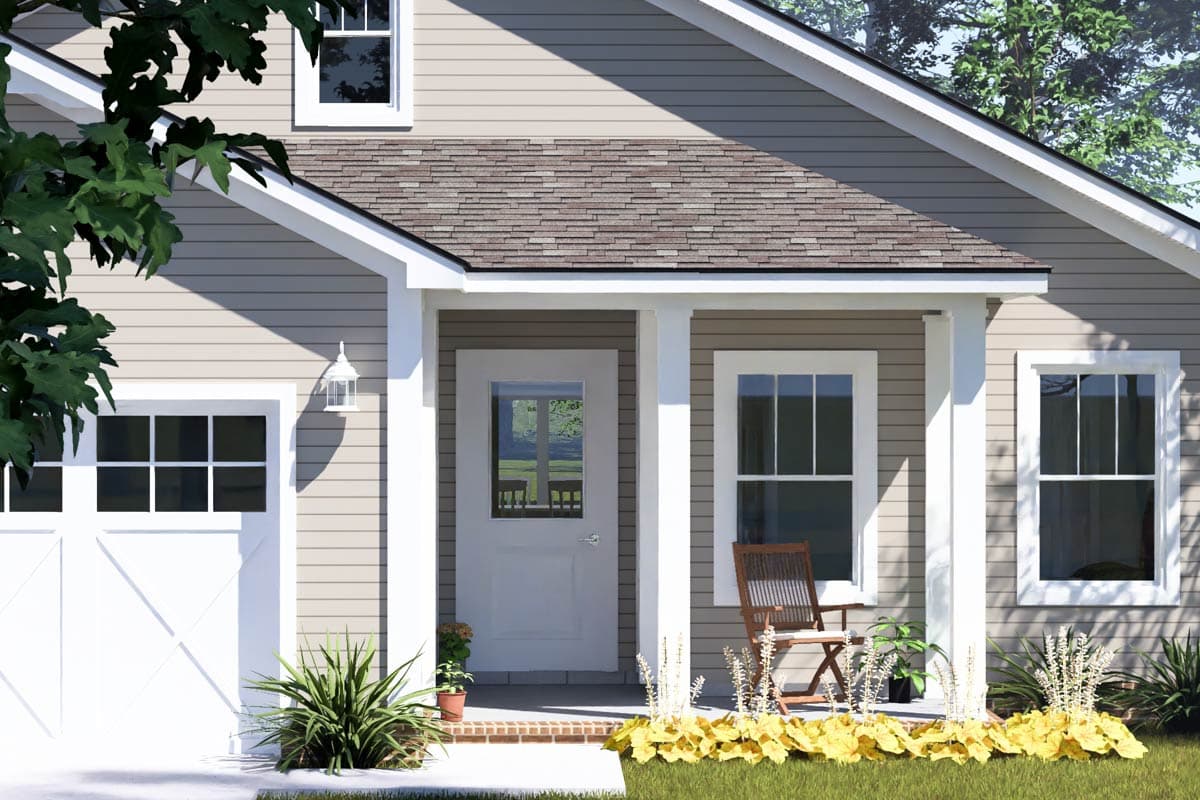

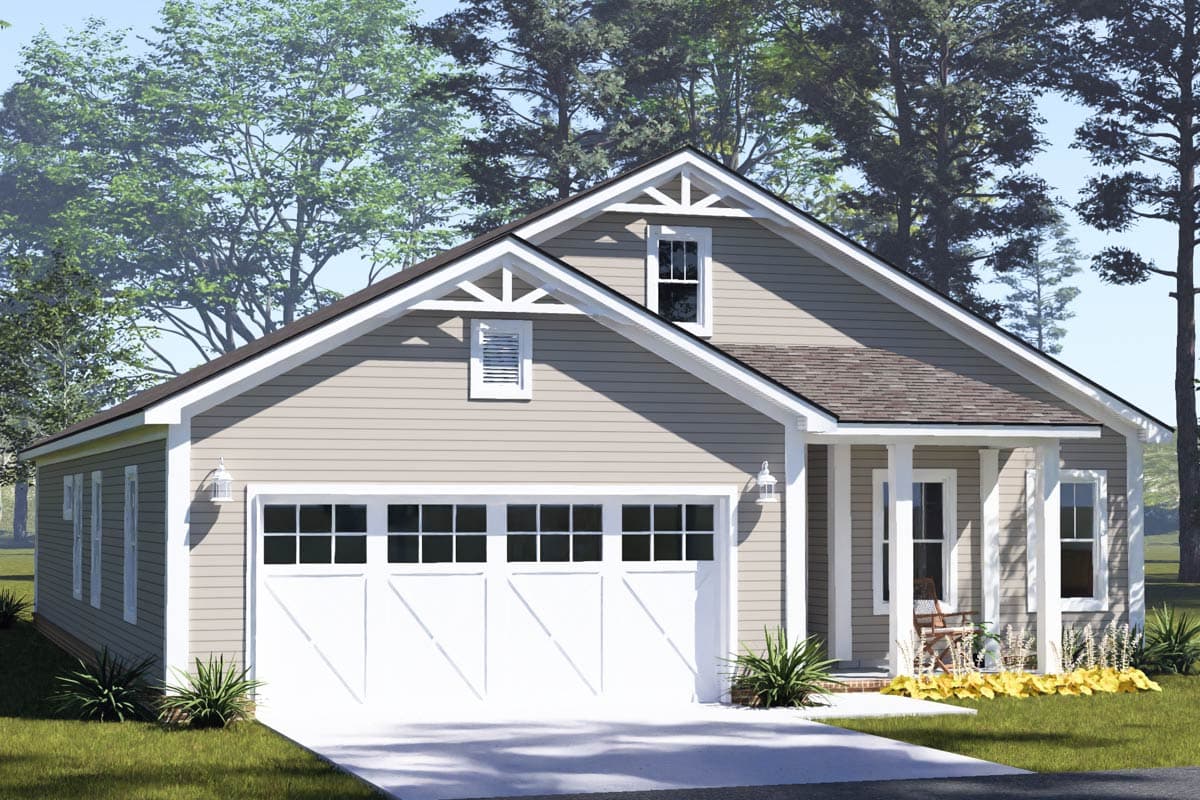

  • A welcoming 73 sq ft front porch invites you into a practical single-level layout, complete with a convenient mudroom upon entry.

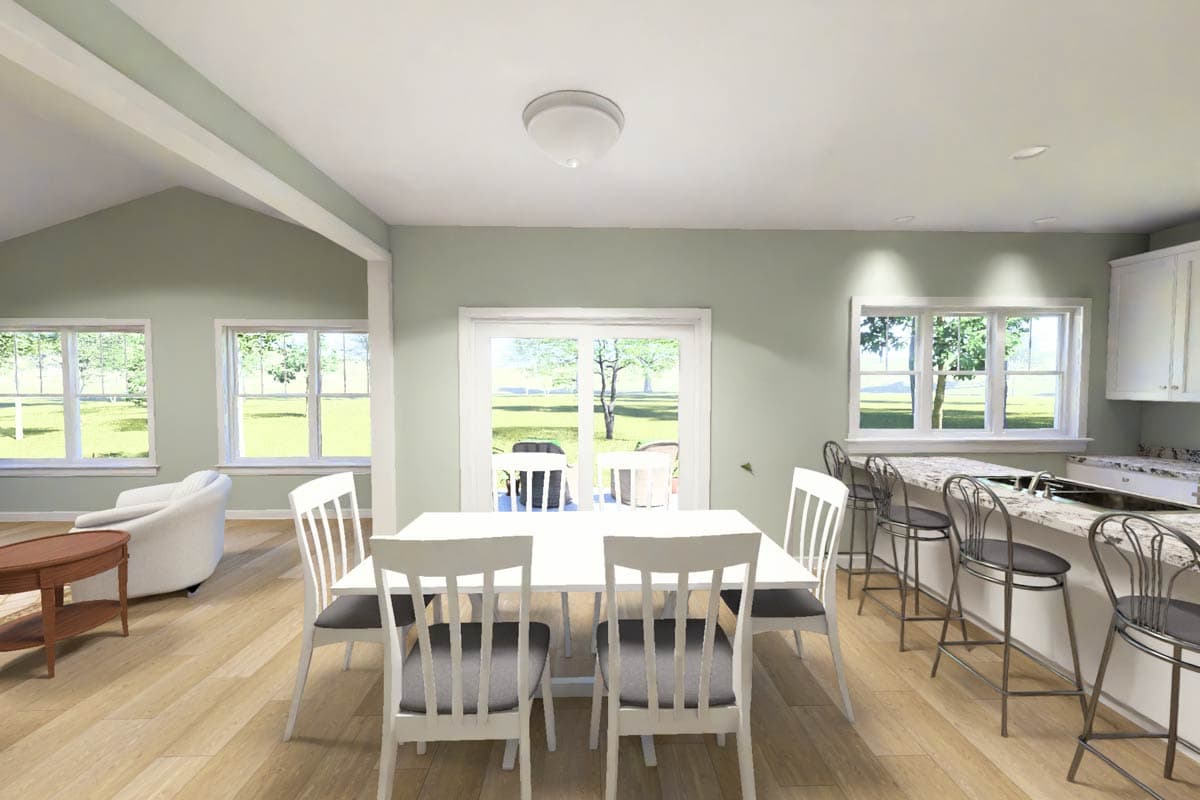

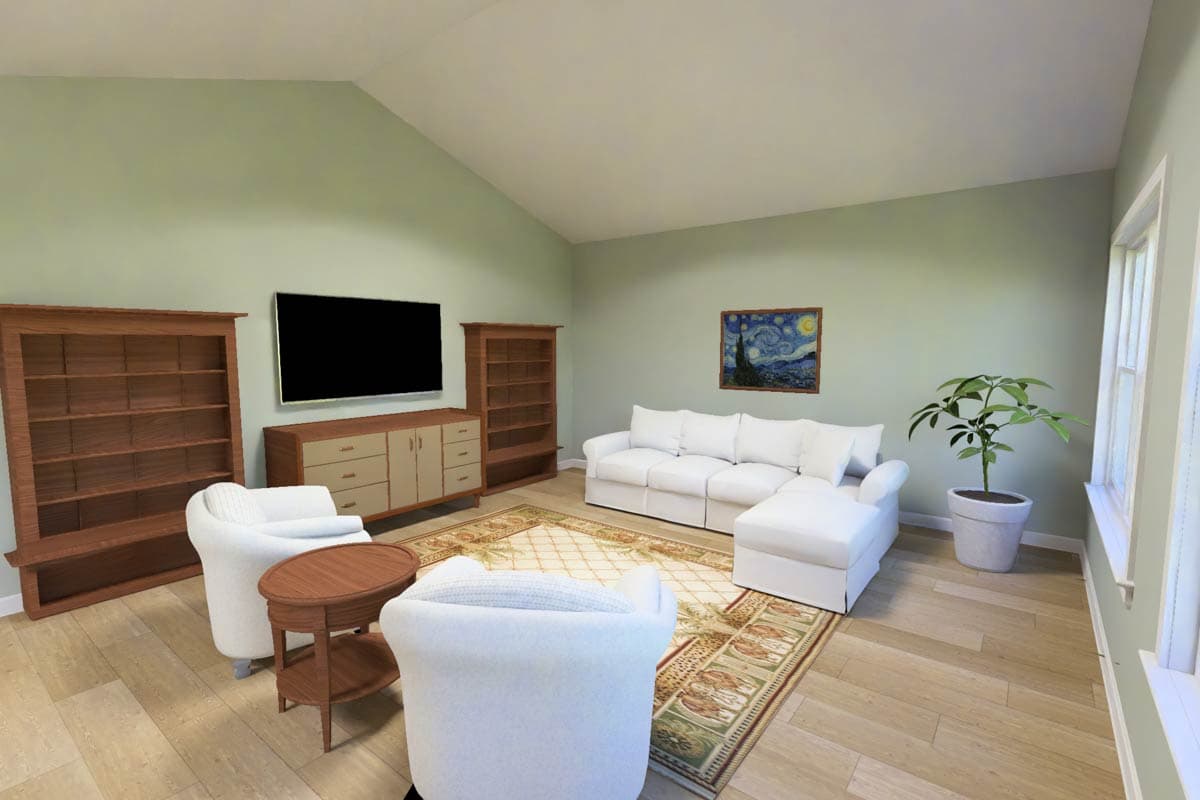

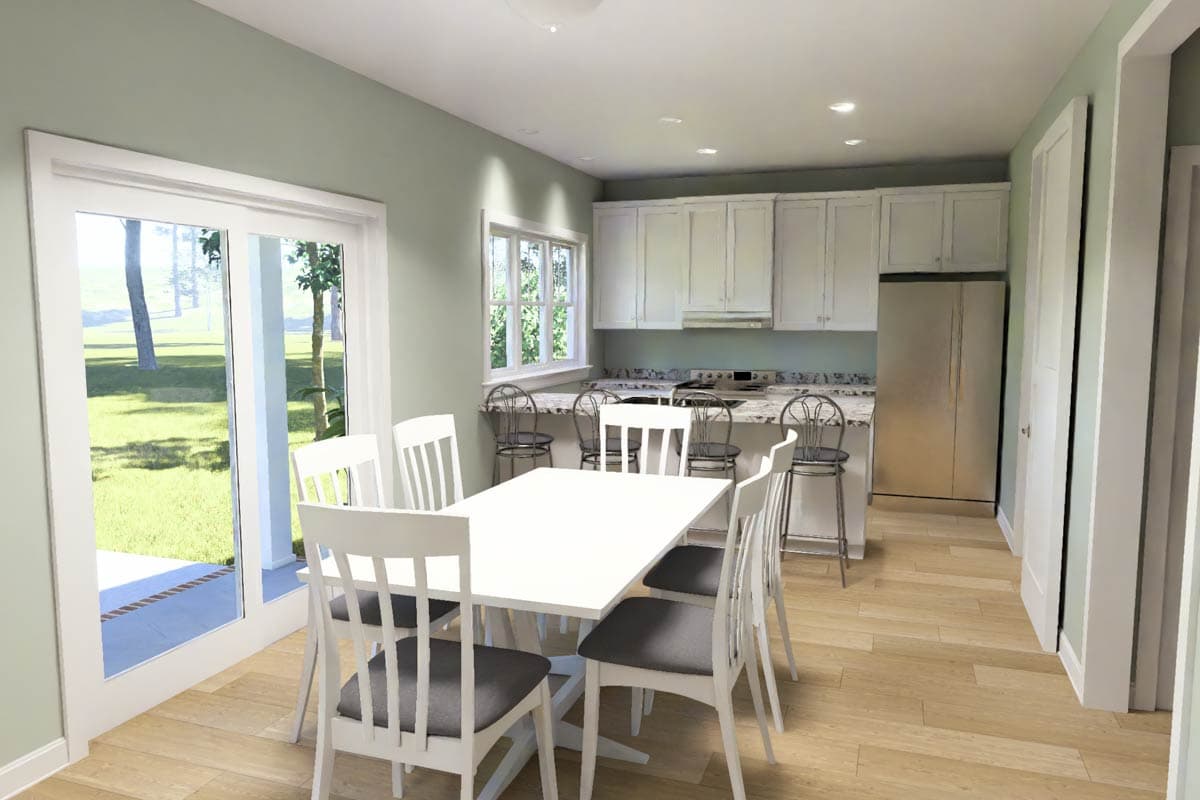

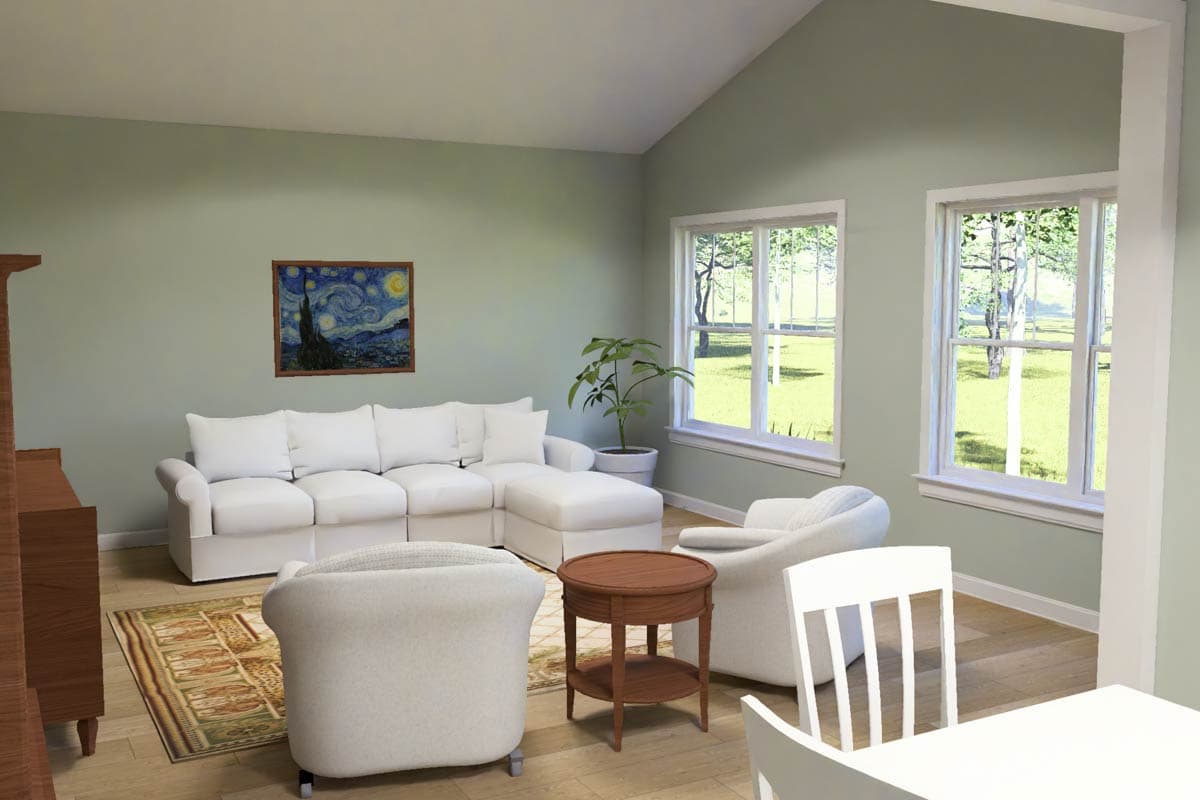

  • The main living areas are designed for seamless flow, creating a comfortable and open atmosphere perfect for everyday living.

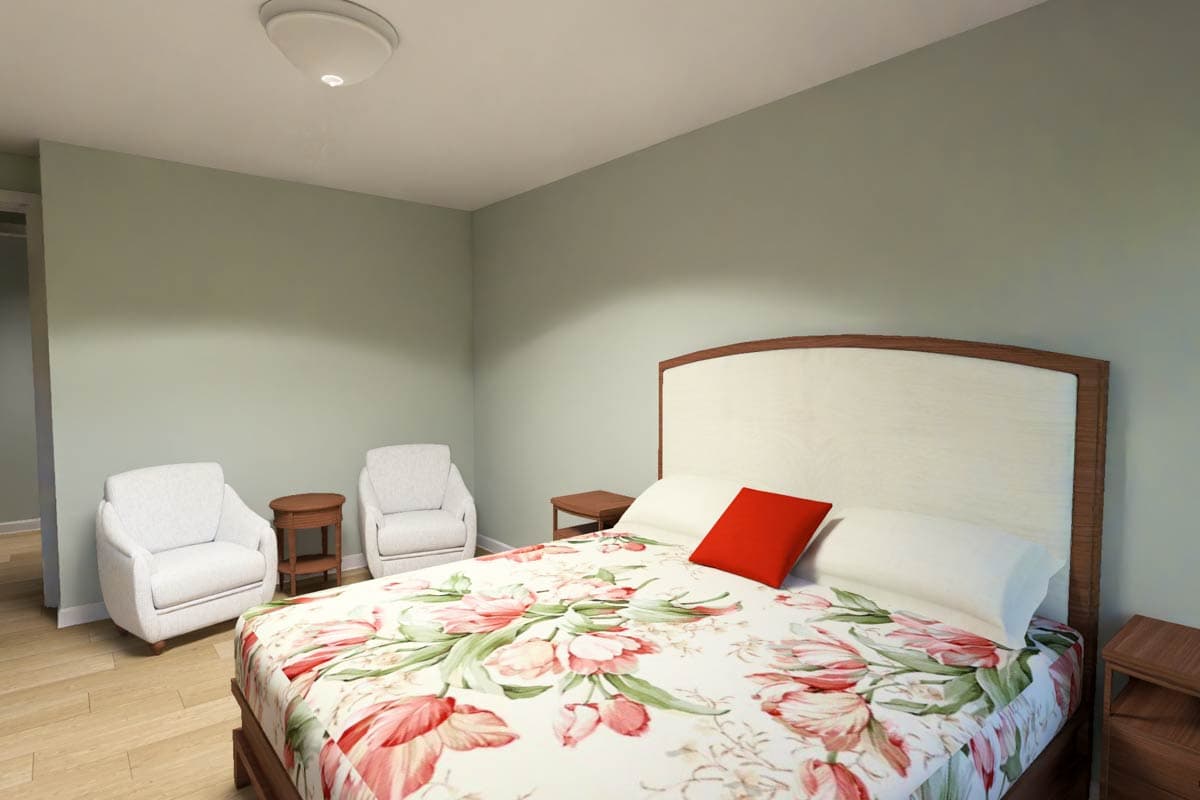

  • The master suite is thoughtfully located on the first floor in a split-bedroom arrangement, ensuring privacy from the two secondary bedrooms.

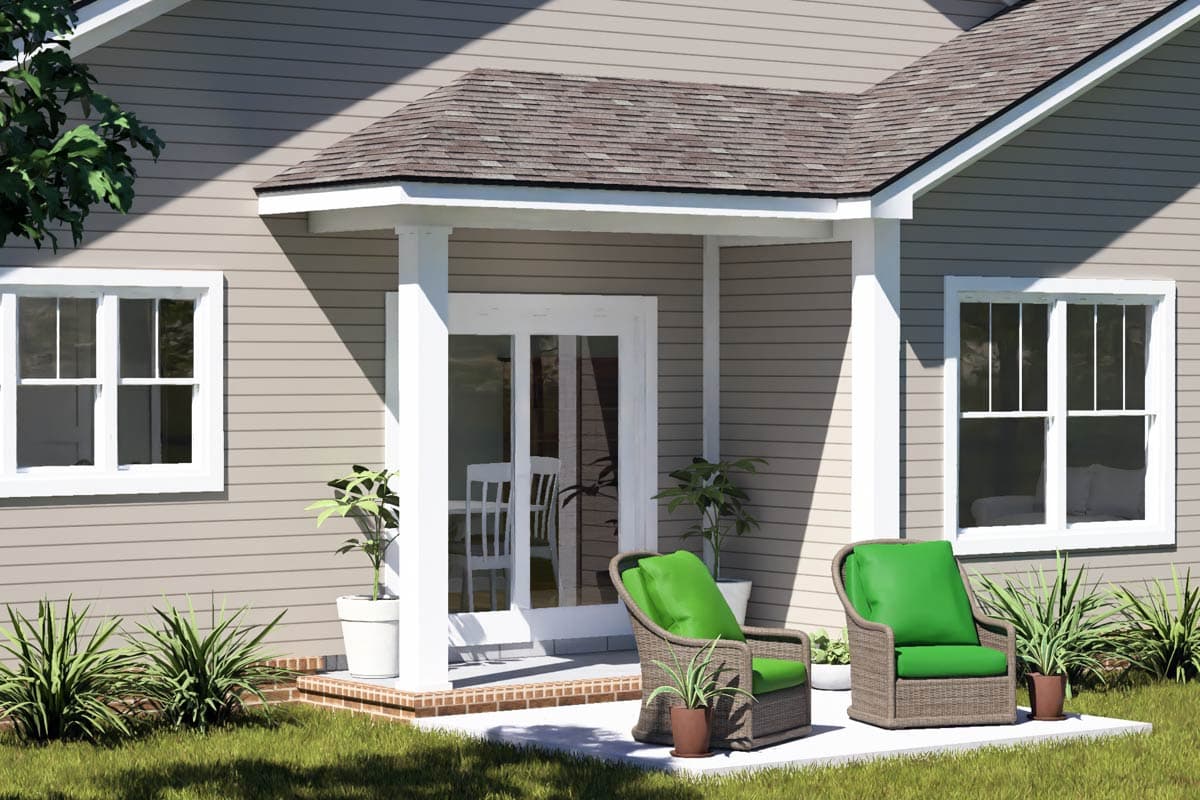

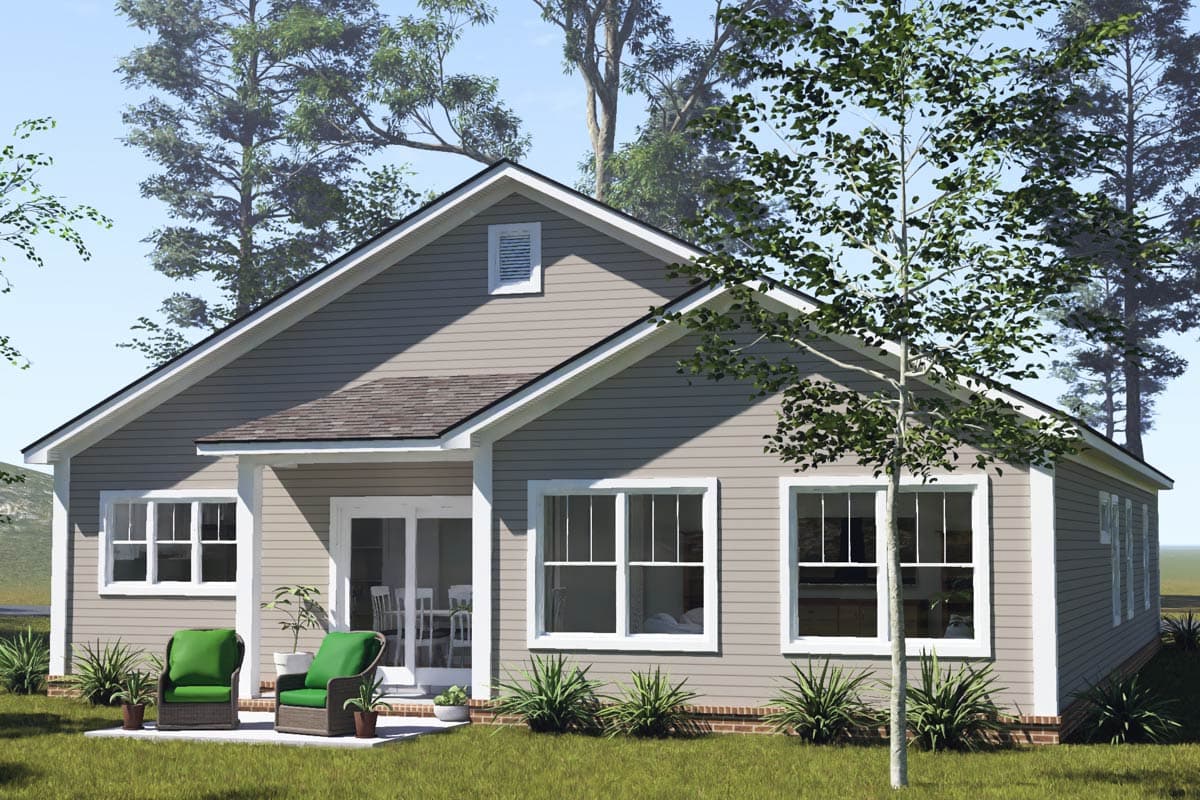

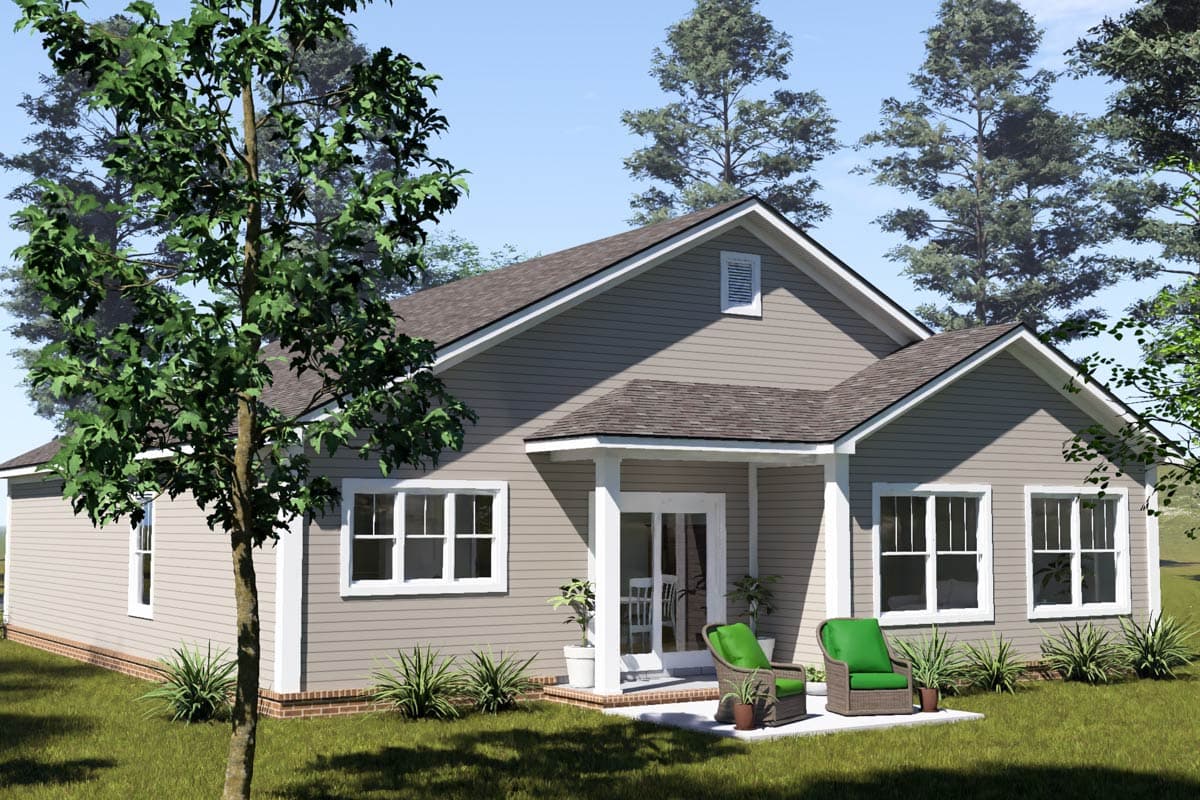

  • Enjoy the outdoors with both an inviting front porch and a private 40 sq ft rear porch, ideal for relaxation.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,480 sq. ft.

1st Floor

1,480 sq. ft.

Porch, Front

73 sq. ft.

Porch, Rear

40 sq. ft.

Porch, Combined

113 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

56' 0"

Max Ridge Height

19' 3"

Garage

Type

Standard

Area

455 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,480 sq. ft.

1st Floor

1,480 sq. ft.

Porch, Front

73 sq. ft.

Porch, Rear

40 sq. ft.

Porch, Combined

113 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

56' 0"

Max Ridge Height

19' 3"

Garage

Type

Standard

Area

455 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
