Hexagon-Shaped Mountain House Plan with Second Level Owner's Suite

Heated S.F.
3,938
Beds
3
Baths
4
Stories
2
Cars
2

Floor Plan

Plan 720003DA

Main Level
Main Level
Second Floor
Second Floor
Lower Level
Lower Level

Plan 720003DA

M-F 9am-5pm EST |

1-203-761-8500

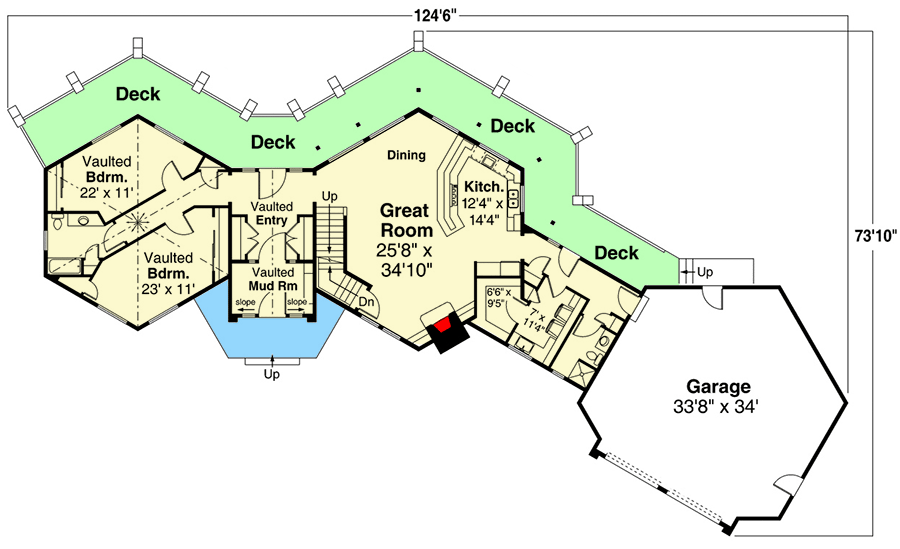

Main Level

Plan 720003DA: Hexagon-Shaped Mountain House Plan with Second Level Owner's Suite - Floor Plan - Main Level - Craftsman, Mountain

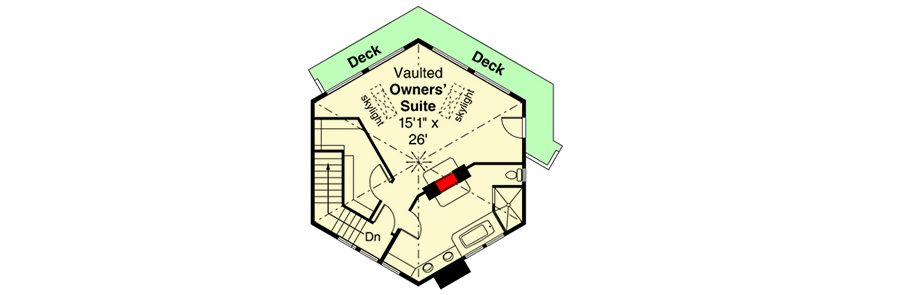

Second Floor

Plan 720003DA: Hexagon-Shaped Mountain House Plan with Second Level Owner's Suite - Floor Plan - Second Floor - Craftsman, Mountain

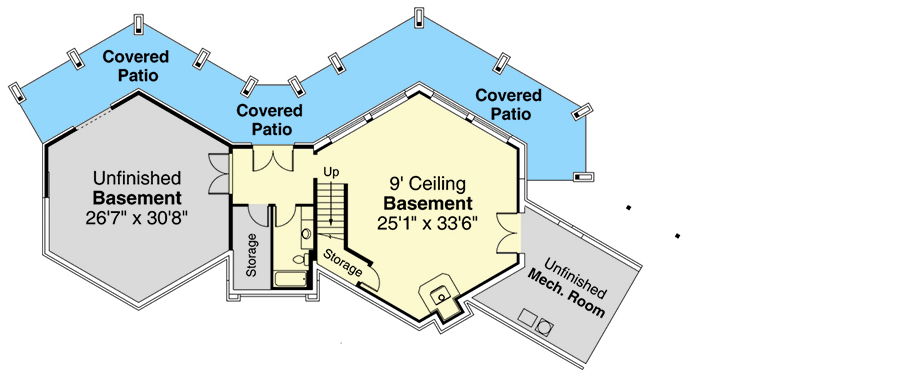

Lower Level

Plan 720003DA: Hexagon-Shaped Mountain House Plan with Second Level Owner's Suite - Floor Plan - Lower Level - Craftsman, Mountain

Plan Details

  • The sprawling design of this mountain house plan boasts a back deck that spans the length of the rear elevation, allowing you to take advantage of the surrounding landscape.
  • The main level consists of three connected hexagons. The great room and eat-in kitchen are located in the center, along with the stairwell that leads upstairs.
  • The entire second level consists of the owner's suite, complete with skylights, a private deck, and a double-sided fireplace that warms both the bedroom and the 5-fixture bath.
  • Two bedrooms with vaulted ceilings occupy the left side of the home, while the remaining hexagon makes up the 2-car garage. Inside from the garage, discover a full bath and a laundry room which opens to a large pantry.
  • The lower level boasts 9' ceilings, a covered patio for additional outdoor living space, a flex space, and plenty of room for storage.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,938 sq. ft.

Lower Level

1,069 sq. ft.

1st Floor

2,093 sq. ft.

2nd Floor

776 sq. ft.

Basement Unfinished

904 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

124' 1"

Depth

74' 7"

Max Ridge Height

31' 1"

Garage

Type

Attached

Area

996 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Special Features

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,938 sq. ft.

Lower Level

1,069 sq. ft.

1st Floor

2,093 sq. ft.

2nd Floor

776 sq. ft.

Basement Unfinished

904 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

124' 1"

Depth

74' 7"

Max Ridge Height

31' 1"

Garage

Type

Attached

Area

996 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Special Features

Master Suite - Upstairs

Walk-in Pantry
