Hexagonal House Plan on a Walkout Basement

Name: Plan 72994DA: Hexagonal House Plan on a Walkout Basement
Brand: Architectural Designs
SKU: 72994DA
Price: 3780.0 USD
Availability: InStock

Heated S.F.

3,229

Beds

Baths

Stories

Cars

Floor Plan

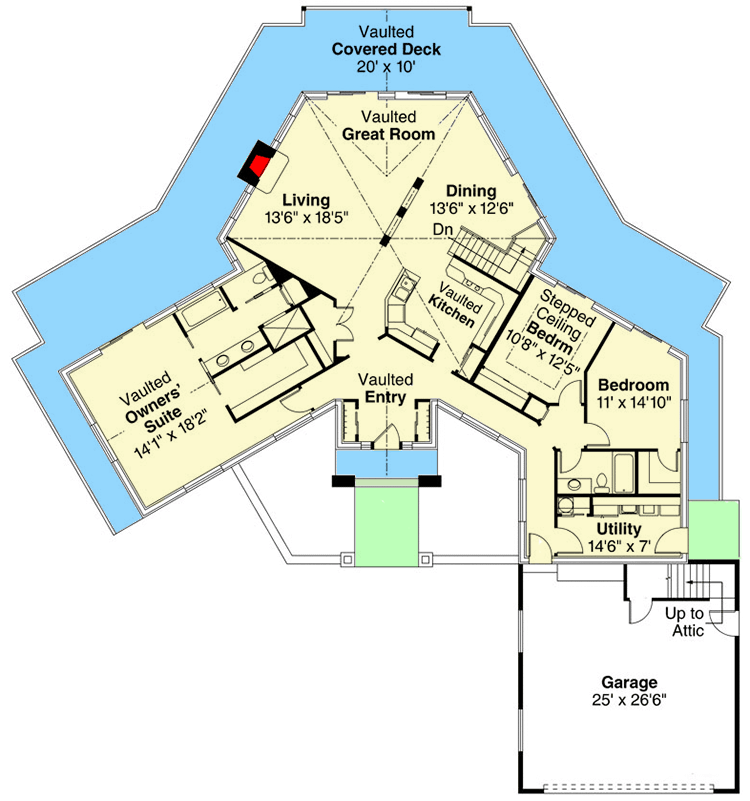

Main Level

2nd Floor

Plan Details

Designed to take advantage of a rear sloping lot, this house plan provides a view from nearly every room.

At the center of the home is a unique, hexagonal great room which is richly windowed allowing lots of natural light into the living and dining areas.

On the main level are three bedrooms each with private access to the deck.

The owners' suite takes up an entire wing and features a generously sized walk-in closet, dual vanity along with soaking tub and walk-in shower.

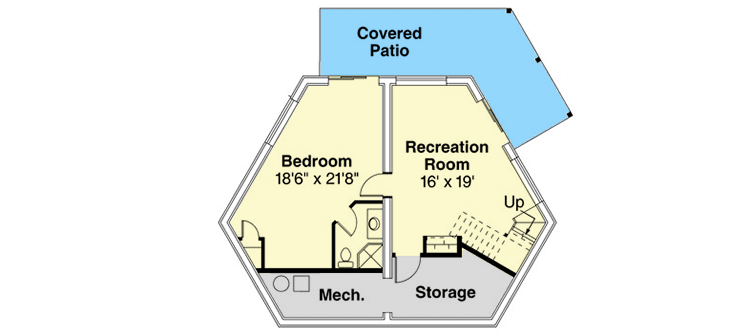

In the walk-out basement is an additional suite with private bathroom and patio access plus a recreation room with a small beverage bar.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

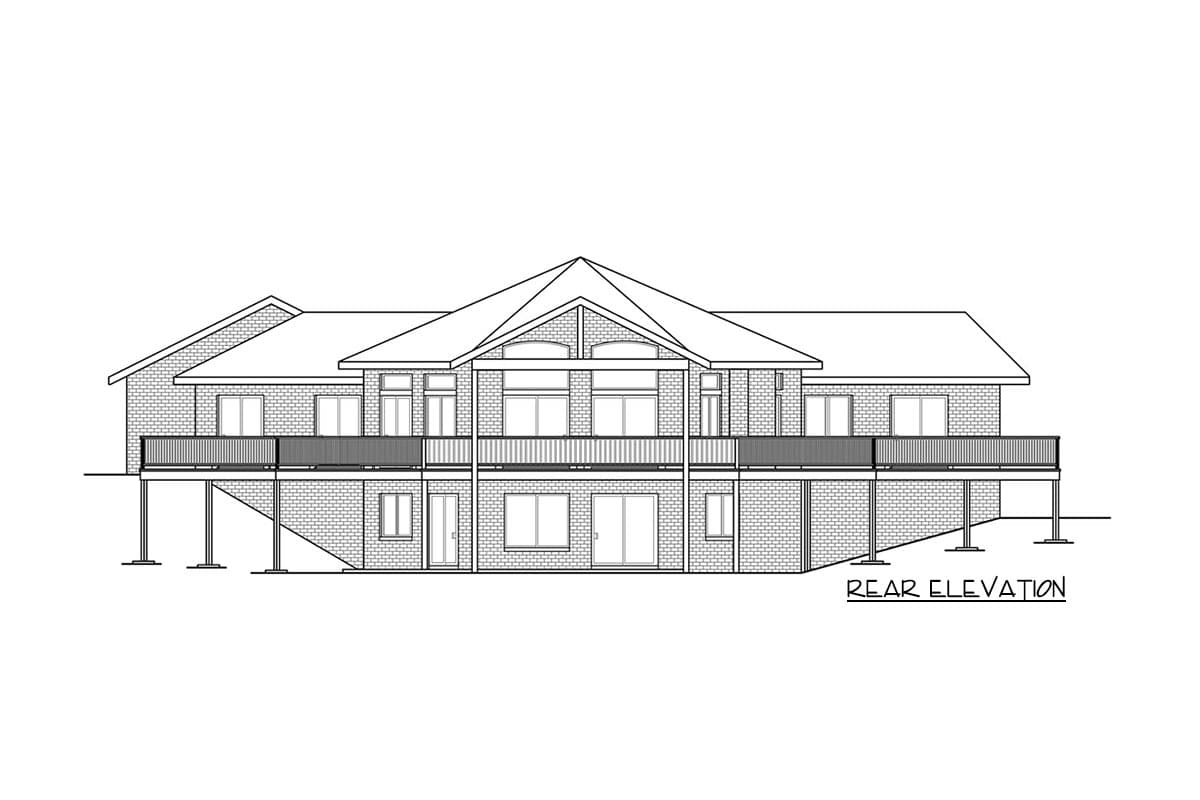

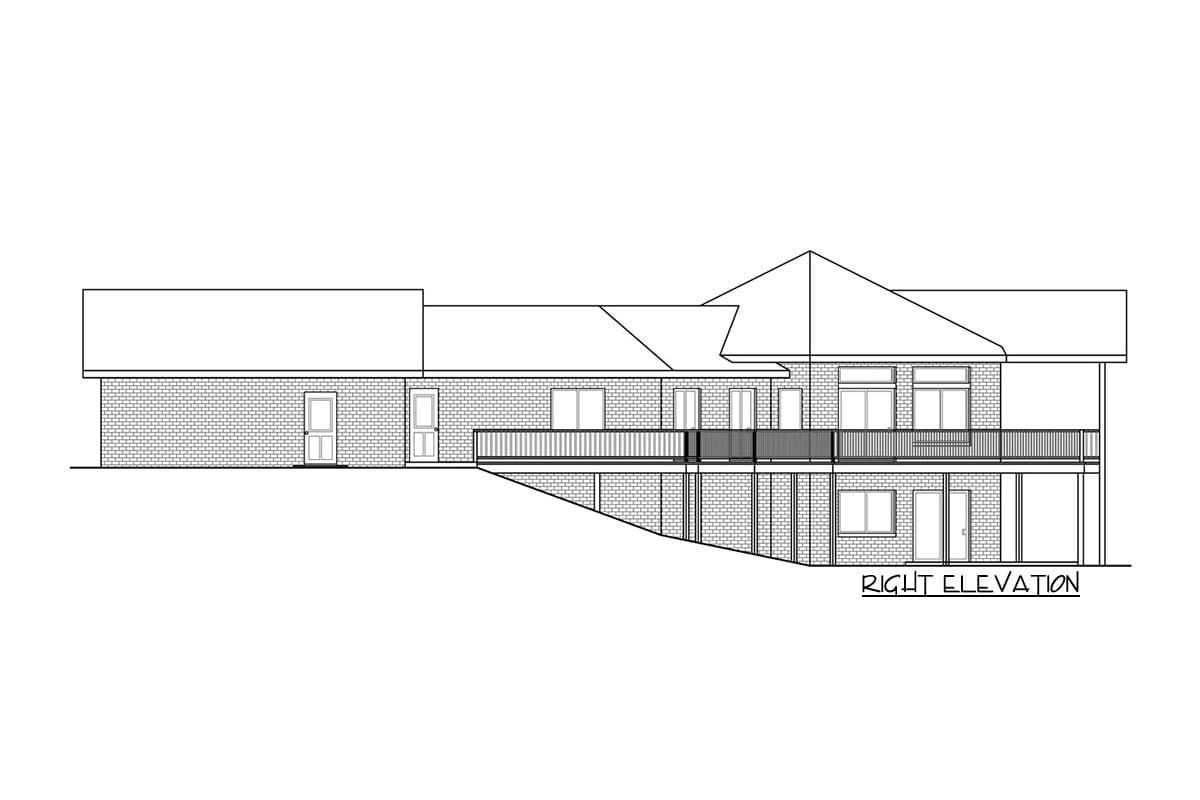

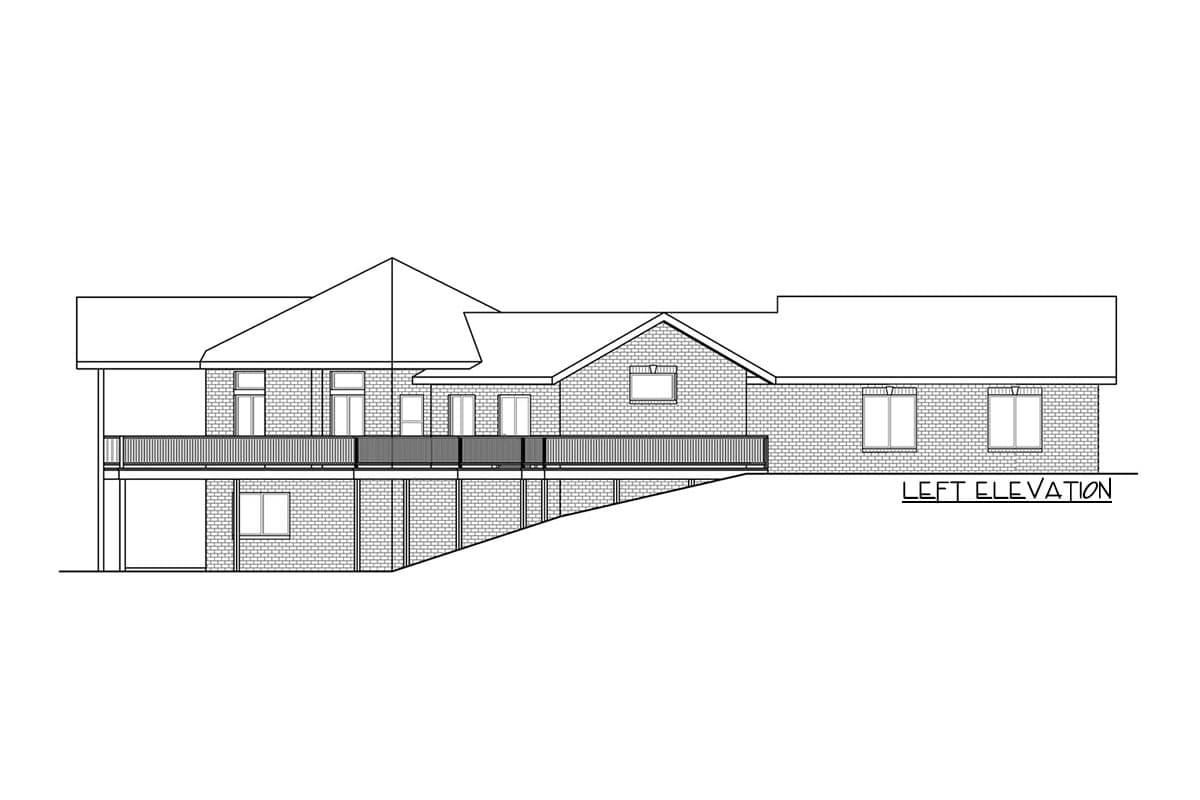

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,229 sq. ft.

Lower Level

926 sq. ft.

1st Floor

2,303 sq. ft.

Beds/Baths

Bedrooms

Full bathrooms

Foundation Type

Standard Foundations

Walkout

Exterior Walls

ICF

Dimensions

Width

80' 0"

Depth

92' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

705 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Sloping Lot
