Hexagonal Mediterranean House Plan

Plan 72739DA

  • 2,265

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Rounded roof tiles and stucco exterior plus gentle arches capping the window and door openings lend a Mediterranean ambiance to this house plan. Bold stucco-clad columns frame the lofty entry porch, and keystones add a classic element.
  • Entry doors open into a high-ceilinged entry where light washes in through an arched transom. Moving forward brings you to the richly glassed hexagonal great room. The interior is totally contemporary, and nowhere is that more evident than in this bright and expansive space.
  • Arched transoms crown wide banks of glass that fill most of three walls. All but the windows flanking the fireplace slide open to let in gentle breezes, or offer access to a patio that spans the entire rear. When the weather is inviting, the patio effectively doubles the living space.
  • An angled pony wall bounds one side of the G-shaped kitchen. Entering the great room, you can glance over it to see what's cooking on the range. The sink hides behind a raised eating bar that rims another peninsular counter. While washing up kitchen ware, you can take in the great room plus the patio and the landscape beyond.
  • The vaulted owners' suite fills the entire left wing. Luxurious features include an interestingly shaped shower, dual vanity, walk-in closet and totally private toilet. Sliding glass doors in the sleeping area allow direct patio access.
  • Two more bedrooms, a bathroom, and a large utility room are in the right wing, which links with the 2-car garage. A deep walk-in pantry at the rear of the utility room adds to the kitchen's already ample storage space. Stairs to the basement are next to the garage.
  • The house has a 6:12 roof pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

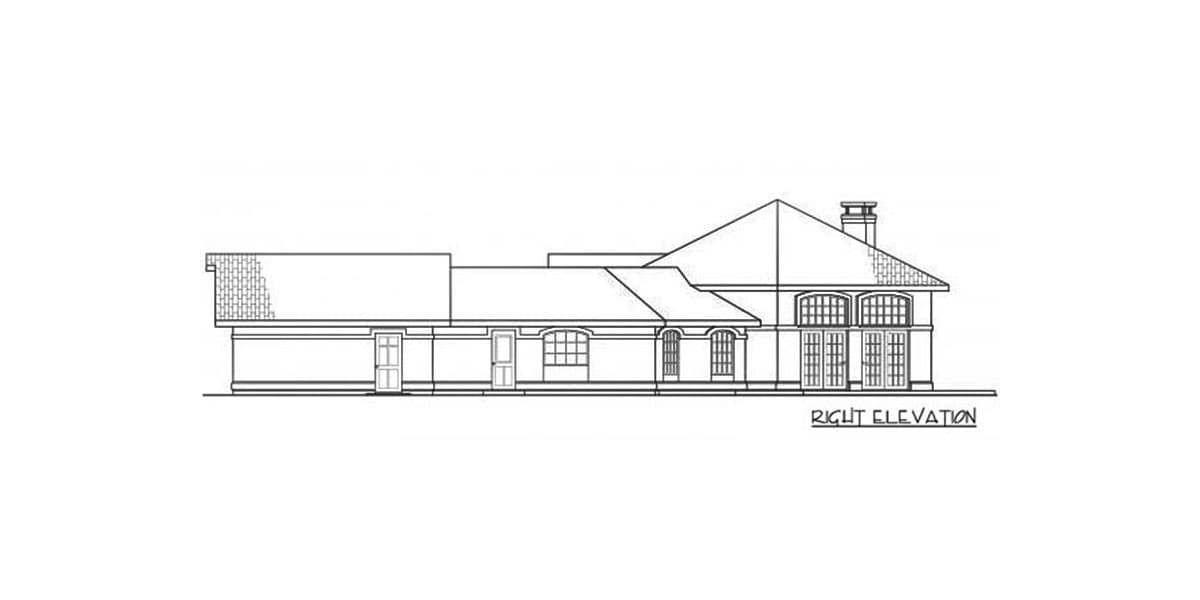

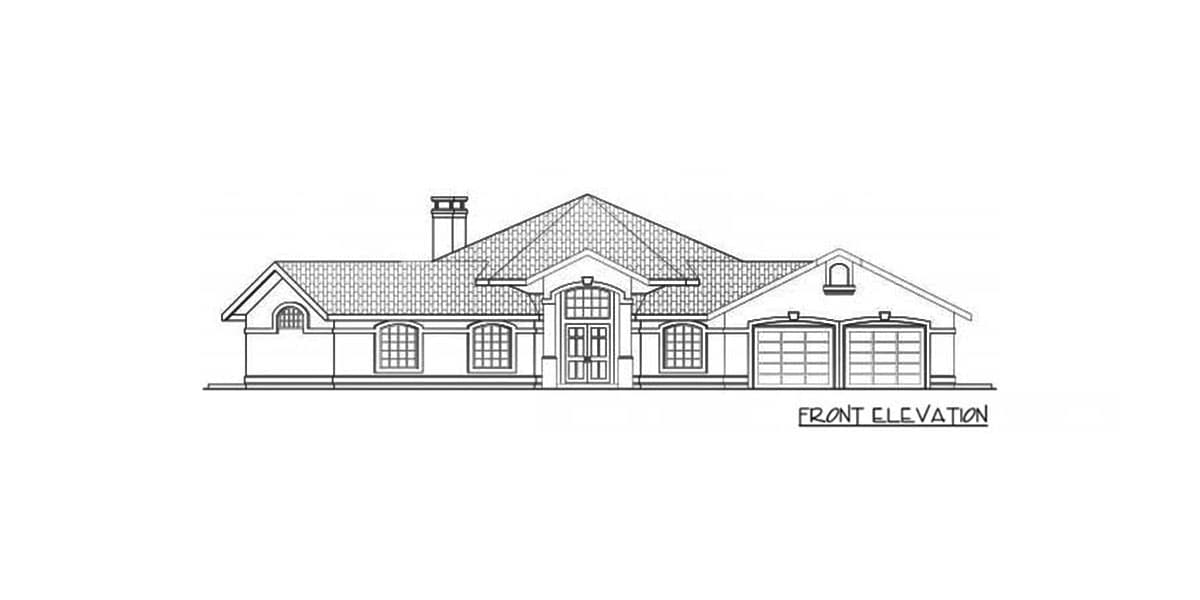

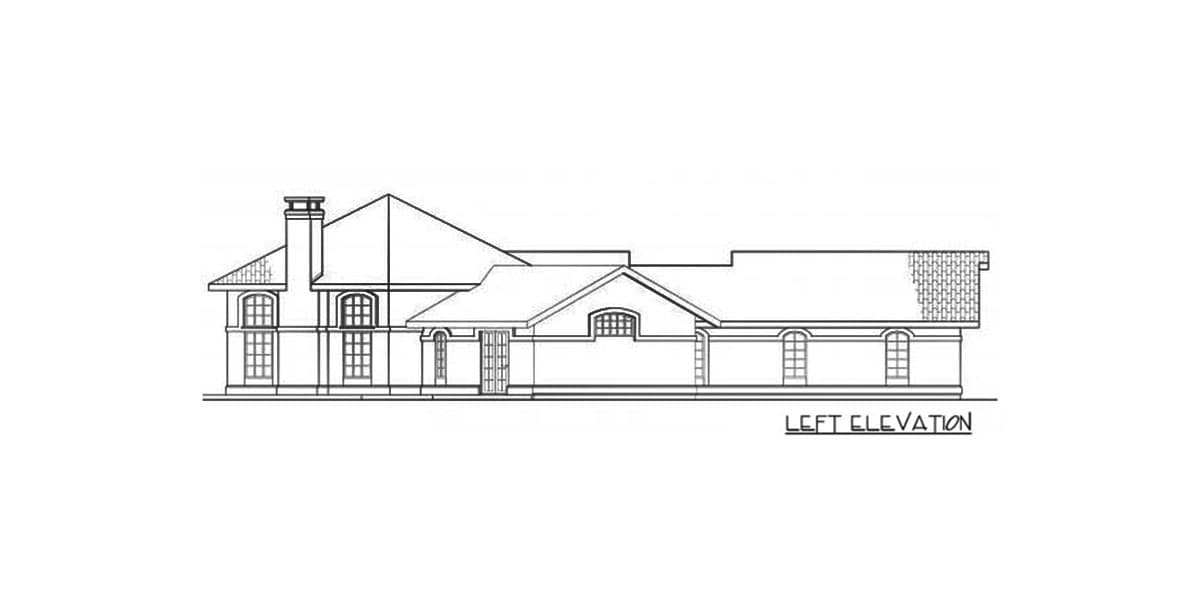

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Hexagonal Mediterranean House Plan

  • 2,265

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 5 Sets PLUS $1,085
  • 8 Sets $1,140
  • PDF - single-use $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • Rounded roof tiles and stucco exterior plus gentle arches capping the window and door openings lend a Mediterranean ambiance to this house plan. Bold stucco-clad columns frame the lofty entry porch, and keystones add a classic element.
  • Entry doors open into a high-ceilinged entry where light washes in through an arched transom. Moving forward brings you to the richly glassed hexagonal great room. The interior is totally contemporary, and nowhere is that more evident than in this bright and expansive space.
  • Arched transoms crown wide banks of glass that fill most of three walls. All but the windows flanking the fireplace slide open to let in gentle breezes, or offer access to a patio that spans the entire rear. When the weather is inviting, the patio effectively doubles the living space.
  • An angled pony wall bounds one side of the G-shaped kitchen. Entering the great room, you can glance over it to see what's cooking on the range. The sink hides behind a raised eating bar that rims another peninsular counter. While washing up kitchen ware, you can take in the great room plus the patio and the landscape beyond.
  • The vaulted owners' suite fills the entire left wing. Luxurious features include an interestingly shaped shower, dual vanity, walk-in closet and totally private toilet. Sliding glass doors in the sleeping area allow direct patio access.
  • Two more bedrooms, a bathroom, and a large utility room are in the right wing, which links with the 2-car garage. A deep walk-in pantry at the rear of the utility room adds to the kitchen's already ample storage space. Stairs to the basement are next to the garage.
  • The house has a 6:12 roof pitch.

Floor Plans

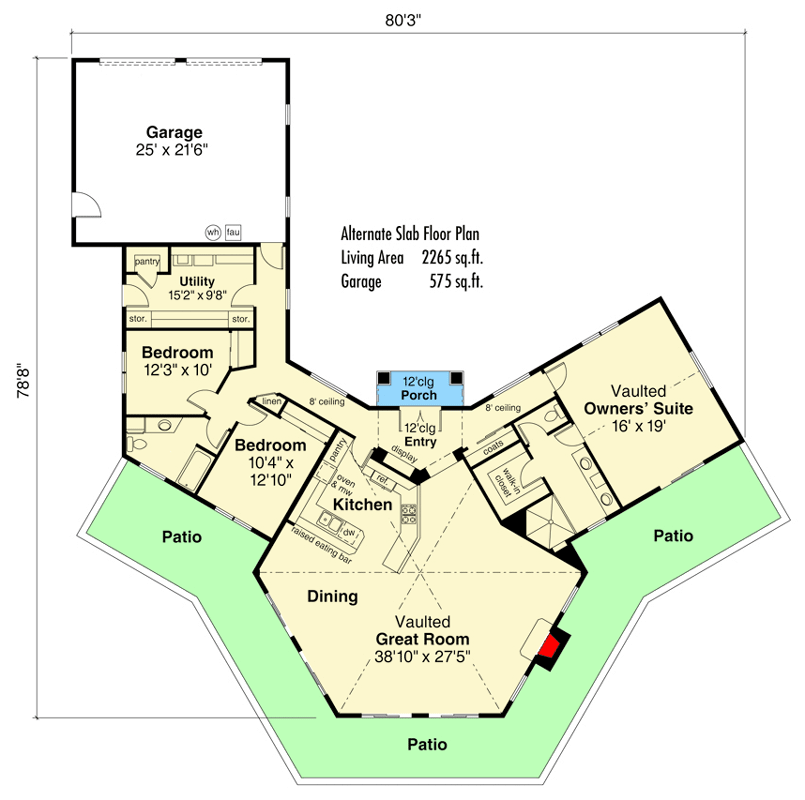

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,265 sq. ft.
  • 1st Floor: 2,265 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 3"
  • Depth: 78' 8"
  • Max ridge height: 22' 1"

Garage

  • Type: Attached
  • Area: 575 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
