Plan 36551TX High End Hill Country House Plan

High End Hill Country House Plan

Plan 36551TX

  • 4,180

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

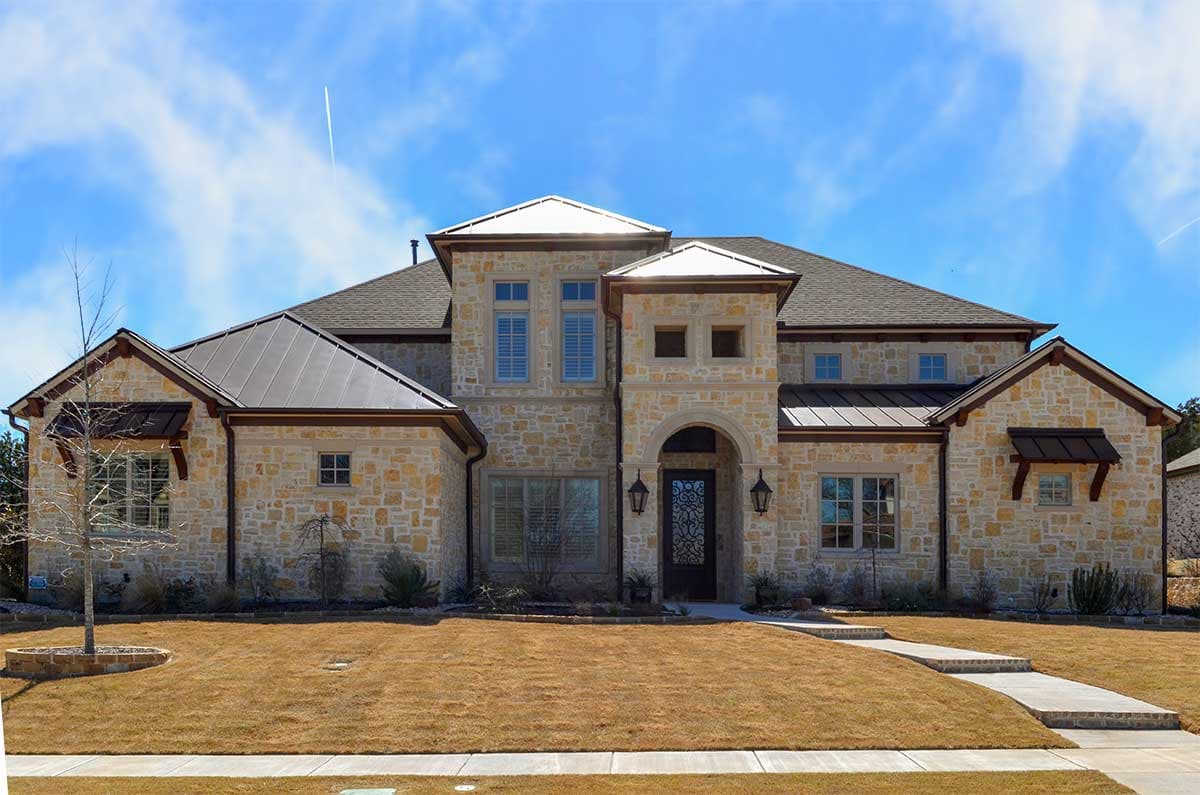

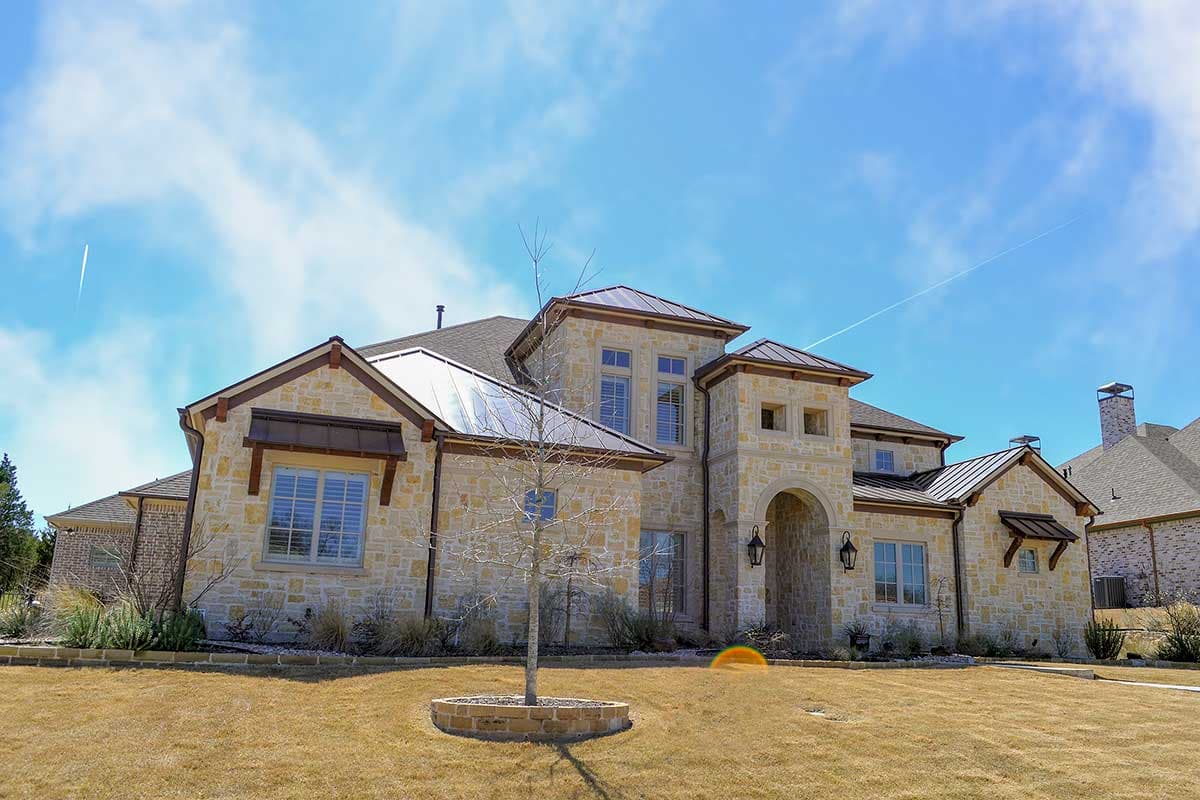

  • Accents of metal roofing highlight the beautiful stone exterior of this high end Hill Country house plan.
  • Five bedrooms, each with a walk-in closet, make this a home for a large family.
  • The enormous family room is crowned with a vaulted and beamed ceiling and it open to the gourmet kitchen with room for an extra-large fridge.
  • Set in the back of the house, homeowners get a spacious first floor master suite that comes with a giant vaulted master bathroom and two walk-in closets.
  • Bedroom 3 is the only bedroom on the second floor and it has a private balcony.
  • Friends and family alike will love hanging out in the second floor game room.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

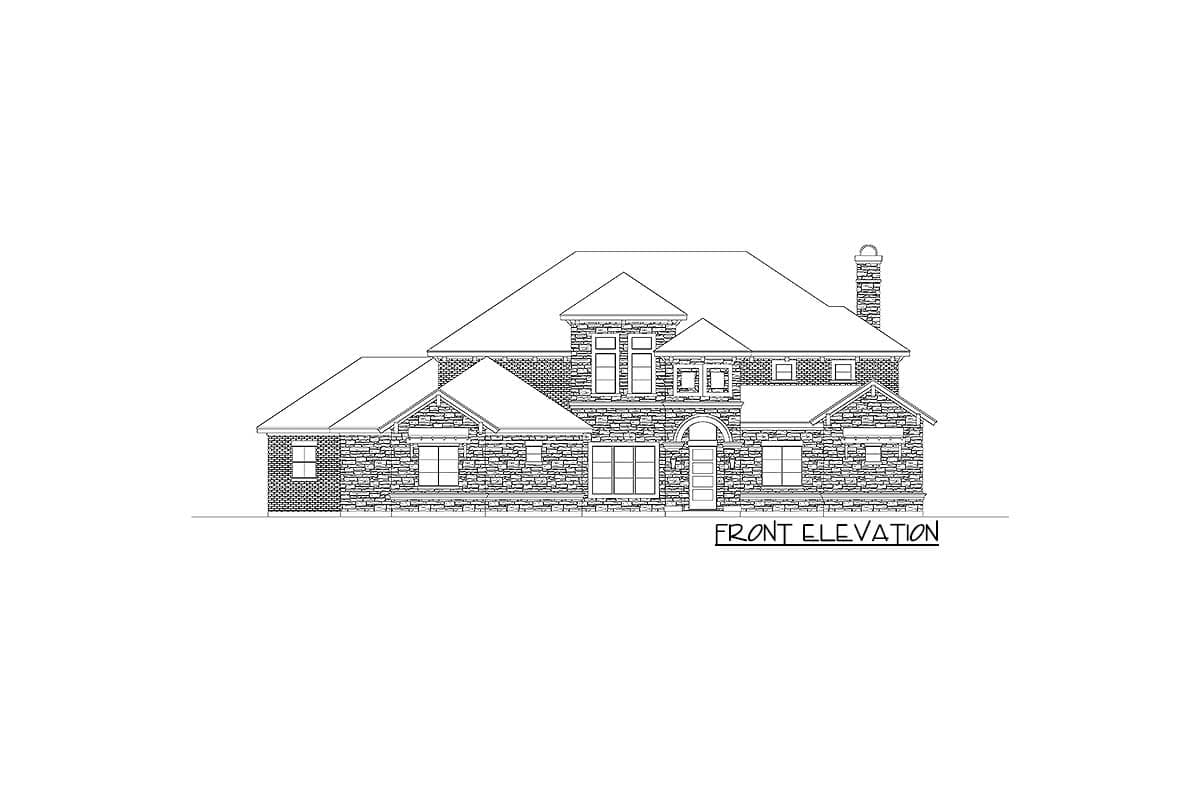

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

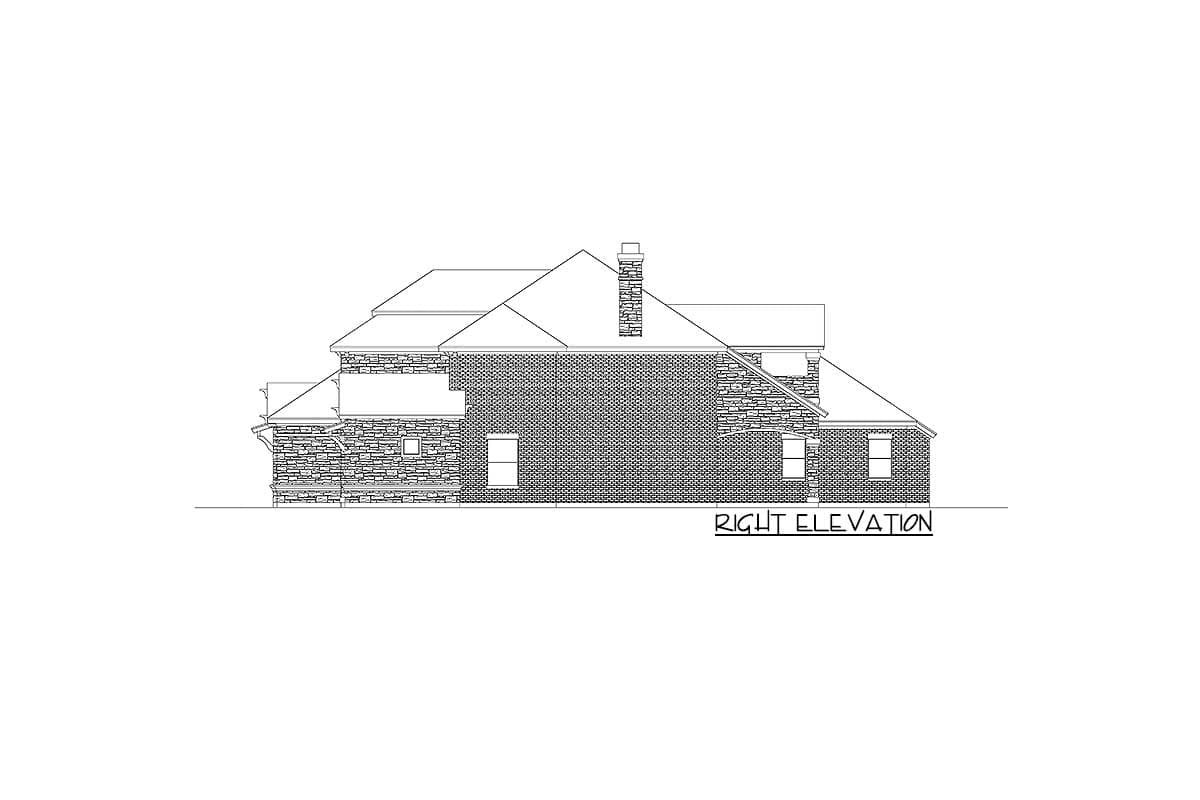

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



High End Hill Country House Plan

  • 4,180

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,515
  • 5 Sets $1,715
  • CAD - Single-Build $2,275
  • View all purchase option online

About This Plan

  • Accents of metal roofing highlight the beautiful stone exterior of this high end Hill Country house plan.
  • Five bedrooms, each with a walk-in closet, make this a home for a large family.
  • The enormous family room is crowned with a vaulted and beamed ceiling and it open to the gourmet kitchen with room for an extra-large fridge.
  • Set in the back of the house, homeowners get a spacious first floor master suite that comes with a giant vaulted master bathroom and two walk-in closets.
  • Bedroom 3 is the only bedroom on the second floor and it has a private balcony.
  • Friends and family alike will love hanging out in the second floor game room.

Floor Plans

  • Main Level

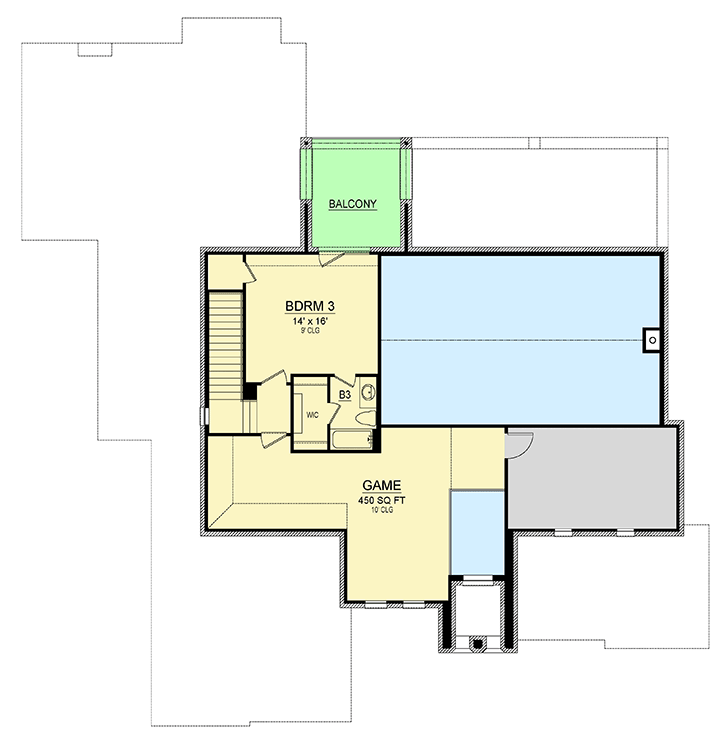

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,180 sq. ft.
  • 1st Floor: 3,268 sq. ft.
  • 2nd Floor: 912 sq. ft.
  • Porch, Rear: 504 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 82' 0"
  • Depth: 84' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 807 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"
