High End Northwestern House Plan

Plan 737007LVL

  • 3,618

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • There's lots of space for a large family in this high end Northwestern house plan that has four bedrooms and a three car garage.
  • The big, open great room area is made for family living with sight lines that stretch from the big kitchen island all the way across to the great room fireplace.
  • A second sink in the kitchen island allows for more than one cook.
  • The formal living room and dining room are open to each other and share a two-way fireplace that warms both rooms.
  • On the huge upper floor, the master suite reigns supreme with its lovely tray ceiling and large sitting area.
  • Want room to expand? Bonus space can be finished to suit your needs.

This house plan includes the following:

Cover sheet
Foundation plan
Floor plans
Roof framing plan
Building section and typical wall sections

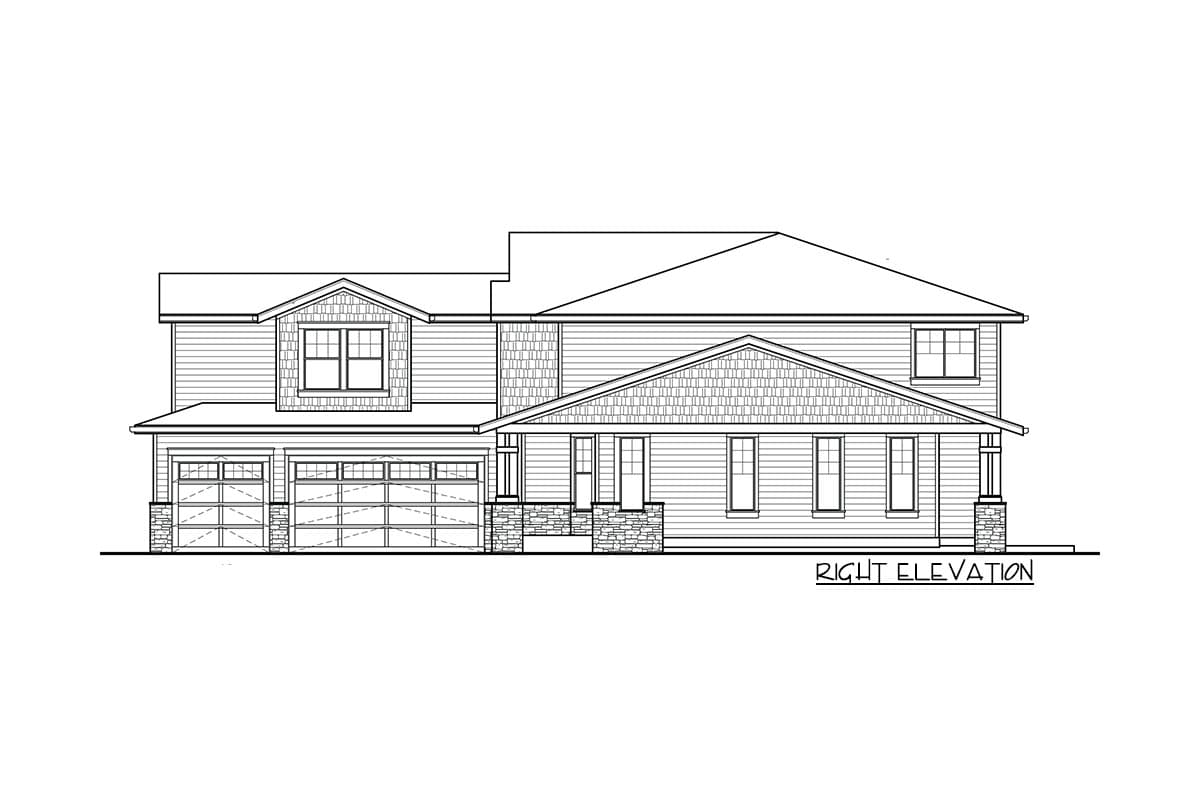

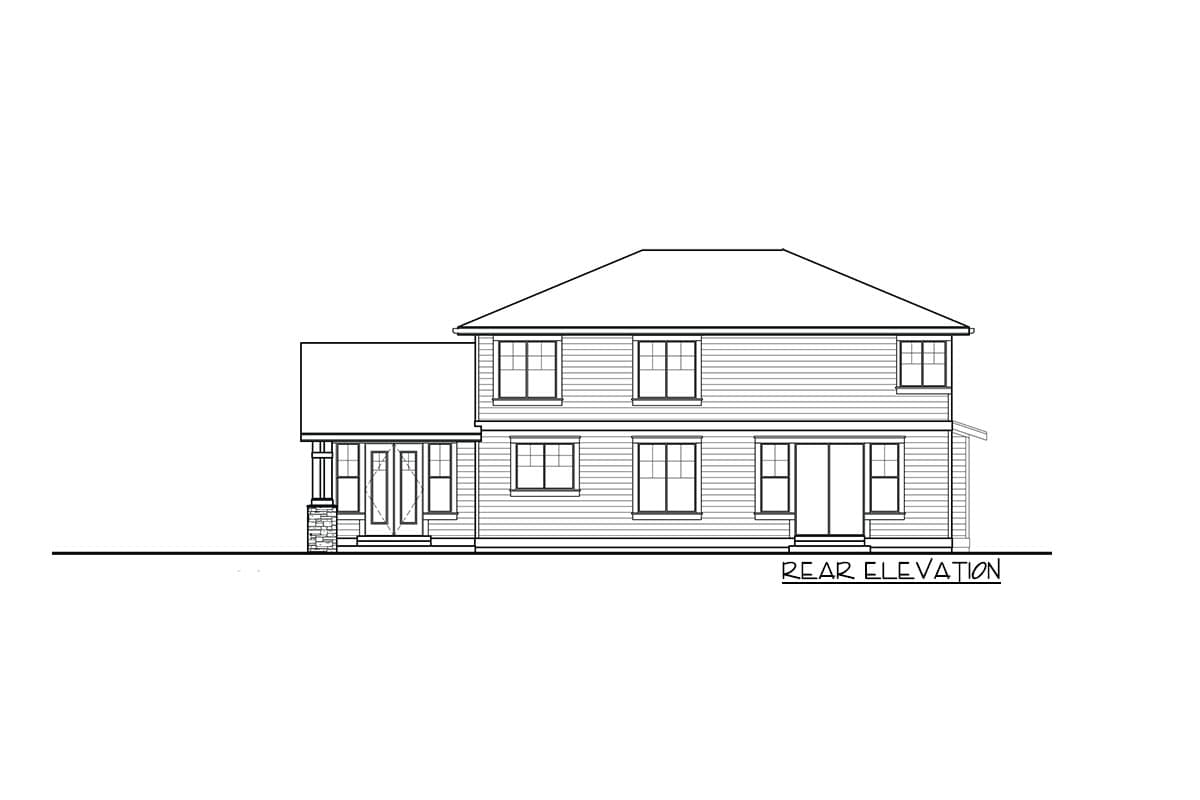

Elevations
General construction details


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

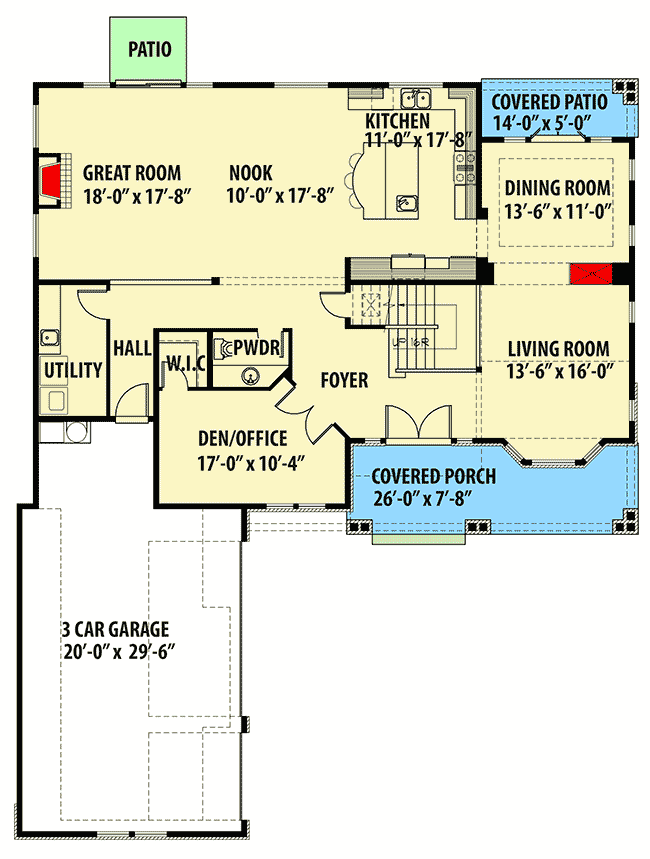

High End Northwestern House Plan - 737007LVL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

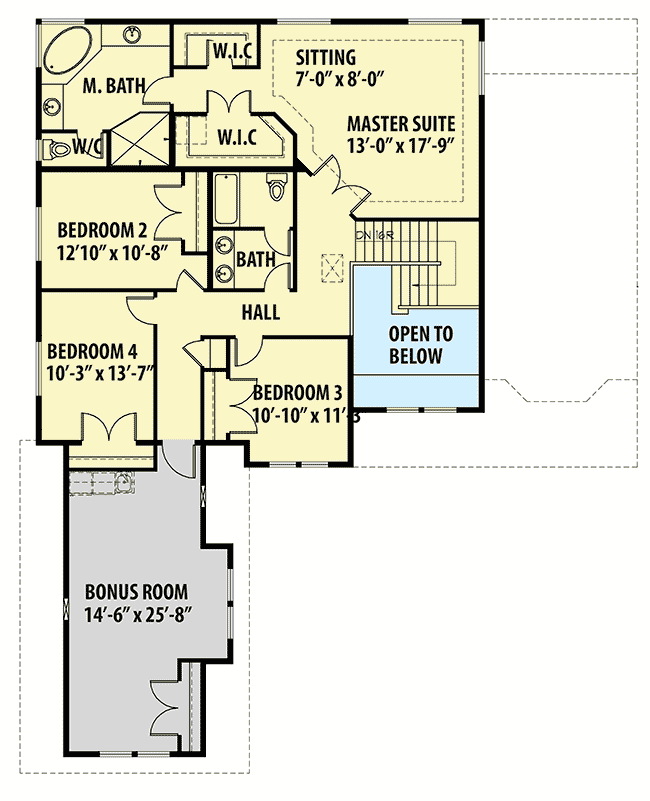

High End Northwestern House Plan - 737007LVL floor plan - 2nd Floor

High End Northwestern House Plan

  • 3,618

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,618 sq. ft.
  • 1st Floor: 1,846 sq. ft.
  • 2nd Floor: 1,772 sq. ft.

Dimensions

  • Width: 69' 0"
  • Depth: 55' 4"
  • Max ridge height: 26' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 719 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
