Hill Country Courtyard Stunner

Plan 36377TX

This plan plants 3 trees

3,858
Heated s.f.
4
Beds
4.5
Baths
2
Stories
3
Cars

This four bedroom hill country house plan is full of surprises, including the utility room which doubles as a solid CMU storm shelter with the laundry chute from above doubling as the vent in case of emergency.

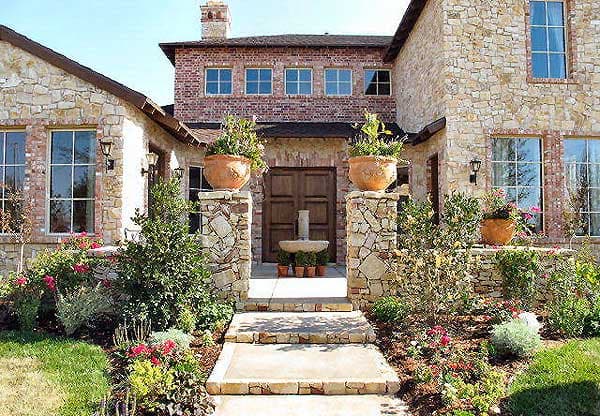

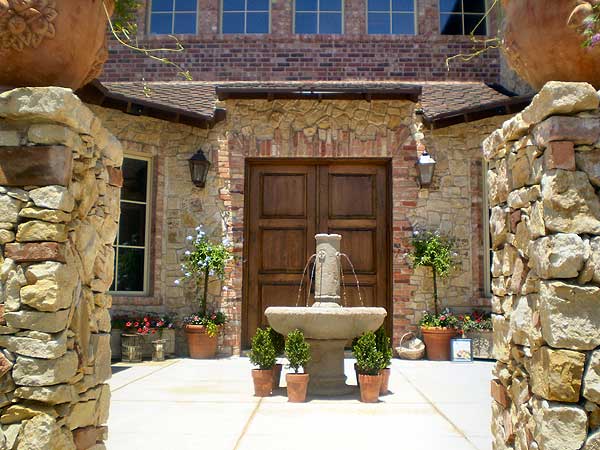

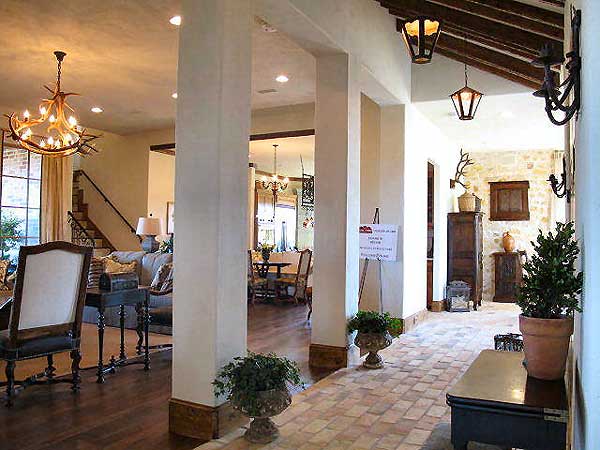

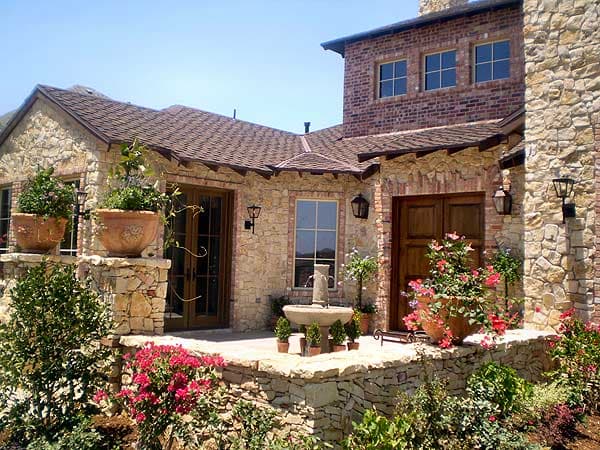

Welcome your guests as they enter the vaulted foyer of this luxury Mediterranean house plan through the front courtyard.

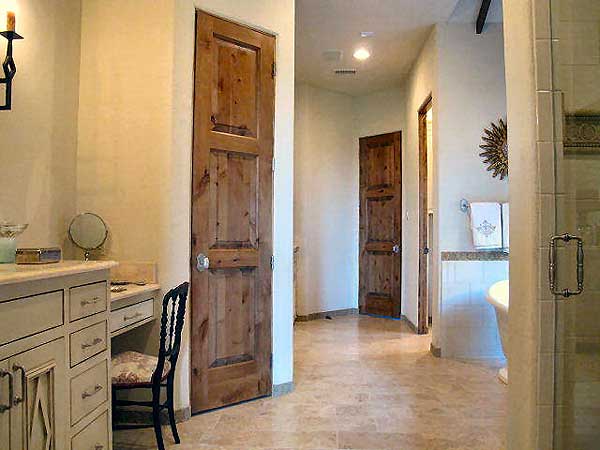

This home has a luxurious master suite that boasts a quiet study, private patio, vaulted ceiling, lavish master bath with his and hers vanities, separate shower, garden tub, and his and hers walk-in closets.

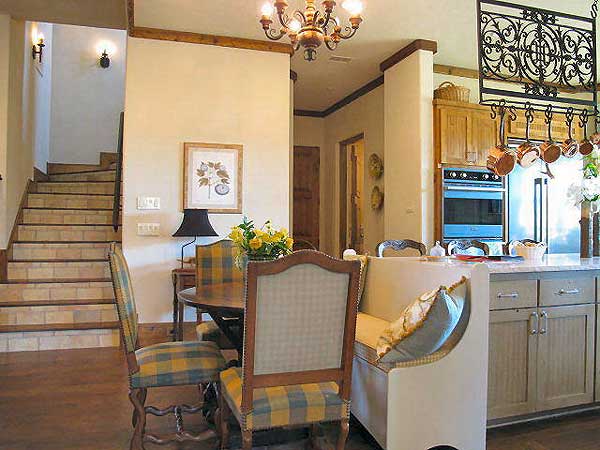

The family gathering area consists of the family room, kitchen and nook.

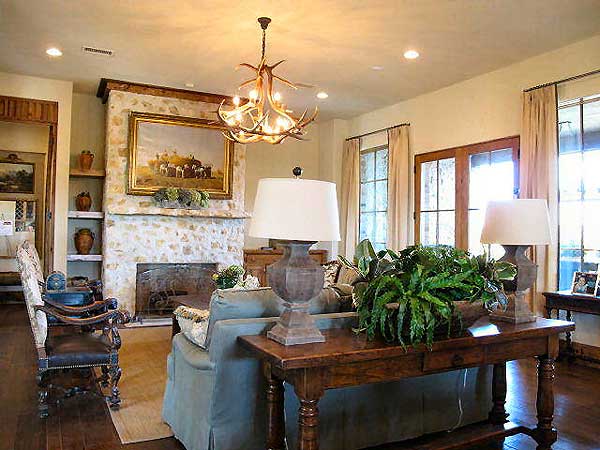

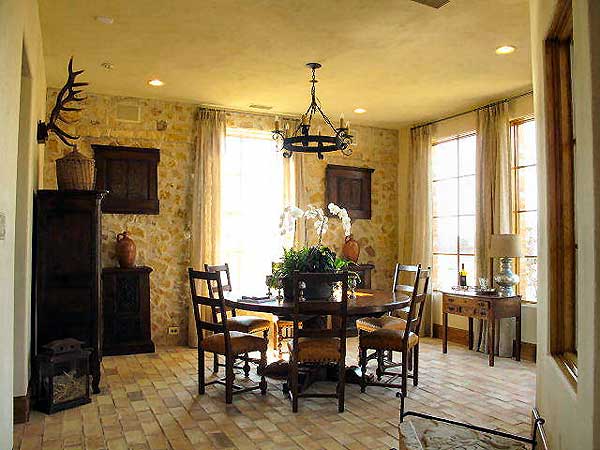

The formal dining room has direct access to the bar, pantry and kitchen for ease in serving, while the family room offers built-ins, a warming fireplace and patio access.

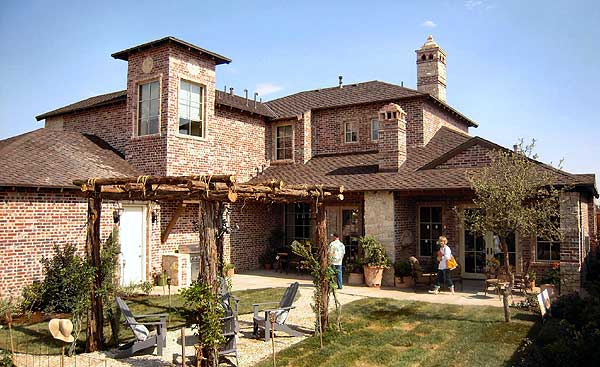

Enjoy the outdoor lounge with its large cooking grille and two-way fireplace, shared with the private patio off the master suite.

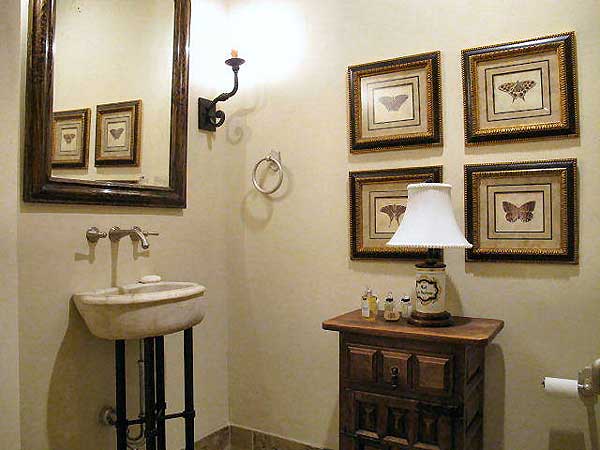

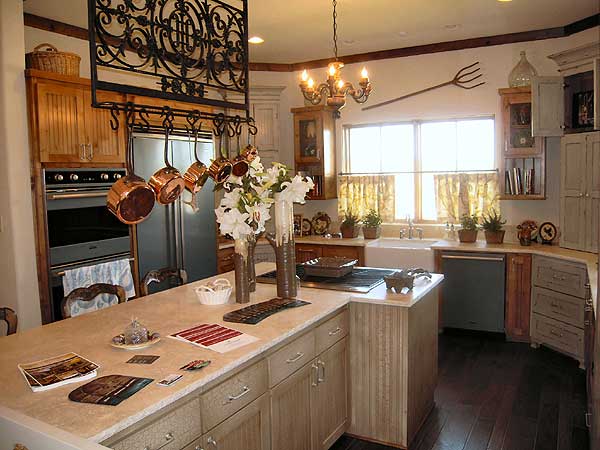

A free-standing island in the kitchen has a cook top and direct access to the utility room, powder room and the one and two-car garages.
The second story provides two family bedrooms with walk-in closets and full baths, and a bonus and game room.

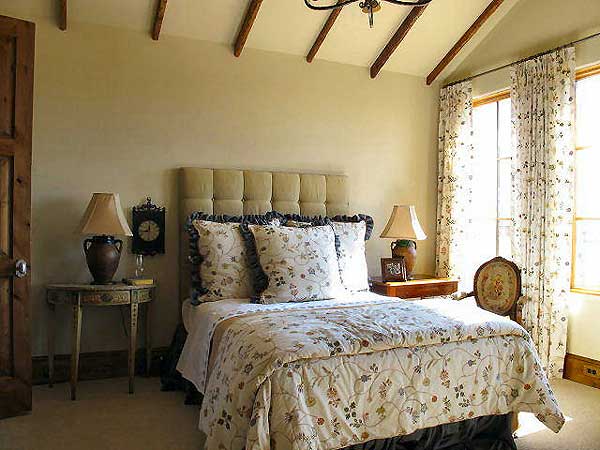

A guest suite with vaulted ceiling, full bath and walk-in closet, completes this luxury house plan.

Plan set includes the following:

1. Cover sheet

2. Foundation Plan

3. First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4. Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5. First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6. Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7. Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8. Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9. Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10. Sections page

11. Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

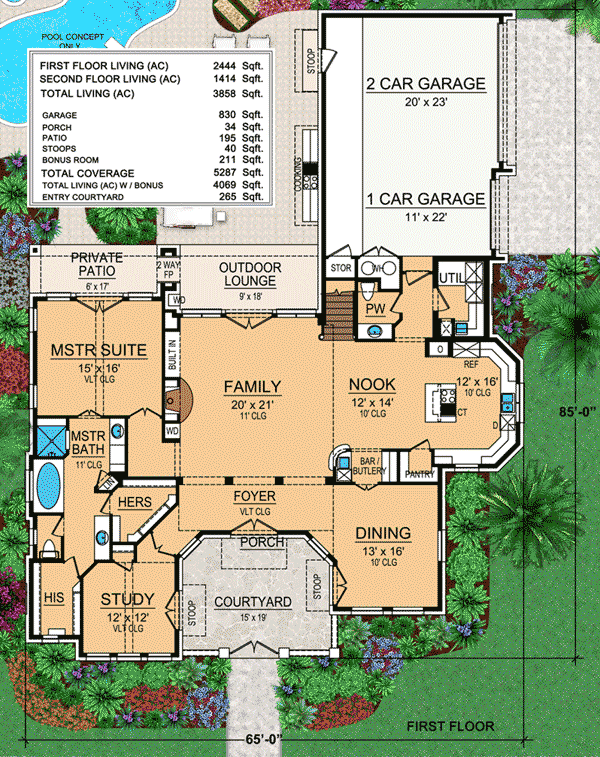

Hill Country Courtyard Stunner - 36377TX floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

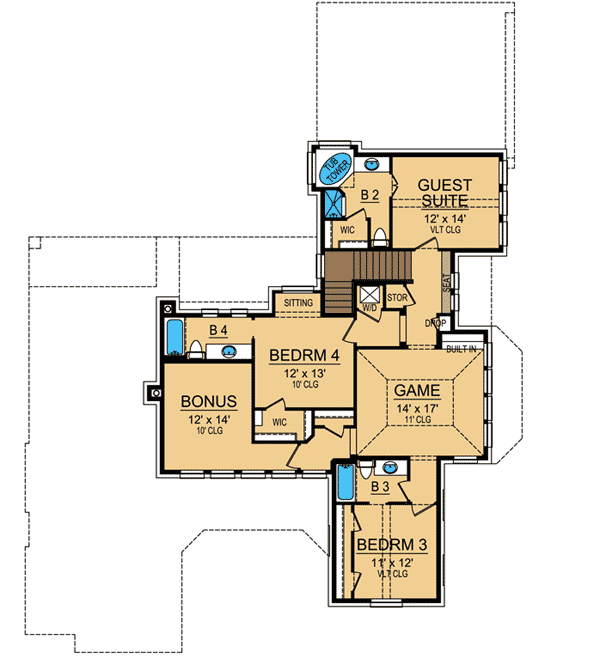

Hill Country Courtyard Stunner - 36377TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 3,858 sq. ft.
1st Floor: 2,444 sq. ft.
2nd Floor: 1,414 sq. ft.

Bonus: 211 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 65' 0"
Depth: 85' 0"
Max ridge height: 28' 0"

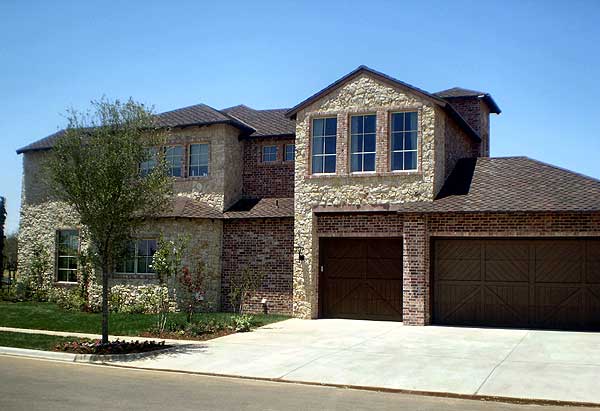

Garage

Type: Attached
Area: 830 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
