Hill Country Home Plan with Options

Plan 3090D

  • 2,088

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

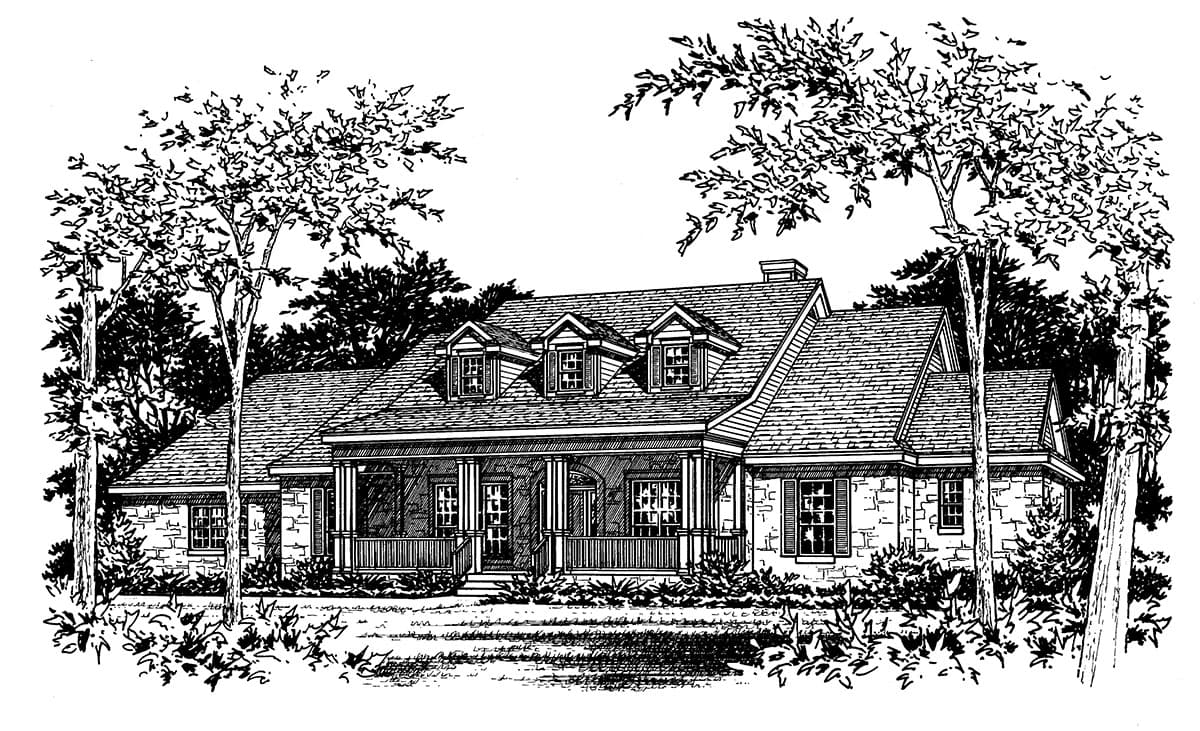

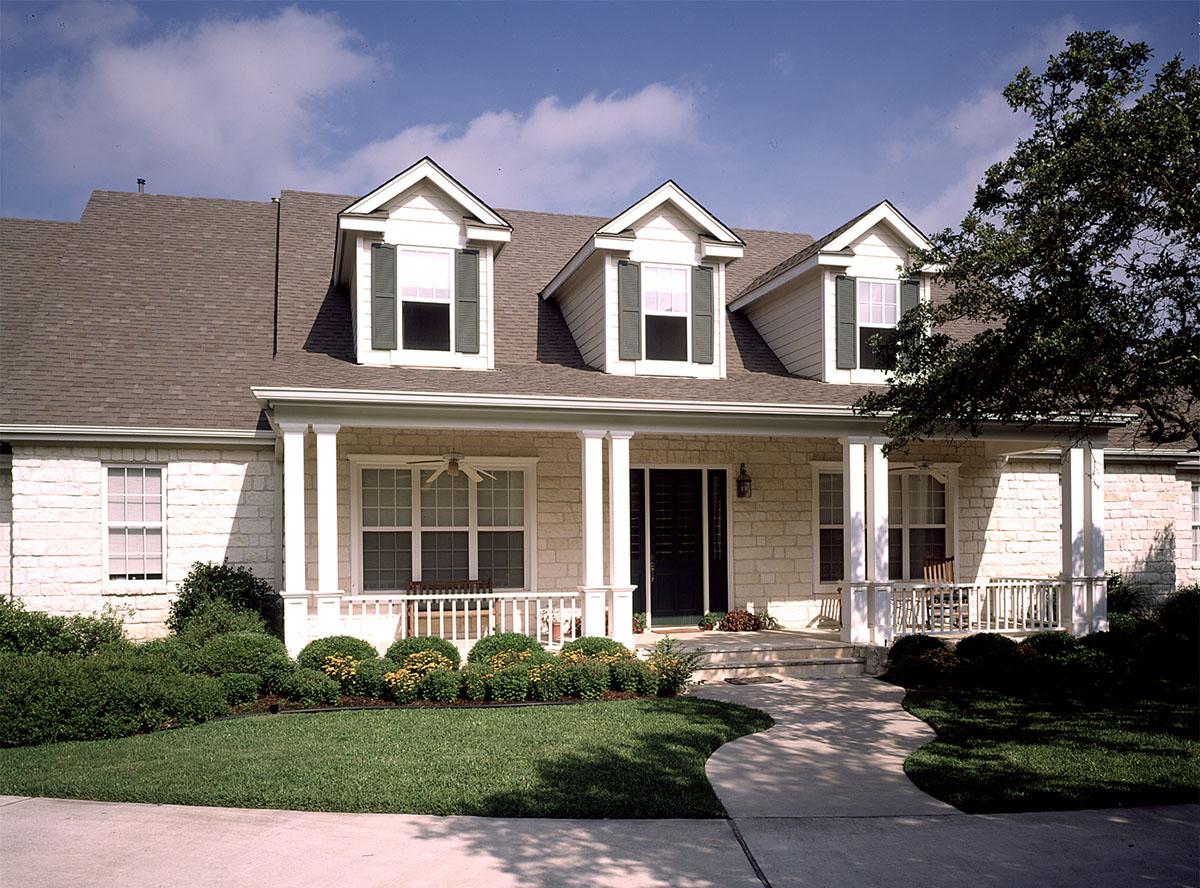

  • Three dormers and a covered front porch with double columns spotlight the front elevation of this hill country home plan. Window walls along much of the rear elevation make for wonderful backyard views.
  • The cathedral ceiling in the great room soars from 10' to 15'. The open living area revolves around the kitchen with its walk-in pantry and central island and bright morning room.
  • The private master suite has two walk-in closets and bath, featuring a corner spa tub and dual vanities. A nearby bedroom with its own bath could be used as a den or second study.
  • On the other side of the house, two more bedrooms share the third full bath.
  • Ceilings: 10' standard.
  • Related Plans: Gain a second floor game room with house plan 31028D. Get more room with house plan 31109D (2,506 sq. ft.) and 31097D (2,367 sq. ft.).
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

The plan set includes:
  • Foundation plan
  • Fully dimensioned floor plan

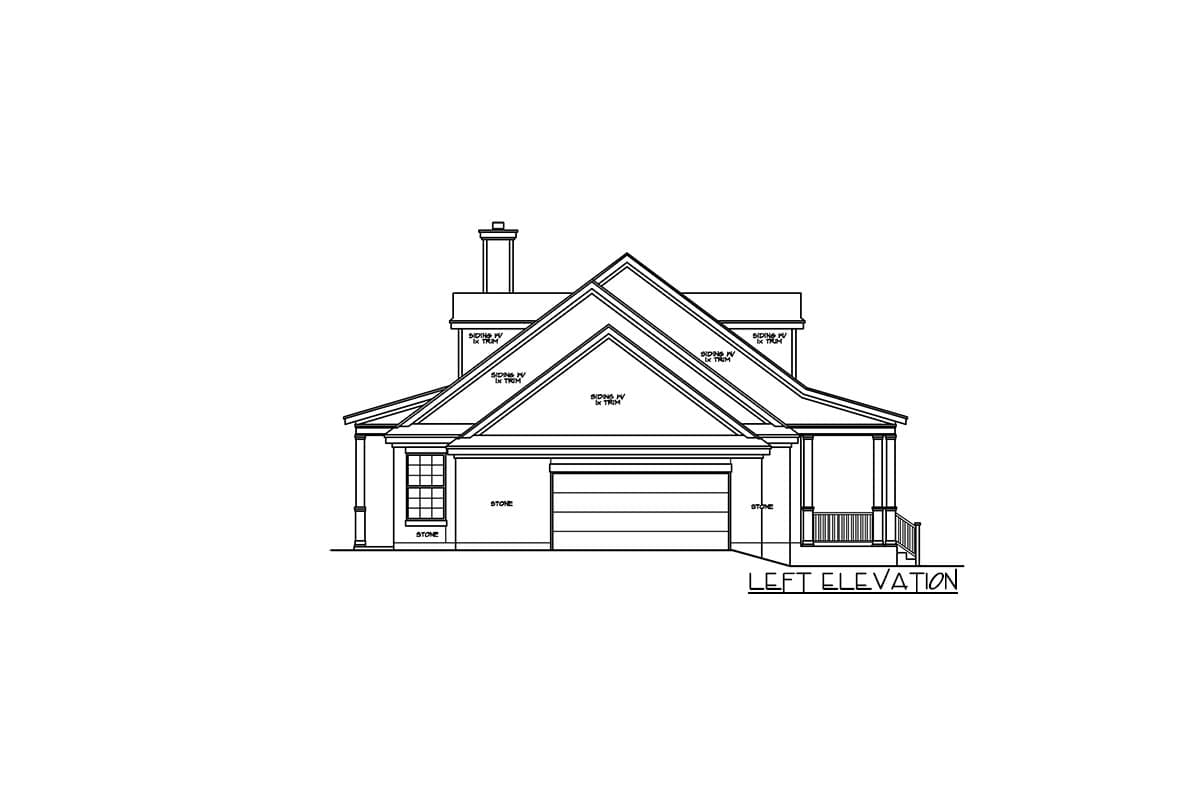

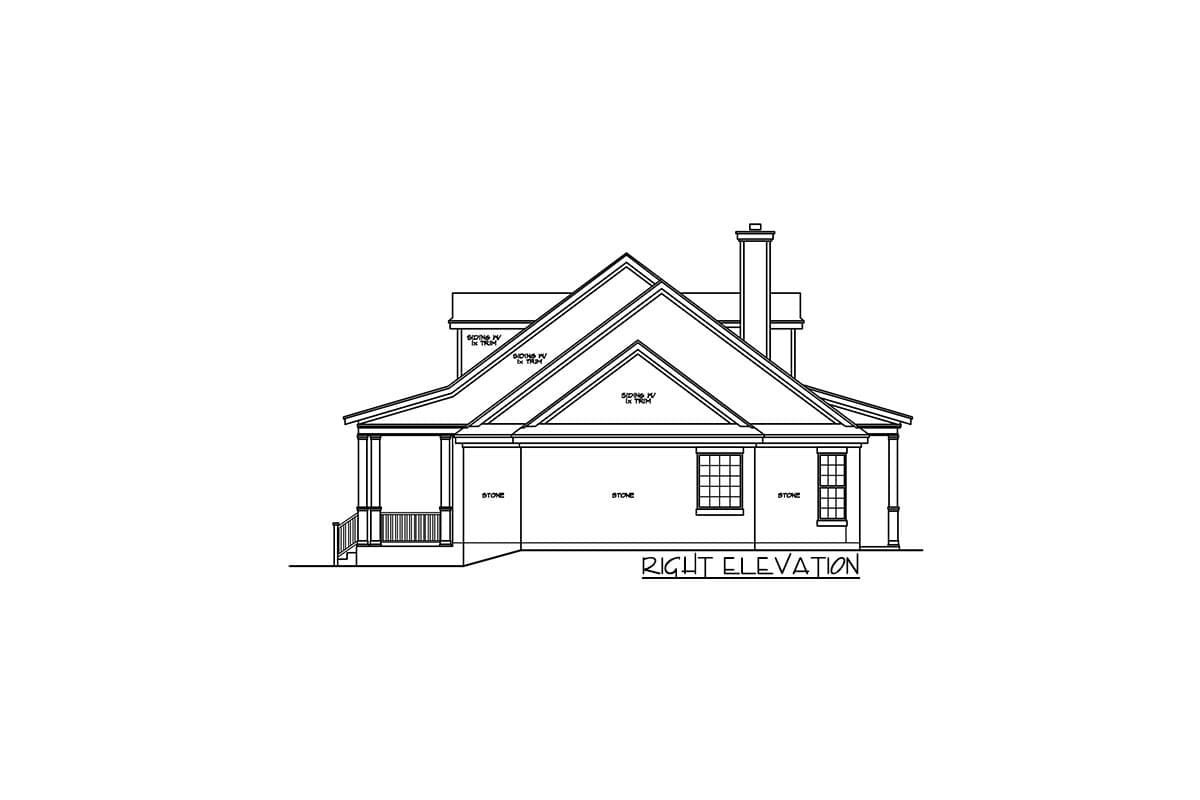

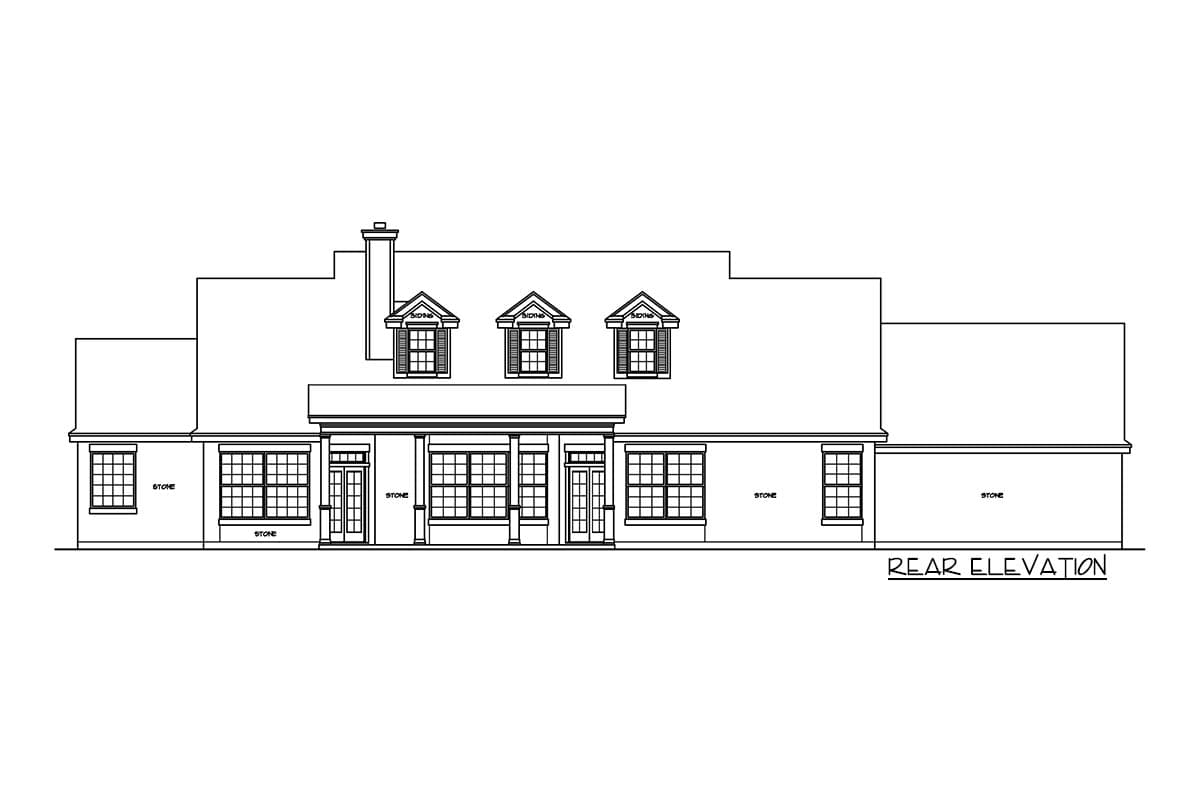

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

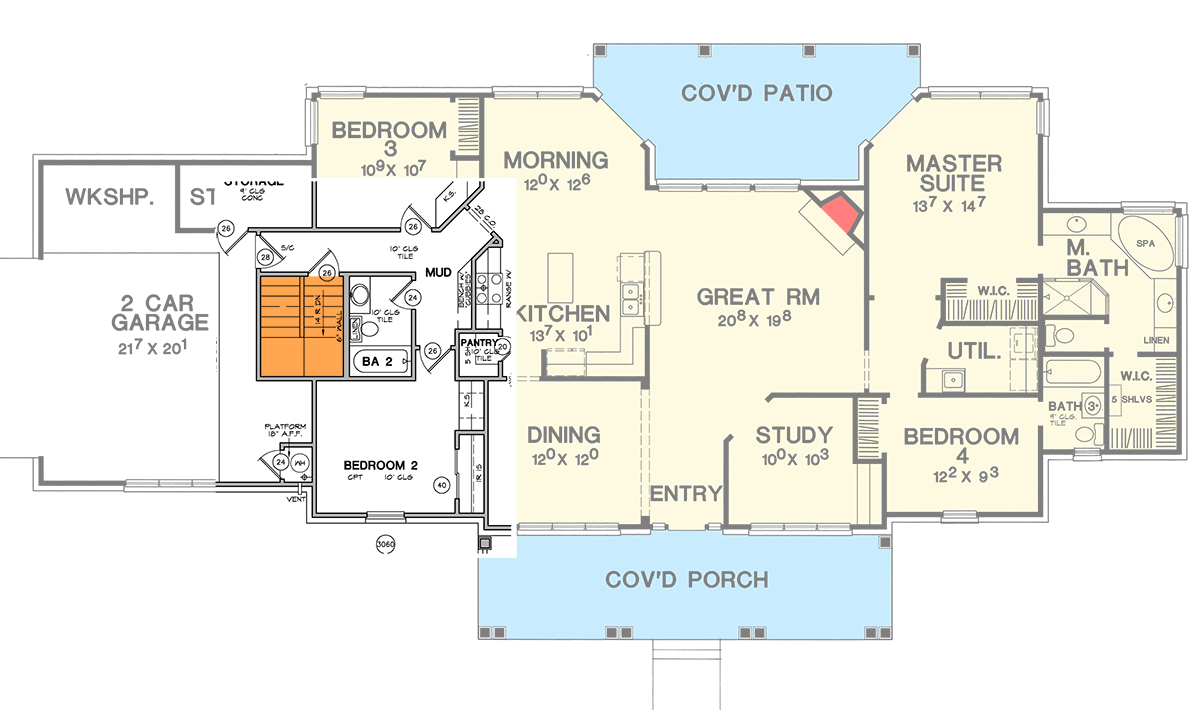

Floor Plan

Plan details



Hill Country Home Plan with Options

  • 2,088

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,445
  • 5 Sets $1,545
  • 8 Sets $1,645
  • CAD $2,445
  • View all purchase option online

About This Plan

  • Three dormers and a covered front porch with double columns spotlight the front elevation of this hill country home plan. Window walls along much of the rear elevation make for wonderful backyard views.
  • The cathedral ceiling in the great room soars from 10' to 15'. The open living area revolves around the kitchen with its walk-in pantry and central island and bright morning room.
  • The private master suite has two walk-in closets and bath, featuring a corner spa tub and dual vanities. A nearby bedroom with its own bath could be used as a den or second study.
  • On the other side of the house, two more bedrooms share the third full bath.
  • Ceilings: 10' standard.
  • Related Plans: Gain a second floor game room with house plan 31028D. Get more room with house plan 31109D (2,506 sq. ft.) and 31097D (2,367 sq. ft.).
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

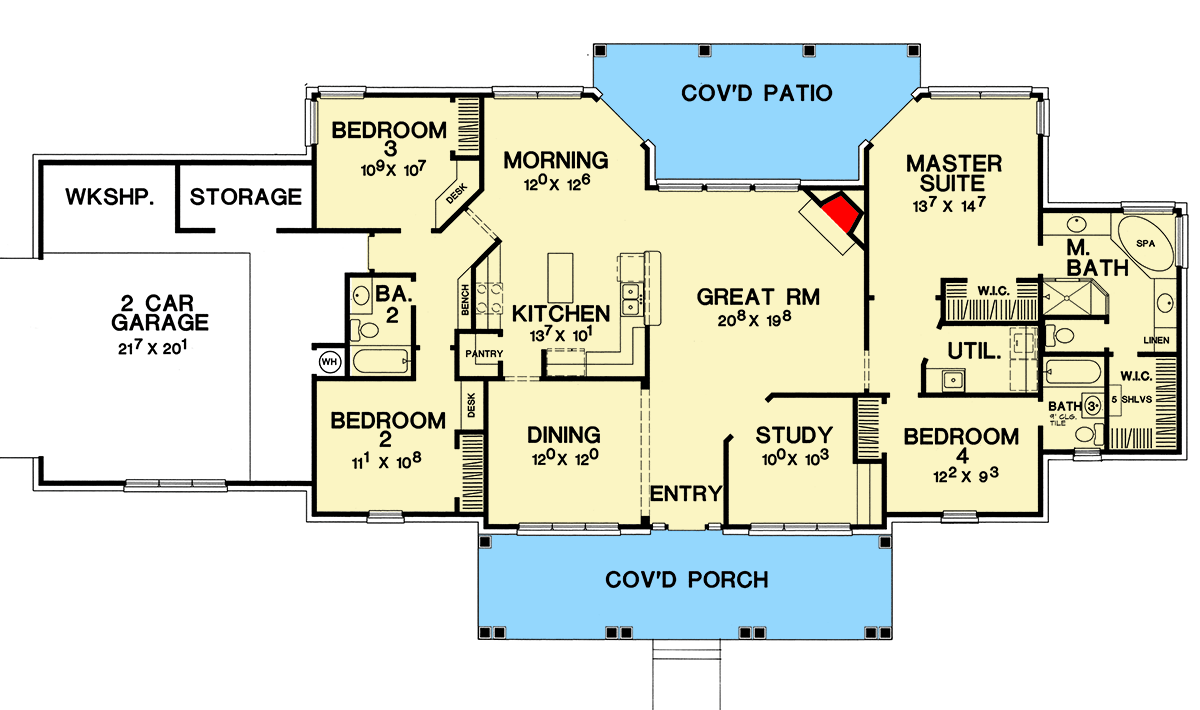

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,088 sq. ft.
  • 1st Floor: 2,088 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 92' 11"
  • Depth: 48' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 616 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
