Plan 36635TX Hill Country House Plan with Courtyard

2,768 3 2.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Hill Country House Plan with Courtyard

Plan 36635TX

  • 2,768

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This hill country house plan features 3-bedrooms, a study, and a courtyard within 2,738 square feet of living space.
  • The 2-car garage extends from the front of the design. When entering from the garage, discover two coat closets across from a walk-in pantry, making grocery unloading that much easier.
  • U-shaped cabinets surround a prep island in the kitchen, which opens to a breakfast nook that overlooks the courtyard. A formal dining area near the foyer offers an additional space to gather with family for meals.
  • The bedrooms are located towards the rear of the layout. The master suite is joined by a 5-fixture bathroom and walk-in closet.
  • Bedrooms 2 and 3 across the hall are of equal size and share a Jack-and-Jill bath.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

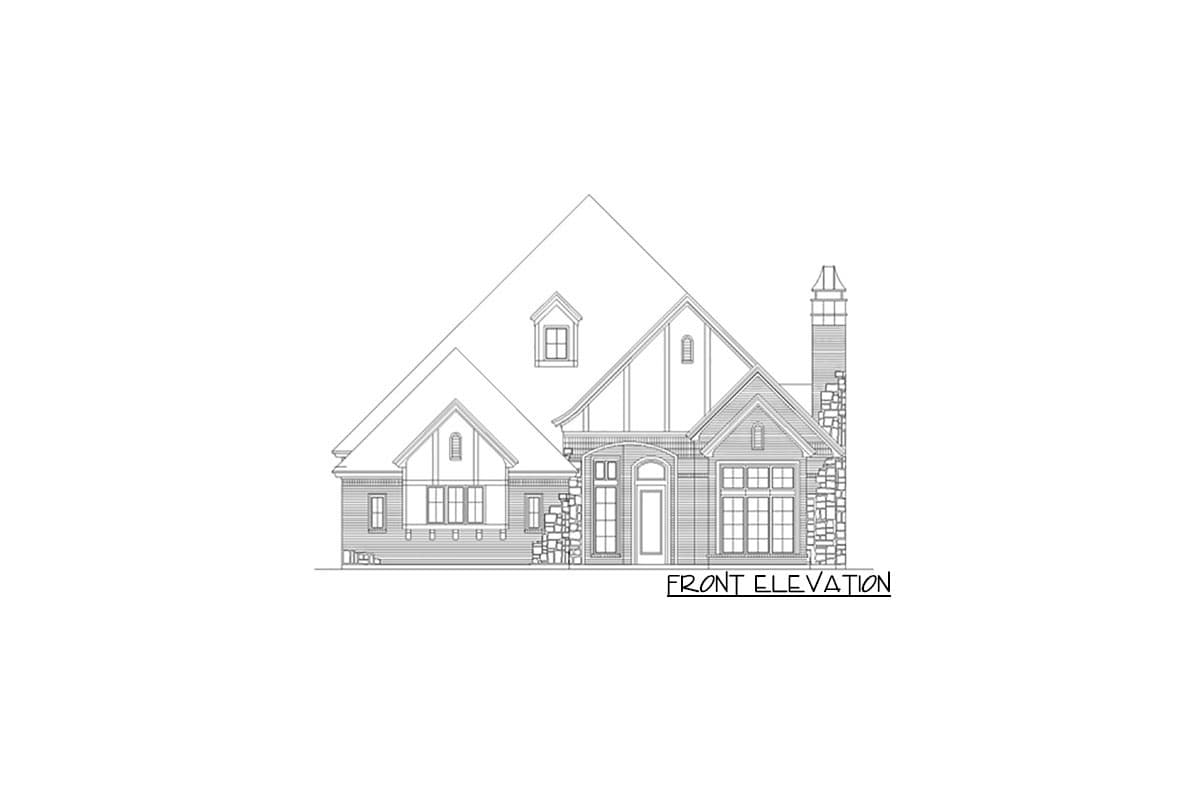

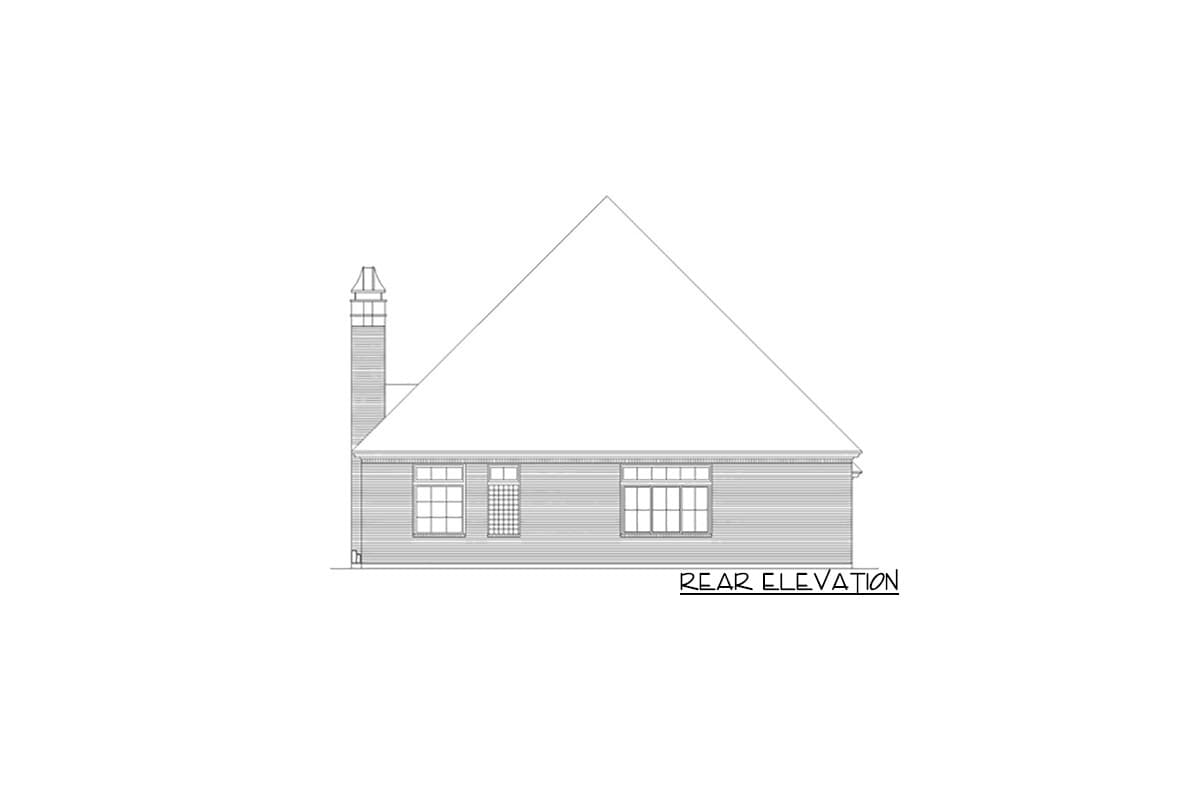

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

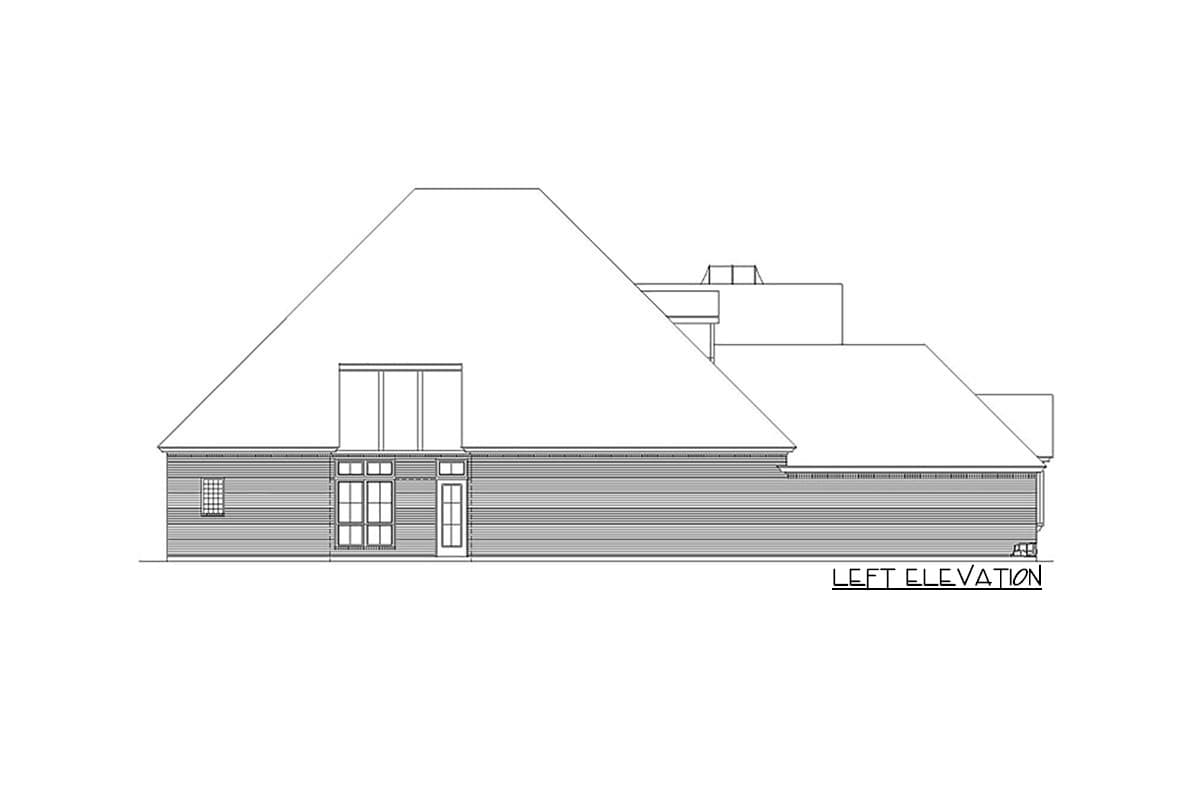

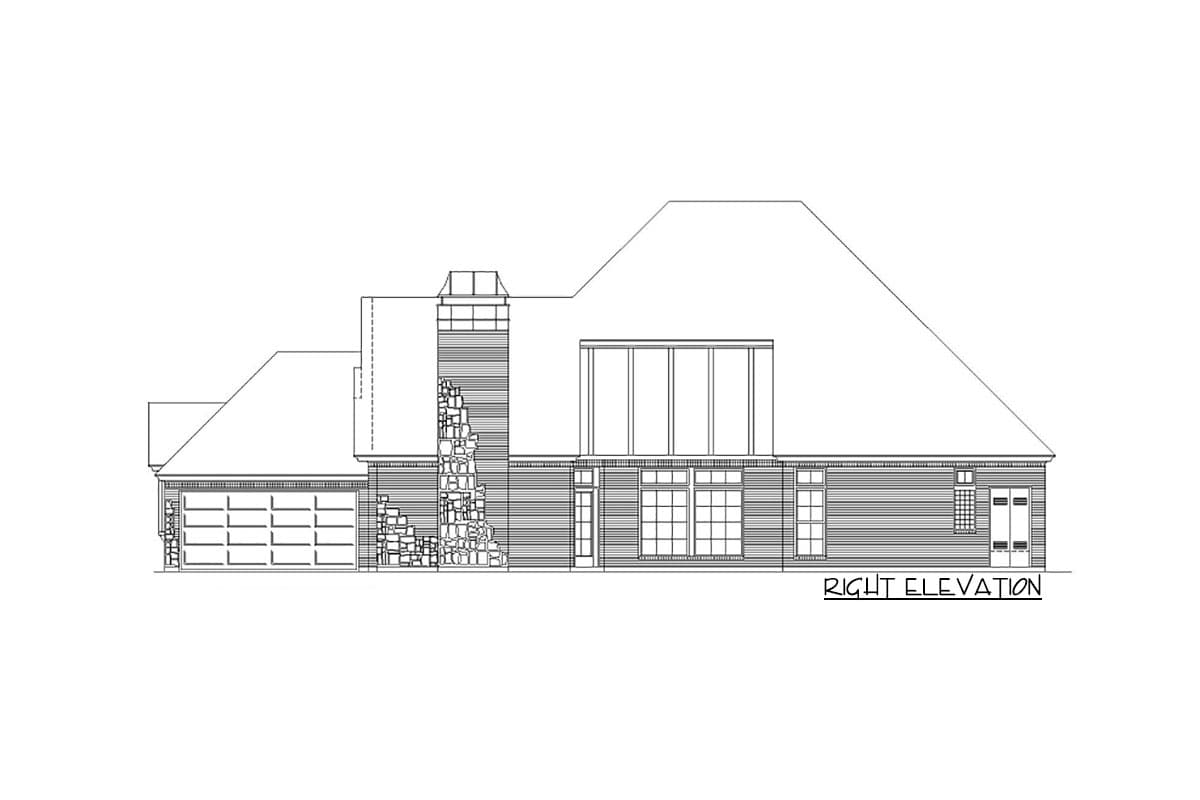

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

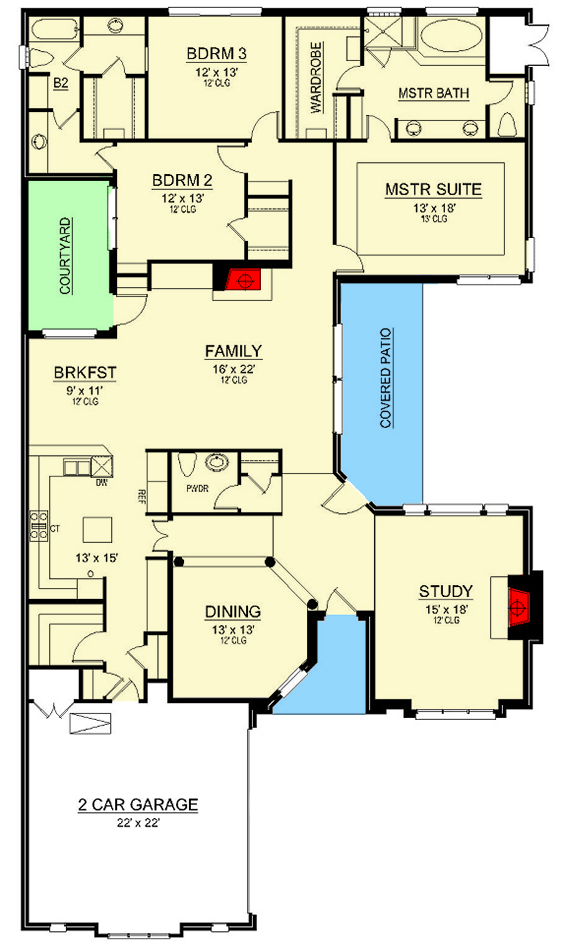

Hill Country House Plan with Courtyard - 36635TX floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,768 sq. ft.
  • 1st Floor: 2,768 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 51' 0"
  • Depth: 91' 0"
  • Max ridge height: 38' 0"

Garage

  • Type: Attached
  • Area: 585 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Architectural Style

Special features

Hill Country House Plan with Courtyard

  • 2,768

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,075
  • 5 Sets $1,275
  • CAD - Single-Build $1,620
  • View all purchase option online

About This Plan

  • This hill country house plan features 3-bedrooms, a study, and a courtyard within 2,738 square feet of living space.
  • The 2-car garage extends from the front of the design. When entering from the garage, discover two coat closets across from a walk-in pantry, making grocery unloading that much easier.
  • U-shaped cabinets surround a prep island in the kitchen, which opens to a breakfast nook that overlooks the courtyard. A formal dining area near the foyer offers an additional space to gather with family for meals.
  • The bedrooms are located towards the rear of the layout. The master suite is joined by a 5-fixture bathroom and walk-in closet.
  • Bedrooms 2 and 3 across the hall are of equal size and share a Jack-and-Jill bath.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,768 sq. ft.
  • 1st Floor: 2,768 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 51' 0"
  • Depth: 91' 0"
  • Max ridge height: 38' 0"

Garage

  • Type: Attached
  • Area: 585 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"
