Plan 36519TX
Hill Country House Plan with Media Room and Game Room
Heated S.F.
5,321
Beds
5
Baths
5.5
Stories
2
Cars
4
Floor Plan

Plan 36519TX

Main Level
slide image 0
2nd Floor
slide image 1

Plan 36519TX

1-800-854-7852

1-262-521-4596

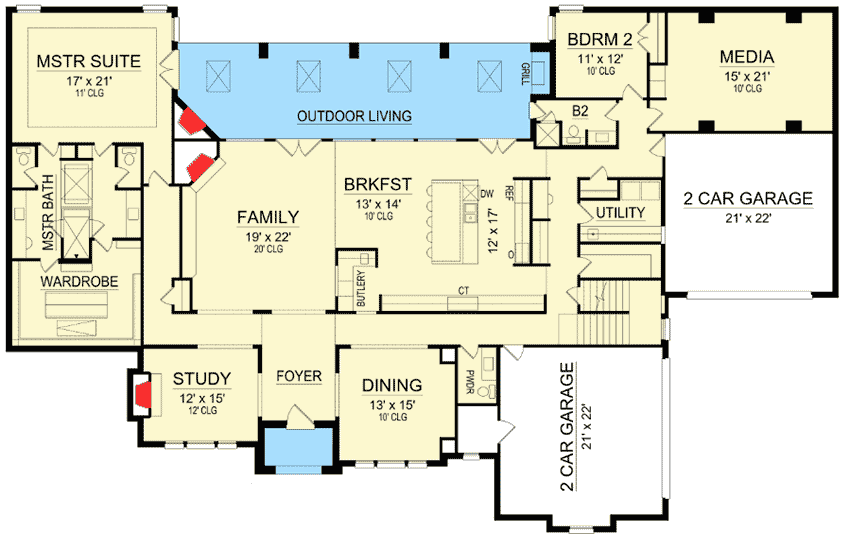

Main Level
floor plan image Main Level

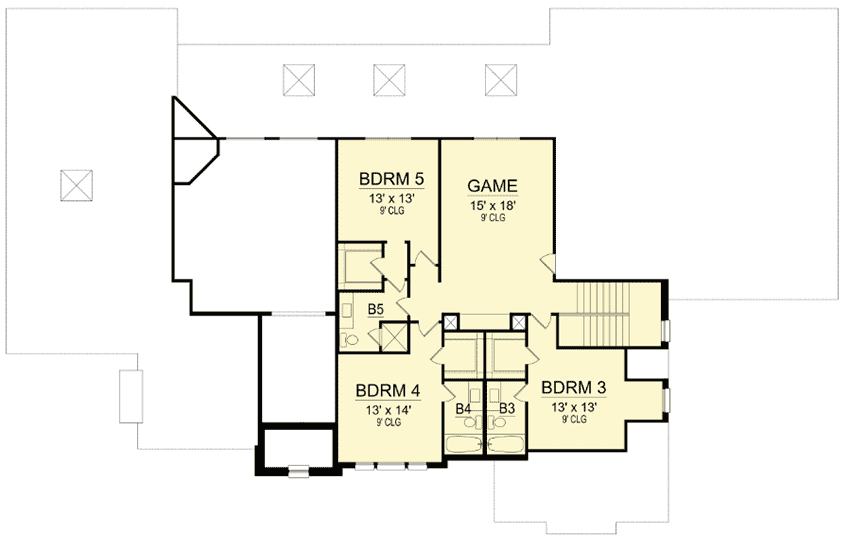

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Entertain inside and out with this amazing Hill Country house plan where family and friends can enjoy the big outdoor living area.

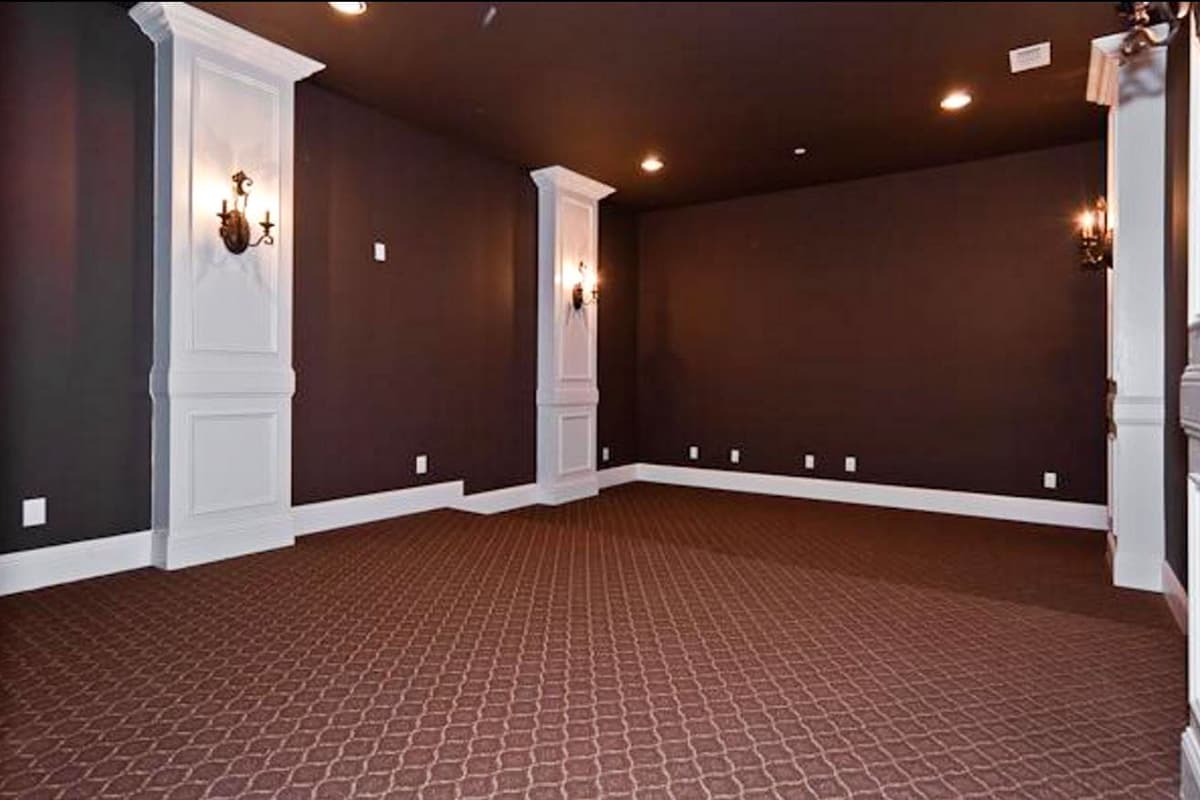

  • Or party in the second floor game room or watch movies in the media room.

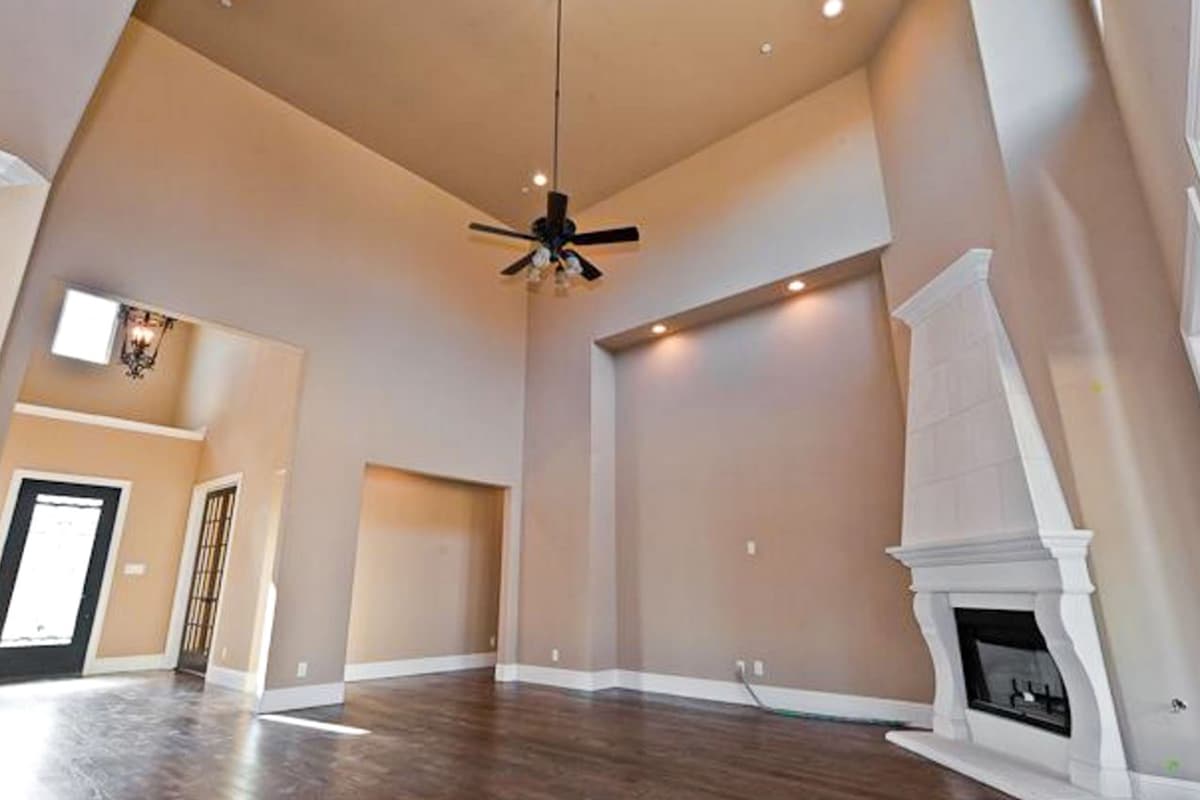

  • A 20' high ceiling tops the big family room - another favorite hang out spot.

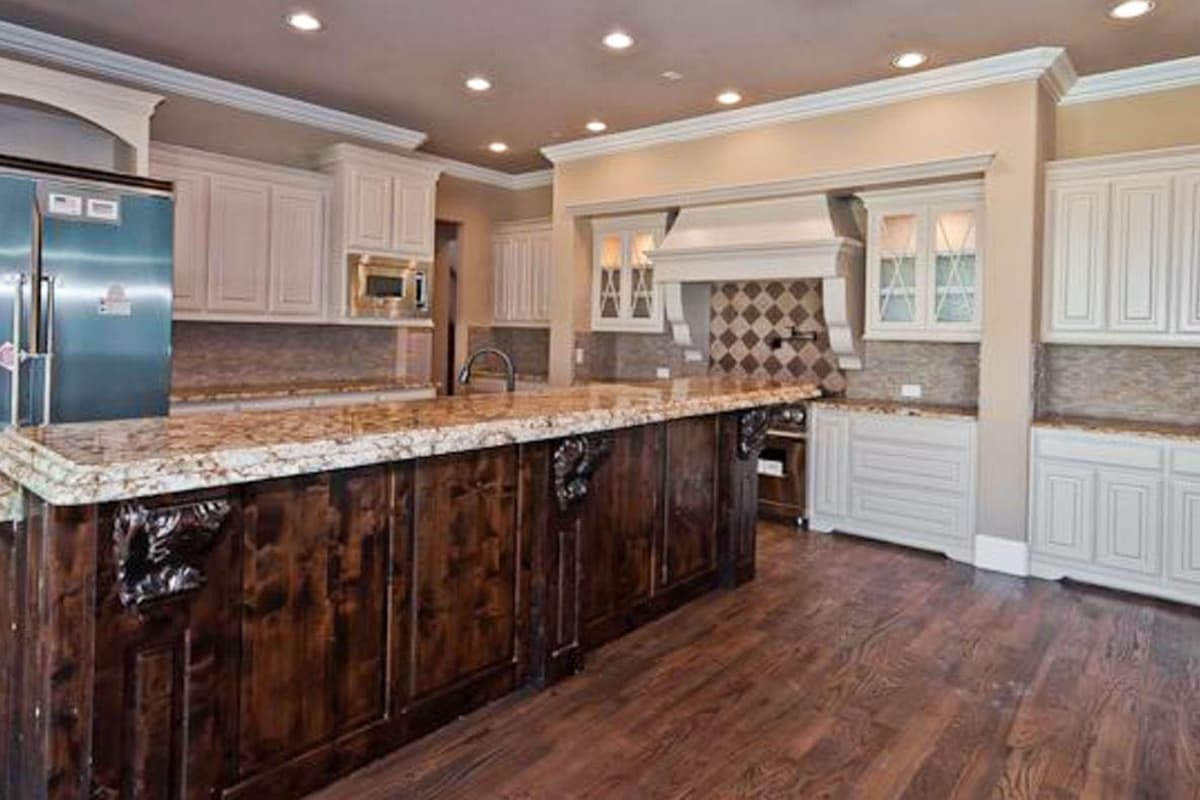

  • Designed for more than one cook, the huge kitchen has a tremendous amount of counter and prep work spaces.

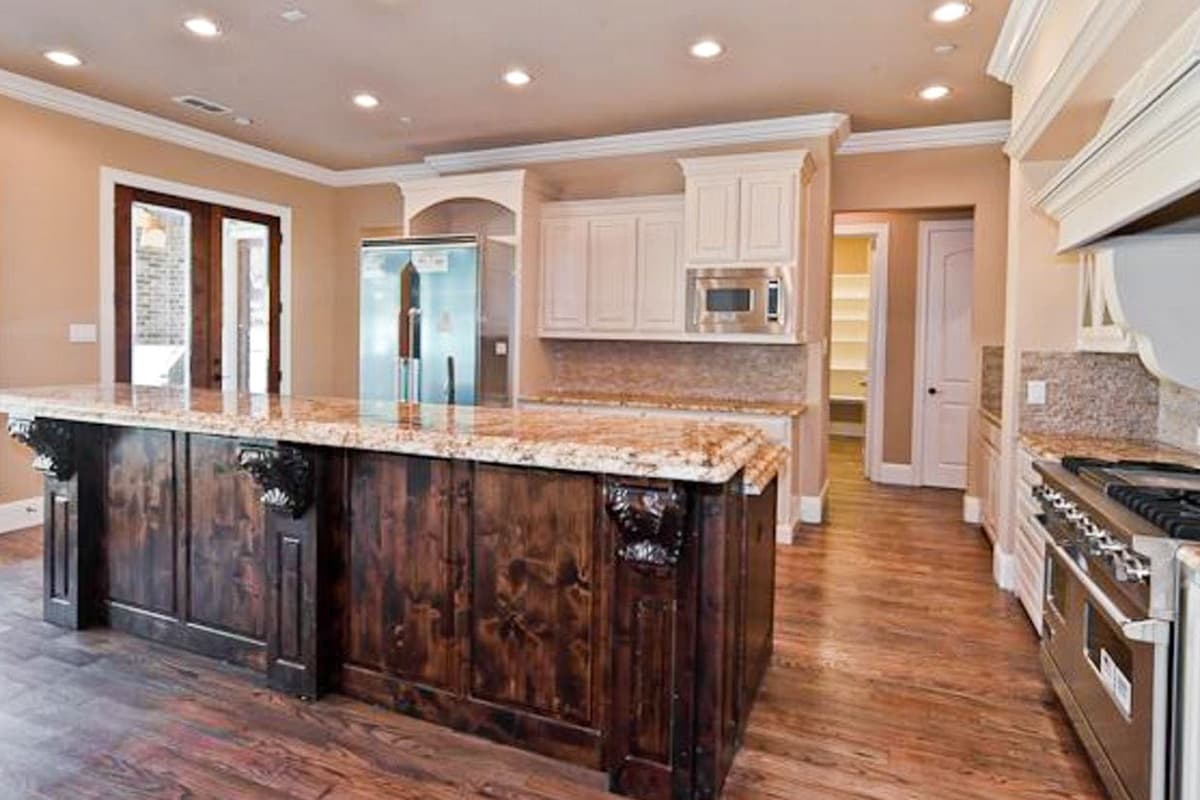

  • You can seat 5 people at the huge kitchen island that also boasts both a walk-in pantry and a butler's pantry.

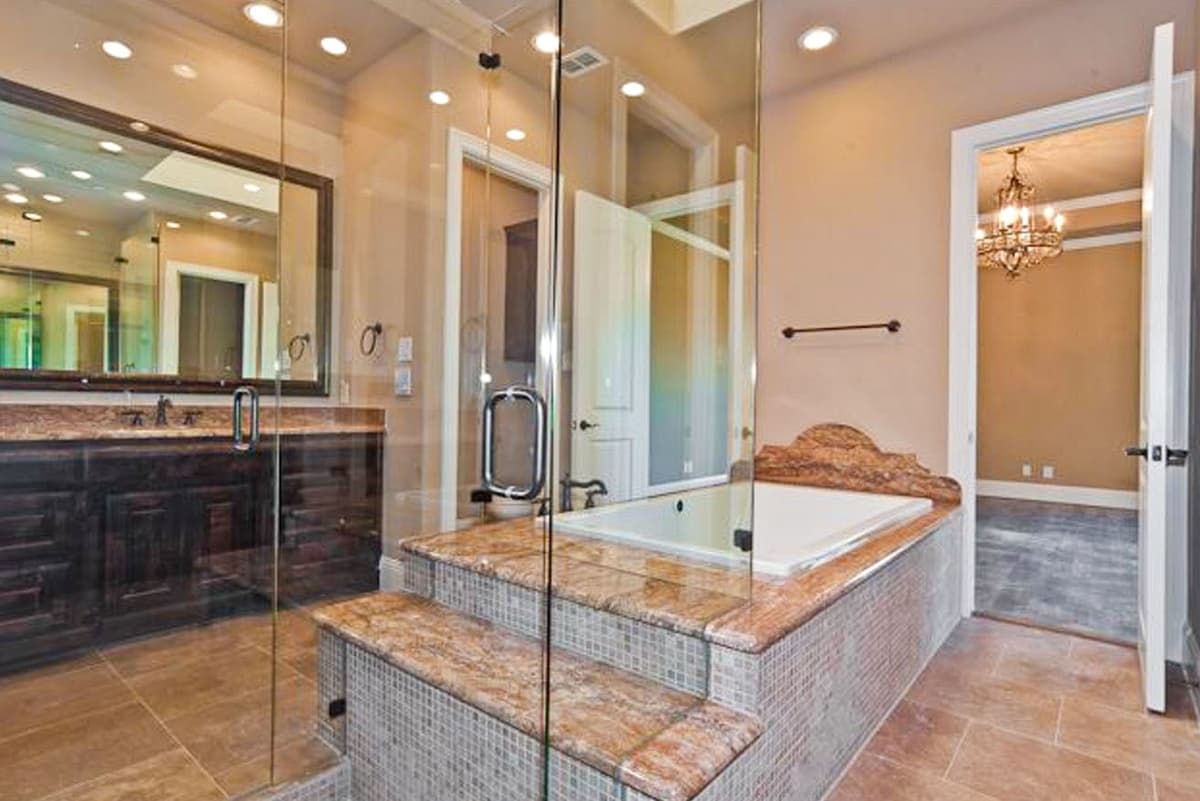

  • In the first floor master suite, there are his and her bathroom sections with a shared walk-in shower and big soaking tub.
  • All three bedrooms on the second floor have walk-in closets and easy access to the game room.
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

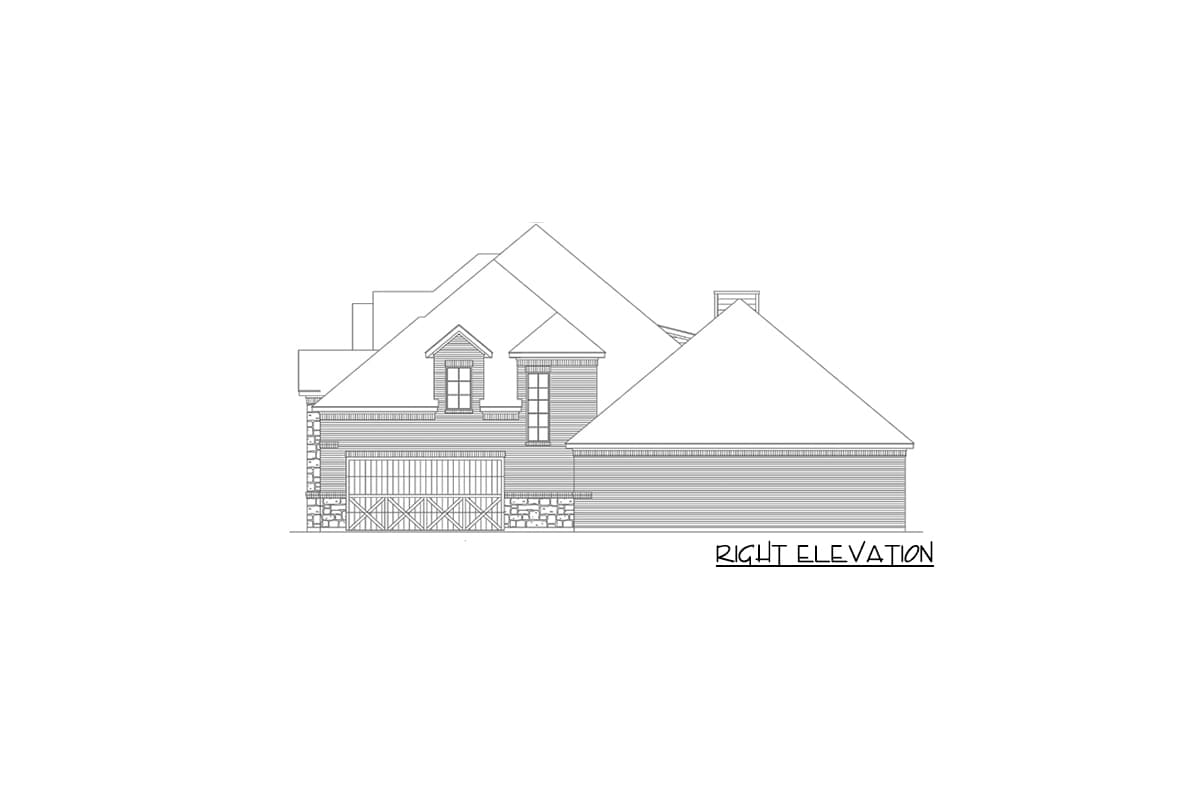

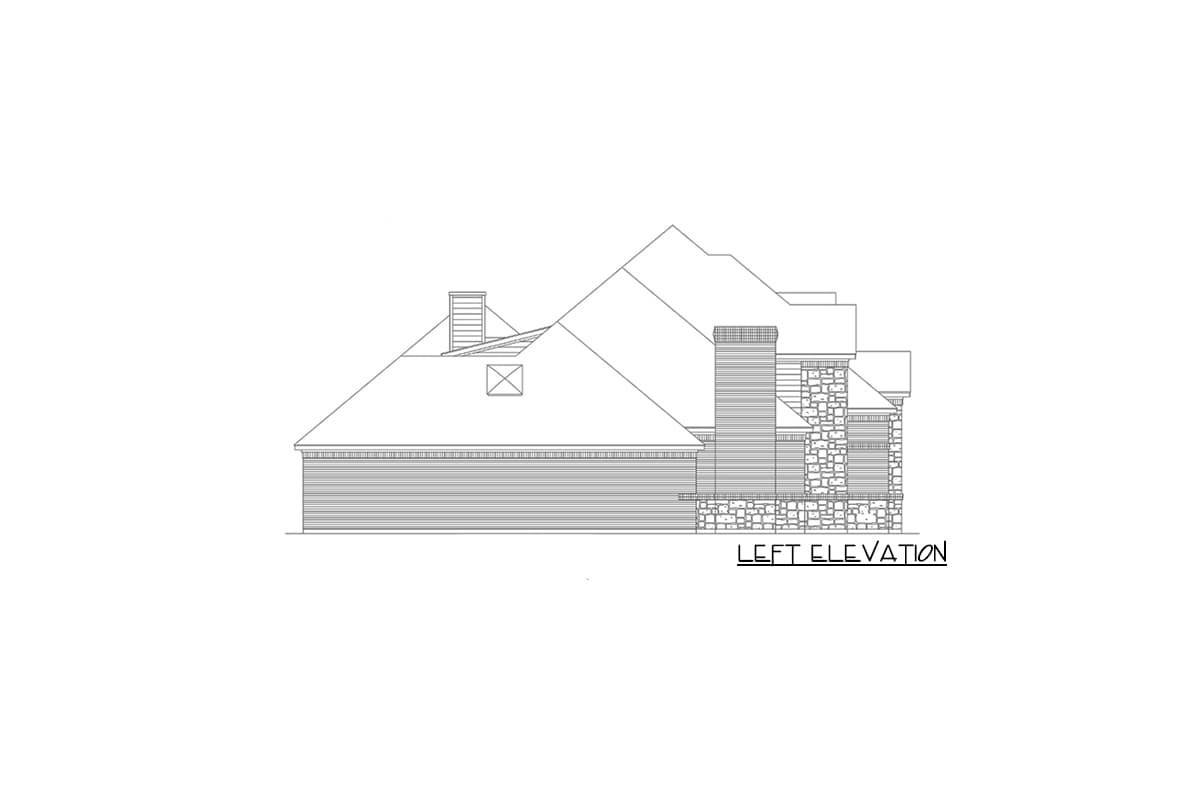

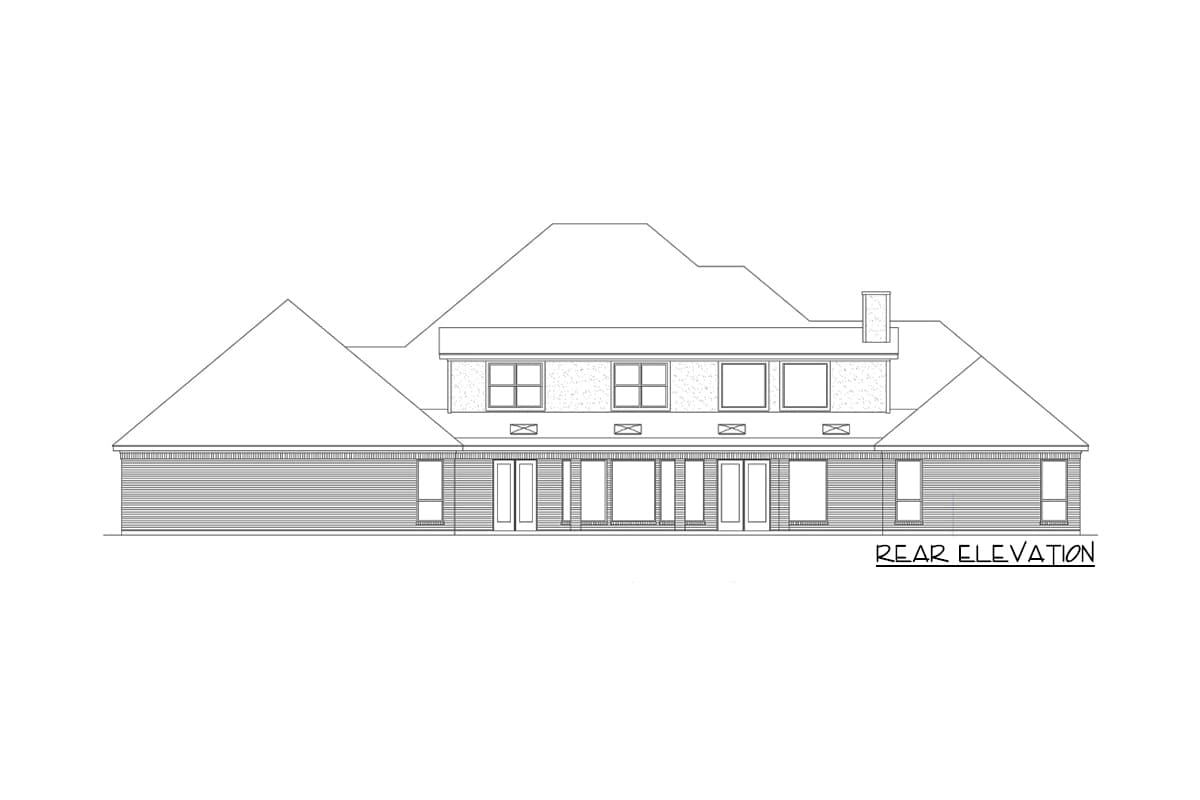

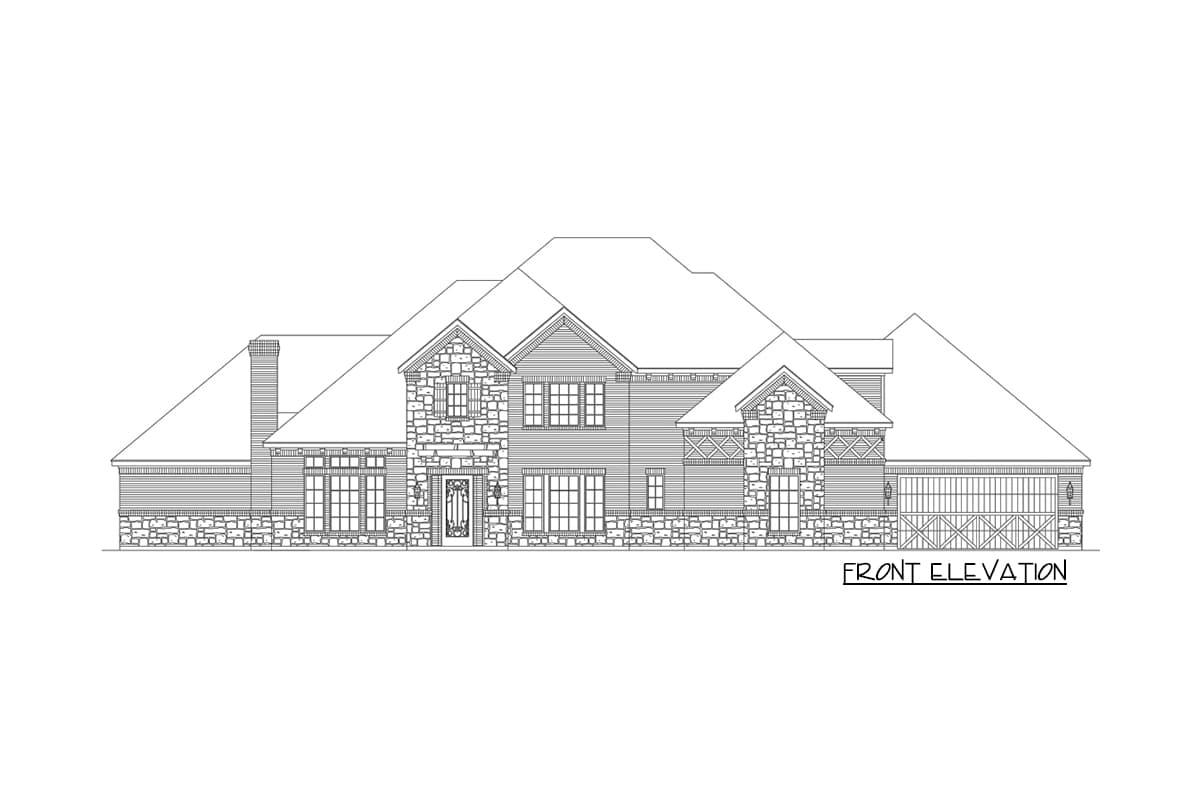

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

5,321 sq. ft.

1st Floor

3,960 sq. ft.

2nd Floor

1,361 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

108' 0"

Depth

68' 0"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

2082 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Hill Country

Traditional

Special Features

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

5,321 sq. ft.

1st Floor

3,960 sq. ft.

2nd Floor

1,361 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

108' 0"

Depth

68' 0"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

2082 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Hill Country

Traditional

Special Features

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Plan Collections

Photo Gallery
