Plan 444174GDN Hillside House Plan with 20'7" Cathedral Ceiling

3,608 3-4 4.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Hillside House Plan with 20'7" Cathedral Ceiling

Plan 444174GDN

  • 3,608

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

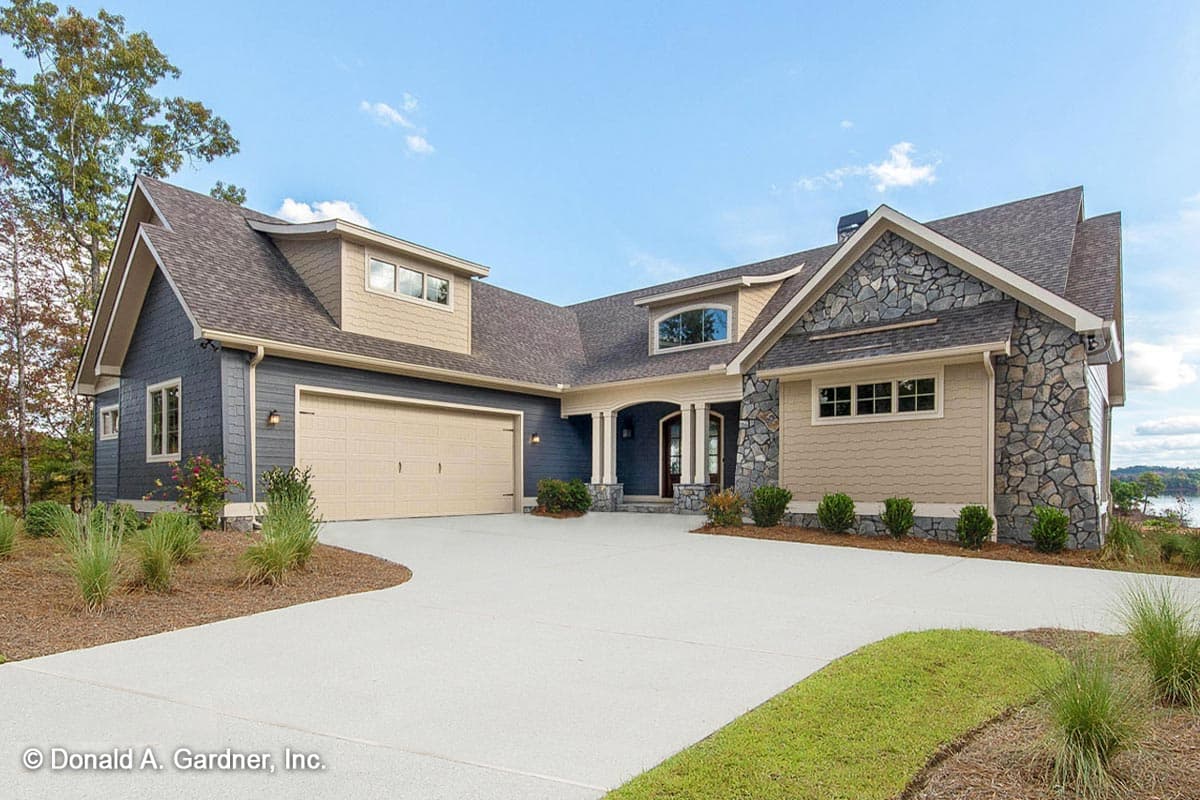

  • The exterior of this hillside walkout home plan is rich with detail, from the stone arches to the sloped shed dormer over the garage.
  • A beamed 20'7" cathedral ceiling tops the living area from the island kitchen to the cozy fireplace with built-in cabinetry.
  • The bedroom/study displays a coffered ceiling and has its own private bath, while the master bedroom enjoys a cozy fireplace and porch access in this home plan.
  • The lower level is perfect for guests with two bedrooms, bathrooms, and a spacious rec room with fireplace and wet bar.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

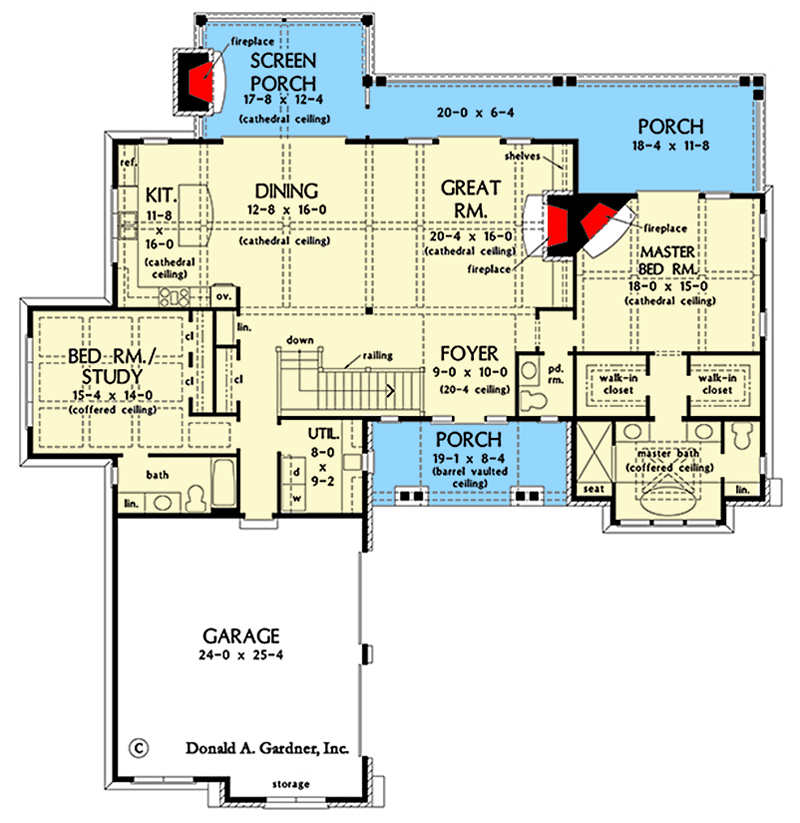

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Hillside House Plan with 20'7" Cathedral Ceiling - 444174GDN floor plan - Main Level

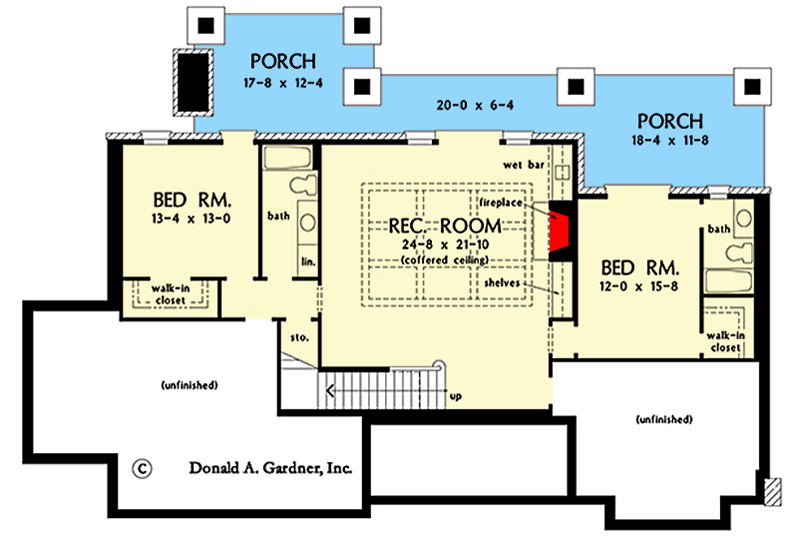

Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Hillside House Plan with 20'7" Cathedral Ceiling - 444174GDN floor plan - Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,608 sq. ft.
  • Lower Level: 1,453 sq. ft.
  • 1st Floor: 2,155 sq. ft.
  • Screened Porch: 231 sq. ft.
  • Porch, Combined: 534 sq. ft.
  • Porch, Rear: 341 sq. ft.
  • Porch, Front: 158 sq. ft.
  • Basement Unfinished: 867 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6
  • Optional Type(s): 2x6

Dimensions

  • Width: 72' 4"
  • Depth: 65' 0"
  • Max ridge height: 39' 0"

Garage

  • Type: Attached
  • Area: 694 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Hillside House Plan with 20'7" Cathedral Ceiling

  • 3,608

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,955
  • PDF - Single-Build $2,155
  • 5 Sets + PDF $2,455
  • CAD Unlimited + PDF $4,310
  • View all purchase option online

About This Plan

  • The exterior of this hillside walkout home plan is rich with detail, from the stone arches to the sloped shed dormer over the garage.
  • A beamed 20'7" cathedral ceiling tops the living area from the island kitchen to the cozy fireplace with built-in cabinetry.
  • The bedroom/study displays a coffered ceiling and has its own private bath, while the master bedroom enjoys a cozy fireplace and porch access in this home plan.
  • The lower level is perfect for guests with two bedrooms, bathrooms, and a spacious rec room with fireplace and wet bar.

Floor Plans

  • Main Level

  • Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,608 sq. ft.
  • Lower Level: 1,453 sq. ft.
  • 1st Floor: 2,155 sq. ft.
  • Screened Porch: 231 sq. ft.
  • Porch, Combined: 534 sq. ft.
  • Porch, Rear: 341 sq. ft.
  • Porch, Front: 158 sq. ft.
  • Basement Unfinished: 867 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6
  • Optional Type(s): 2x6

Dimensions

  • Width: 72' 4"
  • Depth: 65' 0"
  • Max ridge height: 39' 0"

Garage

  • Type: Attached
  • Area: 694 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
Plan 444174GDN
View this and more for this plan by visiting www.architechtecturaldesigns.com/444174GDN
|
