Plan 82305KA Hip Roofed Southern Cottage Under 1500 Square Feet with 3 Bedrooms

1,476 3 2 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Hip Roofed Southern Cottage Under 1500 Square Feet with 3 Bedrooms

Plan 82305KA

  • 1,476

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 1

    Cars

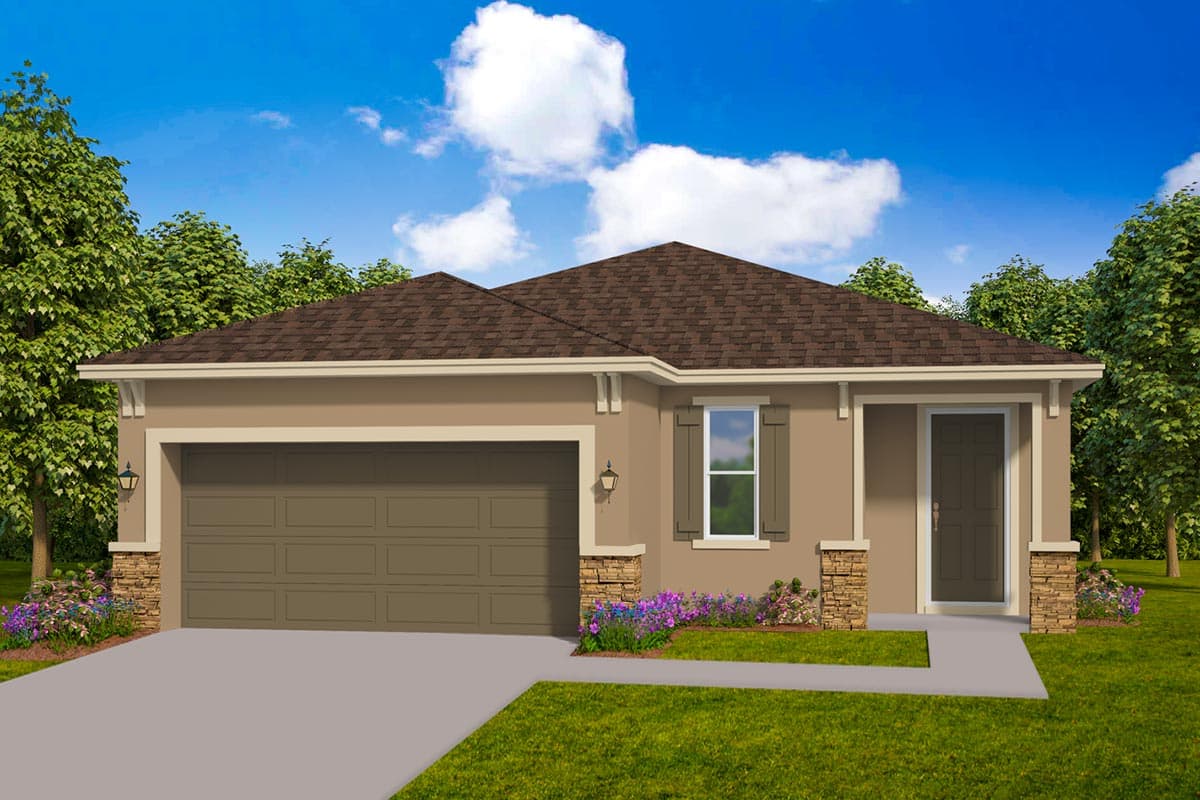

  • Stone detailing, decorative brackets and a hip roof give this 3 bed house plan great curb appeal. At just 1,477 square feet of heated living and a 35' by 60' footprint, this home plan is a great one to build where budget is a major concern.
  • Bedrooms line up behind the 2-car garage with the master suite in back.

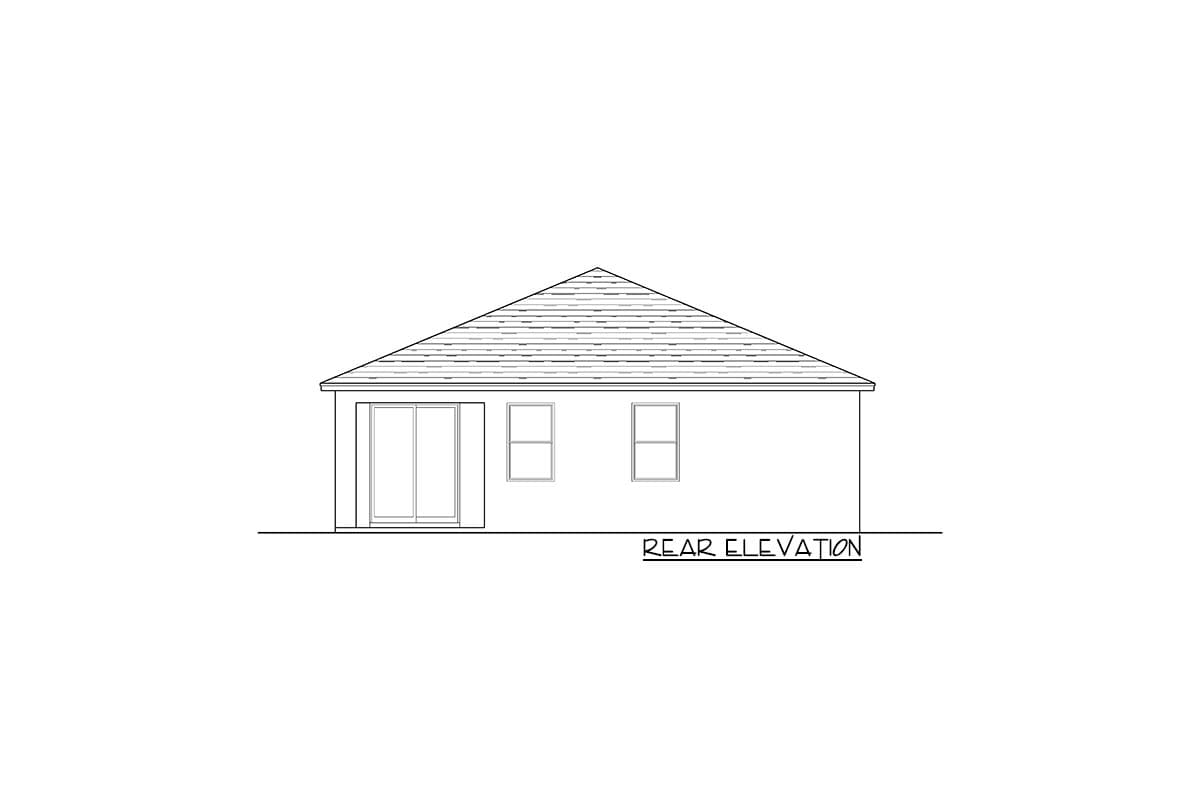

  • The right side of the home is open front to back in an entertaining-friendly layout. Sliding doors on the back wall take you to a covered lanai.
  • Related Plan: Get an alternate exterior with house plan 82304KA.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

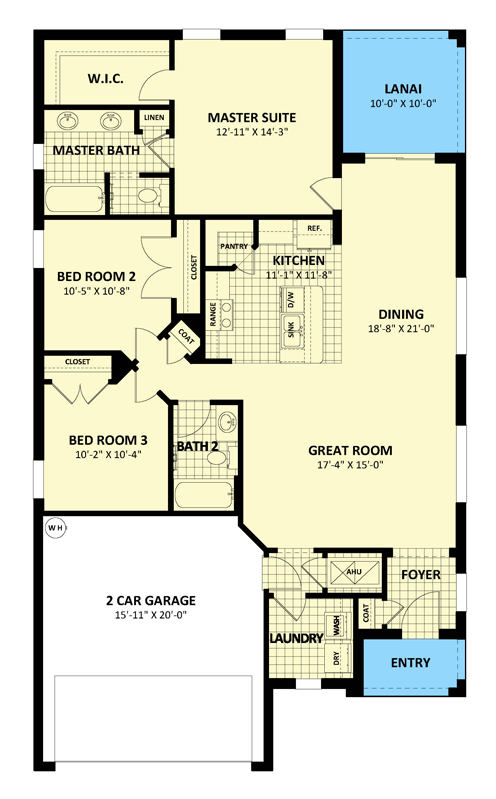

Hip Roofed Southern Cottage Under 1500 Square Feet with 3 Bedrooms - 82305KA floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,476 sq. ft.
  • 1st Floor: 1,476 sq. ft.
  • Porch, Rear: 100 sq. ft.
  • Porch, Front: 39 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 35' 0"
  • Depth: 60' 0"
  • Max ridge height: 17' 1"

Garage

  • Type: Attached
  • Area: 386 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Hip Roofed Southern Cottage Under 1500 Square Feet with 3 Bedrooms

  • 1,476

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $1,500
  • CAD - Single-Build $1,800
  • PDF - Single-Build $1,800
  • View all purchase option online

About This Plan

  • Stone detailing, decorative brackets and a hip roof give this 3 bed house plan great curb appeal. At just 1,477 square feet of heated living and a 35' by 60' footprint, this home plan is a great one to build where budget is a major concern.
  • Bedrooms line up behind the 2-car garage with the master suite in back.
  • The right side of the home is open front to back in an entertaining-friendly layout. Sliding doors on the back wall take you to a covered lanai.
  • Related Plan: Get an alternate exterior with house plan 82304KA.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,476 sq. ft.
  • 1st Floor: 1,476 sq. ft.
  • Porch, Rear: 100 sq. ft.
  • Porch, Front: 39 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 35' 0"
  • Depth: 60' 0"
  • Max ridge height: 17' 1"

Garage

  • Type: Attached
  • Area: 386 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
Plan 82305KA
