Plan: 36227TX

His and Her Baths

6,349 5 7 2 3
Pageloader

His and Her Baths

Plan 36227TX

  • 6,349

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Stories

  • 3

    Cars

  • All the charm of the French countryside can be found in this magnificent European home that is loaded with amenities.
  • Transom windows across the front bring in extra light to brighten the study with its fireplace and coffered ceilings.
  • The foyer soars up two stories and a barrel vaulted arch introduces the family room beyond.
  • Built-ins flank the fireplace and a wet bar makes entertaining easy.
  • The spacious gourmet Kitchen has a large center island with sink and a walk-in pantry.
  • Located on the first floor, the master suite is grand as well as large with a sitting area set in a bay.
  • His and her baths share a two-sided shower and they each have their own walk-in closet.
  • Set off by itself, a first floor guest suite has a huge bath and walk-in closet and would function well as a very comfortable in-law suite.
  • Three more bedrooms can be found on the second floor along with a bonus room, loft and office.
  • The generously-sized game room has a wet bar and a half bath close by for convenience. It opens to a covered balcony.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



His and Her Baths

  • 6,349

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,295
  • 5 Sets $3,495
  • CAD $4,950
  • View all purchase option online

About This Plan

  • All the charm of the French countryside can be found in this magnificent European home that is loaded with amenities.
  • Transom windows across the front bring in extra light to brighten the study with its fireplace and coffered ceilings.
  • The foyer soars up two stories and a barrel vaulted arch introduces the family room beyond.
  • Built-ins flank the fireplace and a wet bar makes entertaining easy.
  • The spacious gourmet Kitchen has a large center island with sink and a walk-in pantry.
  • Located on the first floor, the master suite is grand as well as large with a sitting area set in a bay.
  • His and her baths share a two-sided shower and they each have their own walk-in closet.
  • Set off by itself, a first floor guest suite has a huge bath and walk-in closet and would function well as a very comfortable in-law suite.
  • Three more bedrooms can be found on the second floor along with a bonus room, loft and office.
  • The generously-sized game room has a wet bar and a half bath close by for convenience. It opens to a covered balcony.

Floor Plans

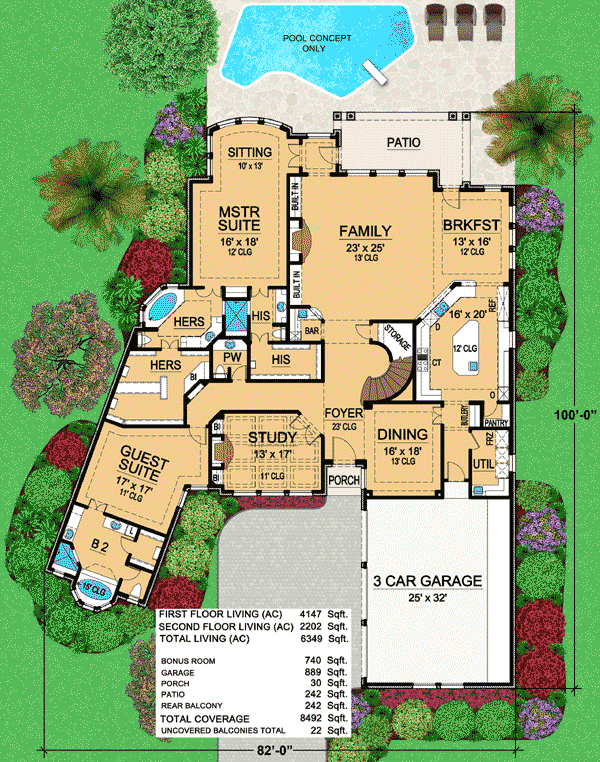

  • Main Level

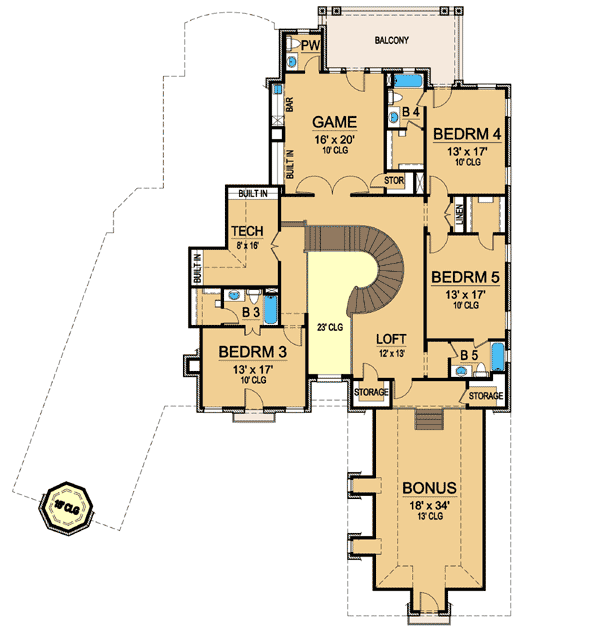

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,349 sq. ft.
  • 1st Floor: 4,147 sq. ft.
  • 2nd Floor: 2,202 sq. ft.
  • Bonus: 740 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 82' 0"
  • Depth: 100' 0"
  • Max ridge height: 43' 0"

Garage

  • Type: Attached
  • Area: 889 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • European
  • French Country

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Loft
  • MBR Sitting Area
  • Media-Game-Home Theater
  • PDF
