Home Plan with Flex Study and Family Bedrooms Upstairs

Home Plan with Flex Study and Family Bedrooms Upstairs

Plan 710324BTZ

  • 2,128

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Combining the best of Colonial, Victorian, and country elements, this versatile home plan has a wrapping covered porch that makes an enticing entrance and opens to the grand foyer.
  • The living room is on the right, adorned with decorative columns; just ahead, the family room awaits with abundant natural light and a cozy hearth.
  • The kitchen makes meals for any occasion a snap, serving the breakfast bay and dining room with ease. Tucked to the rear, a bedroom (or study) is ideal for guests.
  • Family sleeping quarters are located upstairs, and include two bedrooms that share a full bath, and a master suite with a tray ceiling and vaulted bath.
  • A bonus room may be added over the garage for an additional bedroom, home gym, or child's playroom.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



Home Plan with Flex Study and Family Bedrooms Upstairs

  • 2,128

    Heated s.f.

  • 3 - 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,280
  • 8 Sets $1,380
  • PDF - multi-use $1,380
  • Reproducible Set $1,445
  • CAD - multi-use $2,630
  • View all purchase option online

About This Plan

  • Combining the best of Colonial, Victorian, and country elements, this versatile home plan has a wrapping covered porch that makes an enticing entrance and opens to the grand foyer.
  • The living room is on the right, adorned with decorative columns; just ahead, the family room awaits with abundant natural light and a cozy hearth.
  • The kitchen makes meals for any occasion a snap, serving the breakfast bay and dining room with ease. Tucked to the rear, a bedroom (or study) is ideal for guests.
  • Family sleeping quarters are located upstairs, and include two bedrooms that share a full bath, and a master suite with a tray ceiling and vaulted bath.
  • A bonus room may be added over the garage for an additional bedroom, home gym, or child's playroom.

Floor Plans

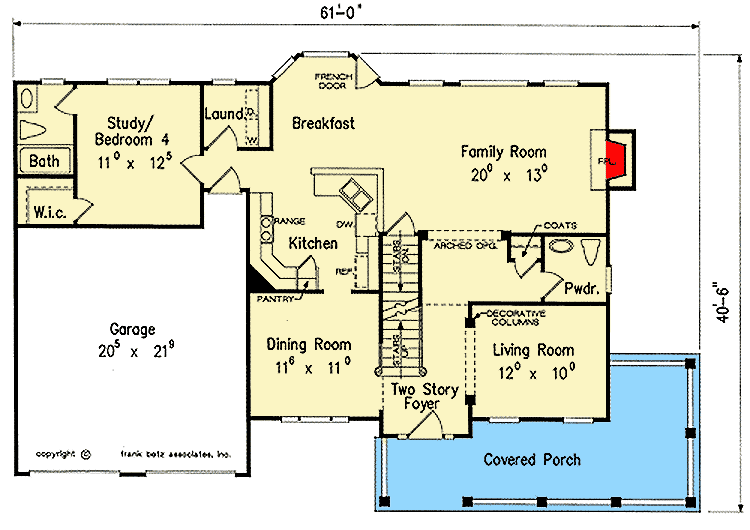

  • Main Level

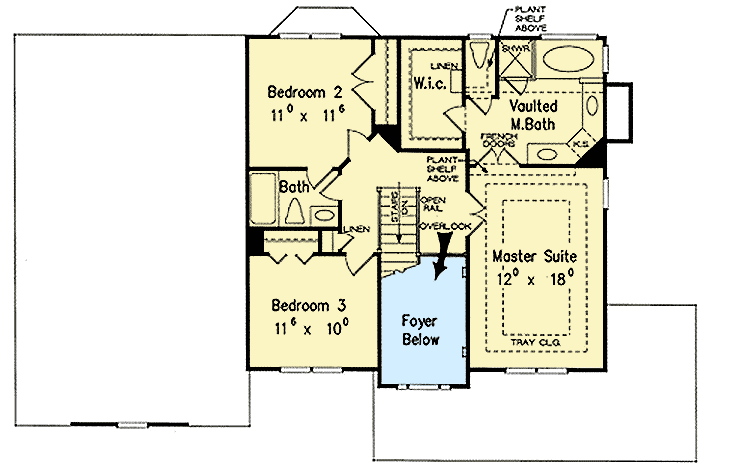

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,128 sq. ft.
  • 1st Floor: 1,257 sq. ft.
  • 2nd Floor: 871 sq. ft.
  • Bonus: 444 sq. ft.
  • Basement Unfinished: 1,257 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 0"
  • Depth: 40' 6"
  • Max ridge height: 31' 9"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Stick
