Plan 59858ND
Home Theater and a Loft
Heated S.F.
2,338
Beds
4
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • Stone, stucco and a tile roof complement this Tuscan house plan beautifully.

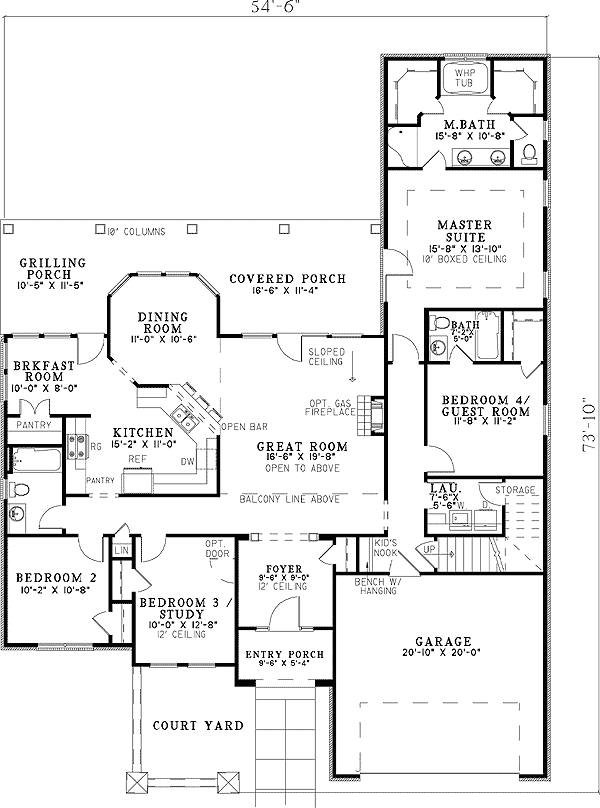

  • Inside, custom features include interior columns, a two-story great room with gas fireplace and a big grilling porch out back.
  • From the kitchen you can see it all, as the sink is nicely placed with views of the dining room, great room and back porch.
  • Use bedroom 3 as a study by adding an optional door off the foyer.
  • The delightful master suite is sure to please with its tray ceiling, twin walk-in closets and a big whirlpool tub.

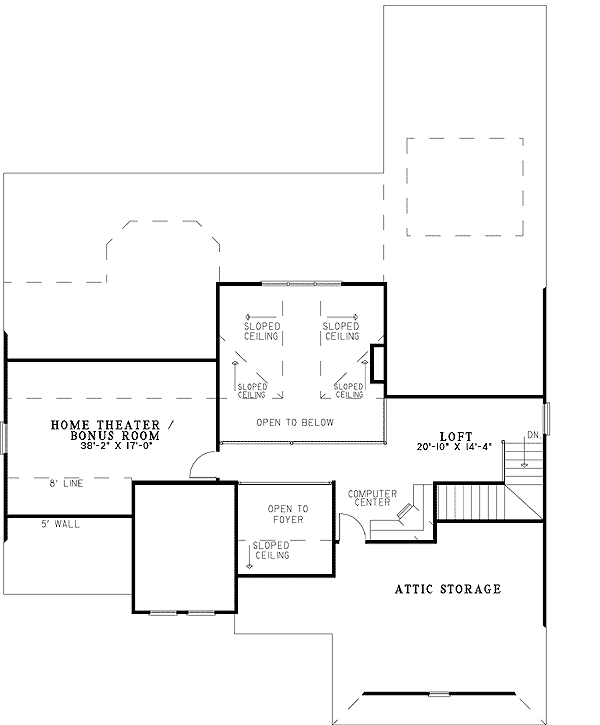

  • On the upper floor, spend time with the family in the huge home theater room or relax in the loft or surf the web in the computer nook.
  • The open rail balcony gives you a double-sided view of both the great room and the foyer.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Home Theater and a Loft

  • 2,338

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,338 sq. ft.
  • 1st Floor: 2,082 sq. ft.
  • 2nd Floor: 256 sq. ft.

Dimensions

  • Width: 54' 6"
  • Depth: 73' 10"
  • Max ridge height: 25' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 435 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
